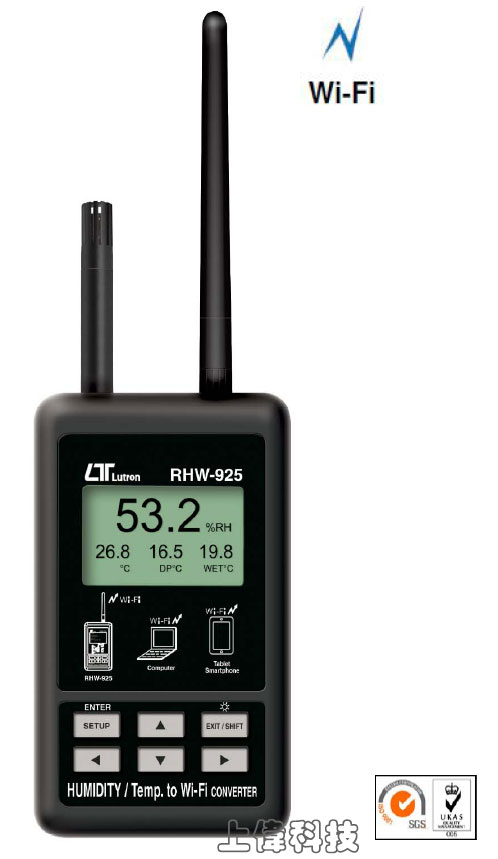

RHW-925
無線 Wi-Fi 溫溼度計
特性
可以通過WiFi將溫度和濕度數據發送到所需的設備。
利用該公司自由軟件開發的智能手機或平板電腦做APP數據採集記錄。
WiFi工作模式： Access Point(AP) or Client or Ethernet 模式
I / O端子：
1.直流9V電源輸入
基本設置：
1.網絡模式，2. SSID，3.密碼，4.
IP地址，5.端口，6.網關地址。
同時顯示 Humidity(%RH), Temperature, Dew point Temp, Wet bulb Temp..的讀值在 LCD 上
濕度範圍： 5％至95％
溫度範圍： 0℃至50℃，℃/℉
TCP 最大連接數為 20
無需通過電腦設置，可以直接在儀表上進行設置。
APP（Android）和APP（iOS）可用。
FEATURES
Can be temperature and humidity data sent to the desired
device through WiFi. the use of smart phones or tablet
computers developed by the company's free software to do
data collection record APP.
WiFi work mode: Access
Point(AP) or Client mode
I/O
terminal:
Basic setting:
Simultaneous display Humidity ,Temperature,Web
buie, Dew point temp. reading value.
Humidity range : 5% to 95%
Temprature range : 0℃ to
50 ℃ , ℃ / ℉
Maximum TCP connections to
20
No need through the
computer settings, can
make the setting on the
meter directly.
APP(Android) and
APP(iOS) are
available.
一般規格
電路 (Circuit)
Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
LCD Size: 3.2 X 2.4” (60 X 44.4 mm)
Dot Matrix backlit LCD (128 X 64 pixels)
無線 (Wireless)
Support IEEE 802.11b / g / n wireless standards
Support the range of frequency : 2.412 to 2.484 GHz.
Support two types of
wireless networks: Access Point(AP) and Client
Support multiple
security authentication mechanisms : 64/128/152
bit WEP encryption, WPA-PSK/ WPA2-PSK、、WPA/WPA2
security mechanism.
網路模式設定 (NET mode setting)
Access Point (AP) Mode(Wireless)
Client Mode(Wireless)
Ethernet Mode(RJ45)
測量 (Measurement)
Humidity/ Temperature
Dew pint Temperature
Wet bulb Temperature
Pt 1000 ohm Temp.
I/O 端子 (I/O terminal)
1. DC 9V power input
2. DC 9V power output * power supply for the connecting RS232 meter
3. Pt-100 ohm input.
4. Three RS232 input ( photo isolate RS232 type )
5. Ethernet RJ485 input.
基本設定 (Basic setting)
1. NetMode, 2. SSID, 3. Password, 4. IP address, 5. Port,6. Gateway address.
APP
APP(Android) and APP(iOS) are available.
USB/RS232
資料輸出 (Data Output USB/RS232) *Computer interface
RS232 computer serial interface
* Connect the optional USB cable USB-01 will get the USB plug.
* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
操作溫度 (Operating Temp. )
Meter : 0 to 50 ℃.( 32 to 122 ℉ ).
操作溼度 (Operating Humidity)
Less than 90% R.H.
電源供應 (Power Supply)
AC to DC adapter 9V.
電源消耗 (Power consumption)
DC 170 mA approximately.
重量 (Weight)
222 g/0.49 LB.
體積 (Dimension)
134 X 80 X 32 (5.3 X 3.1 X 1.3 inch). * Dimension is for the meter without antenna only.
標準附件 (Standard Accessory)
* Instruction manual............................. 1 PC
* Data interface cable, UPCB-03.................. 1 PC
* Power interface cable, PWCB-06................. 1 PC
* Hanging unit ( with sticker ).................. 1 PC
* AC to DC 9V power adapter...................... 1 PC
選購附件 (Optional & accessories Temp. Probe)
* RS232 cable,UPCB-02.
* Pt 1000 Temp. probe,TP-1000
* USB cable,USB-01.
* Network data acquisition software,SW-818.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
Measurement Range Resolution Accureacy
Humidity 5 to 95 %RH 0.1 %RH < 70% RH : ± 3 %RH ≧70% RH : ± ( 3%rdg + 1 %RH )
Temperature 0 ℃ to 50 ℃ 0.1 ℃ 0.8 ℃.
32 ℉ to 122 ℉. 0.1 ℉ 1.5 ℉.
Dew Point -5.4 ℃ to 49.0 ℃ 0.1 ℃ Calculate from the
22.2 ℉ to 120.0 ℉. 0.1 ℉ Humidity/Temp. Value
Pt 1000 ohm Temperature
(optional probe)
-10.0℃ to
70.0 ℃ 0.1 ℃ ± 1.2 ℃
14.0 ℉ to 158.0 ℉. 0.1 ℉ ± 2.5 ℉
