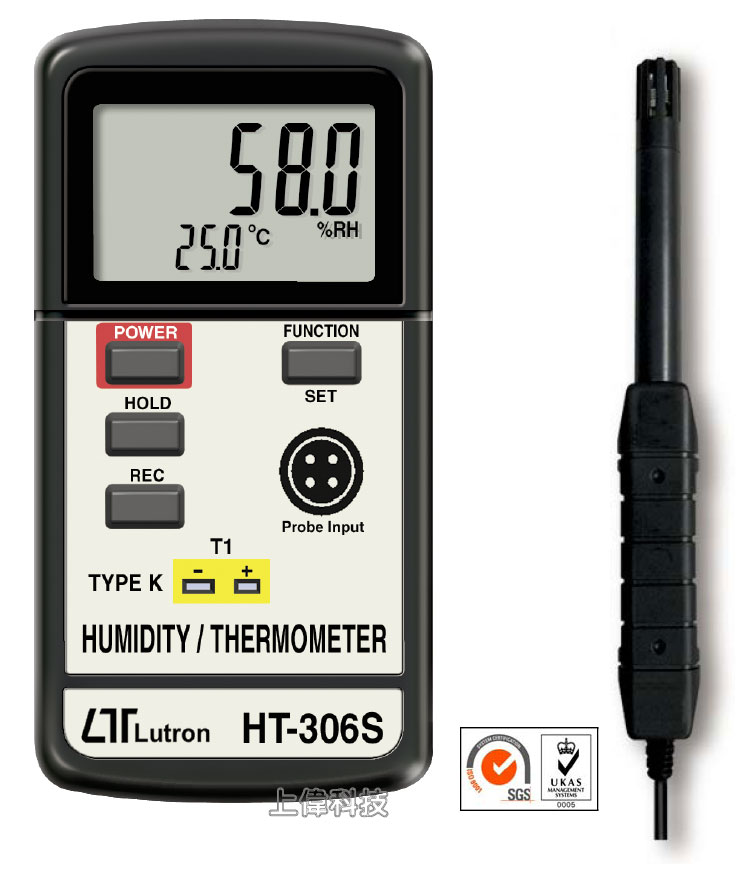

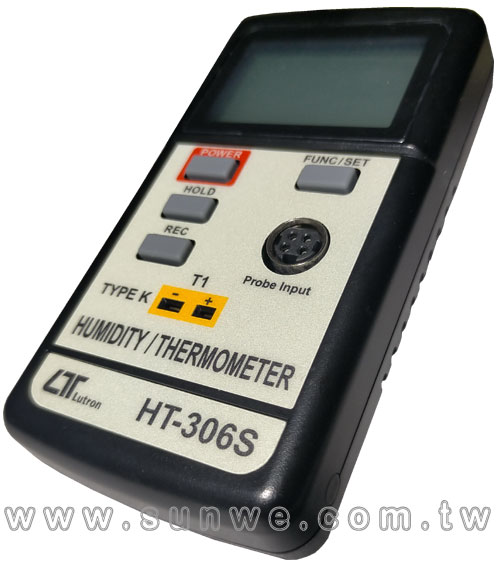

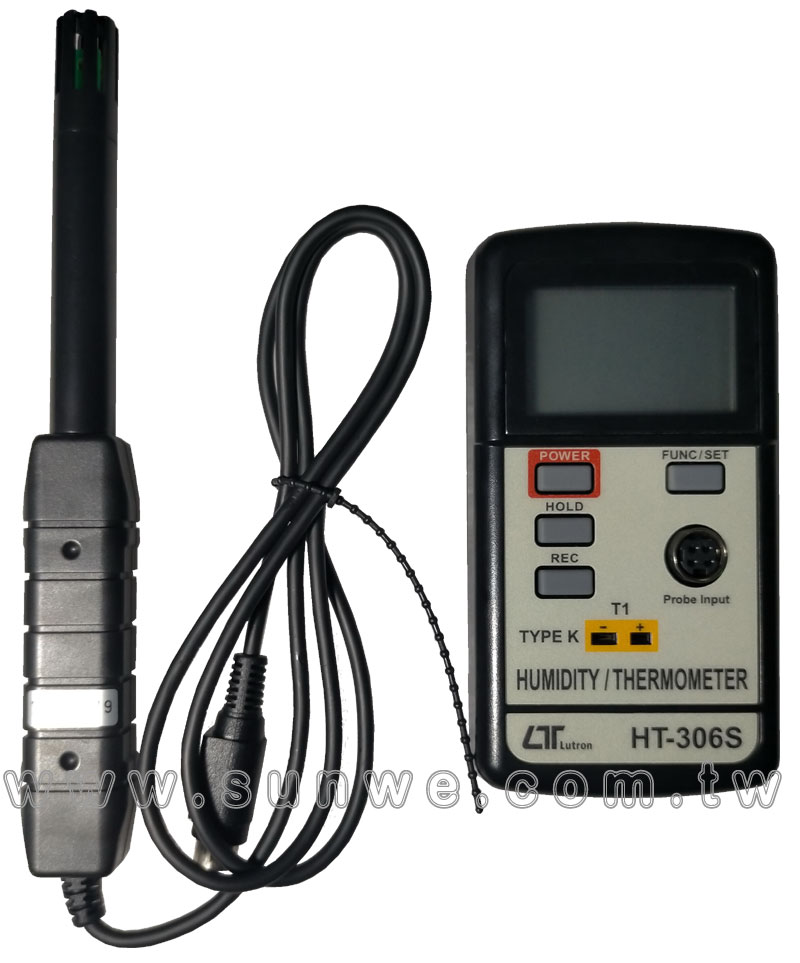

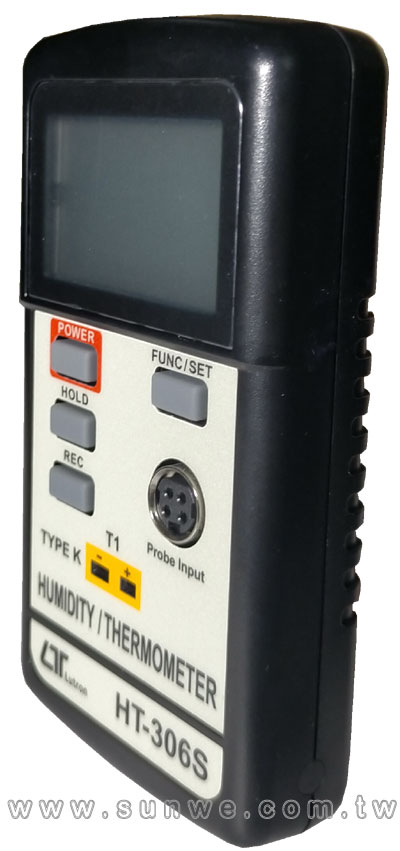

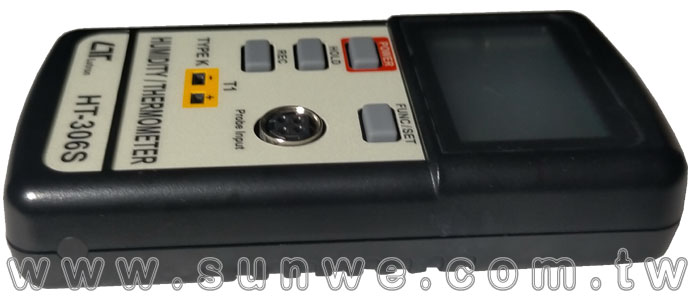

HT-306S
溫溼度計
特色
- 溫度範圍 : 0~50.0°C .±0.8°C
溼度範圍 : 10 ~ 95%.±3%
- 露點範圍 : -25.3 ~ 48.9°C
TYPE K範圍 : -50.0 ~ 1300.0°C. ±0.4%
- 讀值鎖定及記錄測量中之最大/最小值
- Size : 131 x 70 x 27mm.
FEATURES
- Hight Precision Humidity & Temp. measurement .
- Fast responstime Humidity measurement .
- One channels type K thermometer.
- Wide Temp. range measurement.
- Heavy duty & compact housing case. and high
accuracy.
- LCD with two display, easy readout.
- Records Maximum and Minimum readings with
recall.
- Data hold function for freezing the desired
value.
- Meter can default auto power off or manual
power off.
- Meter can default the measuring unit to or
℃ ℉.
- Few panel buttons, easy operation.
- Built-in low battery indicator.
- Heavy duty & compact housing case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 46 mm x 28 mm
- dual function LCD display.
顯示單位 (Display
Unit)
- ℃，℉.
解析度 (Resolution)
- Humidity :
0.1 %RH.
Type K :
0.1℃ , 0.1℉ .
傳感器類型 (Sensor type)
- Type K :
High precision capacitance type humidity sensor
with Temp.
- Humidity :
Type K Thermocouple
溫度補償 (Temperature
Compensation) * Type K Temp.
- Linear Compensation for the full range.
線性補償 (Linear
Compensation)
- Automatic temp. compensation for the cold junction
for type K thermometer
探頭輸入插座 (Probe Input Socket)
- Humidity probe :
DIN 4 pin socket.
- Thermocouple Temp. probe :
Standard 2 pin type K socket.
過載指示 (Over
Indication)
- Show " ----- ".
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
取樣時間 (Sampling Time)
- Approx. 1 sec
關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 006P DC 9V battery (heavy duty type).
電源電流 (Power Current)
- Approx. DC 3.5 mA.
重量 (Weight)
- 115 g/ 0.25 LB.
尺寸 (Size)
- 131x70x27 mm, ( 5.1x2.7x1.1 inch ).
附件 (Standard Accessory)
- Humidity Probe................. 1 PC.
Instruction manual............. 1 PC
選購附件 (Optional & accessories Temp. Probe)
- Type K thermocouple probes : TP-01, TP-02A. TP-03,
TP-04, TP-05
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Measurement |
Range |
Resolution |
Accureacy |
| Humidity |
10 to 95 %RH |
0.1 %RH |
< 70% RH : ± 3 %RH ≧70% RH : ± ( 3%rdg + 1 %RH ) |
| Temperature |
0 ℃ to 50 ℃ |
0.1 ℃ |
0.8 ℃. |
| 32 ℉ to 122 ℉. |
0.1 ℉ |
1.5 ℉. |
| Dew Point |
℃ |
-25.3 ℃ to 48.9 ℃ |
0.1 ℃ |
|
| ℉ |
-13.5 ℉ to 120.1 ℉. |
0.1 ℉ |
|
| Type K Thermometer |
℃ |
-50.0 to 1300.0 ℃ |
0.1 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| -50.1 to -199.9 ℃ |
± ( 0.4 % + 1 ℃ ) |
| ℉ |
-58.0 to 2372.0 ℉ |
0.1 ℉ |
± ( 0.4 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
Remark :
- *Dew Point display value is calculated from the Humidity/Temp. measurement automatically.
- * The Dew Point accuracy is sum accuracy value of Humidity & Temperature measurement.
| Measurement |
Range |
Resolution |
Accureacy |
| Wet
bule (Humidity) |
℃ |
-21.6 ℃ to 50.0 ℃ |
0.1 ℃ |
|
| ℉ |
-6.9 ℉ to 122 ℉ |
0.1 ℉ |
|
Remark :
- * Wet bule display value is calculated from
the Humidity/Temp. measurement automatically.
- * Wet bule Point accuracy is sum accuracy
value of Humidity & Temperature measurement..
選購 K型感溫棒 THERMOCOUPLE PROBE (type K), optional
- TP-01 : -40 ℃ to 250 ℃ (300℃ short- term). Ultra fast response naked-bead probe.
- TP-02A : -50 ℃ to 900 ℃ ( -50 ℉ to 1650 ℉). Penetration & Immersion applications.
- TP-03 : -50 ℃ to 1200 ℃ ( -50 ℉ to 2200 ℉). High temp., Penetration & immersion.
- TP-04 : -50 ℃ to 400 ℃ ( -50 ℉ to 752 ℉). Precision surface temp. measurement usage.
|
