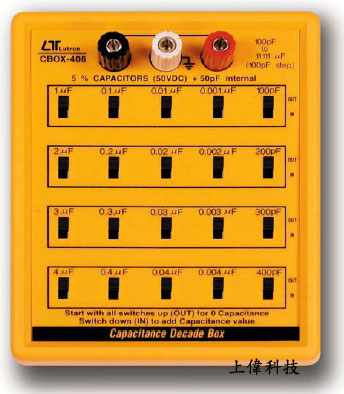

CBOX-406
電容箱
特色
- 提供確實可信賴的電容值
- 採小型化 ，易於攜帶
- 100pf ~ 11111uf，提供寬範圍的電容值
- 採滑動開關設計，可用開關增減電容值
- 精確度：± 5%
- Size：147 X 117 X 47mm
FEATURES
- Pocket size, offering accurate, reliable performance.
- 100 pF to 11,111 uF, wide range and high resolution ( 100 pF per step ), practical and versatile tools.
- With five decades of capacitance.
- Slide switches that allow the user to simply add or subtract for desired value.
- Terminals with multi way binding posts, one to switch shield case.
- ABS plastic housing case, rugged components.
- Applications :
- Troubleshooting
- maintenance
- Education and Vocational training
- Production line testing
- Radio and TV services
- Working standards
- Research design & develop
- Physics laboratory work
規格
範圍 (Range)
- 100 pF to 11,111 uF ( 100 pF per step )
精確度 (Accuracy)
- 5% capacitors used throughout.
- @ < 1 uF, 1 KHz test frequency
- @ >= 1 uF, 100 Hz test frequency
電壓限制 (Voltage Limit)
- 50 V DC, non-polarized capacitors.
內部殘留電容 (Internal Residual Capacitance)
- 50 pF max.
電源供應 (Power Supply)
- None
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% RH.
體積 (Dimensions)
- HWD 14.7 cm x 11.7 cm x 5.5 cm. ( 5.79 x 4.61 x 2.16 inch ).
重量 (Weight)
- 304 g/0.69 lb.
附件 (Accessories Included)
- Operation Manual.......................1 PC.
選購附件 (Optional Accessories)
- Test alligator clips, one pair, TL-05
|
