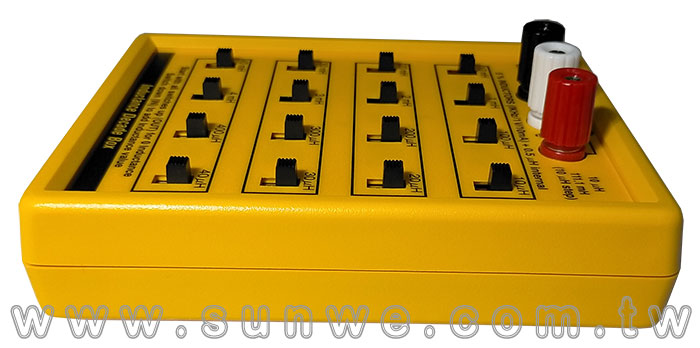

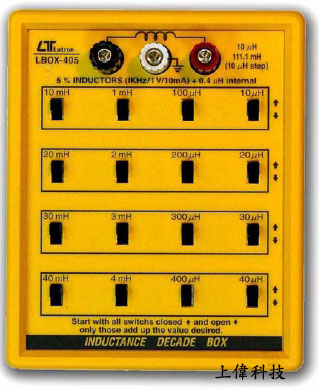

LBOX-405 電感箱
特色
- 提供確實可信賴的電感值
- 採小型化 ，易於攜帶
- 10uH ~ 111.1mH，提供寬範圍的電感值
- 採滑動開關設計，可用開關增減電感值
- 精確度：± 5%
- Size：147 X 117 X 47mm
FEATURES
- Applications :
- General applications
- Troubleshooting, maintenance
- Education and Vocational training
- Production line testing
- Radio and TV services
- Working standards
- Research design & develop
- Physics laboratory work Pocket size
- offering accurate
- reliable performance
- 10 uH to 111.1 mH, wide range and high resolution ( 10 uH per step ), practical and versatile tools.
- With four decades of inductance.

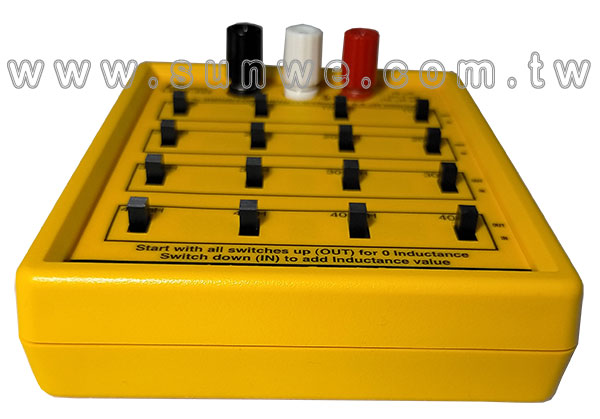

- Slide switches that allow the user to simply add or subtract for desired value.

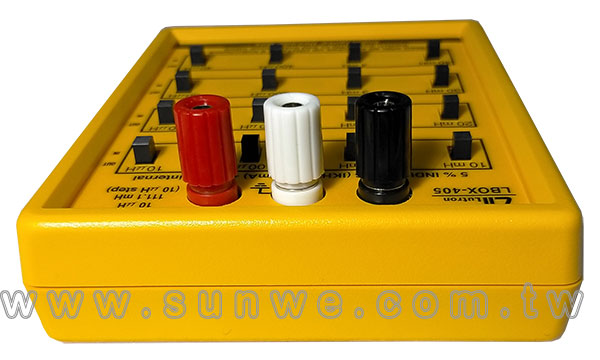

- Terminals with multi way binding posts, one to switch shield case.
- ABS plastic housing case, rugged components.
規格
範圍 (Range)
- 10 uH to 111.1 mH ( 10 uH per step )
精確度 (Accuracy)
- 5% inductors used throughout.
- @ 23 ± 5℃
- @ 1 KHz test frequency
最大電流比 (Max. Rating Current)
- 10 mA DC or AC.
內部殘留電感 (Internal Residual Inductance)
- Approx. 0.5 uH.
電源供應 (Power Supply)
- None
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% RH.
體積 (Dimensions)
- HWD 14.7 cm x 11.7 cm x 5.5 cm. ( 5.79 x 4.61 x 2.16 inch ).
重量 (Weight)
- 333 g/0.74 lb.
附件 (Accessories Included)
- Operation Manual.................1 PC.
選購附件 (Optional Accessories)

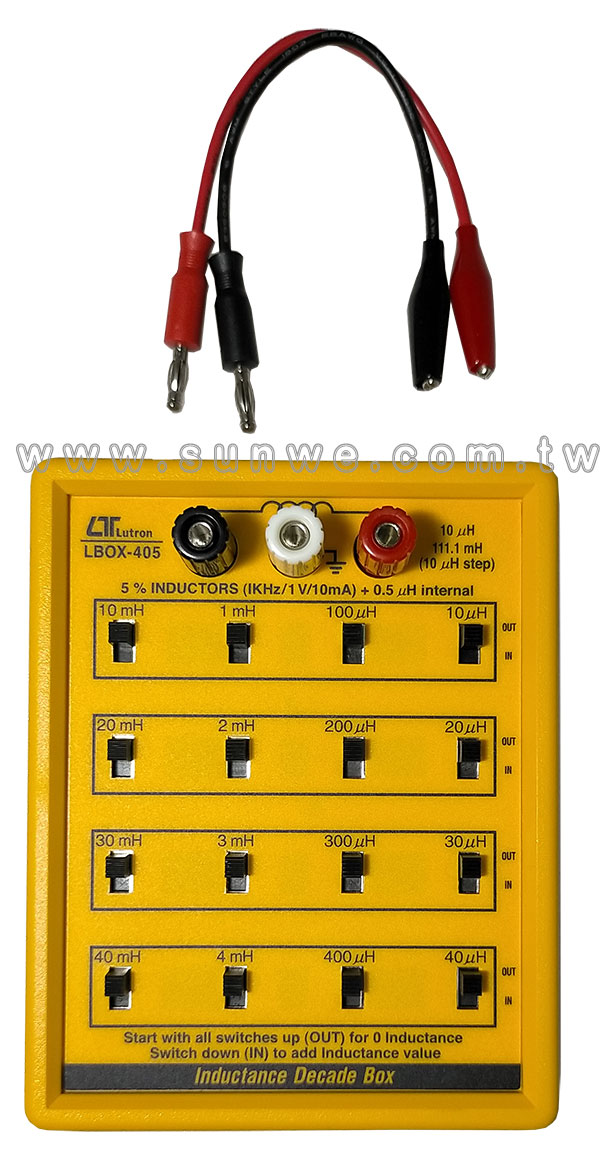

- Test alligator clips, one pair, TL-05
|
