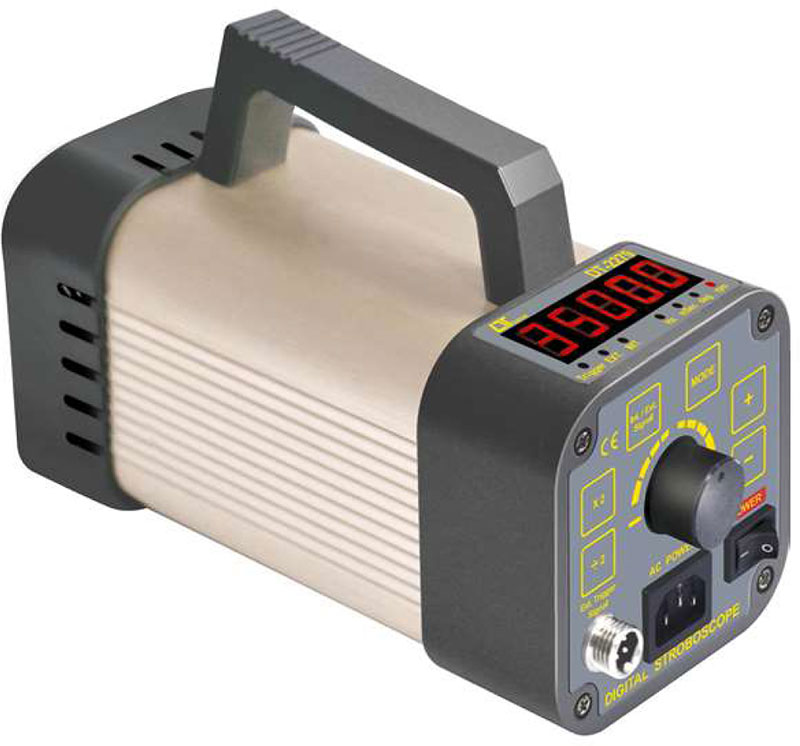

DT-2279
閃光同步轉速計

- 新一代頻閃儀,採用金屬外殼,使用壽命長。
- 數位合成電路,穩定性高,調整方便。
- 氙氣閃光燈管,高強度光。
- 顯示幕 : 14 mm 大紅色 LED。
- 範圍 : 50 至 35,000 RPM (FPM)。
- 外部觸發信號輸入,用於同時測試和測量。
- 1. 相移:0 至 359。
- 2. 延遲時間:從 0 到 1200 毫秒,從 50 -10,000 RPM。
- 調整解析度 : 0.1 RPM ( < 1,000 RPM ), 1 RPM (1,000-9,999 RPM ) , 10 RPM ( ≥ 10,000 RPM )。
- 設定按鈕鍵:擴展/內部按鈕、模式按鈕、數字調整按鈕、x 2 按鈕、2 按鈕、+ 按鈕、-按鈕,輕鬆調整所需的 RPM。
- 數字旋轉調節,易於進行微調。
- 電源 ( 只限 ACV ) : DT-2279 ( AC 110V ), DT-2279 ( AC 220V 或 230V )。
特色
- DT-2279 數位頻閃儀提供準確可靠的頻閃測量和外部觸發功能,使其成為各種工業應用的必備工具。
- 高強度光:利用氙氣閃光燈管產生高強度光,確保測量清晰、精確。
- 寬頻率範圍:提供 0.833 至 583.3 Hz 的閃光調節範圍,測量範圍為 50 至 35,000 RPM(FPM)。
- 外部觸發:具有外部觸發訊號輸入,可同時進行測試和測量,為各種應用提供靈活性。
- 數位合成電路:採用數位合成電路,確保高穩定性且易於調整。
- 使用者友善介面:配備大型紅色LED顯示器、數位旋轉調節和各種功能按鈕,方便操作。
FEATURES
- New generation Stroboscope, used metal housing case with long life.
- Digital synthesis circuit, high stability and easy adjustment.
- Xenon flash tube, high intensity light.
- Display : 14 mm large red LED.
- Range : 50 to 35,000 RPM (FPM ).
- External trigger signal
input for simultaneous testing and measurement.
- 1. Phase Shift : 0 to 359°
.
- 2. Delay Time : 0 to 1200
mSec from 50 -10,000 RPM.
- Adjustment resolution : 0.1
RPM ( < 1,000 RPM ), 1 RPM (1,000-9,999 RPM ) , 10 RPM ( ≥ 10,000 RPM ).
- Setting button Key : Ext./Int. button, Mode button, digital
adjusting button, x 2 button, 2 button, + button, -button,
easy to adjust the desired RPM.
- Digital rotary adjustment, easy for making fine adjustment.
- Power supply ( ACV only ) :
DT-2279 ( AC 110V ), DT-2279( AC 220V or 230V ).
規格
電路
- 專用單晶片LSI電路
顯示
- 14 毫米 LED。
- 5 位數字,附顯示單元。
測量範圍
- 閃光燈調整:0.833至583.3 Hz
- 轉速:50至35,000 RPM
- FPM:50至35,000 FPM
解析度
- Stroboscope Frequency
- <599.9 RPM 時為 0.001 Hz
- 600.0 至 5999 RPM 時為 0.01 Hz
- ≥6000 RPM時為0.1 Hz
- Stroboscope External Trigger :Delay Time
- <1,000 RPM 時為 0.1 RPM
- 1,000 至 9,999 RPM時為1 RPM
- ≥10,000 RPM時為10 RPM
準確性
- ±(0.05% 讀數 + 2 位數)
功能
- 相移:0 至 359°,解析度為 1°
- 延遲時間:0 至 1200 毫秒,轉速從 50 至 10,000 RPM
- 外部觸發訊號輸入:
- H電平:2.5V至12V
- L電平:最大0.8V
同步輸出訊號
- - 12V電平,100µs方波
電源
- 交流110V或交流220V/230V
工作溫度
- 0 至 50 °C ( 32 至 122 °F )
工作濕度
- 最大 80% 相對濕度。
尺寸
- 高、深、寬 255 x 110 x 150 毫米(10 x 4.3 x 5.9 英吋)。
重量
- 1200克/2.64磅(僅儀表)
閃光調整範圍
- 0.833 到 583.3 Hz。
- * 50 至 35,000 RPM/FPM。
功能按鈕
- 數位旋轉旋鈕,型號,內部/外部。
- 選擇、x 2 按鈕、÷ 2 按鈕、+ 按鈕、- 按鈕、
標準配件
- 操作手冊:1本
- 電源線:1條
- 圓形金屬連接器(SKT B2279):1個
|
|
