DT-2299
閃光同步儀+光電式轉速計
(已停產)
特色
- 閃頻測量範圍 : 100 ~ 99999 RPM (± 0.05%)
- 光電測量範圍 : 10 ~ 99999 RPM (± 0.05%)
- 閃頻採用超高亮度白光LED，省電耐用
- 液晶顯示 ,具有背光顯器功能
- 外部觸發信號輸入功能
- 光電式轉速測量 ,採用紅色雷射光投射
- 工作電源 : 1號電池 x 4 或 DC 9伏特 (Adapter)
- Size：210 X 120 X 120mm
FEATURES
- Combination Stroboscope with 3 functions : Digital Stroboscope, Laser Photo Tachometer Contact Tachometer ( optional probe ), 3 in 1 , intelligent function.
- Stroboscope, wide measuring range up to 99,999 RPM.
- The Digital Stroboscope is used the microprocessor circuit design, high accuracy, digital readout, light duty, that is ideal for inspecting and measuring the speed of moving gears, fans, centrifuges, pumps, motors and other equipment used in general industrial maintenance, production, quality control, laboratories and as well as for schools and colleges for demonstrating strobe action.
- Battery power Stroboscope, use high intensity LED array, long life.
- Back light high visible LCD display gives exact reading with no guessing or error and saves battery energy.
- High precision both for Stroboscope and Tachometer measurement.
- Use an exclusive one chip MICRO-PROCESSOR LSI-circuit and crystal time base to offer high accuracy measurement & fast measuring time.
- Stroboscope build in external trigger input.
- Long distance Laser Photo Tachometer build
in.
- Optional Contact Tachometer probe is available.
- Compact and heavy duty housing case.
規格
顯示 (Display)
- 5 digits ( 0 to 99999 ) LCD display.
電路 (Circuit)
- Exclusive one-chip design microprocessor LSI circuit.
測量 (Measurement)
- Stroboscope
- Unit : FPM ( rotation per minute ).
- build in external trigger input.
- Laser Photo Tachometer
- Unit : RPM ( rotation per minute ).
- Contact Tachometer
- Unit : RPM ( rotation per minute ).
- Surface speed ( ft/min., m/min )
- * It should cooperate with optional contact probe ( TA-35 ).
取樣時間 (Sampling Time)
- Approx. 1 second.
校正 (Calibration)
- Crystal time base and microprocessor circuit, no external calibration process required.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- DC 1.5 V, UM-1 (D type) battery x 4 PCs
- * DC 9V adapter input is built,AC/DC adapter is opional, not in included.
電源損耗 (Power Consumption)
- Stroboscope ( 3600 FPM ) :
DC 160 mA..
- Laser photo Tachometer ( 3600 RPM ) :DC 130 mA.
重量 (Weight)
- 800 g ( 1.76 LB ).
尺寸 (Size)
- 21 cmx12 cmx12 cm (8.3"x4.8"x4.8").
附件 (Standard Accessory)
- Operation manual....................... 1 PC
- Reflective tape........................ 1 PC.
選購附件 (Optional & accessories Temp. Probe)

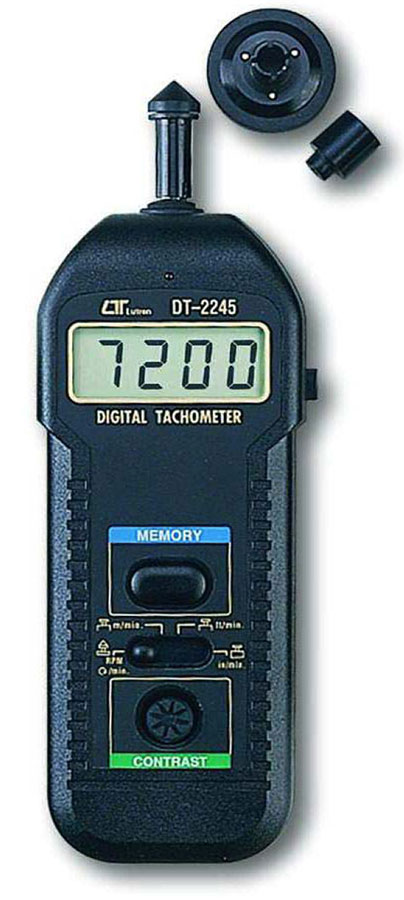

- Contact Tachometer probe...... Model : TA-35
- AC( 100V to 240V ) to DC 9V adapter.....1 PC
閃頻轉速計電器規格
Electrical Specifications of Stroboscope
閃頻閃爍比率 (Stroboscopic Flash Rate)
- 100 to 99,999 flashes per minute (FPM).
- Low range : 100 to 1,000 RPM/FPM.
- High range : 1000 to 99,999 RPM/FPM.
精確度 (Accuracy)
- ± ( 0.05% + 1 digit ).
光源 (Light Source)
- Long life high intensity LED array.
解析度 (Resolution)
- 0.1 FPM/RPM. (Less than 1,000 FPM/RPM)
- 1 FPM/RPM (> 1,000 FPM/RPM)
外部觸發器 (External TriggerInput)
- Input signal :
- 5V to 30 V rms
- 5 to 99,999 RPM/FPM.
雷射光電轉速計電器規格
Electrical Specifications of Laser Photo Tachometer
範圍 (Range)
- 10 to 99,999 RPM
精確度 (Accuracy)
- ± ( 0.05% + 1 digit ).
取樣時間 (Sampling Time)
- 1 second ( 60 RPM ).
光電轉速計偵測距離 (Photo Tachometer detecting distance)
- 50 - 1,500 mm typically.
- * Spec. of detecting distance are that under the size of reflecting tape is 10 mm square & the measuring RPM value is 1,800 PPM. The max. & min. detecting distance may change under different environment, different reflecting tape or the measuring RPM beyond 1800 PRM
解析度 (Resolutio)
- RPM : 0.1 RPM ( < 1,000 RPM ). ; 1 RPM ( ≧1,000 RPM ).
時基 (Time base)
- Quartz crystal.
雷射光源 (Laser light source)
- * Less than 1 mW.
- * Class 2 laser diode. Red. Wave length is 645 nm approximately.
外接 TA-35 接觸式轉速計電器規格
Electrical Specifications of Contact Tachometer ( Optional Probe, TA-35 )
範圍 (Range)
- 0.5 to 19,999 RPM
- Surface Speed (m/min.) : 0.05 to 1,999.9 m/min.
- Surface Speed (ft/min.) : 0.2 to 6,560 ft/min.
精確度 (Accuracy)
- ± ( 0.05 % + 1 digit ).
取樣時間 (Sampling Time)
- 1 second ( 6 RPM ).
解析度 (Resolutio)
- RPM : 0.1 RPM ( < 1,000 RPM ) ; 1 RPM ( ≧1,000 RPM )
- m/min. : 0.01 m/min. ( < 100 m/min.) ; 0.1 m/min. ( ≧100 m/min.)
- ft/min. : 0.1 ft/min. ( < 1,000 ft/min.) ; 1 ft/min. (≧ 1,000 ft/min.)
附件 (Standard Accessory)
- RPM adapter (CONE)................... 1 PC
- RPM adapter (FUNNEL)................. 1 PC
- Surface speed test wheel............. 1 PC
|
