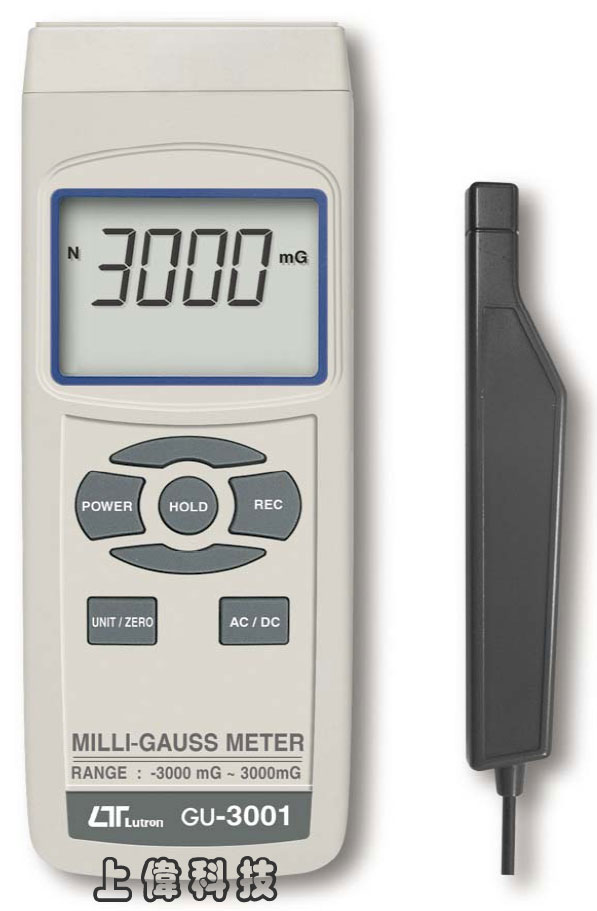

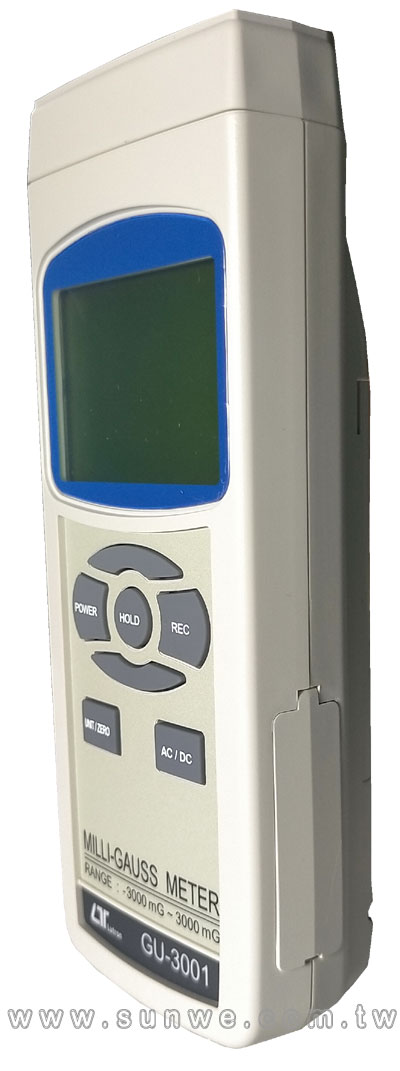

GU-3001
精密型高斯計
簡介
-
測量範圍：
-
-3000 毫高斯 ~ +3000m 毫高斯
-
-300 u Tesla ~ +300u Tesla
-
直流 (DC) 及交流 (AC) 毫高斯測量
-
交流 (AC) 測量頻寬：40Hz ~ 10KHz
-
磁性材料之磁力測量
-
具有 N/S 極性指示功能 (DC)
-
讀值鎖定及記錄測量中之最大 / 最小值
-
RS-232 / USB 連接介面(軟體選購)
-
Size：173 X 68 X 42mm
FEATURES
- DC/AC milligauss Magnetometer.
- Using exclusive high sensitivity sensor ( better performance than the traditional Hall element sensor ), available for high precision magnetic field measurement.
- Wide application for industrial, mechanical, material, electrical, laboratory field to check the material contains magnetic field value.
- DC and AC magnetic field measurement
- Wide measure range :
± 3,000 milligauss.
- The meter can detect the magnetic fields as small as 0.1 milligauss.
- N pole/S pole indicator.

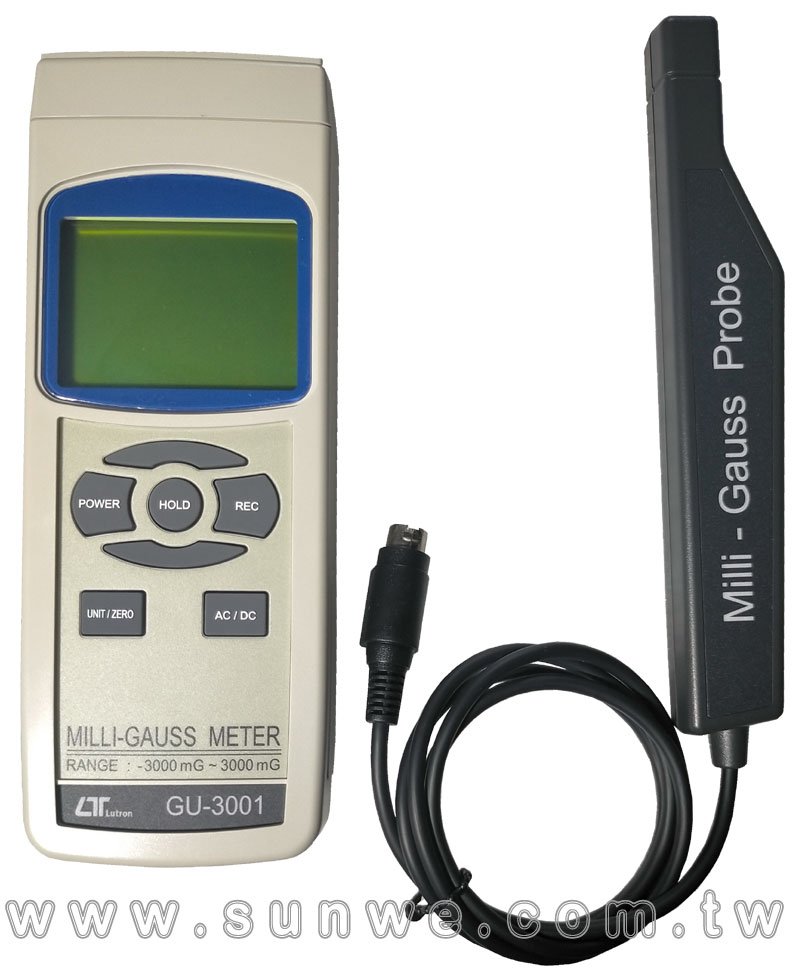

- Separate probe, easy operation and convenient for remote measurement.
- High precision magnetometer, even can measure the absolute environment Earth's magnetic field as reference.
- Zero adjustment button for relative measurement.
- Large S-TN type LCD, high contrast, easy readout.
- Data hold function for freezing the desired value on display.
- Records Maximum and Minimum readings with Recall.
- RS232/USB computer interface.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
- Heavy duty & compact housing with hard carrying case, designed for easy carry out & operation.
- Auto shut off is available to save battery life.

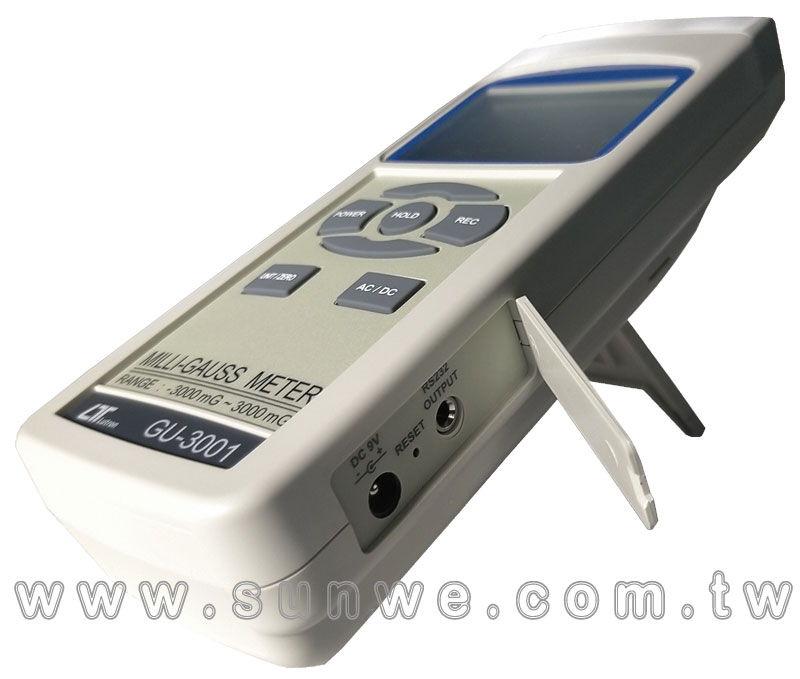

- Power supply from batteries or DC 9V adapter in.
規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm dual function LCD display.
測量單位 (Measurement Unit)
- mG : milligauss
- uT : micro Tesla
測量範圍 (Measurement Range)
- - 3,000 mG to 3,000 mG.
- - 300 uT to 300 uT.
頻率反應 (Frequency Response)
- DC
- AC : 40 Hz to 10 KHz
解析度 (Resolution)
- 0.1 mG : - 199.9 mG to 199.9 mG.
- 1 mG : ≧ 200 mG, ≦ -200 mG
- 0.01 uT : - 19.99 uT to 19.99 uT.
- 0. 1 uT : ≧ 20.0 uT, ≦ -20.0 uT.
精確度 (Accuracy)
- ± ( 2 % + 2 mG )
- * -1,000 mG to 1,000 mG
- * -100.0 uT to 100.0 uT
電場方向 (Field Direction)
- Uniaxial.
讀值鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
顯示取樣時間 (Display Sampling Time)
- Approx. 1 second.
電源關閉 (Power off)
- Manual off by push button or Auto shut off to save battery life.
資料輸出 (Data Output)
- RS 232/USB PC serial interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temperature)
-
0 to 50 ℃.
操作溼度 (Operating Humidity)
-
Less than 80 %RH.
電源供應 (Power Supply)
- DC 1.5 V battery ( UM4, AAA ) x 6 PCs, Alkaline/heavy duty type or equivalent.
電源電流 (Power Current)
- Approx. DC 20.5 mA .
體積 (Dimension)
- Main instrument : 173 x 68 x 42 mm (7.9 x 2.7x 1.2 inch)

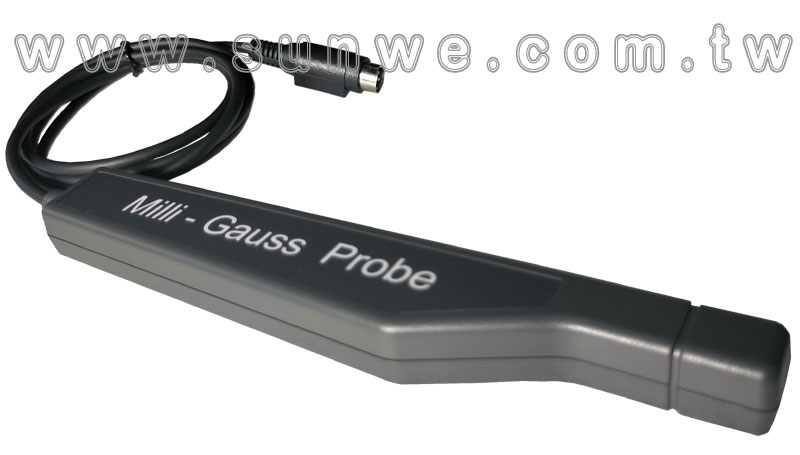

- Probe : 177 x 29 x 17 mm
附件 (Accessories Included)
- Instruction manual..........................1 PC
- Probe...................................... 1 PC

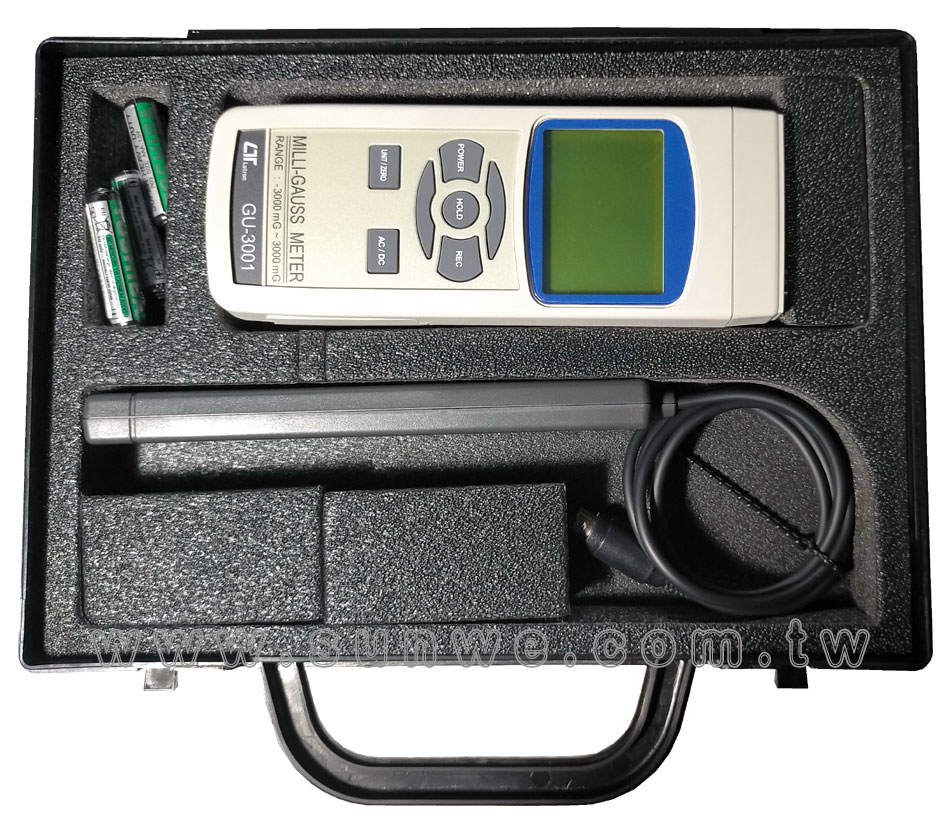

- Hard Carrying case, CA-06...................1 PC
選購附件 (Optional Accessories)
- RS232 cable, UPCB-02
- USB cable, USB-01
- Data Acquisition software, SW-U801-WIN
|
