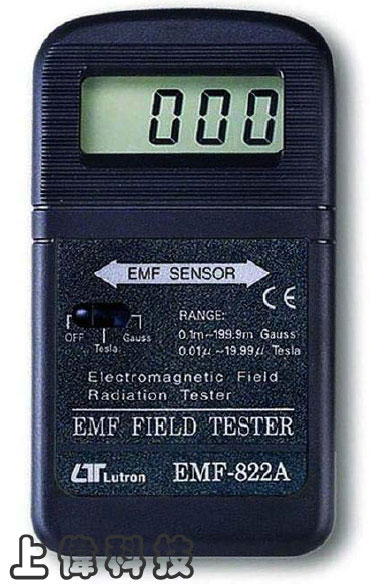

EMF-822A
電磁波測試器
(高斯計)
簡介
- 測量範圍：
- 0.1 ~ 199.9m Gauss
- 0.01 ~ 19.99u Tesla
- 測量頻寬：30 ~ 300Hz
- 精確度：±4% (50/60Hz)
- 應用範圍廣泛，可測量電腦螢幕’視聽系統’家電設備等之電磁波安全檢測，家庭’工廠必備儀器
- Size：131 X 70 X 25mm
特色
- EMF-822A 電磁波測試器用於快速，簡單精確測量電力線週邊'家電產品及工業設備的電磁波輻射的強度
- EMF-822A 以手持方式有效測量 50Hz /60Hz 頻寬範圍內電磁波輻射的強度
FEATURES
- The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices.
- The EMF tester is a cost effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at different bandwidths down to 50 Hz/60 Hz.
規格
顯示 (Display)
- 13mm (0.5") LCD, 3 1/2 digits. Max. indication 199.9.
範圍 / 解析度 (Range/Resolution)
- Two function, micro Tesla & milli Gauss :
- 20 micro Tesla x 0.01 micro Tesla
- 200 milli Gauss x 0.1 milli Gauss
- * 1 micro Tesla = 10 milli Gauss
測量頻寬 (Band width)
- 30 Hz to 300 Hz.
測量軸線數 (Number of Axes)
- Single axis.
精確度 (Accuracy)
- ± (4 % + 3 d) at 50 Hz/60 Hz.
過載輸入顯示 (Over-input)
- Display shows '1' .
取樣時間 (Sampling Time)
- Approx. 0.4 second.
電池 (Battery)
- DC 9 V battery (006P, 6F22).
電源電流 (Power Current)
- Approx. DC 3 mA.
操作溫度 (Operating Temperature)
-
0 to 50 ℃.
操作溼度 (Operating Humidity)
-
Less than 80 %RH.
重量 (Weight)
-
165 g/0.36 LB (including battery).
體積 (Dimension)
-
HWD - 131 x 70 x 25 mm (5.2 x 2.8 x 1.0 inch).
附件 (Accessories Included)
-
Operation Manual................... 1 PC.
|
