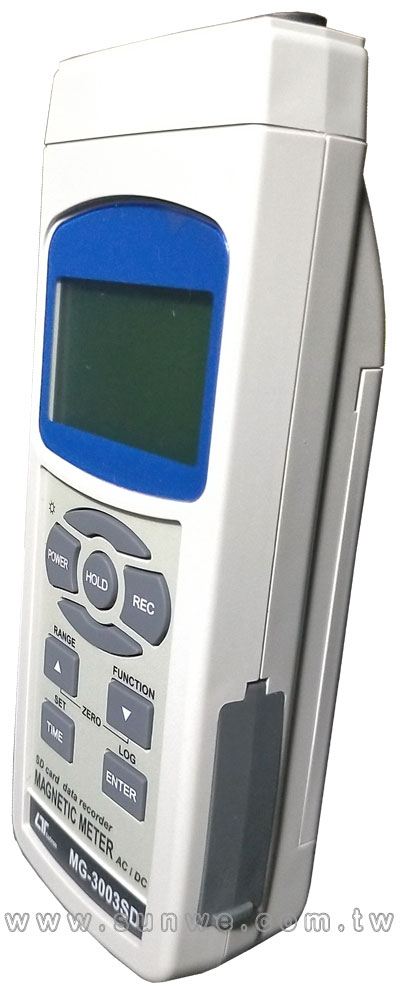

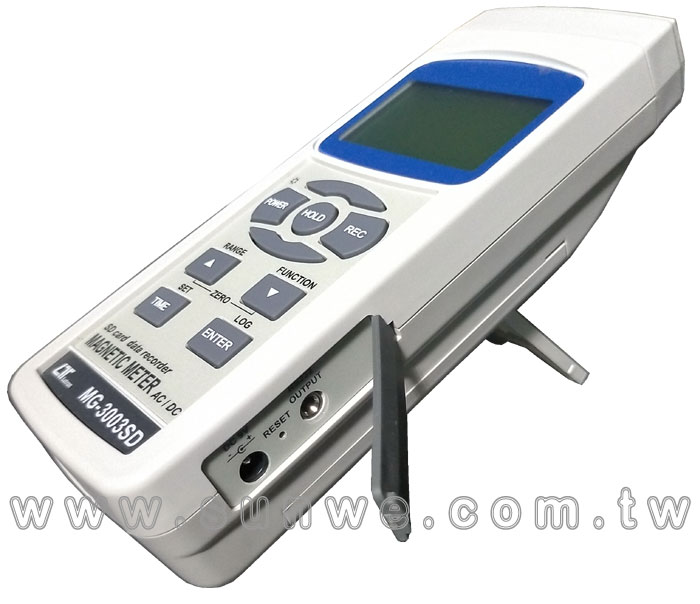

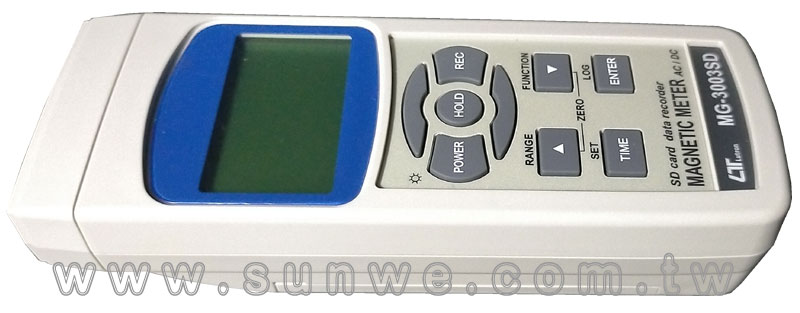

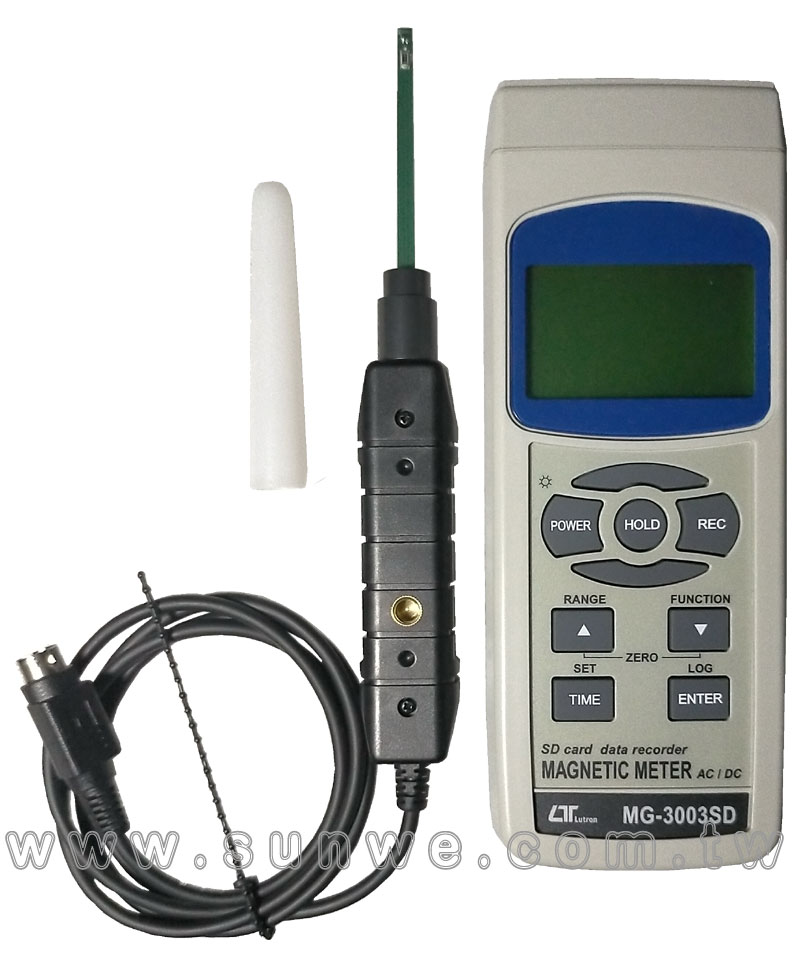

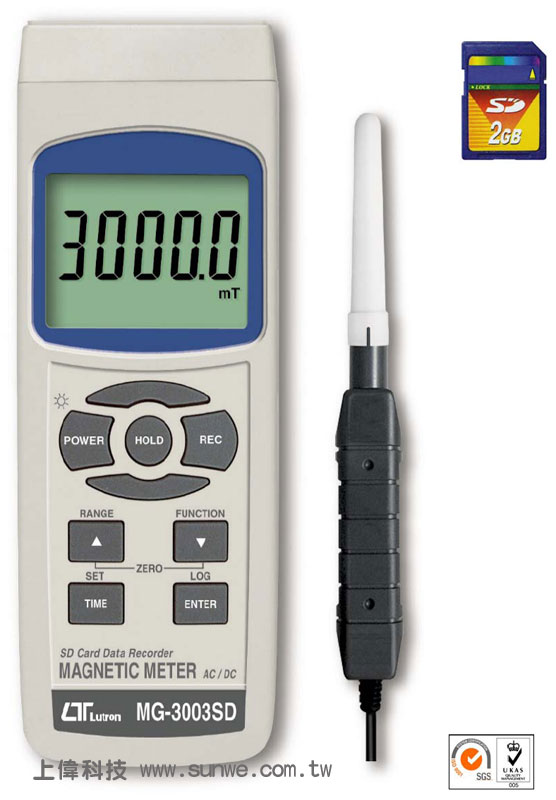

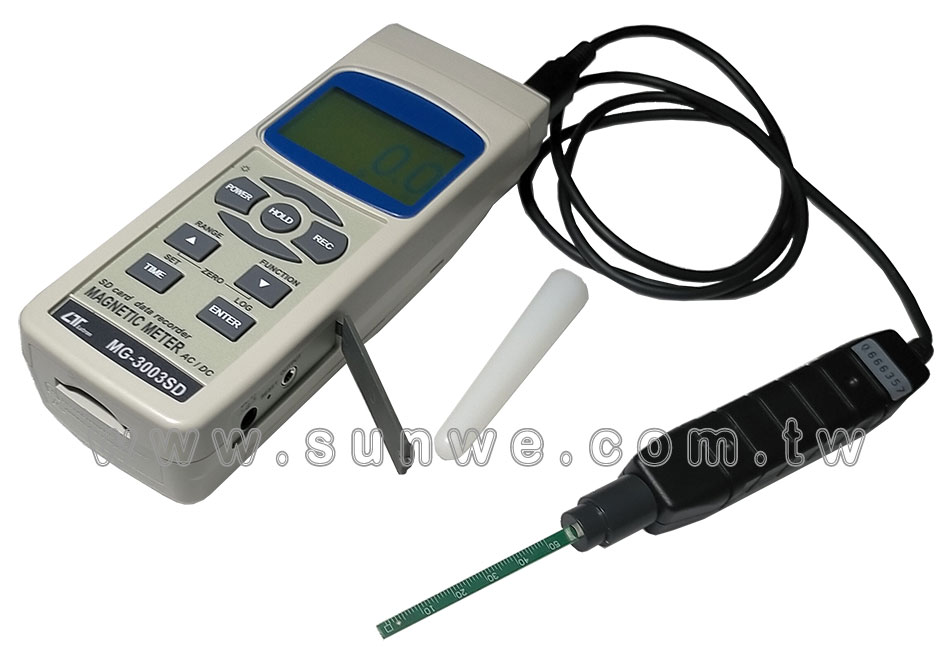

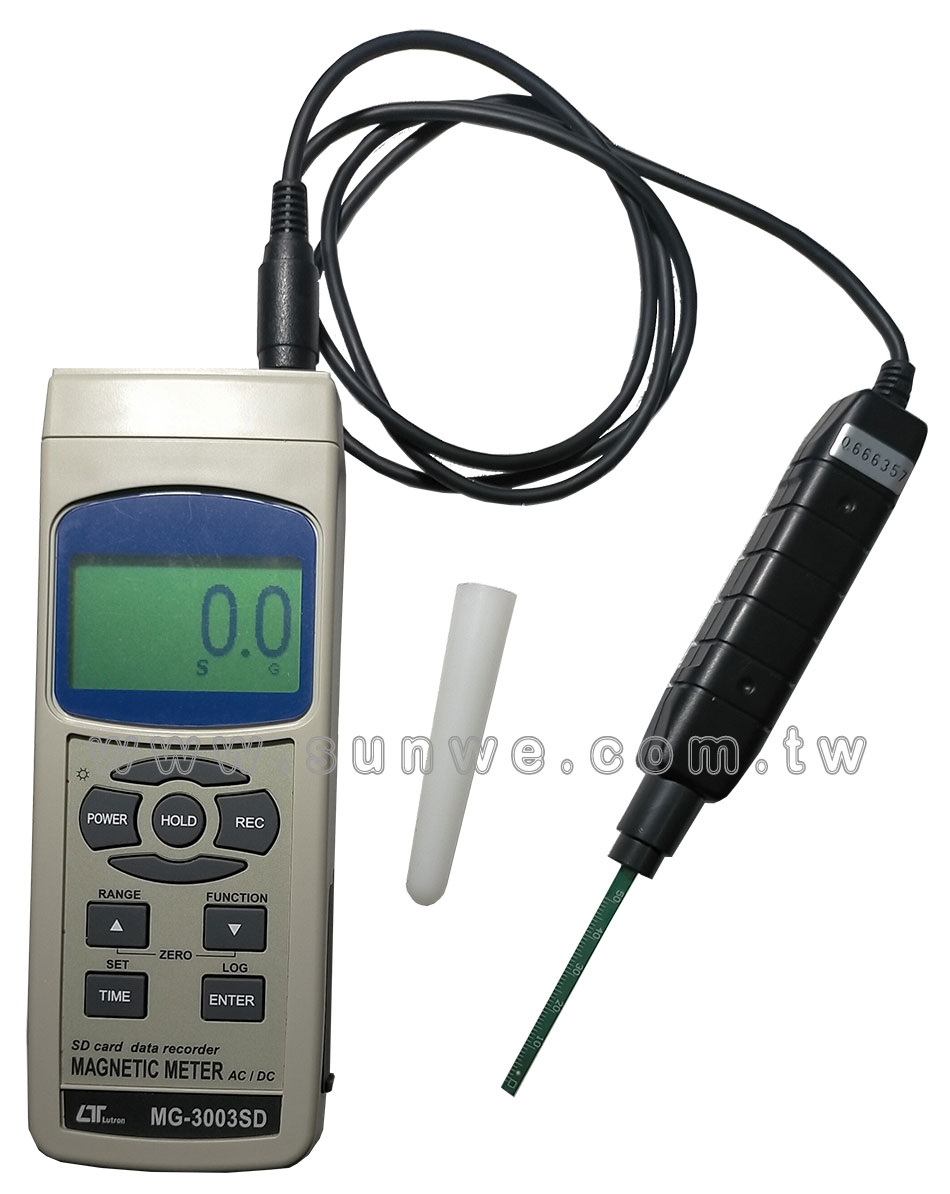

MG-3003SD
DC/AC 磁力計
簡介
-
即時數據紀錄儲存在SD記憶卡(選購)，資料可下載到Excel，做圖表分析(記憶卡選購)
-
測量範圍：
-
DC：0.1 高斯 ~ 30000 高斯
-
AC (50/60Hz)：0.1 高斯 ~ 15000 高斯
-
精確度：±5%
-
高斯 (Gauss) / 毫泰斯 (mT) 單位選擇
-
直流 (DC) 及交流 (AC) 毫高斯測量
-
磁性材料之磁力測量
-
具有 N/S 極性指示功能 (DC)
-
讀值鎖定及記錄測量中之最大 / 最小值
-
RS-232 / USB 連接介面 (軟體選購)
-
Size：177
X 68 X 45mm
特色
- 範圍廣，專業磁場測量
- 單位：G ( Gauss ), mT ( milli Tesla )
- DC 或 AC 磁場測量
- DC 磁場範圍：300.00 mT, 3000.0 mT
- AC 磁場範圍：150.00 mT, 1500.0 mT
- 解析度：0.01 mT/0.1 mT, 0.1 G/1 G
- DC 極性：N/S ( north/south pole )
- 感應器：Hall sensor
- 歸零調整
- 分離式感棒測測量更為簡單
- 即時 SD 儲存卡數據記錄器內置的時鐘和日曆，採樣時間可設定為1秒至8小時59分鐘59秒
- 執行手動數據記錄器可設置不同的 1~99 位置
- 創新，操作簡單，電腦是不需要安裝額外的軟件，只要將MG-3003SD 高斯計的 SD 卡取下插入電腦，即可下載的所有測量值與時間信息（年/月/日/小時/分鐘/秒）到Excel，然後用戶可以自己作出進一步的數據或圖形分析
- 記憶卡容量可 1 GB to 16 GB
- LCD具綠色背光燈，方便閱讀
- 可設定自動關機或手動關機
- 讀值鎖定，記錄最大值及最小值
- 微電腦電路，高精確度
- 電源由 UM3/AA ( 1.5 V ) x 6 乾電池或 DC 9V 變壓器供應
- RS232/USB 電腦連接介面
- 廣泛應用於：PCB行業，水處理，水族館，飲料，養殖場，食品加工，攝影，實驗室，造紙工業，電鍍工業，質量控制，學校，學院，水調節。
FEATURES
- Wide range, professional magnetic measurement.
- Unit : G ( Gauss ), mT ( milli Tesla ).
- DC or AC magnetic measurement.
- DC magnetic range : 300.00 mT, 3000.0 mT.
- AC magnetic range : 150.00 mT, 1500.0 mT.
- Resolution : 0.01 mT/0.1 mT, 0.1 G/1 G.
- DC polarity : N/S ( north/south pole ).
- Sensor : Hall sensor.
- Zero adjustment.
- Separate probe, easy to make the measurement.
- Real time SD memory card Datalogger, built-in Clock and Calendar, sampling time can set from 1 sec to 8 hour 59 min 59 sec.
- Manual datalogger is available, during execute the manual datalogger function, it can set the different location no. ( position 1 to position 99 ).
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information (year/month/date/hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
- SD card capacity : 1 GB to 16 GB.
- LCD with green light backlight, easy reading.
- It can default auto power off or manual power off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
- RS232/USB PC COMPUTER interface.
- Wide applications: PCB industries, water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water conditioning.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm.
- Dot matrix LCD with backlight.
測量單位 (Measurement Unit)
- mG : milligauss
- uT : micro Tesla
測量範圍 DC (Measurement Range, DC)
- mT Range 1 : 300.00 mT x 0.01 mT
- mT Range 2 : 3,000.0 mT x 0.1 mT
- G Range 1 : 3,000.0 G x 0.1 G
- G Range 2 : 30,000 G x 1 G
測量範圍 AC (Measurement Range, AC)
- mT Range 1 : 150.00 mT x 0.01 mT
- mT Range 2 : 1,500.0 mT x 0.1 mT
- G Range 1 : 1,500.0 G x 0.1 G
- G Range 2 : 1,5000 G x 1 G
精確度 (Accuracy) ( 23± 5 ) ℃
- DC : ± ( 5 % rdg. + 10 digit )
- AC : ± ( 5 % rdg. + 20 digit )
感應器 (Sensor)
- Hall sensor.
頻率反應 (Frequency Response)
- AC measurement : 50 Hz / 60 Hz
溫度補償 (Temp. Compensation for hall sensor)
- Probe head build the Temp. sensor for useing the ATC ( automatical Temp. compensatioon ).
電場方向 (Field Direction)
- Uniaxial.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 sec to 8 hour 59 min. 59 sec.
- @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second.
- @ Manual mode, can also select the 1 to 99 position ( Location ) no.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
卓越設定 (Advanced setting)
- * SD memory card Format
- * Set clock time (Year/Month/Date, Hour/Minute/ Second)
- * Set sampling time
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Decimal point of SD card setting
- * Unit setting.
讀值鎖定 (Data Hold)
-
Freeze the display reading.
記錄回叫 (Memory Recall)
- Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of Display)
- Approx. 1 second.
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temperature)
-
0 to 50 ℃.
操作溼度 (Operating Humidity)
-
Less than 85 %RH.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3,AA ) x 6 PCs, or equivalent.
- DC 9V adapter input. ( AC/DC power adapter is optional ).
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 14 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 37 mA.
- * AIf LCD backlight on, the power consumption will increase approx. 12 mA.
重量 (Weight)
-
489 g/1.08 LB.
體積 (Dimension)
- Meter :
177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)

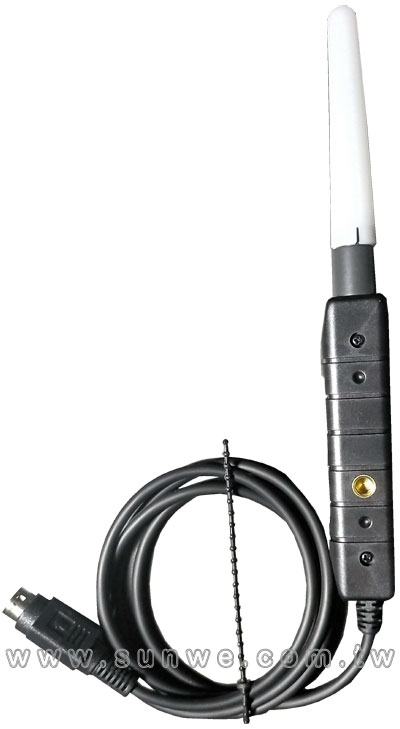

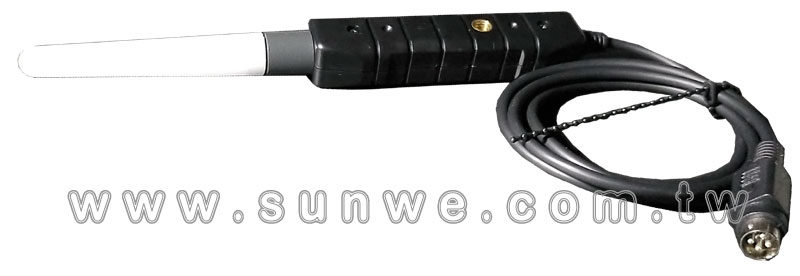

- Probe :
198 x 25 x 19 mm ( 7.8 x 1.0 x 0.7 inch ).

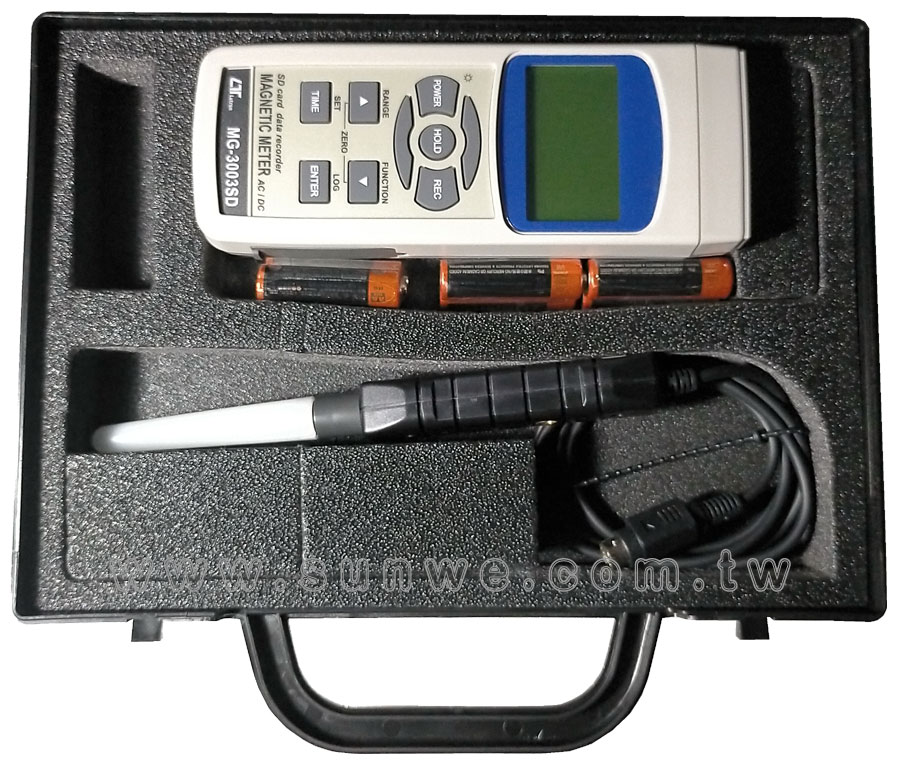

附件 (Accessories Included)
- Instruction manual...................... 1 PC
- Magnetic Probe...........................1 PC
- Hard carrying case ( CA-06 ).............1 PC
選購附件 (Optional Accessories)
- SD Card ( 4 GB )
- AC to DC 9V adapter.
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data acquisition software, SW-U801-WIN.
- Excel data acquisition software, SW-E802.
|
