DO-5509

溶氧計

特色

測量範圍 : 0 ~ 20 .0 mg/L

精確度 : ±0.4 mg/L

溫度範圍 : 0~60ºC ±0.8ºC

具有自動溫度補償功能

體積小'攜帶方便

Size : 131 x 70 x 25mm

一般說明

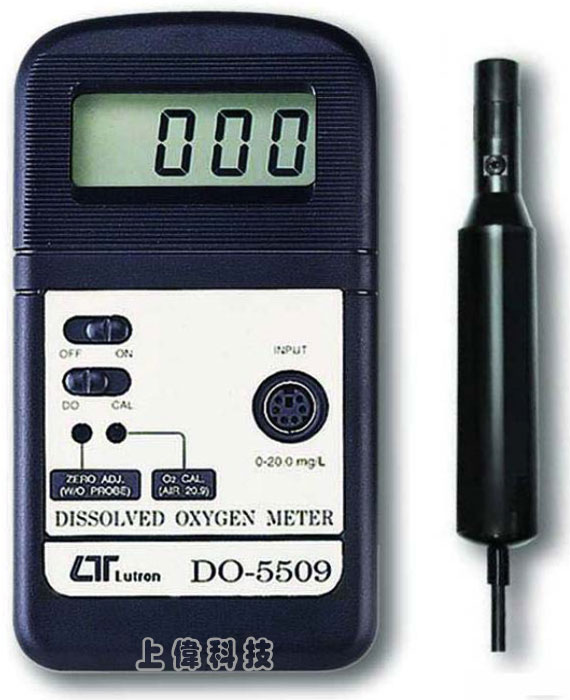

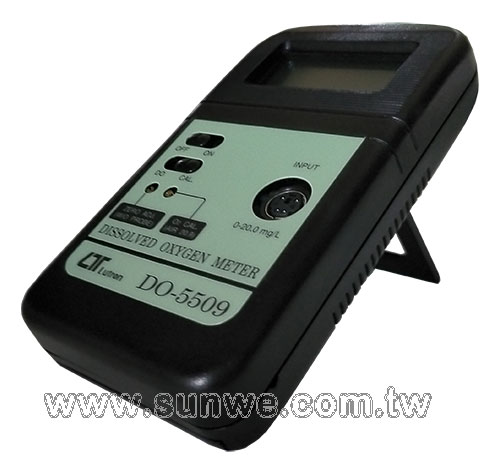

This Digital Dissolved Oxygen Meter is supplied with a polarographic type probe with an incorporated Temp. sensor which serves for precise Dissolved Oxygen ( DO ) and Temp. measurement.

Applications for Aquarium, Medical research, Agriculture, Fish hatcheries, Laboratory, Water conditioning, Mining industry, Schools & Colleges, Quality control...

一般規格

顯示 (Display)

13 mm ( 0.5" ) LCD, 3 1/2 digits.

測量範圍 (Measurement Range)

Dissolved Oxygen - 0 to 20.0 mg/L.

解析度 (Resolution)

0.1 mg/L..

精確度 (Accuracy)

± 0.4 mg/L. (after calibration within 23± 5 ℃)

溫度補償 (Temperature Compensation)

Automatic from 0 to 40℃.

面板調整鈕 (Panel adj. knob)

ZERO knob, CAL knob.

操作溫度 (Operating Temp. )

0 ℃ to 50 ℃(32 ℉ to 122 ℉).

操作溼度 (Operating Humidity)

Less than 85% R.H.

電源供應 (Power Consumption)

006P DC 9V battery ( heavy duty ).

電源損耗 (Power Current)

Approx. DC 3.5 mA

重量 (Weight)

390 g ( 0.86 LB ) - with probe.

尺寸 (Size)

Main instrument : 131 x 70 x 25 mm ( 5.2 x 2.8 x 1.0 inch ).

Oxygen probe : 190 mm x 28 mm Dia. ( 7.5" x 1.1" Dia. )

Probe cable length : 4 meters

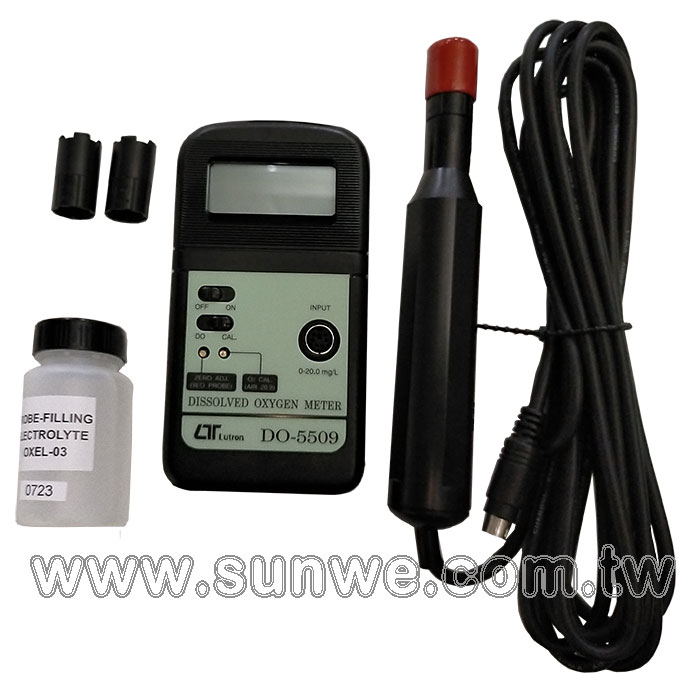

附件 (Standard Accessory)

Instruction manual............................ 1 PC

Oxygen probe( OXPB-09N ).......................1 PC.

Spare Probe head with Diaphragm set, OXHD-04...2 PCs

Probe-filling Electrolyte, OXEL-03............ 1 PC.

選購附件 (Optional & accessories Temp. Probe)

Oxygen probe............................ OXPB-09N

Spare Probe head with Diaphragm set .....OXHD-04

Probe-filling Electrolyte............... OXEL-03

Hard carrying case.......................CA-06

　

　

　

　
