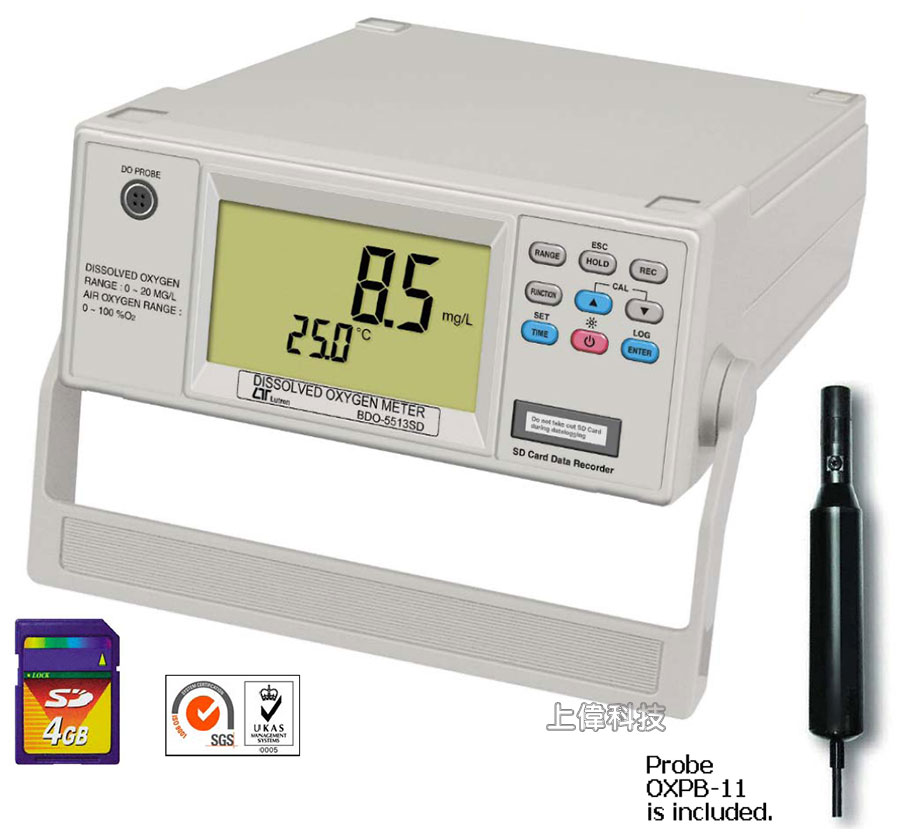

BDO-5513SD

記憶式桌上型氧氣分析儀

特色

即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)

測量範圍 :

溶氧 : 0 ~ 20.0 mg/L ±0.4 mg/L

氧氣 : 0 ~ 100.0% ±0.7%

溫度 : 0 ~ 50°C ±0.8°C

具有自動溫度補償及手動高度/鹽度補償

雙視窗同時顯示溶氧/氧氣/溫度

可記錄最大值,最小值及讀值鎖定

RS-232 / USB 輸出介面 (軟體選購)

Size : 290 x 220 x 90mm

FEATURES

Bench type pH/ORP METER.

Multi-function : Dissolved oxygen, Oxygen in air, Temperature.

Dissolved oxygen : 0 to 20.0 mg/L.

Dissolved oxygen meter use the polar graphic type oxygen probe with temperature sensor, high precision measurement for Dissolved Oxygen ( DO ) and temperature measurement.

Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle.

DO use the automatic Temp. compensation.

DO meter build in " % SALT " & " Mountain Height " compensation value adjustment.

Separate probe, easy for operation of different measurement environment.

Wide applications: water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water

RS232/USB PC COMPUTER interface.

LCD with green light backlight, easy reading.

Can default auto power off or manual power off.

Data hold, record max. and min. reading.

Microcomputer circuit, high accuracy.

ATC ( automatic temperature compensation ).

RS232/USB computer interface.

SD card capacity : 1 GB to 16 GB.

Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.

Electrode included : Dissolved oxygen probe.

一般規格

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

顯示 (Display)

LCD size : 56 mm x 97 mm

LCD with green backlight ( ON/OFF ).

測量 (Measurement Function)

Dissolved Oxygen

Oxygen in Air

Temperature

資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)

Auto :  1 sec to 8 hour 59 min. 59 sec @ Sampling time can set to 1 second, but memory data may loss.

Manual : Push the data logger button once will save data one time.

@ Set the sampling time to 0 second. @ Manual mode, can also select the 1 to 99 position ( Location ) no.

優越的設定 (Advanced setting)

* Auto power OFF management

* Set beep Sound ON/OFF

* Set temperature unit to ℃ or ℉

* Set DO salt% compensation value

* Set DO height ( meter ) compensation value

* Set DO height ( feet ) compensation value

資料鎖定 (Data hold)

Hold the current reading value on the display

記憶回叫 (Memory Recall)

Maximum and Minimum reading values can be saved and retrieved by record function.

取樣時間 (Sampling Time)

Approx. 1 sec

解析度 (Resolution)

Dissolved Oxygen : 0.1 mg/L.

Oxygen in Air : 0.1 % O2 .

Temperature : 0.1

資料輸出 (Data Output)

RS 232/USB PC computer interface.

* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.

* Connect the optional USB cable USB-01 will get the USB plug.

操作溫度 (Operating Temp. )

0 ℃ to 50 ℃(32 ℉ to 122 ℉).

操作溼度 (Operating Humidity)

Less than 85% R.H.

電源供應 (Power Supply)

Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.

DC 9V adapter input.

* AC/DC power adapter is optional.

電源電流 (Power Current)

Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 14 mA

When SD card save the data but and LCD Backlight is OFF) : Approx. DC 34 mA.

* AIf LCD backlight on, the power consumption will increase approx. 5 mA.

重量 (Weight)

1400 g/3.08 LB..

體積 (Dimension)

290 x 220 x 90 mm ( 11.5 x 8.7x 3.6 inch ) * Meter only

附件 (Standard Accessory)

Operation manual..........................1 PC.

Oxygen probe ( OXPB-11 )................. 1 PC.

Spare Probe head with Diaphragm OXHD-04.. 2 set

Probe-filling Electrolyte OXEL-03........ 1 set

選購附件 (Optional accessories)

Oxygen probe.......................... OXPB-11

Spare Probe head with Diaphragm set....OXHD-04

Probe-filling Electrolyte............. OXEL-03

RS232 cable............................UPCB-02

USB cable..............................USB-01

Data Acquisition software .............SW-U801-WIN

AC to DC 9V adapter

SD memory card ( 4G ).

電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)

溶氧測棒 (Oxygen Probe)

Probe, OXPB-11 is included.

The polarographic type oxygen probe with temperature sensor.

測量及範圍 (Measurement & Range)

Dissolved Oxygen：0 to 20.0 mg/L ( liter ).

Oxygen in Air：0 to 100.0 %.

Temperature：0 to 50 ℃ .

解析度 (Resolution)

Dissolved Oxygen：0.1 mg/L.

Oxygen in Air：0.1 % O2 .

Temperature：0.1

精確度 (Accuracy) (23± 5 ℃ )

Dissolved Oxygen：± 0.4 mg/L.

Oxygen in Air：± 0.7% O2.

Temperature：± 0.8 ℃ /1.5 ℉ .

測棒補償及調整 (Probe Compensation & Adj.)

Temperature：0 to 50 ℃ ,Automatic

Salt：0 to 50 % Salt

Height ( M. T.)：0 to 8900 meter

測棒重量 (Probe Weight)

230 g/0.51 LB

測棒尺寸 (Probe Size)

190 mm x 28 mm Dia. ( 7.5" x 1.1" Dia. )

　
