DO-5510

氧氣分析儀

特色

測量範圍 :

溶氧 : 0 ~ 20 mg/L ±0.4 mg/L

氧氣 : 0 ~ 100% ±0.7%

溫度 : 0 ~ 50°C ±0.8°C

具有自動溫度補償及手動高度補償

雙視窗同時顯示溶氧/氧氣/溫度

可記錄最大值,最小值及讀值鎖定

RS-232 / USB 輸出介面 (軟體選購)

Size : 180 x 72 x 32mm

一般說明

This Digital Dissolved Oxygen Meter is supplied with a polarographic type probe with an incorporated Temp. sensor which serves for precise Dissolved Oxygen ( DO ) and Temp. measurement.

Applications for Aquarium, Medical research, Agriculture, Fish hatcheries, Laboratory, Water conditioning, Mining industry, Schools & Colleges, Quality control...

FEATURES

The polarographic type oxygen probe with an incorporated Temp. sensor, high precision measurement for Dissolved

Oxygen(DO), Oxygen in air(O2) & Temperature measurement.

Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle.

Automatic Temp. compensation from 0 to 50 ℃ for sensor probe.

Build in " % SALT " & " Mountain Height " compensation , adjust the factor by push the button on the front panel.

Microprocessor circuit assures high accuracy and provides special functions and features.

Multi-display, show oxygen & Temp. at the same time.

Records Maximum, Minimum and Average readings with RECALL, data hold.

Auto power off saves battery life. Powered by 006P DC 9V battery.

RS 232 PC serial interface.

Build in temperature , ℉ measurement.

Use the durable, long-lasting components, including a heavy duty & compact ABS-plastic housing case.

一般規格

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

顯示 (Display)

Dual function meter's display, 13 mm(0.5").

Super large LCD display with contrast adjustment for best viewing angle.

測量及範圍 (Measurement & Range)

Dissolved Oxygen : 0 to 20.0 mg/L(liter).

Oxygen in Air : 0 to 100.0 %.

Temperature 0 : to 50 ℃.

解析度 (Resolution)

Dissolved Oxygen : 0.1 mg/L.

Oxygen in Air : 0.1 % O2 .

Temperature : 0.1

精確度 (Accuracy)

Dissolved Oxygen : 0.4 mg/L.

Oxygen in Air : 0.7% O2.

Temperature : 0.8 ℃ /1.5 ℉.

感應器結構 (Sensor Structure)

The polarographic type oxygen probe with an incorporated temperature sensor.

測棒溫度補償及調整 (Probe Compensation & Adj.)

Temperature : 0 to 50 ℃, Automatic

Salt : 0 to 39 % Salt

Height(M. T.) : 0 to 3900 meter

記憶回叫 (Memory Recall)

Maximum and Minimum reading values can be saved and retrieved by record function.

關機 (Power off)

Auto shut off saves battery life, or manual off by push button.

過載指示 (Overload indication)

Indication of "- - - -".

資料輸出 (Data Output)

RS 232/USB PC computer interface.

取樣時間 (Sampling Time)

Approx. 0.4 sec

操作溫度 (Operating Temp.)

0 to 50 ℃.  (32 to 122 ℉ ).

操作溼度 (Operating Humidity)

Max. 80% RH.

電源供應 (Power Supply)

Heavy duty type, 006P DC 9V battery MN1604 ( PP3 ).

電源電流 (Power Current)

 Approx. DC 6.6 mA

重量 (Weight)

335 g/0.74 LB (batteries & probe included)

體積 (Dimension)

Main instrument : 180 x 72 x 32 mm(7.1 x 2.8 x1.3 inch).

Oxygen probe : 190 mm x 28 mm Dia. ( 7.5" x 1.1" Dia. )

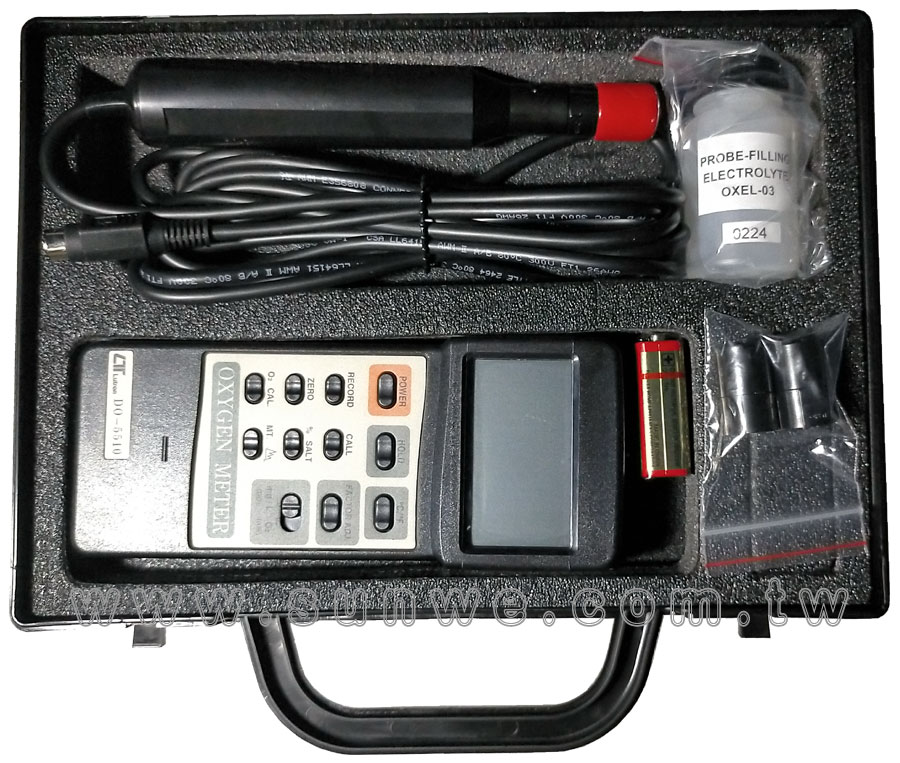

附件 (Standard Accessory)

Oxygen probe( OXPB-11 ).................. 1 PC.

Carrying case............................ 1 PC.

Operation manual..........................1 PC.

Spare Probe head with Diaphragm OXHD-04.. 2 PCs.

Probe-filling Electrolyte OXEL-03........ 1 PC.

選購附件 (Optional accessories)

Oxygen probe..................................OXPB-11

Spare Probe head with Diaphragm set ..........OXHD-04

Probe-filling Electrolyte.....................OXEL-03

RS232 cable...................................UPCB-01

USB cable.....................................USB-01

Data acquisition software (Windows version ), SW-U801-WIN

　

　

　

　

　

　
