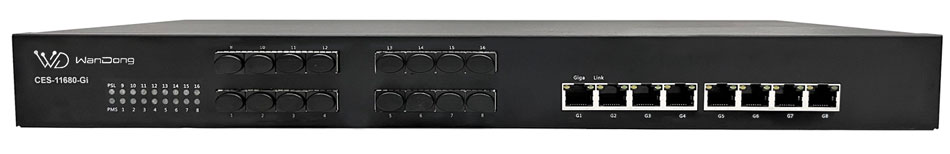

CES-11680-Gi
全光纖網路交換器

16Port 1000 SFP + 8Port 10/100/1000TX RJ‐45

特性
-
8埠GIGA超高速乙太網路RJ-45埠口
- 16埠 GIGA
光纖SFP 埠口
- 支援IEEEE
802.3ab 1000BaseT 銅纜與IEEE 802.3z 1000Base SX/LX
之千兆乙太網路標準
-
內建十六個1000Base
SX/LX乙太網路傳輸埠,SFP埠可支援多模光纖(Multi-mode)或單模光纖Single-mode)之SFP
收發器Store and forward Architecture
-
網路傳輸埠可支援全雙工、Auto-MDI/MDI-X 以及自動偵測傳輸速率功能
- 符合IEEE
802.3ab 標準, 最高網速可達 1000Mbps, 同時支援二埠上連端口, 可作為現場調適使用
- 支援操作溫度
0°C to 50°C
-
鋼製外殼IP-30 設計.雙電源輸入確保系統使用安全性
-
輸入電壓範圍110V ~240 VAC
-
符合安全規範
-
隨機附30W工業電源
-
適用安防產業,一年保固
系統介面 / 效能
System Interface/Performance
- 16 x GbE SFP +8
10/100/1000Mbps Gigabit 乙太路光纖集合型交換機
- MDI/MDI-X 自動偵測
- 200Mbps
full-duplex(全雙工)頻寬與10/00M 埠連線;2000Mbps full-duplex(全雙工)頻寬可達1000M
- 內建8K MAC 地址
- 自動配置(automatic
source address learning and aging)網路配置
- 符合IEEE 802.3
10Base-T、IEEE 802.3u 100Base-TX、IEEE 802.3ab 1000Base-T、IEEE
802.3z 1000Base-SX/LX
- 符合CE, FCC
-
支援儲存轉發Store-and-Forward 執行方式
100~240 VAC Power input with
internal redundant power
Metal Housing with rackmount and
IP30 Design
產品說明
- CES-11680-Gi 是新一代 24
埠乙太網路光纖交換器,擁有容納強大 L2 交換地址 8K、支援 56G 背板頻寬,並支援 IEEE
802.3/802.3u/802.3x
和10/100/1000M、全/半雙工、MDI/MDI-X自動偵測,可真實達到隨插即用,為使用者帶來快速且經濟實惠經由光纖或銅軸線纜傳輸的乙太網路傳輸服務。
- 擁有 16 埠 1G SFP 以及 8 埠 10M/100M/1G
RJ45 埠口,高硬體效能與彈性化擴充,高埠數 GbE SFP
光纖接口特別適用於工業區、大樓自動化、社區寬頻建置、中小型企業光纖網路。
- CES-11680-Gi
支援鋼製外殼及強固型設計,可支援 0°C to 50°C的操作溫度,可搭配 CTI-1000-SM10
系列光電轉換器使用,兼顧耐用與實用的網路設計。
規格
IEEE Standards |
EEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-TX
IEEE802.3z Gigabit Fiber
IEEE802.3x Flow Control and Back Pressure |
Switch Properties |
Back-plane (Switching Fabric): 5.6
Gbps Packet
throughput ability (Full-Duplex): 1488096pps
@64bytes |
Transfer Rate |
14,881pps for Ethernet port
148,810pps for Fast Ethernet port
148,8100pps for Giga Ethernet port |
Connectors |
1000 FX: 16 x 1000 SFP
10/100/1000M TX: 8 x RJ-45 with auto MDI/MDI-X
function |
MAC Address |
8K MAC addresses |
Processing |
Store-and-Forward |
Network Cable |
10Base-T: 2-pair UTP/STP Cat. 3, 4,
5, 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5, 6 cable
EIA/TIA-568 100-ohm (100m) |
Fiber Optical |
Distance:
Multi mode:
0 to 5 km, 1300 nm (50/125 μm, 800 MHz*km)
0 to 4 km, 1300 nm (62.5/125 μm, 500 MHz*km)
Single mode:
0 to 40 km, 1310 nm (9/125 μm, 3.5 PS/(nm*km))
0 to 80 km, 1550 nm (9/125 μm, 19 PS/(nm*km))
Min. TX Output:
Multi mode: -20 dBm
Single mode: 0 to 40 km, -5 dBm; 0 to 80 km, -5 dBm
Max. TX Output:
Multi mode: -14 dBm
Single mode: 0 to 40 km, 0 dBm; 0 to 80 km, 0 dBm
Sensitivity: -36 to -32 dBm(SM); -34 to -30(MM) |
Protocol |
CSMA/CD |
Case Dimension |
Metal case; 440mm(W)x205mm(D)x45mm(H) |
Weight |
2200g |
LED |
Power Indicator : Green LED x 2
10/100/1000Base-T(X) RJ45 port indicator :
Green LED x8 Amber x8
1000Base-SX/LX Fiber port indicator :
Green LED x8 |
Power Supply |
100~240 VAC Power input with internal redundant power |
Consumption |
Less than 30 Watts (Full load: Only Ethernet) |
Overload Current |
NC |
Reserve Polarity |
NC |
Operating Humidity |
5% to 95% Non-condensing |
Operating
Temperature |
0°C~50°C |
Storage
Temperature |
-20°C~70°C |
Certification |
FCC
CE |
Warranty |
1 years |
|
