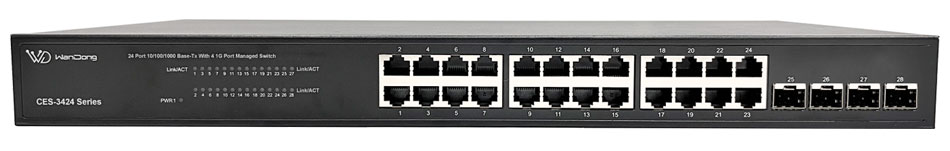

CES-3424-G
全光纖網路交換器
24 10/100/1000TX + 4 1000M SFP
特性
- 24 埠GIGA超高速乙太網路RJ-45埠口
- 4埠 GIGA 光纖SFP 埠口
- 輸入電壓範圍110V ~240 VAC
- 操作溫度 0°C to 50°C
- 符合安全規範
- 適用安防產業，一年保固
- Build in OVS Open Flow agent**optional**
- Supports Open flow 1.3**optional**
- Support SSH,SSL,RADIUS/TACACS+
- Support Denial-of-Service (DOS) prevention.
- IPV6 & IPV4 Based ACL
- Built in 802.3az for power saving
- Support SNMP V2c/V3
- Support IPV6 Management
- DDM threshold monitoring with dB values
- Loop protection prevents network attack and Loopback cable protection.
- Support Advanced SNMP including QoS, IGMP V2 /V3 snooping and query
Central Managed Switches / SDN Switch
- RJ-45 Port Support Auto MDI/MDI-X Function
- SFP slot supports DDM for SFP diagnostic and monitoring(need to work with SFP with diagnostic function)
- Back-plane (Switching Fabric): 56 Gbps
- 16K MAC address table
- Built in OVS Open Flow agent
- IPv6 management
- IEEE 802.1d Spanning Tree , IEEE 802.1w RSTP& IEEE 802.1s MSTP
- IGMP with Snooping and Query mode for Multi Media Application; MLD-Snooping for IPV6
- Support IP multicast dynamic source learning for IP CAM and video.
- Port Based VLAN, 802.1Q Tag VLAN, GVRP
- Port Trunk with LACP
- Supports IEEE 802.1ab LLDP , LLDP-MED , UDLD
- Supports IEEE 802.1p CoS, 8 priority queues per port
- Port base, Tag Base and Type of Service Priority
- Supports Ingress Packet Filter and Egress Rate Limit
- Supports Broadcast/Multicast Packet Filter Control
- Port Mirror: Monitor traffic in switched networks
- TX, RX, Both of TX and RX Packet n Security
- Port Security:
- MAC address entries/Filter/MAC violation
- RADIUS/TACACS+
- Login Security: IEEE802.1X
- HTTPS and SSL
- Denial-of-Service(DOS)Prevention
- Dynamic ARP Inspection,
- IP Source Guard
Loop Protection: prevents network attack, loopback cable detection and Miss-wiring avoidance
- SNMP Trap
- Device cold start, Power status, Authentication failure,Ring changed, Port Link up/Link down.
- Relay Alarm Output System Events
- SNTP for time sync
- TFTP Firmware Update & System Configure Restore/Backup
- Factory reset bottom can restore all setting back to factory default and Watchdog design to automatically reboot switch under certain circumstances
產品說明
- CES-3424-G 是新一代 24 埠乙太網路光纖交換器，擁有容納強大 L2 交換地址 8K、支援 56G 背板頻寬，並支援 IEEE 802.3/802.3u/802.3x 和 10/100/1000M、全/半雙工、MDI/MDI-X自動偵測，可真實達到隨插即用，為使用者帶來快速且經濟實惠經由光纖或銅軸線纜傳輸的乙太網路傳輸服務。
- 擁有 4 埠 1G SFP 以及 24 埠 10M/100M/1G RJ45 埠口，高硬體效能與彈性化擴充，高埠數 GbE SFP 光纖接口特別適用於工業區、大樓自動化、社區寬頻建置、中小型企業光纖網路。
- CES-3424-G 支援鋼製外殼及強固型設計，可支援 0°C to 50°C的操作溫度，可搭配 CTI-1000-SM10 系列光電轉換器使用，兼顧耐用與實用的網路設計。
規格
|
IEEE Standards |
EEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-TX
IEEE802.3z Gigabit Fiber
IEEE802.3x Flow Control and Back Pressure |
|
Switch Properties |
Back-plane (Switching Fabric):
5.6Gbps Packet
throughput ability (Full-Duplex): 1488100pps
@64bytes |
|
Transfer Rate |
14,881pps for Ethernet port
148,810pps for Fast Ethernet port
148,8100pps for Giga Ethernet port |
|
Connectors |
1000 FX: 16 x 1000 SFP
10/100/1000M TX: 8 x RJ-45 with auto MDI/MDI-X
function |
|
MAC Address |
8K MAC addresses |
|
Processing |
Store-and-Forward |
|
Network Cable |
10Base-T: 2-pair UTP/STP Cat. 3, 4,
5, 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5, 6 cable
EIA/TIA-568 100-ohm (100m) |
|
Fiber Optical |
Distance:
Multi mode:
0 to 5 km, 1300 nm (50/125 μm, 800 MHz*km)
0 to 4 km, 1300 nm (62.5/125 μm, 500 MHz*km)
Single mode:
0 to 40 km, 1310 nm (9/125 μm, 3.5 PS/(nm*km))
0 to 80 km, 1550 nm (9/125 μm, 19 PS/(nm*km))
Min. TX Output:
Multi mode: -20 dBm
Single mode: 0 to 40 km, -5 dBm; 0 to 80 km, -5 dBm
Max. TX Output:
Multi mode: -14 dBm
Single mode: 0 to 40 km, 0 dBm; 0 to 80 km, 0 dBm
Sensitivity: -36 to -32 dBm(SM); -34 to -30(MM) |
|
Protocol |
CSMA/CD |
|
Case Dimension |
Metal case; 440mm(W)x205mm(D)x45mm(H) |
|
Weight |
2200g |
|
LED |
Power Indicator : Green LED x 2
10/100/1000Base-T(X) RJ45 port indicator :
Green LED x8 Amber x8
1000Base-SX/LX Fiber port indicator :
Green LED x8 |
|
Power Supply |
100~240 VAC Power input with internal
redundant
power |
|
Consumption |
Less than 30 Watts (Full load: Only
Ethernet) |
|
Overload Current |
NC |
|
Reserve Polarity |
NC |
|
Operating Humidity |
5% to 95% Non-condensing |
Operating
Temperature |
0°C~50°C |
Storage
Temperature |
-20°C~70°C |
|
Certification |
FCC
CE |
|
Warranty |
1 years |
|
