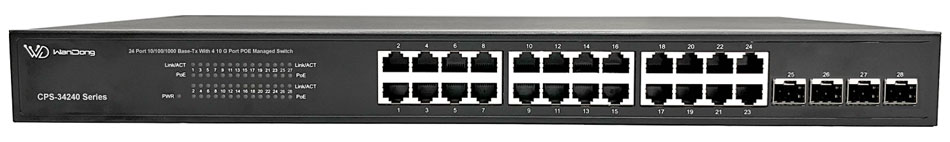

CPS-34240-G

全光纖網路 POE 交換器

24 10/100/1000TX + 4 10G SFP+

特性

24 埠GIGA超高速乙太網路RJ-45埠口

4埠 10G SFP+ 埠口

輸入電壓範圍110V ~240 VAC

操作溫度 0°C to 50°C

符合安全規範

適用安防產業，一年保固

Build in OVS Open Flow agent**optional**

Supports Open flow 1.3**optional**

Support 24-Port Hi power POE W/. 802.3 AT Standard

Support SSH,SSL,RADIUS/TACACS+

Support Denial-of-Service (DOS) prevention.

IPV6 & IPV4 Based ACL

Built in 802.3az for power saving

Support SNMP V2c/V3

Support IPV6 Management

DDM threshold monitoring with dB values

Loop protection prevents network attack and Loopback cable protection.

Support Advanced SNMP including QoS, IGMP V2 /V3 snooping and query

Central Managed Switches / SDN Switch

Back-plane (Switching Fabric): 128 Gbps

16K MAC address table

Built in OVS Open Flow agent

IPv6 management

IEEE 802.1d Spanning Tree , IEEE 802.1w RSTP& IEEE 802.1s MSTP

IGMP with Snooping and Query mode for Multi Media Application; MLD-Snooping for IPV6

Support IP multicast dynamic source learning for IP CAM and video.

Port Based VLAN, 802.1Q Tag VLAN, GVRP

Port Trunk with LACP

Supports IEEE 802.1ab LLDP , LLDP-MED , UDLD

Supports IEEE 802.1p CoS, 8 priority queues per port

Port base, Tag Base and Type of Service Priority

Supports Ingress Packet Filter and Egress Rate Limit

Supports Broadcast/Multicast Packet Filter Control

Port Mirror: Monitor traffic in switched networks

TX, RX, Both of TX and RX Packet n Security

Port Security:

MAC address entries/Filter/MAC violation

RADIUS/TACACS+

Login Security: IEEE802.1X

HTTPS and SSL

Denial-of-Service(DOS)Prevention

Dynamic ARP Inspection,

IP Source Guard

Loop Protection: prevents network attack, loopback cable detection and Miss-wiring avoidance

SNMP Trap

Device cold start, Power status, Authentication failure,Ring changed, Port Link up/Link down.

SNTP for time sync

Relay Alarm Output System Events

TFTP Firmware Update & System Configure Restore/Backup

Factory reset bottom can restore all setting back to factory default and Watchdog design to automatically reboot switch under certain circumstances

產品說明

CPS-34240-G 是新一代 24 埠GIGABIT+4埠10G 乙太網路POE交換器，支援24埠Hi power 802.3at POE，擁有容納強大 L2 交換地址 16K、支援 128G 背板頻寬，並支援 8個優先權序列QOS、802.1V protocol based VLAN、IGMP V2 V3、IP V6 等多項網管協議，為使用者帶來穩定且安全性高的可管理乙太網路傳輸服務。

擁有 24 埠 10M/100M/1G RJ45 埠口以及 4 埠10G SFP，高硬體效能與彈性化擴充，高埠數 GbE SFP 光纖接口特別適用於工業區、大樓自動化、社區寬頻建置、中小型企業光纖網路。

CPS-34240-G 支援鋼製外殼及強固型設計，0°C to 50°C的操作溫度，可搭配 CTI-10000-SM10 (支援10G SEP+) 系列光電轉換器使用，兼顧耐用與實用的網路設計。

　
