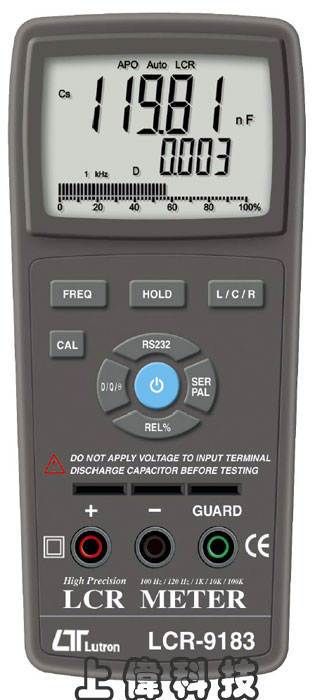

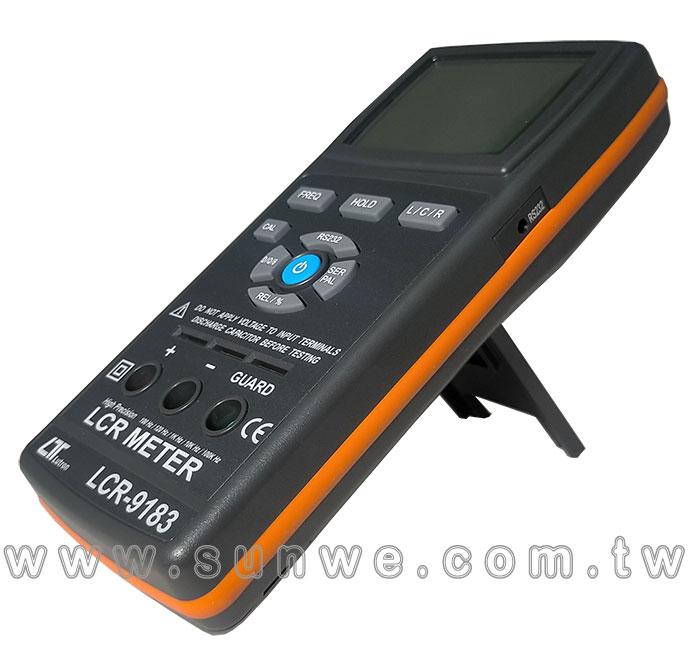

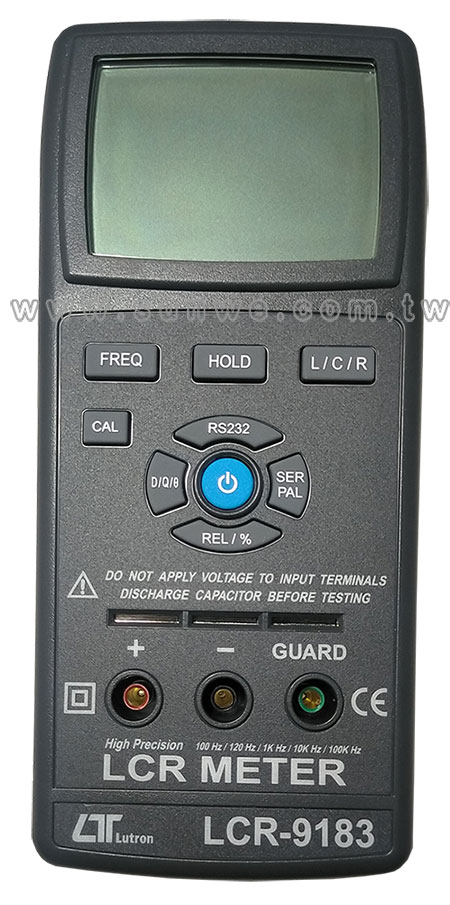

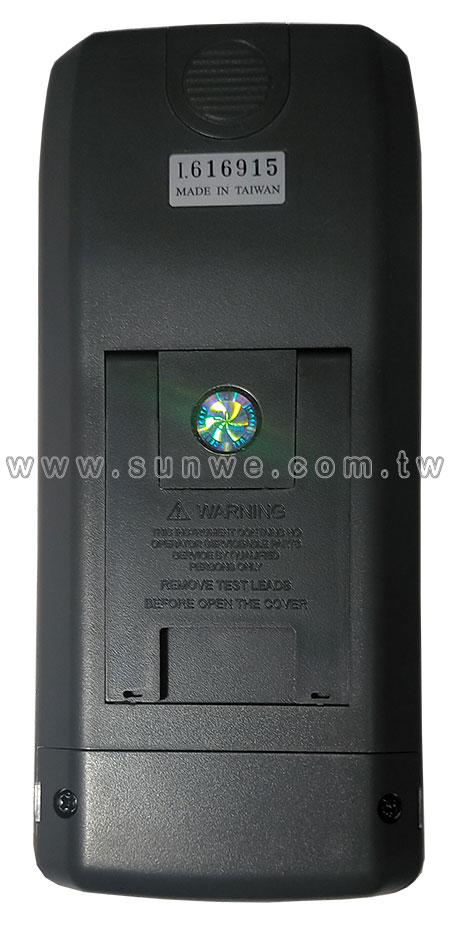

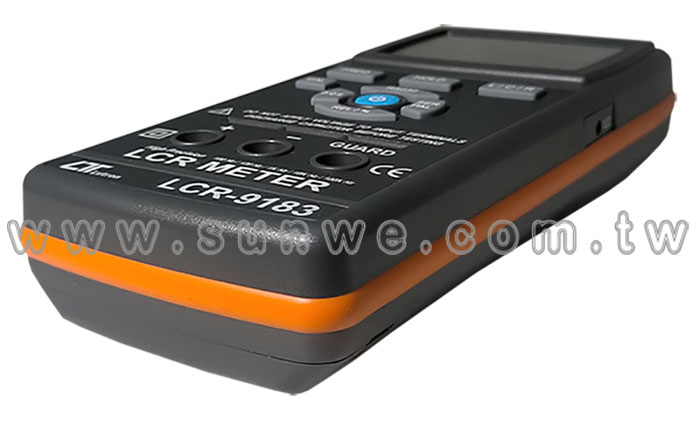

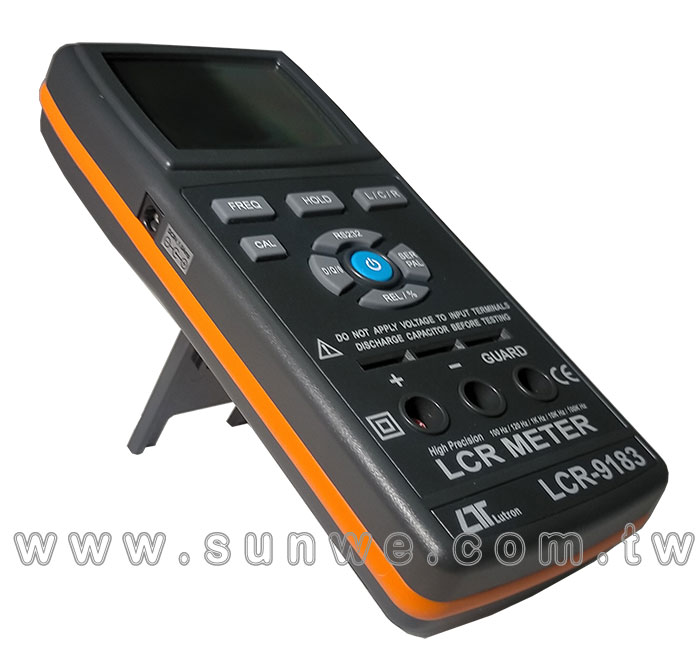

LCR-9183
專業型 LCR
錶
簡介
-
19999 / 1999位數雙視窗顯示器
-
自動判別 電感 / 電容 / 電阻及測量
-
電感：200.00uH ~
2000.0H
-
電容：2000.0pF ~ 2.000mF
-
電阻：20.000
~ 200.0M歐姆
-
串聯 / 並聯測量模式選擇
-
DCR
模式2000.0 ~200.0MΩ
-
測量頻率點：100Hz
/ 120Hz / 1KHz / 10kHz / 100KHz
-
測量 Ls / Lp / Cs / Cp 及
D / Q / θ / ESR 參數
-
可記錄最大值、最小值及讀值鎖定
-
Size：193
X 88 X 41mm
FEATURES
- 19,999 / 1,999 counts dual LCD
display.
- Auto LCR smart check and
measurement.
- Serial / Parallel modes are
selectable.
- Ls / Lp / Cs / Cp with D / Q / θ / ESR
parameters.
- Support DCR mode 1.00 Ω to 200.0
MΩ .
- Five different test frequency are
available : 100Hz / 120Hz / 1KHz / 10KHz / 100KHz.
- Test AC signal level : 0.6 V rms
typically.
- Test range :
( ex. F = 1 KHz )
-
- L :
200.00uH to 2000.0H
-
- C : 2000.0pF to 2.000mF
-
- R : 20.000Ω to 200.0MΩ
- Multi-level battery detector.

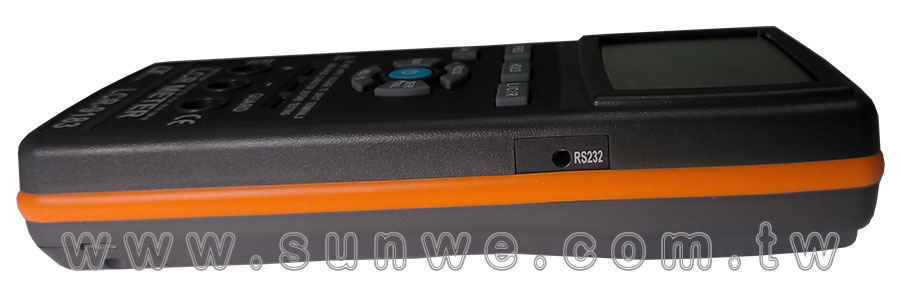

- RS232/USB PC Computer interface.
- Can default auto power off.
一般規格
顯示 (Display)
- LCD size：56.4 X 52.9 mm.
測試頻率 (Measurement)
- 100Hz / 120Hz / 1KHz / 10KHz / 100KHz
功能
(Function)
- L / C / R Function selector
- Frequency selector
- D / Q / θ / ESR selector
損耗因素 (Dissipation
factor)
- 0.000 to 999
品質因素 (Quality factor)
- 0.000 to 999
θ 值測試 (θ measurement)
- ± 90°
校正 (Calibration)
- Open / Short calibration
讀值鎖定 (Data Hold)
- Freeze the display reading
資料輸出 (Data output)
- RS232 / USB PC computer interface
電源關閉 (Power off)
- Auto shut off saves battery life
or manual off by push button
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ).
操作溼度 (Operating
Humidity)
- Less than 85% RH.
電源供應 (Power Supply)
- 006P DC 9V battery. heavy duty
battery.

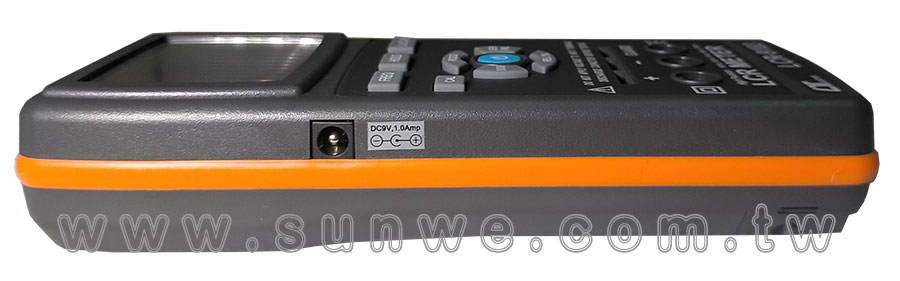

- DC 9V adapter input * AC/DC power
adapter is optional.
電源消耗 (Power Consumption)
- DC 35 mA approximately
體積 (Dimensions)
- 193 x 88 x 41mm
重量 (Weight)
- 420 g * meter only
附件 (Accessories
Included)
- Instruction Manual
................. 1 PC.
- Alligator
clips................................1 Pair
選購附件 (Optional
Accessories)
- SMD tester, SMDA-22
- SMD test clip, SMDC-21
- Holster, HS-03
- AC to DC 9V adapter
- Hard carrying case, CA-06
- Soft carrying case, CA-05A
電器規格 (23±5 ℃)
電阻 Resistance ( DCR )
| Range |
Accuracy |
Remark |
| 20 Ω |
± ( 0.5% + 5d ) |
After Short CAL. |
| 200 Ω |
± ( 0.5% + 5d ) |
|
| 2 KΩ |
± ( 0.5% + 5d ) |
|
| 20 KΩ |
± ( 0.5% + 5d ) |
|
| 200 KΩ |
± ( 0.5% + 5d ) |
|
| 2 MΩ |
± ( 0.5% + 5d ) |
After Open CAL. |
| 20 MΩ |
± ( 1% + 5d ) |
After Open CAL. |
| 200 MΩ |
± ( 2% + 5d ) |
After Open CAL. |
電阻 Resistance(Z) ( Rp/Rs )
| Range |
Accuracy 100 Hz/120 Hz |
Accuracy 1000 Hz |
Accuracy 10 KHz |
Accuracy 100 KHz |
Remark |
| 20 Ω |
± ( 1% + 5d ) |
± ( 1% + 5d ) |
± ( 1% + 5d ) |
± ( 2% + 5d ) |
After Short CAL. |
| 200 Ω |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
|
| 2 KΩ
|
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
|
| 20 KΩ |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
|
| 200 KΩ |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
|
| 2 MΩ |
± ( 1% + 5d ) |
± ( 1% + 5d ) |
± ( 1% + 5d ) |
± ( 2% + 5d ) |
After Open CAL. |
| 20 MΩ |
± ( 1% + 5d ) |
± ( 2% + 5d ) |
± ( 2% + 5d ) |
-------- |
After Open CAL. |
| 200 MΩ |
± ( 2% + 5d ) |
± ( 5% + 5d ) |
-------- |
-------- |
After Open CAL. |
電容 Capacitance ( Cp/Cs ) : D ≦ 0.1
| Range |
Accuracy 100 Hz/120 Hz |
Accuracy 1000 Hz |
Accuracy 10 KHz |
Accuracy 100 KHz |
Remark |
| 20 pF |
± ( 2% + 5d ) |
± ( 1% + 5d ) |
± ( 1% + 5d ) |
± ( 1% + 5d ) |
After Open CAL. |
| 200 pF |
± ( 1% + 5d ) |
± ( 1% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
After Open CAL. |
| 2000 pF |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
After Open CAL. |
| 20 nF |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
|
| 200 nF |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
|
| 2000 nF |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
|
| 20 uF |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
|
| 200 uF |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 1% + 5d ) |
-------- |
After Short CAL. |
| 2000 uF |
± ( 1% + 5d ) |
± ( 1% + 5d ) |
-------- |
-------- |
After Short CAL. |
| 20 mF |
± ( 2% + 5d ) |
-------- |
-------- |
-------- |
After Short CAL. |
電感 Inductance ( Lp/Ls ) : D ≦ 0.1
| Range |
Accuracy
100 Hz/120 Hz |
Accuracy
1000 Hz |
Accuracy
10 KHz |
Accuracy
100 KHz |
Remark |
| 20 uH |
± ( 1% + 5d ) |
± ( 1% + 5d ) |
± ( 1% + 5d ) |
± ( 1% + 5d ) |
After Short CAL. |
| 200 uH |
± ( 1% + 5d ) |
± ( 1% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
After Short CAL. |
| 2000 uH |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
|
| 20 mH |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
|
| 200 mH |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
-------- |
|
| 2000 mH |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
-------- |
|
| 20 H |
± ( 0.5% + 5d ) |
± ( 0.5% + 5d ) |
-------- |
-------- |
|
| 200 H |
± ( 0.5% + 5d ) |
± ( 0.8% + 5d ) |
-------- |
-------- |
|
| 2000 H |
± ( 1% + 5d ) |
-------- |
-------- |
-------- |
After Open CAL. |
|
