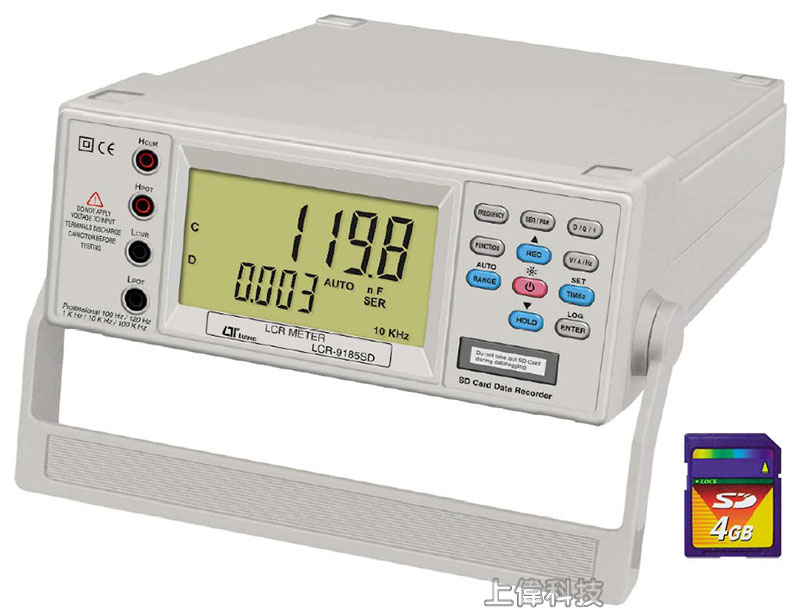

LCR-9185SD
記憶式桌上 LCR 錶
簡介
-
即時數據紀錄儲存在SD記憶卡(選購)，資料可下載到Excel，做圖表分析(記憶卡選購)
-
電阻：0.1 ~ 200M歐姆 ±1.2%
-
電容：0.1pF ~ 6000uF ±2%
-
電感：0.1uH ~ 200H ±2%
-
測量頻率點：100Hz
/ 120Hz / 1KHz / 10kHz
-
測量 Ls / Lp / Cs / Cp 及
D / Q / θ / ESR 參數
-
可記錄最大值、最小值及讀值鎖定
-
RS-232 / USB 連接介面 (軟體選購)
-
Size：292
X 236 X 98mm
FEATURES
- Real time Datalogger, save the into the SD memory
card and can be downloaded to the Excel, extra software is no need.
- Real time Datalogger, it Built-in Clock
(year/month/date/hour/minute/second ), sampling time set from 2
seconds to 3600 seconds.
- Manual datalogger is available ( set the sampling
time to be 0 second ).
- 6000 counts ADC resolution.
- High performance analog front end for impedance(Z)
measurement.
- Support Z / DCR measurement for LCR mode.
- Four different test frequency are available : 100
Hz/120 Hz/1 KHz/10 KHz for L/C/R measurement.
- Test AC signal level :
0.5 V rms typically.
- Test range : ( ex. F
= 1 KHz )
- L : 600.0 uH to 60.00 H
- C : 600.0 pF to 600.0 uF
- R : 60.00Ω to 20.00 MΩ
- Min. source resistance :
120Ω typical.
- 6 ratio resistor range used for LCR mode.
- Support buzzer sound driver with driving pattern
and frequency selectable.
一般規格
顯示 (Display)
-
97 mm x 56 mm large LCD display
測試頻率 (Test frequency)
- 100Hz / 120Hz / 1KHz / 10KHz
L/C/R 模式 (Mode
L/C/R)
- L / C / R Function selector
- Frequency selector
- D / Q / θ selector
- SER/PAL selector
損耗因素 (Dissipation
factor)
- 0.000 to 9999
品質因素 (Quality factor)
- 0.000 to 9999
θ 值測試 (θ measurement)
- ± 90°
校正 (Calibration)
- Open / Short calibration
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Aut： 2 second to 3600
seconds
- Manual：Push the data
logger button once will save data one time.
- @ Set the sampling time to 0 second.
數據錯誤編號 (Data error no.)
- ≦0.1% NO. of total saved data typically.
SD記憶卡容量 (SD card capacity)
- 2 GB to 32 GB
電源供應 (Power Supply)
- DC1.5 V (AA) battery x 6 PCs or DC 9V adapter input
- * AC/DC Power adapter is
optional.
電源消耗 (Power Consumption)
- Normal operation (w/o SD card save data) : Approx. DC 11 mA
When SD card save the data :.Will increase approx. DC 25 mA.
附件 (Accessories Included)
- Operation Manual ................. 1 PC.
- Alligator clips ( red and black).....1 Pair
選購附件 (Optional Accessories)
- SMD test clip, SMDC-21
電器規格 (23±5 ℃)
電阻 Resistance ( DCR )
| Range |
Accuracy |
Remark |
| 60 Ω |
± ( 1.5% + 5d ) |
After calibration |
| 600 Ω |
± ( 1.0% + 5d ) |
|
| 6 KΩ |
± ( 1.0% + 5d ) |
|
| 60 KΩ |
± ( 1.0% + 5d ) |
|
| 600 KΩ |
± ( 1.0% + 5d ) |
|
| 6 MΩ |
± ( 1.0% + 5d ) |
|
| 200 MΩ |
± ( 1.5% + 5d ) |
After calibration |
電阻 Resistance(Z) ( SER/PAL )
0.5V(rms)
| Range |
Accuracy 100 Hz/120 Hz |
Accuracy 1000 Hz |
Accuracy 10 KHz |
Remark |
| 60 Ω |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
After calibration |
| 600 Ω |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
|
| 6 KΩ
|
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
|
| 60 KΩ |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
|
| 600 KΩ |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
|
| 6 MΩ |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
|
| 600 MΩ |
± ( 2.0% + 5d ) |
± ( 2.0% + 5d ) |
± ( 3.0% + 5d ) |
After calibration |
Remark :
* All specifications are under in battery
operation.
* Don't apply voltage larger than 30 V to
input terminals.
電容 Capacitance
( SER/PAL ) : D≦0.1, 0.5V(rms)
| Range |
Accuracy 100 Hz/120 Hz |
Accuracy 1000 Hz |
Accuracy 10 KHz |
Remark |
| 600 pF |
± ( 3.5% + 5d ) |
± ( 2.5% + 5d ) |
± ( 2.0% |
After calibration |
| 6000 pF |
± ( 2.5% + 5d ) |
± ( 2.0% + 5d ) |
± ( 1.5% |
After calibration |
| 60 nF |
± ( 2.0% + 5d ) |
± ( 2.0% + 5d ) |
± ( 1.5% + 5d ) |
|
| 600 nF |
± ( 2.0% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
|
| 6000 nF |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
|
| 60 uF |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
|
| 600 uF |
± ( 1.5% + 5d ) |
± ( 2.5% + 5d ) |
-------- |
|
| 6000 uF |
± ( 2.5% + 5d ) |
-------- |
-------- |
|
| 10 mF |
± ( 3.5% + 5d ) |
-------- |
-------- |
|
Remark :
* All specifications are under in battery
operation.
* Don't apply voltage larger than 30 V to
input terminals.
* Discharge capacitor before measurement.
* If intend to obtain the accurate value of
SMD capacitor, please test via optional. SMD test clip, SMDC-21.
電感 Inductance ( SER/PAL
) : D ≦ 0.1, 0.5V(rms)
| Range |
Accuracy
100 Hz |
Accuracy
120 Hz |
Accuracy
1 KHz |
Accuracy
10 KHz |
| 600 uH |
----------- |
----------- |
± ( 2.5% + 5d ) |
± ( 2.5%
After calibration |
| 6000 uH |
----------- |
----------- |
± ( 2.0% + 5d ) |
± ( 2.0% + 5d ) |
| 60 mH |
± ( 2.0% + 5d ) |
± ( 2.0% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
| 600 mH |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
| 6000 mH |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
| 60 H |
± ( 1.5% + 5d ) |
± ( 1.5%
After calibration |
± ( 2.5% + 5d ) |
-------- |
| 600 H |
± ( 2.5% + 5d ) |
± ( 2.5%
After calibration |
-------- |
-------- |
Remark :
* All specifications are under in battery
operation.
* Don't apply voltage larger than 30 V to
input terminals.
* Discharge capacitor before measurement.
* If intend to obtain the accurate value of
SMD inductor, please test via optional. SMD test clip, SMDC-21.
|
