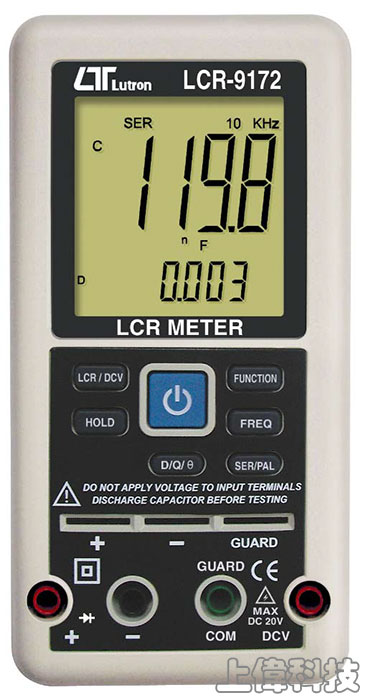

LCR-9172 LCR 錶
簡介
-
電感：600.0uH ~
200.0H
-
電容：600.0pF ~
10.00mF
-
電阻：60.0
~ 20.00M歐姆
-
直流電壓：600.0mV
~ 20.00V
-
測量頻率點：100Hz
/ 120Hz / 1KHz / 10kHz
-
測量 Ls / Lp / Cs / Cp 及
D / Q / θ / ESR 參數
-
Size：151
X 78 X 43mm
特色
- 6000計數ADC解析
- 雙電源，電池或AC/DC變壓器
- 高性能模擬前端的阻抗（Z）測量
- 支援 Z/DCR 測量LCR模式
- 四種不同的測試頻率可供選擇：100Hz/120Hz/1KHz/10KHz的 L/C/R 值測量
- 內建簡單的DMM前端電路，支援 DCV 模式
- 測試範圍：( ex. F = 1 KHz )
- L : 600.0 uH to 60.00 H
- C : 600.0 pF to 600.0 uF
- R : 60.00Ω to 20.00 MΩ
- 低電池電壓檢測器
-
最小阻抗源：120Ω典型
- 6種比率電阻範圍用於LCR模式
- 支援蜂鳴器聲音驅動程序與驅動模式和頻率的選擇
FEATURES
- 6000 counts ADC resolution.
- Dual power supply , Battery or AC/DC Adapter.
- High performance analog front end for impedance (Z) measurement.
- Support Z / DCR measurement for LCR mode.
- Four different test frequency are available : 100 Hz/120 Hz/1 KHz/10 KHz for L/C/R measurement.
- Built-in simple DMM front end circuit to support DCV mode.
- Test range : ( ex. F = 1 KHz )
- L : 600.0 uH to 60.00 H
- C : 600.0 pF to 600.0 uF
- R : 60.00Ω to 20.00 MΩ
- Low battery voltage detector.
- Min. source resistance : 120Ω typical.
- 6 ratio resistor range used for LCR mode.
- Support buzzer sound driver with driving pattern & frequency selectable.
一般規格
顯示 (Display)
- LCD size：46.5 X 45.5 mm.
測試頻率 (Test frequency)
- 100 Hz/120 Hz/1 KHz/10 KHz
L/C/R 模式 (L/C/R MODE)
- L/C/R Function selector
- Frequency selector
- D/Q/θ selector
- SER/PAL selector
DCV 模式 (DCV MODE)
- DCV
耗散因數 (Dissipation factor)
- 0.000 to 9999
品質因數 (Quality factor)
- 0.000 to 9999
θ測量 (θ measurement)
- ± 90°
校準 (Calibration)
- Open/Short calibration
讀值鎖定 (Data Hold)
- Freeze the display reading
關機 (Power off)
- Auto shut off (10 min) saves battery life or manual off by push button
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 85% RH.
電源供應 (Power Supply)
- 006P DC 9V battery. heavy duty battery.
- DC 9V adapter input
- * AC/DC power adapter is optional.
- * Auto power off function will be disable.
電源消耗 (Power Consumption)
- DC 6 mA approximately (Backlight off )
體積 (Dimensions)
- 151 x 78 x 43mm
重量 (Weight)
- 235 g * meter only
附件 (Accessories Included)
- Instruction Manual ................. 1 PC.
- Alligator clips......................1 PC
選購附件 (Optional Accessories)
- SMD tester, SMDA-22
- SMD test clip, SMDC-21
- AC to DC 9V adapter
電器規格 (23±5 ℃)
電阻 Resistance ( DCR )
| Range |
Accuracy |
Remark |
| 60 Ω |
± ( 1.5% + 5d ) |
|
| 600 Ω |
± ( 1.0% + 5d ) |
|
| 6000Ω |
± ( 1.0% + 5d ) |
|
| 60 KΩ |
± ( 1.0% + 5d ) |
|
| 600 KΩ |
± ( 1.0% + 5d ) |
|
| 6000 kΩ |
± ( 1.0% + 5d ) |
|
| 20 MΩ |
± ( 1.5% + 5d ) |
|
電阻 Resistance(Z) ( Rp/Rs ) 0.5V(rms)
| Range |
Accuracy 100 Hz/120 Hz |
Accuracy 1k Hz |
Accuracy 10 kHz |
Remark |
| 60 Ω |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
After calibration |
| 600 Ω |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
|
| 6000Ω |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
|
| 60 KΩ |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
|
| 600 KΩ |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
|
| 6000 kΩ |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
|
| 20 MΩ |
± ( 2.0% + 5d ) |
± ( 2.0% + 5d ) |
± ( 3.0% + 5d ) |
After calibration |
Remark : Don't apply voltage larger than 30V to input terminals.
電容 Capacitance ( Cp/Cs ) : D ≦ 0.1, 0.5V(rms)
| Range |
Accuracy 100 Hz |
Accuracy 120 Hz |
Accuracy 1k Hz |
Accuracy 10 kHz |
| 600 pF |
± ( 3.5% + 5d ) |
± ( 3.5% + 5d ) |
± ( 2.5% + 5d ) |
± ( 2.0% + 5d ) |
| 6000 pF |
± ( 2.5% + 5d ) |
± ( 2.5% + 5d ) |
± ( 2.0% + 5d ) |
± ( 1.5% + 5d ) |
| 60 nF |
± ( 2.0% + 5d ) |
± ( 2.0% + 5d ) |
± ( 2.0% + 5d ) |
± ( 1.5% + 5d ) |
| 600 nF |
± ( 2.0% + 5d ) |
± ( 2.0% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
| 6000 nF |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
| 60 uF |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 2.5% + 5d ) |
| 600 uF |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 2.5% + 5d ) |
-------- |
| 6000 uF |
± ( 2.5% + 5d ) |
± ( 2.5% + 5d ) |
-------- |
-------- |
| 10 mF |
± ( 3.5% + 5d ) |
± ( 3.5% + 5d ) |
-------- |
-------- |
Remark :
- Don't apply voltage larger than 30 V to input terminals.
- Discharge capacitor before measurement.If intend to obtain the accurate value, please test the component.into the " Pin terminals " or tested via optional.SMD tester, SMDA-22 or SMD test clip, SMDC-21.
電感 Inductance ( Lp/Ls ) : D ≦ 0.1, 0.5V(rms)
| Range |
Accuracy 100 Hz |
Accuracy 120 Hz |
Accuracy 1k Hz |
Accuracy 10 kHz |
Remark |
| 600 uH |
-------- |
-------- |
± ( 2.5% + 5d ) |
± ( 2.5% + 5d ) |
After calibration |
| 6000 uH |
-------- |
-------- |
± ( 2.0% + 5d ) |
± ( 2.0% + 5d ) |
|
| 60 mH |
± ( 2.0% + 5d ) |
± ( 2.0% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
|
| 600 mH |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
|
| 6000 mH |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
|
| 60 H |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 2.5% + 5d ) |
-------- |
After calibration |
| 200 H |
± ( 2.5% + 5d ) |
± ( 2.5% + 5d ) |
-------- |
-------- |
After calibration |
Remark :
- Discharge inductor before measurement.
- If intend to obtain the accurate value, please test the component into the " Pin terminals " or tested via optional SMD tester, SMDA-22 or SMD test clip, SMDC-21.
測量範圍配置 (Scale range configuration)
LCR 模式
| Function mode |
Frequency |
Meas. Range |
Min. resolution |
| Inductance
(SER/PAL ) |
100/120Hz |
60.00mH~200.0H |
0.01mH |
| 1kHz |
600.0uH~60.00H |
0.1uH |
| 10kHz |
600.0uH~6000mH |
0.1uH |
|
Capacitance (SER/PAL ) |
100/120Hz |
600.0pF~10.00mF |
1pF |
| 1kHz |
600.0pF~600.0uF |
0.1pF |
| 10kHz |
600.0pF~60.00uF |
0.1pF |
| Resistance
(SER/PAL ) |
100/120Hz |
60.00Ω ~20.00MΩ |
0.01Ω |
| 1kHz |
60.00Ω ~20.00MΩ |
0.01Ω |
| 10kHz |
60.00Ω ~20.00MΩ |
0.01Ω |
| DC resistance |
N/A |
60.00Ω ~20.00MΩ |
0.01Ω |
DMM 模式
| Function mode |
Meas. Range |
Min. resolution |
| DCV |
600.0mV~20.00V |
0.1mV |
Remark :
- * All specifications are under in
battery operation.
- * Don't apply voltage larger than
30 V to input terminals.
- * Discharge capacitor before
measurement.
- * If intend to obtain the accurate
value, please test the component into the " Pin terminals " or
tested via optional.
- SMD tester, SMDA-22 or SMD test
clip, SMDC-21.
|
