CM-9942G
綠能智慧型交流鉤錶
簡介
- 可由手搖發電機提供電源,亦可使用電池手搖發電機10秒以上,可提供短暫待測電量
- 交流電流:0.1A ~ 1000A ±2%
- 交直流電壓:0.001V ~ 600.0V ±1%
- 電阻:0.1Ω ~ 6MΩ ±1%
- 電容:0.001nF ~ 60uF ±3%
- 頻率:40Hz ~ 1KHz ±3%
- 鉤部口徑 45mm
- Size:228 X 85.7 X 45.6mm
FEATURES
- Green power, battery is no need, power supply from the handy generator, operate the generator 10 to 20 seconds will offer 10 minutes energy typically.
- Hybrid power, meter's power also can supply by the battery,
- Meet CAT III-600 V.
- 6000 counts A/D, high resolution.
- ACV, ACA, DCV, ohms, continuity, Hz, Capacitance, Diode, Data hold.
- Smart function, Auto range.
- Smart operation, Build in 4 intelligent function : " A ", " Ω ", " V ".
- " A " function can measure ACA with auto range.
- " V " function can select ACV, DCV automatically with auto range.
- " Ω " function can select the Resistance , Diode, Continuity beeper, Capacitance automatically with auto range.
- Data hold function for ACA measurement.
- Auto shut off is available to save battery life.
- 10M ohm impedance for voltage circuit.
- Built-in overload protection for most ranges.
- LSI circuit provides high reliability and durability.
- Patent.
- Uses durable, long-lasting components, enclosed in strong, light weight ABS-plastic housing.
- Full line optional adapters : Clamp adapter, Tachometer adapter, Pressure adapter, Humidity Adapter, Sound level adapter, Anemometer adapter, Light adapter, EMF adapter.
一般規格
綠色電源及融合式電源 (Green power and Hybrid power)
- * Green power, battery is no need, power supply from the handy generator, operate 10 to 20 seconds the generator will offer 10 minutes energy typically.
- * Hybrid power, meter also can supply by the battery power.
顯示 (Display)
- 40 mm x 30.3 mm large LCD display.
測量 (Measurement)
- ACV, ACA, DCV, DCA, ohms, continuity beeper, Hz, Capacitance, Diode, Data hold.
A/D 計數 (A/D counts no.)
- 6000 counts.
範圍選擇 (Range selection)
- Smart function, auto range.
智能功能 (Smart function)
- " A " function can measure ACA with auto range.
- " V " function can select ACV, DCV automatically with auto range.
- " Ω " function can select the Resistance, Diode, Continuity beeper, Capacitance automatically with auto range.
讀值鎖定 (Data hold)
- To freeze the display reading on the LCD display. * Available for ACA measurement only.
電源開關管理 (Power On/Off management)
- Manual power off.
- Auto power off : If meter is not operated within 3 minutes will auto power switch off.
極性 (Polarity)
- Automatic Switching, '-' indicates negative polarity.
鉤部口徑 (Max. Jaw Open Size)
- 45 mm ( 1.77 inch ) Dia.
歸零調整 (Zero Adjustment)
- Automatic adjustment.
取樣時間 (Sampling Time)
- Approx. 0.5 to 1 second.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- Green power : Power from the handy generator, battery is no need.
- Battery power : DC3V battery ( CR-2032 ) x 2 PCs.
電源消耗 (Power Consumption)
- DC 3.9 mA.
體積 (Dimensions)
- 228 x 85.7 x 45.6 mm ( 9.0 x 3.4 x 1.8 inch )
重量 (Weight)
- 310 g/0.68 LB.
附件 (Accessories Included)
- Red and Black Test Leads( CAT III 1KV Test Leads ).. 1 Set
- Instruction Manual ................. 1 PC.
選購附件
- carrying case...CA-05A
- ACA/DCA current adapter
- Tachometer adapter
- Humidity adapter
- Pressure adapter
- Light adapter
- EMF adapter

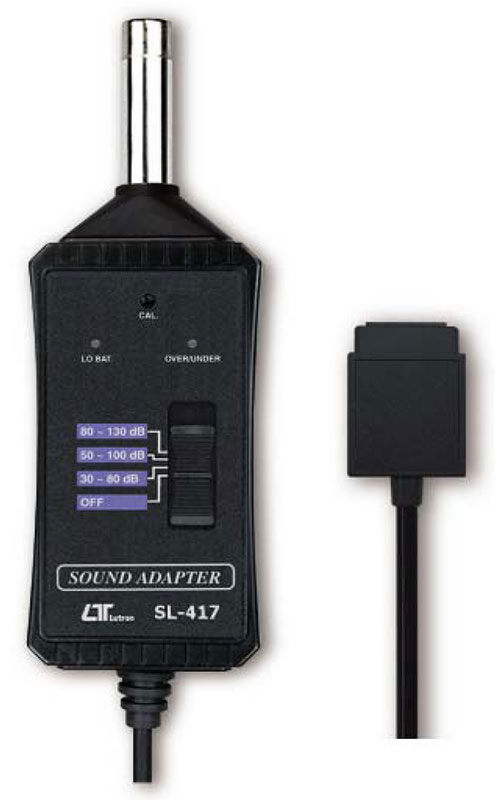

- Sound level adapte
- High voltage probe.
電器規格 (23±5 ℃)
交/直流電壓 (AC/DC Voltage)
* auto range
- Range : 6V /60V /600V
- Resolution : 0.001V /0.01V /0.1V
- Accuracy : DCV : ± ( 1 % + 2d ) ; ACV : ± ( 1.2 % + 5d )
- Input Impedance : 10M ohm.
- Over Load Protection: AC /DC 600V.
- Remark :
- * The input impedance is 10 Mega ohm.
- * ACV specification be tested on sine wave 50/60 Hz.
- * For smart function ,the ACV start measurement voltage is larger than 400mV ± 100mV.
交流電流 (AC Current)
* auto range
- Range : 600A /1000A
- Resolution : 0.1A /1A
- Accuracy :
- 600A range : ± ( 1.5% + 2d )
- 1000 A range : ± ( 2% + 8d )
- Over Load Protection : AC 1000A.
- Remark :
- * ACA specification be tested on sine wave 50/60 Hz.
- * Measurement range : 0.10A to 1000A
歐姆 (OHMS)
- Range : 600 /6K /60K /600K /6M ohm
- Resolution : 0.1 /1 /10 /100 /1K ohm
- Accuracy : ± ( 1% + 3d )
- Over Load Protection : ± 500 DCV, 350 ACV.
電容 (CAPAITANCE)
- Range : 6nF /60nF /600nF /6uF /60uF
- Resolution : 0.001nF /0.01nF /0.1nF /0.001uF /0.01uF
- Accuracy : ± ( 3% + 5d )
- Remark : Discharge capacitor before testing.
頻率 (Frequency)
- Range : 40 Hz to 1 KHz.
- Resolution : 1 Hz.
- Accuracy : ± ( 0.3% + 2d )
- Input impedance : 10M ohm.
- Over load protection : AC/DC 600 V.
二極體 (Diode)
- Short/non conductance, good/defect test.
導通測試 (Continuity)
- If measuring resistance is less than 10 ohm, the beeper will sound .
|
