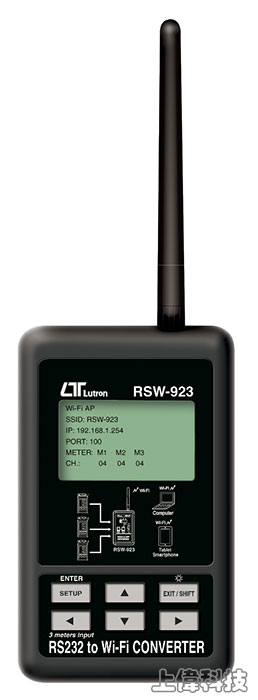

RSW-923
RS232 轉 Wi-Fi 轉換器
簡介
- 適用 LTURON 具有 RS232 輸出介面之儀表
- 即時將儀表 RS-232 訊號轉 Wi-Fi 無線傳輸
- 可同時支援 3台儀表，進行數據採集傳輸
- 基本設置:
- 1.NetMode
- 2.SSID
- 3.Password
- 4.IP address
- 5.Port
- 6.Gateway address
- 7.儀表顯示通道數設定
- 無需通過電腦設置，可本機設置後直接使用
- 可搭配 LUTRON 專屬手機
APP程式接收，Android/IOS 皆可使用
- 可用智慧型手機、筆電、平板電腦接收 Wi-Fi 訊息
- Size：134 X 80 X
32mm
FEATURES

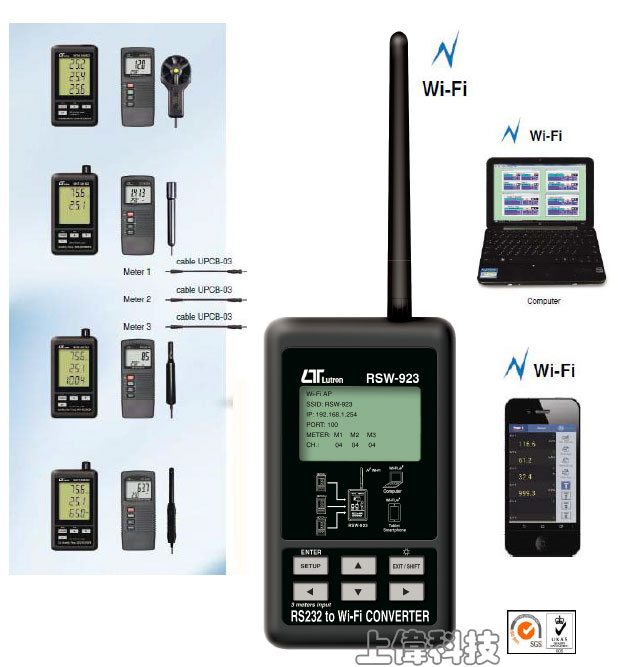

- You can Lutron meter with RS232 output interface connected to the RSW-923, to transfer data via WiFi to the desired device. However, the use of smart phones or tablet computers developed by the company's free software to do data collection record APP.
- WiFi work mode: Access Point(AP) or Client mode.
- I/O terminal:
1.DC 9V power input
2.DC 9V power output(power supply for the connecting RS232 meter)
3.Three RS232 input(photo isolate RS232 type)
- Basic setting:
1.NetMode, 2.SSID, 3.Password, 4.IP address, 5.Port, 6.Gateway address, 7.Meter CH. Setting
- Maximum TCP connections to 20
- Without going through the computer settings, can be used directly after the machine settings
規格
電路 (Circuit)
- Custom single-chip microprocessor LSI circuit
顯示 (Display)
- LCD Size: 3.2 X 2.4" (60 X 44.4 mm)
- Dot Matrix backlit LCD (128 X 64 pixels)
無線 (Wireless)
- * Support IEEE 802.11b / g / n wireless
standards.
- * Support the range of frequency :
2.412 to 2.484 GHz.
- * Support wireless networks: Access Point(AP)
- * Support multiple security
authentication mechanisms :
- 64/128/152 bit WEP encryption,
WPA-PSK/WPA2-PSK、WPA/WPA2 security mechanism.
輸入訊號 (Input signal)
- Three isolated RS232 signal input
無線設定模式 (Wireless mode setting)
- Access Point (AP) Mode
- Client Mode
操作溫度 (Operating Temp.)
- 0 to 50℃ ( 32 to 122℉ ).
操作溼度 (Operating Humidity)
- Less than
80% R.H.
電源供應 (Power Supply)
- AC to DC
adapter 9V.
電源消耗 (Power Consumption)
- DC 200 mA
approximately.
重量 (Weight)
- 204 g/0.45 LB..
體積(Dimension)
- 134 X 80 X
32 ( 5.3 X 3.1 X 1.3 inch ).
- * Dimension
is for the meter without antenna only.
附件 (Accessories Included)
- *
Instruction
manual.................1 PC
- * Data interface cable, UPCB-03..... 1 PC
- * Power interface cable, PWCB-06.... 1 PC
- * Hanging unit ( with sticker )..... 1 PC
- * AC to DC 9V power adapter..........1 PC
選購附件 (Optional
accessories)
- * Full line LUTRON
RS232 meters.
|
