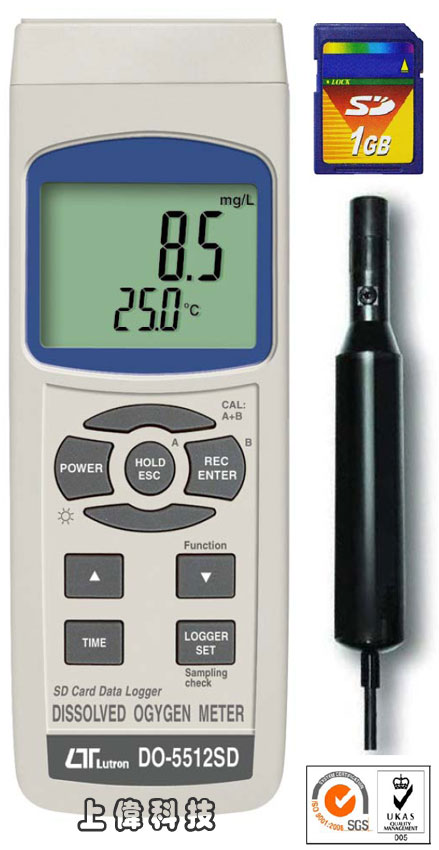

DO-5512SD
記憶式氧氣分析儀
特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 測量範圍 :
- 溶氧 : 0 ~ 20.0 mg/L ±0.4 mg/L
- 氧氣 : 0 ~ 100.0% ±0.7%
- 溫度 : 0 ~ 50°C ±0.8°C
- 具有自動溫度補償及手動高度/鹽度補償
- 雙視窗同時顯示溶氧/氧氣/溫度
- 可記錄最大值,最小值及讀值鎖定
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 177 x 68 x 45mm
FEATURES
- Precision Dissolved Oxygen measurement
- Dissolved oxygen : 0 to 20.0 mg/L.
- Dissolved oxygen meter use the polar graphic type oxygen probe with temperature sensor, high precision measurement for Dissolved Oxygen ( DO ) and temperature measurement.
- Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle.
- DO use the automatic Temp. compensation.
- DO meter build in " % SALT " & " Mountain Height " compensation value adjustment.
- Separate probe, easy for operation of different measurement environment.
- Real time SD memory card Datalogger, it Built-in Clock and Calendar,real time data recorder , sampling time set from 1 sec to 8 hour 59 min. 59 sec.
- Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
- SD card capacity :
1 GB to 16 GB.
- LCD with green light backlight, easy reading.
- Can default auto power off or manual power off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
- RS232/USB PC COMPUTER interface.
- Wide applications: water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water conditioning.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- LCD with green backlight ( ON/OFF ).
測量 (Measurement Function)
- Dissolved Oxygen ; Air oxygen ( for reference only )
測量及範圍 (Measurement & Range)
- Dissolved Oxygen : 0 to 20.0 mg/L(liter).
- Oxygen in Air : 0 to 100.0 %.
- Temperature 0 : to 50 ℃.
解析度 (Resolution)
- Dissolved Oxygen :
0.1 mg/L.
- Oxygen in Air : 0.1 % O2 .
- Temperature : 0.1
精確度 (Accuracy)
- Dissolved Oxygen :
0.4 mg/L.
- Oxygen in Air : 0.7% O2.
- Temperature : 0.8 ℃ /1.5 ℉.
測棒溫度補償及調整 (Probe Compensation & Adj.)
- Temperature : 0 to 50 ℃, Automatic
- Salt : 0 to 50 %
- Height ( M. T.) : 0 to 8900 meter
氧氣測棒 (Oxygen Probe)
- The polarographic type oxygen probe with an incorporated temperature sensor.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
資料鎖定 (Data hold)
- Hold the current reading value on the display
記憶回叫 (Memory Recall)
- Maximum and Minimum reading values can be saved and retrieved by record function.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 sec to 8 hour 59 min. 59 sec @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second. @ Manual mode, can also select the 1 to 99 position ( Location ) no.
優越的設定 (Advanced setting)
- * SD memory card Format
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Decimal point of SD card setting
- * Set temperature unit to ℃ or ℉
- * Set DO salt% compensation value
- * Set DO height ( meter ) compensation value
- * Set DO height ( feet ) compensation value
取樣時間 (Sampling Time)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- 0 ℃ to 50 ℃(32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 14 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 37 mA.
- * AIf LCD backlight on, the power consumption will increase approx. 12 mA.
重量 (Weight)
- Meter : 489 g/1.08 LB.
- Probe : 335 g/0.74 LB
體積 (Dimension)
- Meter : 177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)
- Probe : 190 mm x 28 mm Dia.( 7.5" x 1.1" Dia. )
附件 (Standard Accessory)
- Oxygen probe ( OXPB-11 )................. 1 PC.
- Hard carrying case ( CA-06 )..............1 PC.
- Operation manual..........................1 PC.
- Spare Probe head with Diaphragm OXHD-04.. 2 set
- Probe-filling Electrolyte OXEL-03........ 1 set
選購附件 (Optional accessories)
- Oxygen probe.......................... OXPB-11
- Spare Probe head with Diaphragm set....OXHD-04
- Probe-filling Electrolyte............. OXEL-03
- RS232 cable............................UPCB-02
- USB cable..............................USB-01
- Data Acquisition software .............SW-U801-WIN
- AC to DC 9V adapter
|
