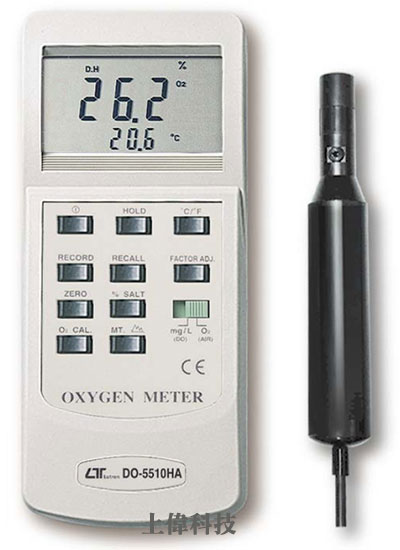

DO-5510HA

數位氧氣分析

一般說明

數位氧氣分析儀配有一個兼容Temp的極譜型探頭。

用於精確溶氧（DO），空氣中的氧氣（O2），溫度 測量。

應用水族館，醫學研究，農業，魚類孵化場，實驗室，水處理，採礦業，學校和學院，質量控制...

特性

極譜型氧探頭合併入溫度傳感器，高精度測量

溶氣（DO），空氣中的氧氣（O2）和溫度測量

重型溶氧探頭，探頭可連接BOD瓶

傳感器探頭從 0 到 50℃ 自動溫度補償

建立“％SALT”和“Mountain Height”補償，按下前面板上的按鈕來調整係數。

微處理器電路確保高精度並提供特殊的功能和特性。

同時顯示氧氣和溫度。

用RECALL，數據保持記錄最大，最小和平均讀數。

自動關機可節省電池壽命。

可由006P DC 9V電池供電。

內建溫度 °F 測量

使用耐用重型和緊湊型ABS塑料外殼。

FEATURES

The polarographic type oxygen probe with an incorporated Temp. sensor, high precision measurement for Dissolved

Oxygen(DO), Oxygen in air(O2) & Temperature measurement

Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle

Automatic Temp. compensation from 0 to 50 ℃ for sensor probe

Build in " % SALT " & " Mountain Height " compensation , adjust the factor by push the button on the front panel.

Microprocessor circuit assures high accuracy and provides special functions and features.

Multi-display, show oxygen & Temp. at the same time.

Records Maximum, Minimum and Average readings with RECALL, data hold.

Auto power off saves battery life.

Powered by 006P DC 9V battery.

Build in temperature , °F measurement

Use the durable, long-lasting components, including a heavy duty & compact ABS-plastic housing case.

一般規格

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

顯示 (Display)

Dual function meter's display, 13 mm(0.5").

Super large LCD display with contrast adjustment for best viewing angle.

測量及範圍 (Measurement & Range)

Dissolved Oxygen : 0 to 20.0 mg/L(liter).

Oxygen in Air : 0 to 100.0 %.

Temperature 0 : to 50 ℃.

解析度 (Resolution)

Dissolved Oxygen : 0.1 mg/L

Oxygen in Air : 0.1 % O2 　

Temperature : 0.1

精確度 (Accuracy)

Dissolved Oxygen : 0.4 mg/L

Oxygen in Air : 0.7% O2

Temperature : 0.8 ℃ /1.5 ℉.

感應器結構 (Sensor Structure)

The polarographic type oxygen probe with an incorporated temperature sensor.

測棒溫度補償及調整 (Probe Compensation & Adj.)

Temperature : 0 to 50 ℃, Automatic

Salt : 0 to 39 % Salt

Height(M. T.) : 0 to 3900 meter

關機 (Power off)

Auto shut off saves battery life, or manual off by push button.

過載指示 (Overload indication)

Indication of "- - - -".

操作溫度 (Operating Temp.).

0 to 50 ℃. (32 to 122 ℉ )

操作溼度 (Operating Humidity).

Max. 80% RH

取樣時間 (Sampling Time)

Approx. 0.4 sec

電源供應 (Power Supply)

Heavy duty type, 006P DC 9V battery MN1604 ( PP3 ).

電源電流 (Power Current)

Approx. DC 6.6 mA

重量 (Weight)

335 g/0.74 LB (batteries & probe included)

尺寸 (Size)

Main instrument :185 x 78 x 38 mm ( 7.3 x 3.0 x 1.5 inch ).

Oxygen probe : 190 mm x 28 mm Dia. ( 7.5" x 1.1" Dia. )

附件 (Standard Accessory)

Oxygen probe( OXPB-11 ).................. 1 PC.

Carrying case............................ 1 PC.

Operation manual..........................1 PC.

Spare Probe head with Diaphragm OXHD-04.. 2 PCs.

Probe-filling Electrolyte OXEL-03........ 1 PC.

選購附件 (Optional accessories)

Oxygen probe..................................OXPB-11

Spare Probe head with Diaphragm set ..........OXHD-04

Probe-filling Electrolyte.....................OXEL-03

　
