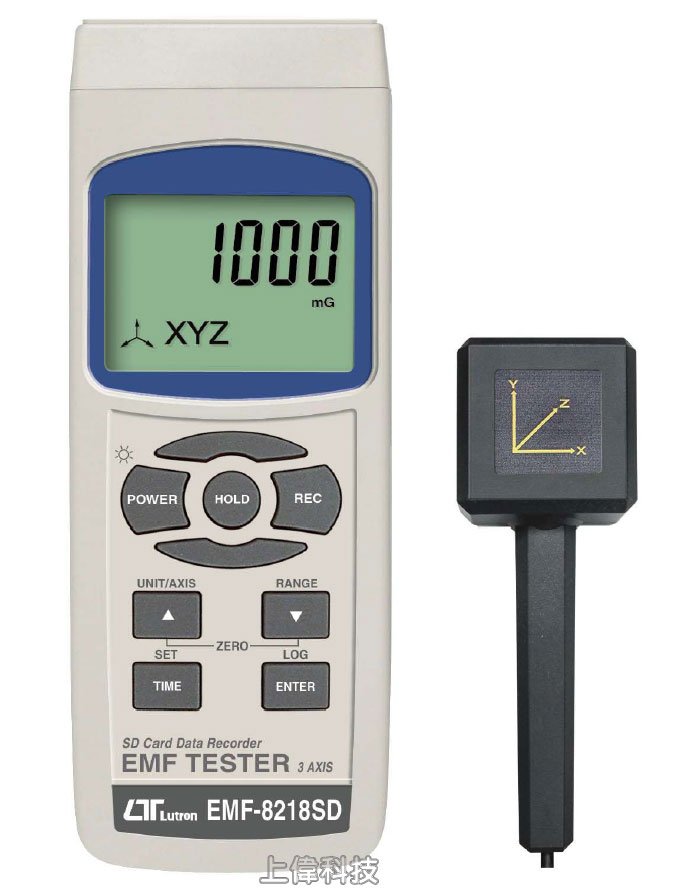

Each axis (X, Y, Z direction )electromagnetic field measurement.
Sum of XYZ electromagnetic field measurement
Range :
20/200/2000 micro Tesla.
200/2000/20000 milli-Gauss.
Measurement Bandwidth : 30Hz to 300Hz.

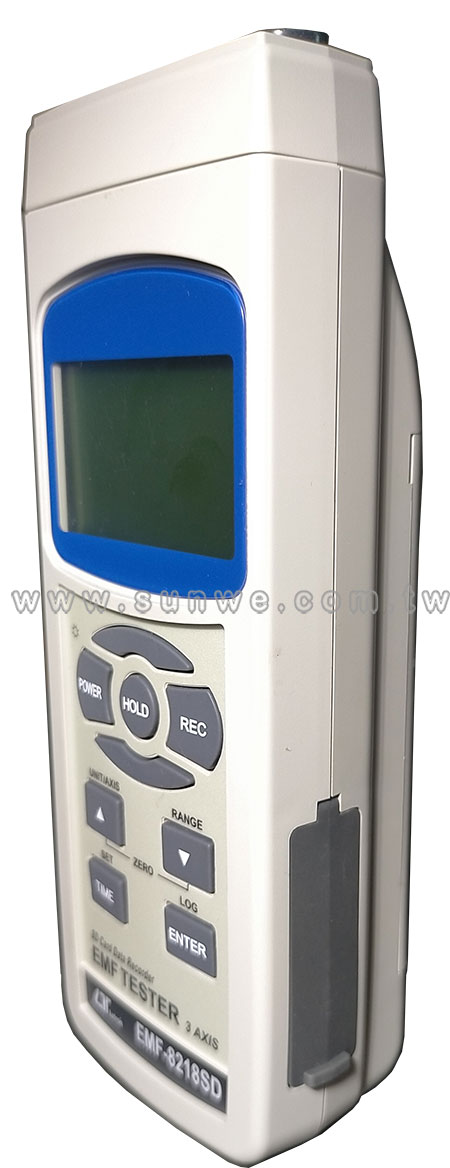

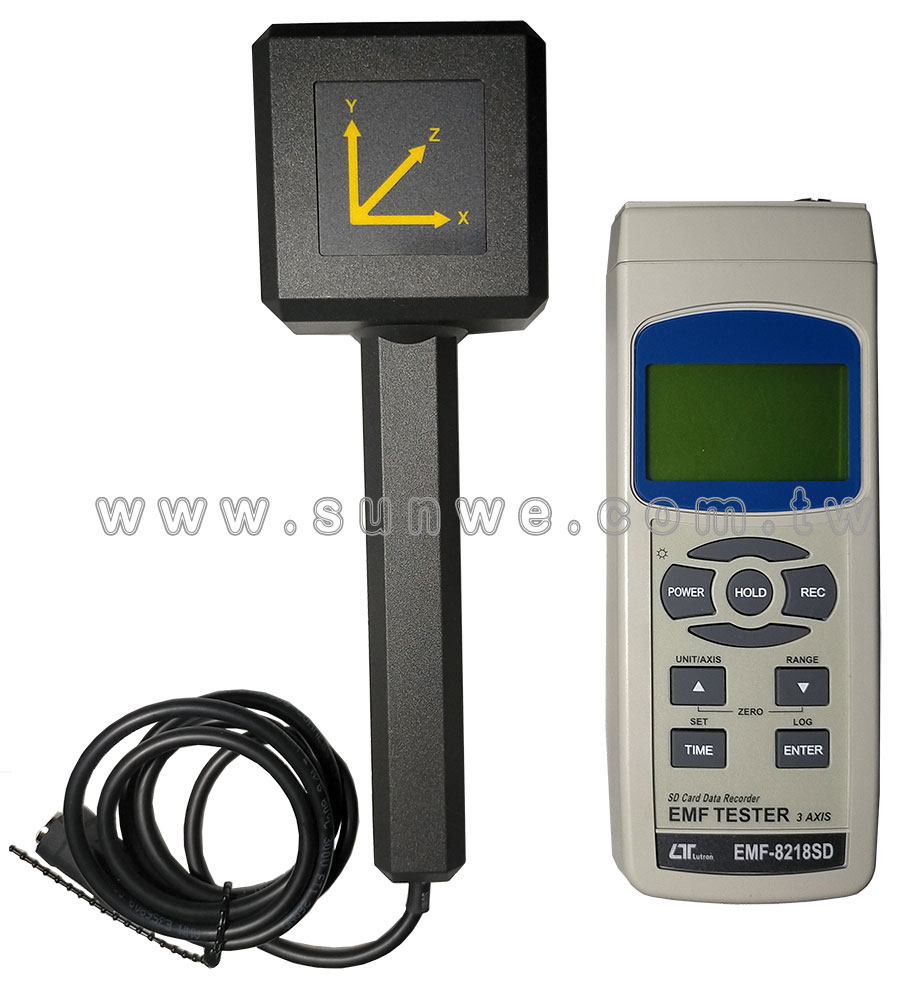

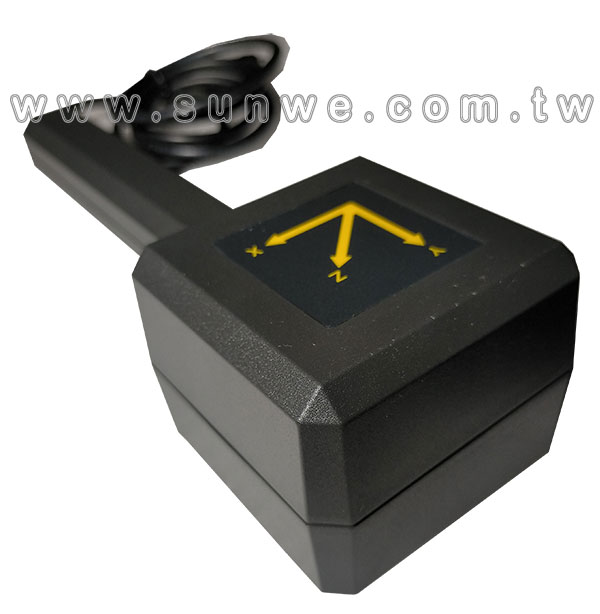

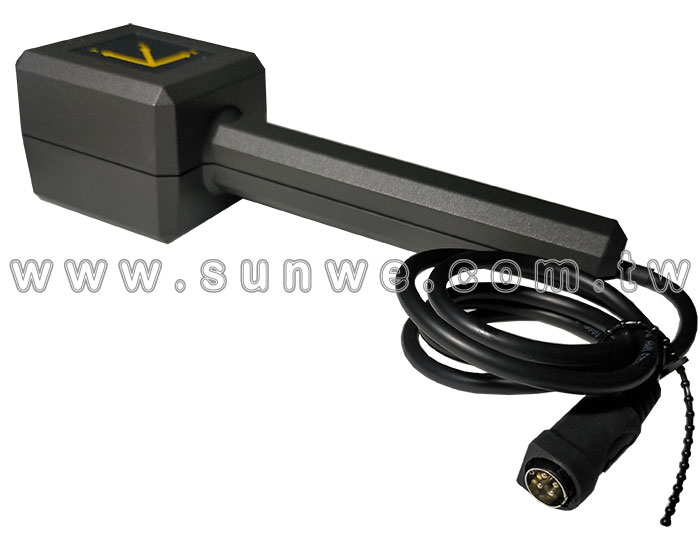

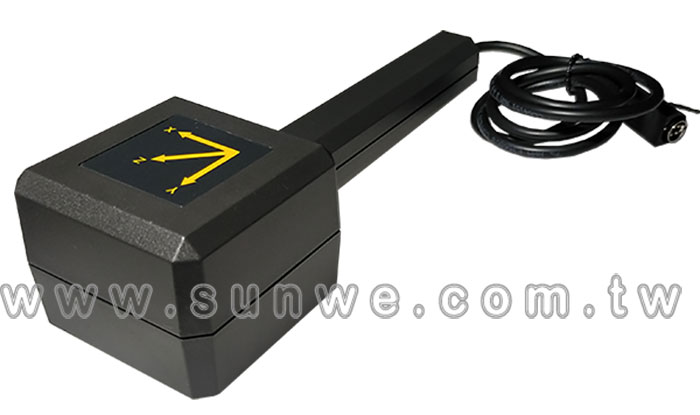

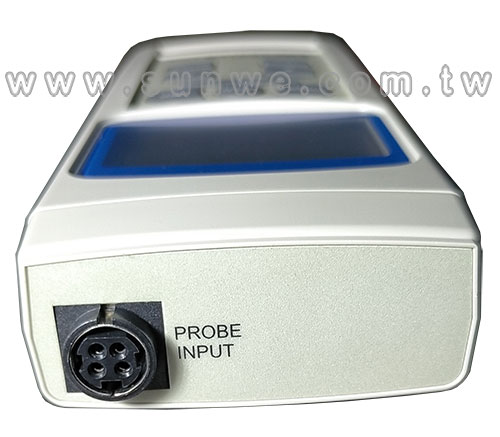

Non-directional (isotropic) measurement with three-channel (triaxial) measurement probe
Microcomputer circuit provides intelligent function and high accuracy.

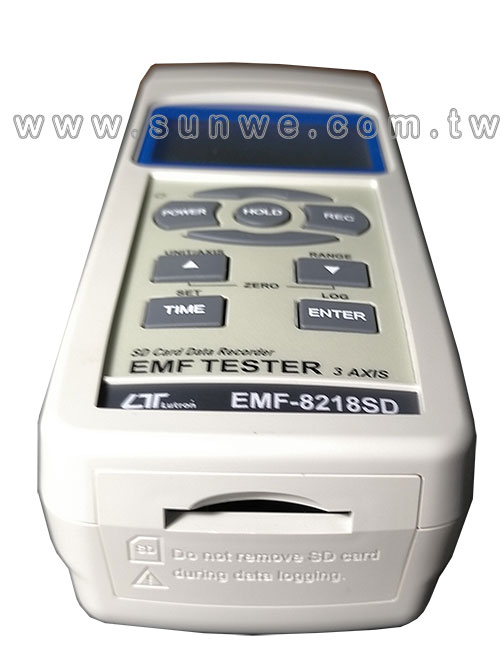

Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder, sampling time set from 0 second to 3600 seconds.
Manual datalogger is available ( set the sampling time to 0 second ), during execute the manual datalogger function, it can set the different position ( location ) No.( position 1 to position 99 ).
Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
SD card capacity : 1 GB to 16 GB.
Can default auto power off or manual power off.
Data hold, record max. and min. reading.
Microcomputer circuit, high accuracy.

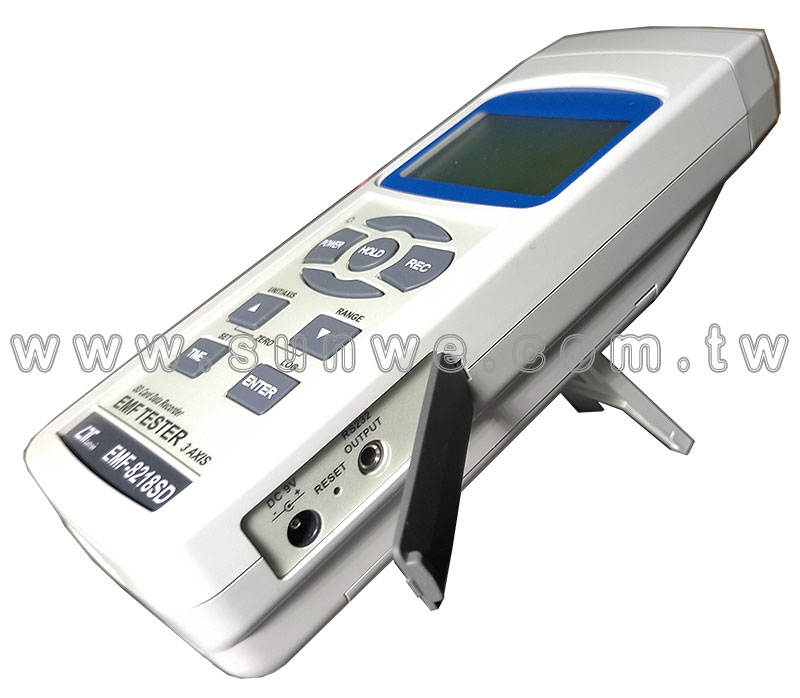

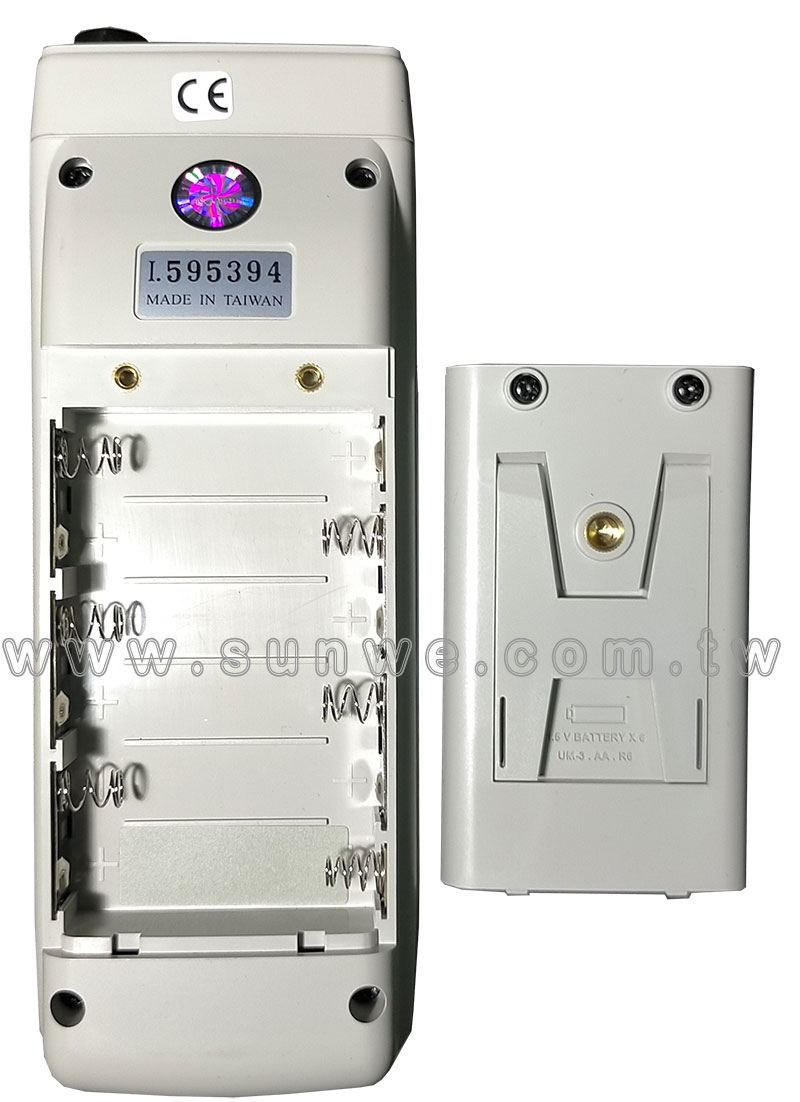

Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
RS232/USB PC COMPUTER interface.

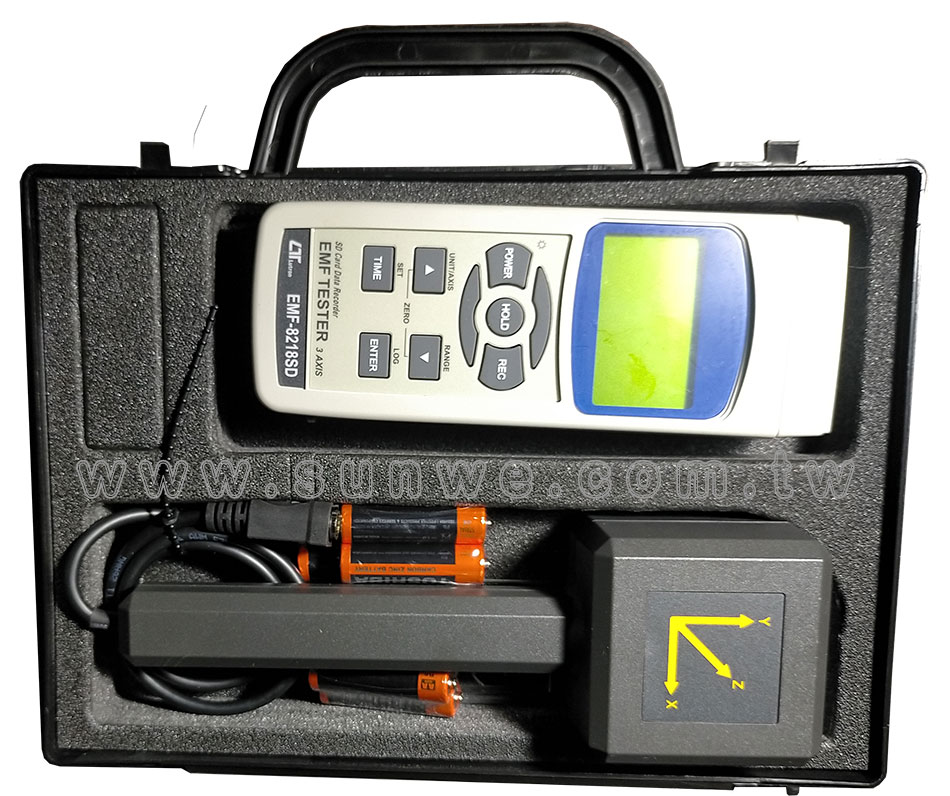

Heavy duty & compact housing case.
規格
電路 (Circuit)
Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
LCD size : 52 mm x 30 mm.
測量方法(Measurement
method)
Digital, triaxial measurement.
範圍
(Range)
Manua
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
Auto : 2 sec to 3600 sec.
@ Sampling time can set to 1 second, but memory data may loss.
Manual : Push the data logger button once will save data one time.
@ Set the sampling time to 0 second.
@ Manual mode, can also select the 1 to 99 position ( Location ) no.
過載輸入顯示 (Over-input)
Display shows '---- ' .
讀值鎖定(Data
Hold)
Freeze the display reading.
記錄回叫 (Memory Recall)
Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of Display)
Approx. 1 second.
資料輸出 (Data Output)
RS 232/USB PC computer interface.
* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
* Connect the optional USB cable USB-01 will get the USB plug.
電源關機(Power
off)
Auto shut off saves battery life or manual off by push button.
操作溫度 (Operating Temperature)
0 to 50 ℃.
操作溼度 (Operating Humidity)
Less than 85 %RH.
電源供應 (Power Supply)
Alkaline or heavy duty DC 1.5 V battery ( UM3,AA ) x 6 PCs, or equivalent.
AC/DC power adapter .( adapter is optional ).
電源電流 (Power Current)
Normal operation ( w/o SD card save data ) : Approx. DC
24 mA
( w/o Backlight
) : Approx. DC 18 mA
When SD card save the data : Approx. DC 50 mA.
重量 (Weight)
480 g/1.05 LB. ( meter & probe ).
體積 (Dimension)
177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)
附件 (Accessories Included)
Instruction manual...................... 1 PC
選購附件 (Optional Accessories)
SD Card ( 4 GB )
AC to DC 9V adapter.
USB cable, USB-01.
RS232 cable, UPCB-02.
Data acquisition software, SW-U801-WIN.
Excel data acquisition software, SW-E802.
電器規格
Frequency bandwidth： 30Hz to 300Hz
Units： mGauss, µTesla.
measurement range and resolution：(
NOTE: 1 μTesla = 10 mGauss )
20μTesla (0.01) and 200mGauss (0.1)
200μTesla (0.1) and 2000mGauss (1)
2000μTesla (1) and 20,000mGauss (10)
Accuracy：(stated for 50/60Hz)
± (4%FS + 3 digits) @ 20 micro Tesla range @
200 milli Gauss range
± (5%FS + 3 digits) @ 200 micro Tesla range @
2,000 milli Gauss range
± (10%FS + 3 digits) @ 2000 micro Tesla range
@ 20,000 milli Gauss range
