HARDWARE |
|

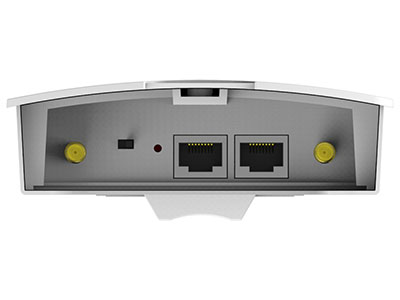

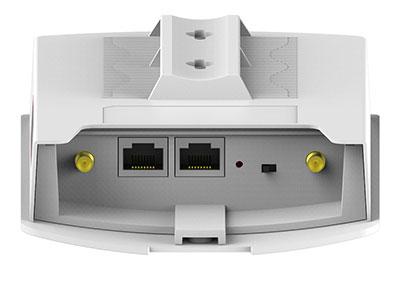

LAN Interface |
Giga x 2 |
|
PoE |
LAN1: Passive PoE in
LAN2: Passive PoE out |
|
Antenna |
Type: Internal / Gain: 14dBi Patch Antenna
(5GHz)
SMA Connector x 2 for External Antennas |
|
Power |
48V Passive PoE |
|
Dimensions(L x W x H) |
27.18 x 12.09 x 3.5 cm |
|
Weight |
592g |
|
Power Consumption (Full Loading) |
10.6W |
|

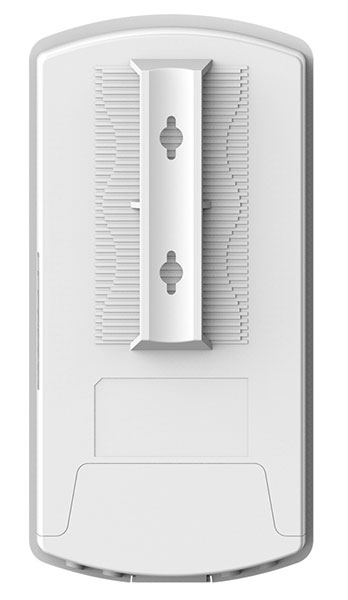

Mounting |
Pole / Wall |
|
Slide Switch/Reset |
LAN2 PSE-OUT Power On/Off, Reset
|
|
LED Indicator |
Power, LAN1, LAN2, Strength, Signal, RSSI,
5G |
|
Environmental Conditions |
Operating Temperature: -20°C (-4°F) to 60°C
(140°F)
Storage Temperature: -30°C (-22°F) to 70°C (158°F) |
Operating Humidity: 90% or Less
Storage Humidity: 90% or Less |
|
Power Saving |
802.3az |
|
Internal Buzzer |
Y |
|
Housing |
Outdoor IP65 Weatherproof Rated |
|
WIRELESS |
|
Standard |
802.11 a/an/ac |
|
No. of Radios |
1 |
|
Receiver Sensitivity |
≤ -89dBm |
|
Certification |
CE / FCC |
|

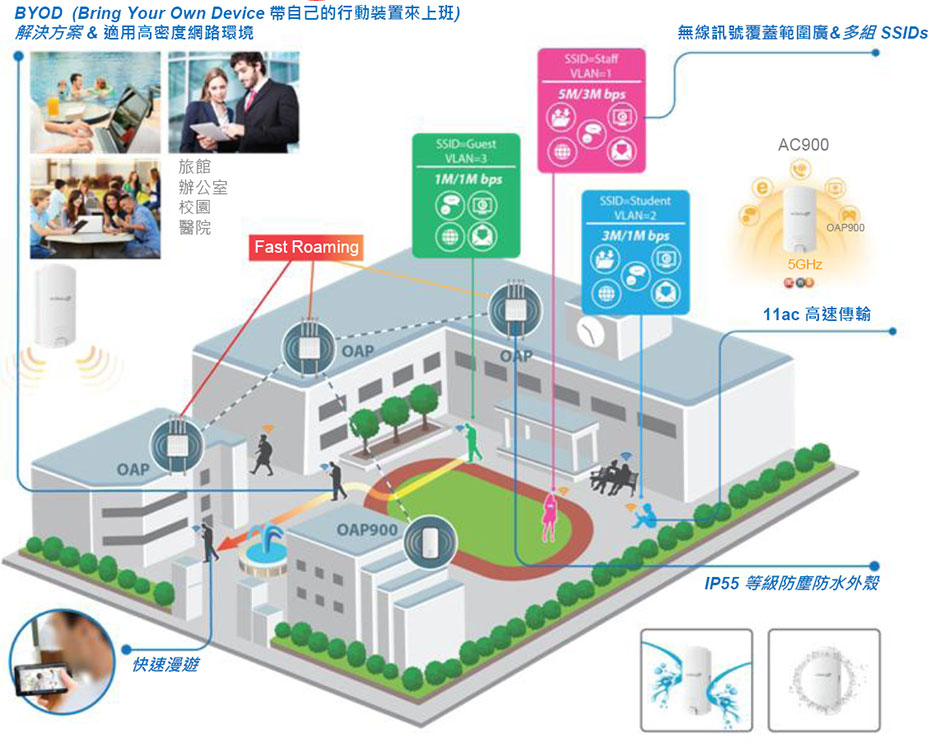

Fast Roaming |
Y |
|
Number of SSIDs |
16 (5GHz) |
|
PERFORMANCE |
|
Maximum Data Speed |
866Mbps |
|
Concurrent Clients |
Up to 50 Per Radio |
|
RF SPECIFICATONS |
|
Frequency Band |
•Radio Ⅰ:
802.11a/n/ac 5.18~5.24(GHz), 5.26~5.32(GHz),
5.5~5.7(GHz), 5.745~5.825(GHz)
(The supported frequency band is restricted by local
regulations.)
|
|
Operation Channels |
•5GHz : Country
dependent for the following ranges:
US/Canada: Band 1:36, 40, 44, 48; 5.180~5.240(GHz)
Band 2: 52、56、60、64;5.260~5.320(GHz)
Band 3:
100、104、108、112、116、120、124、128、132、136、140;5.500~5700(GHz)
Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz)
Europe: Band
3: 100、104、108、112、116、120、124、128、132、136、140;
5.500~5700(GHz)
|
|
Transmit Power |
•802.11a
22dBm@6Mbps
22dBm@9Mbps
22dBm@12Mbps
22dBm@18Mbps
22dBm@24Mbps
21dBm@36Mbps
19dBm@48Mbps
18dBm@54Mbp
•802.11an(5G)
25dBm@MCS0/8
24dBm@MCS1/9
24dBm@MCS2/10
23dBm@MCS3/11
23dBm@MCS4/12
22dBm@MCS5/13
22dBm@MCS6/14
21dBm@MCS7/15
•802.11ac
25dBm@MCS0
24dBm@MCS1
24dBm@MCS2
23dBm@MCS3
23dBm@MCS4
22dBm@MCS5
22dBm@MCS6
21dBm@MCS7
20dBm@MCS8
19dBm@MCS9
|
|
Receiver Sensitivity |
•802.11a
≤-89dBm@6Mbp
≤-72dBm@54Mbps
•802.11an(5G)
≤-89dBm@MCS0
≤-68dBm@MCS7
≤-86dBm@MCS8
≤-66dBm@MCS15
•802.11ac
≤ -83dBm@MCS0
≤ -56dBm@MCS9
|
|
SECURITY |
|
Encryption |
WEP / WPA / WPA2 |
|
Wireless L2 Isolation |
Y |
|
Station Isolation |
Y |
|
IEEE 802.1x Authenticator |
Y |
|
EAP Authentication |
PEAP |
|
Hidden SSID |
Y |
|
MAC Address Filter |
Y |
|
Wireless STA |
Y |
|

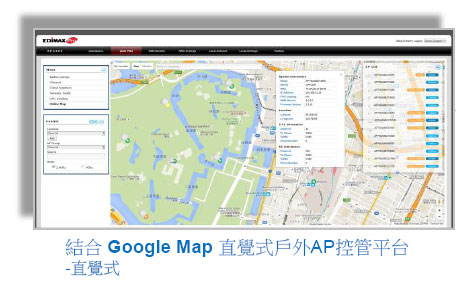

Rogue AP Detection (w/ Edimax Pro Network
Management Suite (NMS)) |
Y |
|
SOFTWARE |
|
Wireless Mode |
AP / WDS AP / WDS Bridge / Client |
|
802.1q VLAN |
Y (VID = 1-4095) |
|
Spanning Tree |
RSTP |
|
QoS |
WMM (802.11e)
Max Associated Station No. |
|
Pass-Through |
IPv6 and VPN (PPTP, L2TP/IPsec) |
|
DSCP (802.1p) |
Y |
|
Multicast Rate up to 54Mbps |
Y |
|
MANAGEMENT |
|
Deployment |
Standalone (AP Mode)
Managed AP mode: Be managed by AP Controller (APC500) or
Edimax Pro Master AP. |
|
Configuration |
HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH) |
|
RADIUS Server |
Built-In |
|
Auto-Channel |
Y |
|
Private MIB |
Y |
|
ACCESSORIES |
|
Mounting Brackets |
Wall-Mount & Pole-Mount SScrews Kit
|
|
PoE Injector |
Passive PoE Injector |
|
Power Adapter |
48V/1A |
