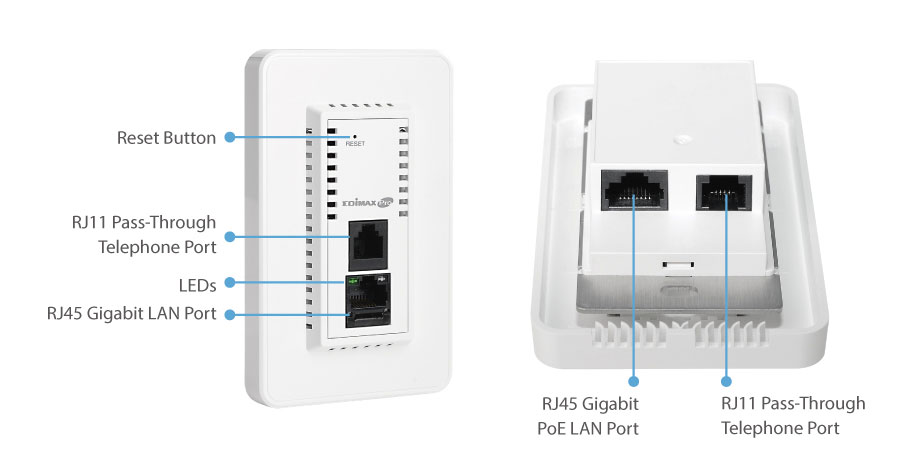

HARDWARE |
|
LAN Interface |
Giga x 2, RJ11 x 2 |
|
PoE |
802.3af (Supports 802.3at) |
|
Antenna |
Type: 2 x Built-In PIFA
Gain: 2.14dBi (2.4GHz), 3.8dBi (5GHz) Max. |
|
Power |
802.3af (Support 802.3at) |
|
Dimensions |
Faceplate Set : 70 x 115 x10 mm
(US-Type )
Faceplate Set : 86 x 86 x10 mm (EU-Type )
Stand/Mounting Bracket : 48.5 x 74 x 38 mm |
|
Weight |
125g |
|
Power Consumption (Full Loading) |
8W |
|

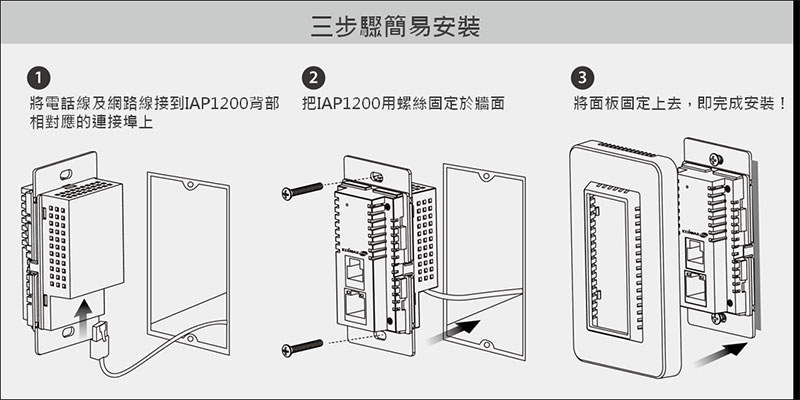

Mounting |
In-wall |
|
WPS/Reset |
Y |
|
LED Indicator |
1. Power LED
2. Diag LED |
|
Environmental Conditions |
Operating Temperature: 0°C (32°F) to
40°C (104°F)
Storage Temperature: -20°C (-4°F) to 60°C (140°F)
Operating Humidity: 90% or Less
Storage Humidity: 90% or Less |
|
Power Saving |
802.3az |
|
Internal Buzzer |
Y |
|
Housing |
Flammability Rating Plastic |
|
WIRELESS |
|
Standard |
802.11 a/b/g/n/ac Concurrent Dual-Band |
|
No. of Radios |
2 |
|
Receiver Sensitivity |
≤ -91dBm |
|
Certification |
CE / FCC |
|
Fast Roaming |
Y |
|
Number of SSIDs |
16 (2.4GHz) + 16 (5GHz) |
|
PERFORMANCE |
|
Maximum Data Speed |
300 + 867Mbps |
|
Concurrent Clients |
Up to 50 Per Radio |
|
RF SPECIFICATONS |
|
Frequency Band |
•Radio Ⅰ:
802.11b/g/n 2.412~2.484(GHz)
•Radio Ⅱ: 802.11a/n/ac
5.18~5.24(GHz), 5.745~5.825(GHz)
(The supported frequency band is restricted by
local regulations.)
|
|
Operation Channels |
•2.4GHz :
US/Canada 1-11; 2.412~2.462GHz
Europe 1-13; 2.412~2.472GHz
Japan 1-14; 2.412~2.484GHz
•5GHz : Country dependent for the following
ranges:
US/Canada: Band 1:36, 40, 44, 48;
5.180~5.240(GHz)
Band 4:149,
153, 157, 161, 165; 5.745~5.825(GHz)
Europe: Band 1:36, 40, 44, 48;
5.180~5.240(GHz)
|
|
Transmit Power |
•802.11b
10dBm@1Mbps
10dBm@2Mbps
10dBm@5.5Mbps
10dBm@11Mbps
•802.11g
10dBm@6Mbps
10dBm@9Mbps
10dBm@12Mbps
10dBm@18Mbps
10dBm@24Mbps
10dBm@36Mbps
10dBm@48Mbps
10dBm@54Mbps
•802.11gn (2.4G)
10dBm@MCS0/8
10dBm@MCS1/9
10dBm@MCS2/10
10dBm@MCS3/11
10dBm@MCS4/12
10dBm@MCS5/13
10dBm@MCS6/14
10dBm@MCS7/15
|
•802.11a
10dBm@6Mbps
10dBm@9Mbps
10dBm@12Mbps
10dBm@18Mbps
10dBm@24Mbps
10dBm@36Mbps
10dBm@48Mbps
10dBm@54Mbp
•802.11an(5G)
10dBm@MCS0/8
10dBm@MCS1/9
10dBm@MCS2/10
10dBm@MCS3/11
10dBm@MCS4/12
10dBm@MCS5/13
10dBm@MCS6/14
10dBm@MCS7/15
•802.11ac
10dBm@MCS0
10dBm@MCS1
10dBm@MCS2
10dBm@MCS3
10dBm@MCS4
10dBm@MCS5
10dBm@MCS6
10dBm@MCS7
10dBm@MCS8
10dBm@MCS9
|
|
Receiver Sensitivity |
•802.11b
≤-91dBm@1Mbps
≤-87dBm@11Mbps
•802.11g
≤-90dBm@6Mbps
≤-71dBm@54Mbps
•802.11gn (2.4G)
≤-87dBm@MCS0
≤-68dBm@MCS7
≤-85dBm@MCS8
≤-65dBm@MCS15
|
•802.11a
≤-90dBm@6Mbp
≤-71dBm@54Mbps
•802.11an(5G)
≤-86dBm@MCS0
≤-69dBm@MCS7
≤-84dBm@MCS8
≤-65dBm@MCS15
•802.11ac
≤ -82dBm@MCS0
≤ -63dBm@MCS9
≤ -83dBm@MCS10
≤ -55dBm@MCS19
|
|
SECURITY |
|
Encryption |
WEP / WPA / WPA2 |
|
Wireless L2 Isolation |
Y |
|
Station Isolation |
Y |
|
IEEE 802.1x Authenticator |
Y |
|
EAP Authentication |
PEAP |
|
Hidden SSID |
Y |
|
MAC Address Filter |
Y |
|
Wireless STA |
Y |
|
Rogue AP Detection (w/ Edimax Pro
Network Management Suite (NMS)) |
Y |
|
SOFTWARE |
|
Wireless Mode |
AP / WDS AP / WDS Bridge |
|
802.1q VLAN |
Y (VID = 1-4095) |
|
Spanning Tree |
RSTP |
|
QoS |
WMM (802.11e)
Max Associated Station No. |
|
Pass-Through |
IPv6 and VPN (PPTP, L2TP/IPsec) |
|
DSCP (802.1p) |
Y |
|
Multicast Rate up to 54Mbps |
Y |
|
MANAGEMENT |
|

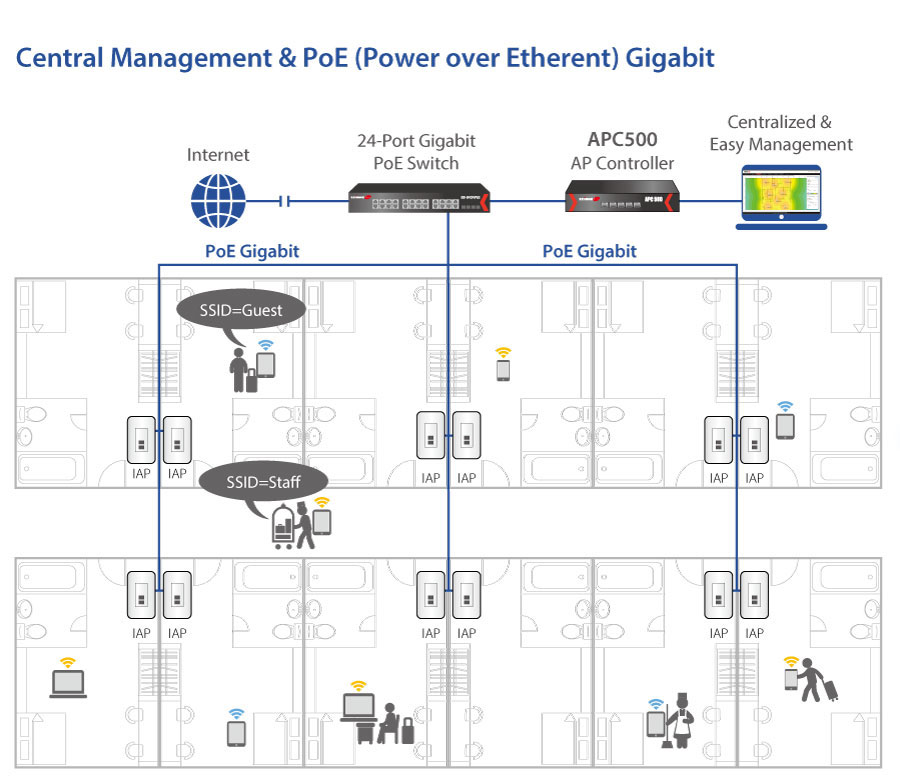

Deployment |
Standalone: AP mode
Managed AP mode: Be managed by Edimax Pro AP Controller
(APC500) or Edimax Pro Master AP |
|
Configuration |
HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH) |
|
RADIUS Server |
Built-In |
|
Auto-Channel |
Y |
|
Private MIB |
Y |
|
ACCESSORY |
|
Mounting Bracket |
In-Wall-Mount Bracket Kit (US or EU
type) |
