HARDWARE |
|
LAN Interface |
Giga x 1 |
|
USB |
USB 2.0 x 1 (Optional Ethernet Adapter for
2nd LAN) |
|
PoE |
802.3at |
|
Antenna |
Type: 6 x Built-In PIFA (3 x 2.4GHz, 3 x
5GHz)
Gain: 4.38dBi (2.4GHz), 5.34dBi (5GHz) Max. |
|
Power |
DC: 12V / 2A
802.3at (PoE Injector Optional) |
|
Dimensions |
20.8 (D) x 3.15 (H) cm |
|
Weight |
565g |
|
Power Consumption (Full Loading) |
15W; 19.2W (With USB) |
|
Mounting |
Ceiling |
|
WPS/Reset |
Y |
|
LED Indicator |
1. Power LED
2. Diag LED |
|
Environmental Conditions |
Operating Temperature: 0°C (32°F) to 50°C
(122°F)
Operating Humidity: 90% or Less |
|
Power Saving |
802.3az |
|
Internal Buzzer |
Y |
|
Housing |
UL94-5VB Flammability Rating Plastic |
|
WIRELESS |
|
Standard |
802.11 a/b/g/n/ac Concurrent Dual-Band |
|
No. of Radios |
2 |
|
Receiver Sensitivity |
≤ -93dBm |
|
Certification |
CE / FCC |
|
Fast Roaming |
Y |
|
Number of SSIDs |
16 (2.4GHz) + 16 (5GHz) |
|
PERFORMANCE |
|
Maximum Data Speed |
450 + 1300Mbps |
|
Concurrent Clients |
Up to 50 Per Radio |
|
RF SPECIFICATONS |
|
Frequency Band |
•Radio Ⅰ:
802.11b/g/n 2.412~2.484(GHz)
•Radio Ⅱ: 802.11a/n/ac
5.18~5.24(GHz), 5.745~5.825(GHz)
(The supported frequency band is restricted by local
regulations.)
|
|
Operation Channels |
•2.4GHz : US/Canada
1-11; 2.412~2.462GHz
Europe 1-13; 2.412~2.472GHz
Japan 1-14; 2.412~2.484GHz
•5GHz : Country dependent for the following ranges:
US/Canada: Band 1:36, 40, 44, 48;
5.180~5.240(GHz)
Band 2:
52、56、60、64;5.260~5.320(GHz)
Band 3:
100、104、108、112、116、120、124、128、132、136、140;5.500~5700(GHz)
Band 4:149,
153, 157, 161, 165; 5.745~5.825(GHz)
Europe: Band 1:36, 40, 44, 48;
5.180~5.240(GHz)
Band 2:
52、56、60、64;5.260~5.320(GHz)
Band
3: 100、104、108、112、116、120、124、128、132、136、140;
5.500~5700(GHz)
|
|
Transmit Power |
•802.11b
23dBm@1Mbps
23dBm@2Mbps
23dBm@5.5Mbps
23dBm@11Mbps
•802.11g
23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
22dBm@36Mbps
20dBm@48Mbps
19dBm@54Mbps
•802.11gn (2.4G)
23dBm@MCS0/8
22dBm@MCS1/9
22dBm@MCS2/10
22dBm@MCS3/11
21dBm@MCS4/12
20dBm@MCS5/13
19dBm@MCS6/14
18dBm@MCS7/15
|
•802.11a
22dBm@6Mbps
22dBm@9Mbps
22dBm@12Mbps
22dBm@18Mbps
22dBm@24Mbps
21dBm@36Mbps
19dBm@48Mbps
18dBm@54Mbp
•802.11an(5G)
23dBm@MCS0/8
22dBm@MCS1/9
22dBm@MCS2/10
21dBm@MCS3/11
21dBm@MCS4/12
20dBm@MCS5/13
19dBm@MCS6/14
18dBm@MCS7/15
•802.11ac
23dBm@MCS0
22dBm@MCS1
22dBm@MCS2
21dBm@MCS3
21dBm@MCS4
20dBm@MCS5
19dBm@MCS6
18dBm@MCS7
16dBm@MCS8
15dBm@MCS9
|
|
Receiver Sensitivity |
•802.11b
≤-93dBm@1Mbps
≤-85dBm@11Mbps
•802.11g
≤-86dBm@6Mbps
≤-72dBm@54Mbps
•802.11gn (2.4G)
≤-83dBm@MCS0
≤-69dBm@MCS7
≤-81dBm@MCS8
≤-66dBm@MCS15
|
•802.11a
≤-90dBm@6Mbp
≤-74dBm@54Mbps
•802.11an(5G)
≤-87dBm@MCS0
≤-69dBm@MCS7
≤-84dBm@MCS8
≤-68dBm@MCS15
•802.11ac
≤ -84dBm@MCS0
≤ -59dBm@MCS9
≤ -80dBm@MCS10
≤ -58dBm@MCS19
|
|
SECURITY |
|
Encryption |
WEP / WPA / WPA2 |
|
Wireless L2 Isolation |
Y |
|
Station Isolation |
Y |
|
IEEE 802.1x Authenticator |
Y |
|
EAP Authentication |
PEAP |
|
Hidden SSID |
Y |
|
MAC Address Filter |
Y |
|
Wireless STA |
Y |
|
Rogue AP Detection (w/ Edimax Pro Network
Management Suite (NMS)) |
Y |
|
SOFTWARE |
|
Wireless Mode |
AP / WDS AP / WDS Bridge / Repeter |
|
802.1q VLAN |
Y (VID = 1-4095) |
|
Spanning Tree |
RSTP |
|
QoS |
WMM (802.11e)
Max Associated Station No. |
|
Pass-Through |
IPv6 and VPN (PPTP, L2TP/IPsec) |
|
DSCP (802.1p) |
Y |
|
Multicast Rate up to 54Mbps |
Y |
|
MANAGEMENT |
|

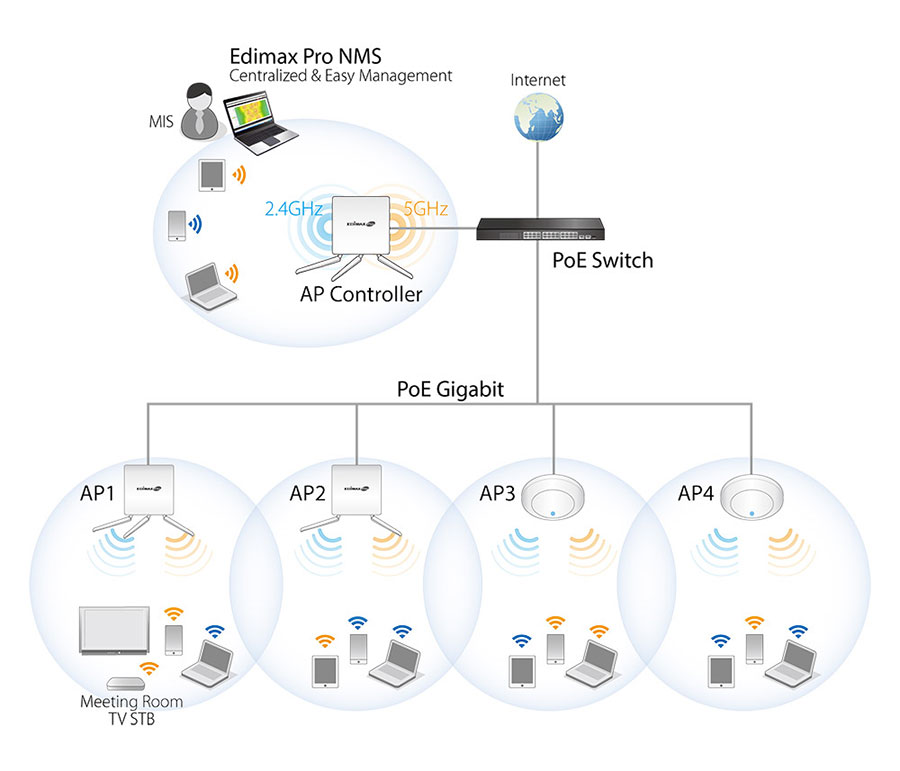

Deployment |
Standalone: AP mode
Master AP mode: Can manage 16 Edimax Pro APs
Managed AP mode: Be managed by Edimax Pro AP Controller
(APC500) or Edimax Pro Master AP |
|
Configuration |
HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH) |
|
RADIUS Server |
Built-In |
|
Auto-Channel |
Y |
|
Private MIB |
Y |
|
ACCESSORY |
|

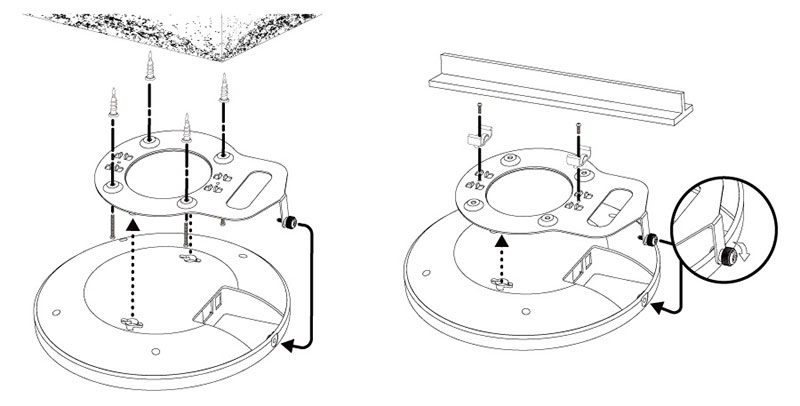

Mounting Bracket |
Ceiling-Mount Bracket Kit |
|
Power Adapter |
12V / 2A Power Adapter |
|
Optional Accessories |
EU-4306 USB 3.0 Gigabit Ethernet Adapter
GP-101IT IEEE802.3at PoE Injector |
