HARDWARE |
|
LAN Interface |
Giga x 2 |
|
PoE |
802.3at (in) / 802.3af (out) |
|

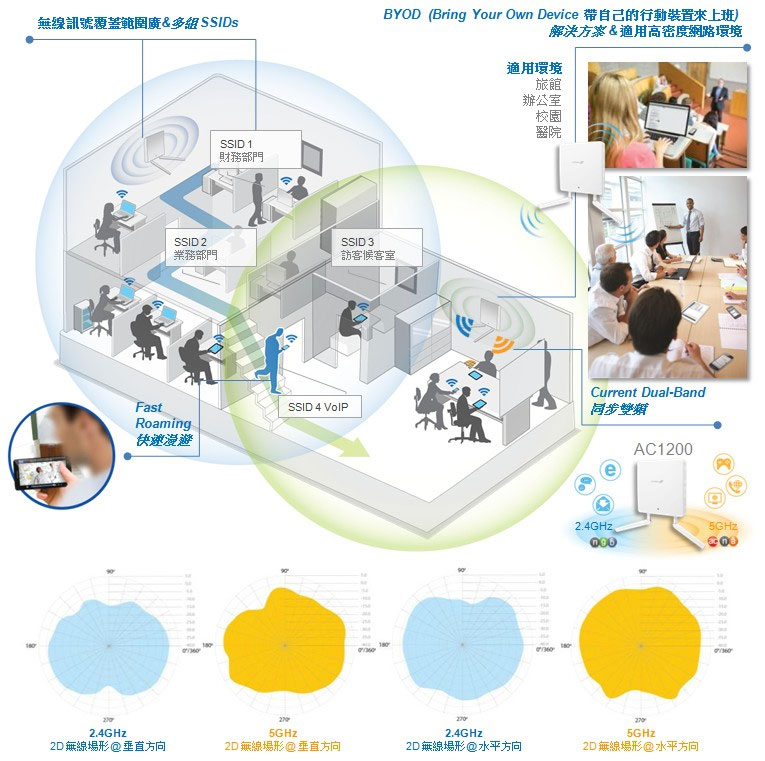

Antenna |
Type: 2 x External
Gain: 2dBi (2.4GHz), 2dBi (5GHz) |
|
Power |
DC: 12V / 2.5A
802.3af (PoE Injector Optional) |
|
Dimensions(L x W x H) |
18.3 x 18.3 x 3.6 cm |
|
Weight |
527g |
|
Power Consumption (Full Loading) |
12W (Exclude PoE-Out) |
|
Mounting |
Wall / Desktop |
|
Console |
RJ45 |
|
WPS/Reset |
Y |
|
LED Indicator |
1. Power LED
2. Diag LED |
|
Environmental Conditions |
Operating Temperature: 0°C (32°F) to 50°C
(122°F)
Operating Humidity: 90% or Less |
|
Power Saving |
802.3az |
|
Internal Buzzer |
Y |
|

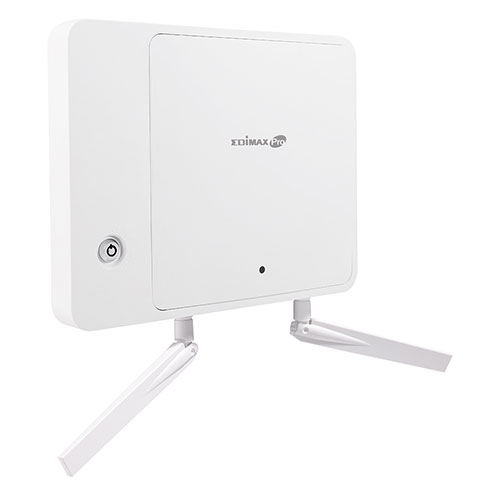

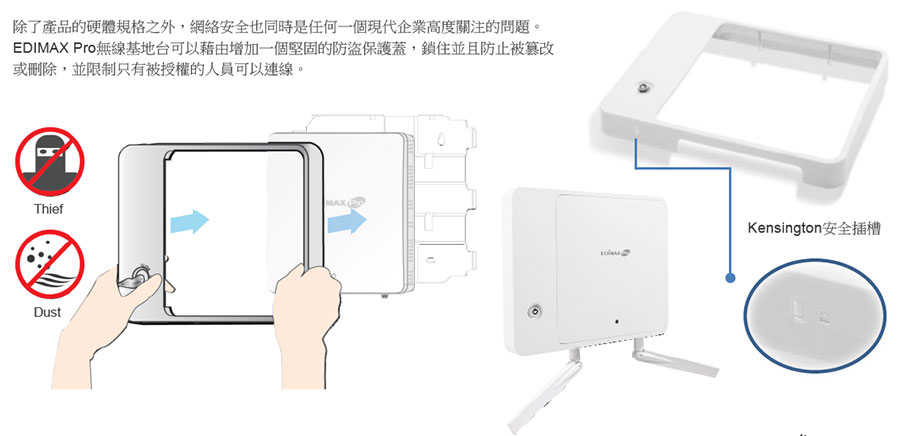

Security Cover |
Y (Optional) |
|
WIRELESS |
|
Standard |
802.11 a/b/g/n/ac Concurrent Dual-Band |
|
No. of Radios |
2 |
|
Receiver Sensitivity |
≤ -94.5dBm |
|
Certification |
CE / FCC |
|
Fast Roaming |
Y |
|
Number of SSIDs |
16 (2.4GHz) + 16 (5GHz) |
|
PERFORMANCE |
|
Maximum Data Speed |
300 + 867Mbps |
|
Concurrent Clients |
Up to 50 Per Radio |
|
RF SPECIFICATONS |
|
Frequency Band |
•Radio Ⅰ: 802.11b/g/n
2.412~2.484(GHz)
•Radio Ⅱ: 802.11a/n/ac 5.18~5.24(GHz),
5.745~5.825(GHz)
(The supported frequency band is restricted by local
regulations.)
|
|
Operation Channels |
•2.4GHz : US/Canada 1-11 /
Europe 1-13 / Japan 1-14
•5GHz : Country dependent for the following ranges:
36, 40, 44, 48, 149, 153, 157, 161, 165
|
|
Transmit Power |
•802.11b
23dBm@1Mbps
23dBm@2Mbps
23dBm@5.5Mbps
23dBm@11Mbps
•802.11g
23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
22dBm@36Mbps
20dBm@48Mbps
19dBm@54Mbps
•802.11gn (2.4G)
27.5dBm@MCS0/8/16
26.5dBm@MCS1/9/17
26.5dBm@MCS2/10/18
26.5dBm@MCS3/11/19
25.5dBm@MCS4/12/20
24.5dBm@MCS5/13/21
23.5dBm@MCS6/14/22
22.5dBm@MCS7/15/23
|
•802.11a
22dBm@6Mbps
22dBm@9Mbps
22dBm@12Mbps
22dBm@18Mbps
22dBm@24Mbps
21dBm@36Mbps
19dBm@48Mbps
18dBm@54Mbp
•802.11an(5G)
27.5dBm@MCS0/8/16
26.5dBm@MCS1/9/17
26.5dBm@MCS2/10/18
25.5dBm@MCS3/11/19
25.5dBm@MCS4/12/20
24.5dBm@MCS5/13/21
23.5dBm@MCS6/14/22
22.5dBm@MCS7/15/23
•802.11ac
27.5dBm@MCS0
26.5dBm@MCS1
26.5dBm@MCS2
25.5dBm@MCS3
25.5dBm@MCS4
24.5dBm@MCS5
23.5dBm@MCS6
22.5dBm@MCS7
20.5dBm@MCS8
19.5dBm@MCS9
|
|
Receiver Sensitivity |
•802.11b
≤-93dBm@1Mbps
≤-90dBm@11Mbps
•802.11g
≤-90dBm@6Mbps
≤-74dBm@54Mbps
•802.11gn (2.4G)
≤-94.5dBm@MCS0
≤-76.5dBm@MCS7
≤-90dBm@MCS8
≤-72dBm@MCS15
≤-90dBm@MCS16
≤-72dBm@MCS23
|
•802.11a
≤-90dBm@6Mbp
≤-72dBm@54Mbps
•802.11an(5G)
≤-94.5dBm@MCS0
≤-70.5dBm@MCS7
≤-90dBm@MCS8
≤-66dBm@MCS15
≤-90dBm@MCS16
≤-66dBm@MCS23
•802.11ac
≤ -90.5dBm@MCS0
≤ -60.5dBm@MCS9
|
|
SECURITY |
|
Encryption |
WEP / WPA / WPA2 |
|
Wireless L2 Isolation |
Y |
|
Station Isolation |
Y |
|
IEEE 802.1x Authenticator |
Y |
|
EAP Authentication |
PEAP |
|
Hidden SSID |
Y |
|
MAC Address Filter |
Y |
|
Wireless STA |
Y |
|
Rogue AP Detection (w/ Edimax Pro Network
Management Suite (NMS)) |
Y |
|
SOFTWARE |
|
Wireless Mode |
AP / WDS AP / WDS Bridge |
|
802.1q VLAN |
Y (VID = 1-4095) |
|
Spanning Tree |
RSTP |
|
QoS |
WMM (802.11e)
Max Associated Station No. |
|
Pass-Through |
IPv6 and VPN (PPTP, L2TP/IPsec) |
|
DSCP (802.1p) |
Y |
|
Multicast Rate up to 54Mbps |
Y |
|
MANAGEMENT |
|
Deployment |
Standalone
Managed by Edimax Pro NMS |
|
Configuration |
HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH) |
|
RADIUS Server |
Built-In |
|
Auto-Channel |
Y |
|
Private MIB |
Y |
