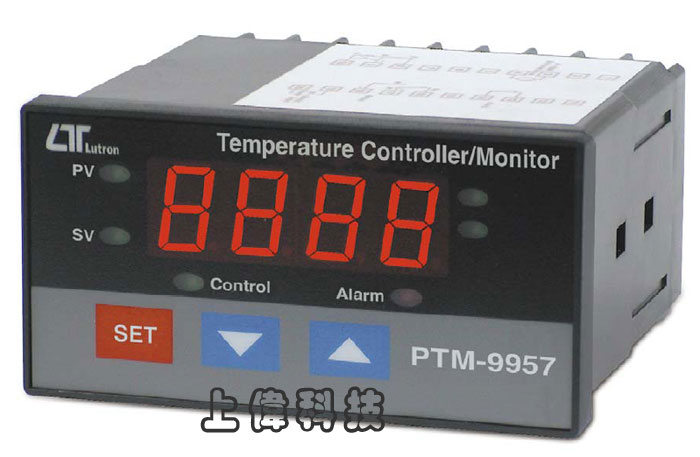

PTM-9957
溫度控制顯示錶
簡介
- 溫度範圍：
- PT-100 range : -199.9 to 850.0 ℃
- Type K range : -100.0 to 1300 ℃
- Type J range : -100.0 to 1200 ℃
- Type T range : -100.0 to 400 ℃
- Type E range : -100.0 to 900 ℃
- Type R range : 0 to 1700 ℃
- Type S range : 0 to 1500 ℃
- 上限或下限範圍設定及警報設定功能
- 上限或下限設定及警報設定繼電器輸出
- 工作電源：AC90 ~ 264V (50/60HZ)
- RS-232 / USB 連接介面(軟體選購)
- Size: 96x48x107mm
FEATURES
- Thermocouple Temp. sensor : type K/J/T/E/R/S.
- Pt Temp. sensor : Pt 100 ohm.
- Type K range : -100 to 1300 ℃, ℃/℉.
- Type J range : -100 to 1200 ℃, ℃/℉.
- Type T range : -100 to 400 ℃, ℃/℉.
- Type E range : -100 to 900 ℃, ℃/℉.
- Type R range : 0 to 1700 ℃, ℃/℉.
- Type S range : 0 to 1500 ℃, ℃/℉.
- Pt 100 ohm range : -199 to 850 ℃, ℃/℉.
- Resolution :
- 0.1 degree ( < 1000 degree )
- 1 degree ( ≧1000 degree )
- Control setting,Hi/Lo alarm setting
- Control relay output
- alarm relay output
- Control Relay will make action when the reading value reach to control value.
- Alarm Relay will make action when the reading value reach to high/low alarm value.
- Hysteresis value setting for control and alarm function.
- Microprocessor circuit ensures high accuracy and provides special functions and features.
- Power : 90 ACV to 264 ACV, 50/60 Hz.
- RS-232/USB computer interface.
- DIN size : 96 x 48 mm.
- Depth : 107 mm.
- Optional type K probe : TP-01, TP-02A, TP-03, TP-04, TP-05.
- Optional Pt 100 ohm probe : TP-100B.
- Optional USB cable, USB-01.
- Optional date acquisition software,SW-U801-WIN.
一般規格
顯示 (Display)
- 4 digits red LED, digit size : 14 mm.
電路 (Circuit)
- Custom chip of microprocessor LSI circuit.
溫度感應器型式 (Temp.Sensor type )
- Thermocouple Temp. sensor : Type K/J/T/E/R/S.
- Pt Temp.sensor : Pt 100 ohm.
- * Sensor type can make the internal setting with default
顯示單位 (Display units)
- ℃,℉.
補償調整 (Offset adjust)
- It can make the internal Offset setting with default.
增益調整 (Gain adjust)
- It can make the internal Gain setting with default
取樣時間 (Sampling Time)
- Approx. 1 second.
繼電器輸出 (Relay Output)
- Number : 2 relays
- Function :
- Relay 1 : control relay.
- Relay 2 : High/Low alarm relay.
- Max load : 1 ACA/250 ACV ; 1 DCA/24 DCV
- *Do not apply the relay contact load current > 0.5 A, other wise the relay may be damaged permanently without warranty.
設定功能 (Setting Function)
- 1st layer setting procedures
- CtLo ( Control low limit )
- CtHi ( Control high limit )
- ALLo ( Alarm low limit )
- ALHi ( Alarm high limit ).
- Second layer setting procedures
- tyPE ( Sensor type )
- dEG ( ℃, ℉ )
- FiLt ( Digital filter )
- CtHy ( Control hysteresis set )
- ALHy ( Alarm hysteresis set )
- oFSt ( Offset adjustment )
- GAin ( Gain adjustment )
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temperature)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 90 to 260 ACV, 50/60 Hz.
重量 (Weight)
- 384 g/ 0.84 LB.
電源損耗 (Power Consumption)
- Approx. 3.3 VA/AC 110V.
- Approx. 5.5 VA/AC 220V.
體積大小 (Dimension)
- DIN size : 96 x 48 mm.
- Depth : 110 mm.
附件 (Accessories Included)
- Instruction manual......................1 PC
- Case holder with screw................. 2 PCs
選購附件 (Optional Accessories)
- Type K Temp. probe : TP-01, TP-02A, TP-03, TP-04, TP-05
- Pt 100 ohm Temp. probe : TP-100B.
- Data Acquisition software, SW-U801-WIN.
- RS232 cable, UPCB-02.
- USB cable, USB-01.
- Real time SD card datalogger DL-9602SD
- GSM controller, GSM-889.
- Interface cable ( cable between meter to GSM-889 ), GMCB-89
電器規格
PT 100 ohm
| Resolution |
Range |
Accuracy |
| 0.1 ℃ |
-199.9 to 850.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-327.0 to 999.9 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| 1 ℉ |
1000 to 1562 ℉ |
± ( 0.4 % + 2 ℉ ) |
Type K/J/T/E/R/S
| Sensor Type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 999.9 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 1 ℃ |
1000 to 1300 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 2372 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type J |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 999.9 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 1 ℃ |
1000 to 1150 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 2102 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type T |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 400.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 752.0 ℉ |
± ( 0.4 % + 1 ℉ ) |
| Type E |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 900.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 1652 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type R |
1 ℃ |
0 to 600 ℃ |
± ( 0.5 % + 1 ℃ ) |
| 601 to 1700 ℃ |
± ( 0.5 % + 1 ℃ ) |
| 1 ℉ |
32 to 1112 ℉ |
± ( 0.5 % + 2 ℉ ) |
| 1113 to 3092 ℉ |
± ( 0.5 % + 2 ℉ ) |
| Type S |
1 ℃ |
0 to 600 ℃ |
± ( 0.5 % + 1 ℃ ) |
| 601 to 1500 ℃ |
± ( 0.5 % + 1 ℃ ) |
| 1 ℉ |
32 to 1112 ℉ |
± ( 0.5 % + 2 ℉ ) |
tr>
1113 to 2732 ℉ |
± ( 0.5 % + 2 ℉ ) |
Remark :
- Accuracy value is specified for the meter only
- Accuracy is tested under the meter's environment temperature within 23 ± 5℃.
- Linearity Correction : Memorize the thermocouple's curve into the intelligent CPU circuit,
|
