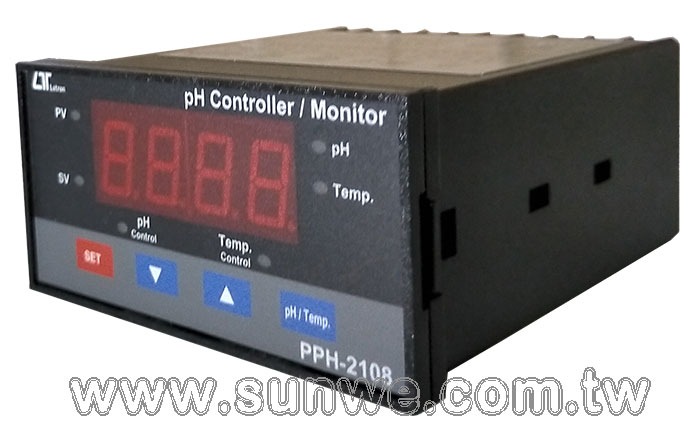

PPH-2108
酸鹼度設定顯示錶
特色
- 酸鹼度範圍：0 ~ 14.00PH
- 溫度範圍：-30 ~ 100°C
- 上/下限設定及警報設定功能
- 上/下限及警報設定繼電器輸出
- 工作電源：AC90 ~ 264V (50/60HZ)
- PH電極及感溫棒皆為選購品
- RS-232 / USB連接介面(軟體選購)
- Size: 96x48x107mm
FEATURES
- Professional pH and Temp.
- measurement monitor and controller.
- pH range : 0 to 14 pH x 0.01 pH.
- pH function with high input impedance avoids measuring error.
- Optional Temp. probe ( ATC probe, Automatic Temp. Compensation probe ) is available for pH measurement compensation and the Temp. measurement.
- Wide manual temperature compensation for pH function, adjustment can be easily operated by push button on the front panel.
- pH calibration is easily to be done by push button on the front panel.
- Build in pH control relay and the Temp. control relay.
- Relay will be make action ( On/Off ) when the reading value reach high limit or low limit value.
- Temperature Offset value setting.
- Hysteresis value setting for high and low alarm.
- ℃,℉ temp. unit setting with default.
- Large red LED display, high brightness and easy to read.
- RS232 computer interface, send out the pH and the temperature data at the same time.
- Optional pH electrode.
- Optional Temperature probe ( ATC probe ).
- ptional data acquisition software.
- Optional GSM controller.
- Microprocessor circuit ensures high accuracy and provides special functions and features.
- Standard 96 X 48 mm DIN case.
- Wide applications:
- water conditioning
- aquariums
- beverage
- fish hatcheries
- food processing
- photography
- laboratory
- paper industry
- plating industry
- quality control
- school & college
一般規格
顯示 (Display)
- 4 digits red LED, digit size : 14 mm.
電路 (Circuit)
- Custom chip of microprocessor LSI circuit.
範圍 (Range)
- PH : 0 to 14 PH
- Temp. : -30 to 100 ℃
顯示單位 (Display Unit)
- pH : pH
- Temp. : ℃, ℉
PH 輸入阻抗 (pH Input Impedance)
- 10^12 ohm PH
測量之溫度補償 (Temperature Compensation for pH measurement)
- Manual : -30 to 100 ℃, be adjusted by push button on front panel.
- Automatic ( ATC ) : With the optional Temp. probe ( TP-07A )
PH 校正 (pH Calibration)
- PH7, PH4, and PH10, 3 points calibration ensure the best linearity and accuracy.
PH 電極 (pH Electrode)
- Optional, Any PH electrode with BNC connector.
溫度測棒 (Temp. Probe , ATC Probe)
- Optional, 0 to 65 ℃, TP-07A
測棒校正提供的設定 (Probe Calibration Period Setting)
- * PCPS function Can set the meter's total operation period to warn the user to make the new calibration for the pH electrode.
取樣時間 (Sampling Time)
- Approx. 1 second.

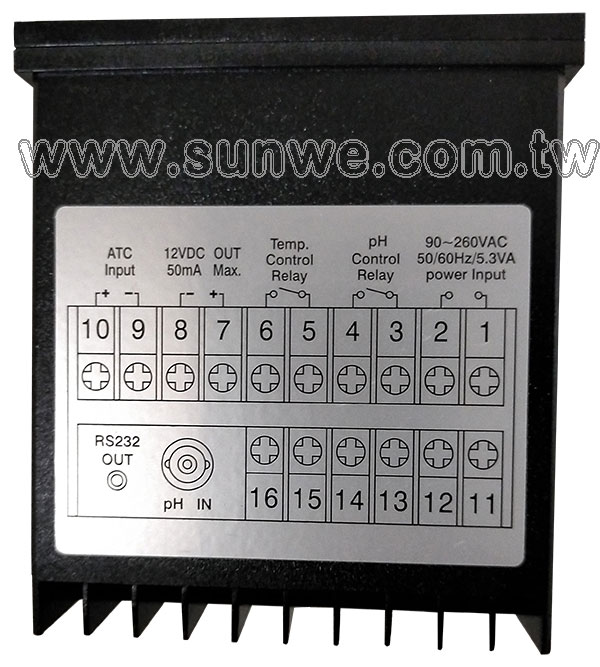

繼電器輸出 (Relay Output)
- Number : 2 relays
- Function :
- Relay 1 : pH control relay.
- Relay 2 : Temperature control relay.
- Max load : 1 ACA/250 ACV ; 1 DCA/24 DCV
設定值 (Setting Value)
- 1. High limit value setting.
- 2. Low limit value setting.
- 3. Hysteresis value setting.
- 4. Temp. Offset value setting.
- * 1, 2, 3 Setting for pH and Temp. function.
外部電源供應 (External Power Supply)
- DC 12 V, 50 mA max.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temperature)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 90 to 260 ACV, 50/60 Hz.
重量 (Weight)
- 384 g/ 0.84 LB.
電源損耗 (Power Consumption)
- Approx. 4.7 VA/AC 110V.
- Approx. 5.3 VA/AC 220V.
體積大小 (Dimension)
- DIN size : 96 x 48 mm.
- Depth : 110 mm.
附件 (Accessories Included)
- Instruction manual......................1 PC
- Case holder with screw................. 2 PCs
選購附件 (Optional Accessories)
- PH electrodes :

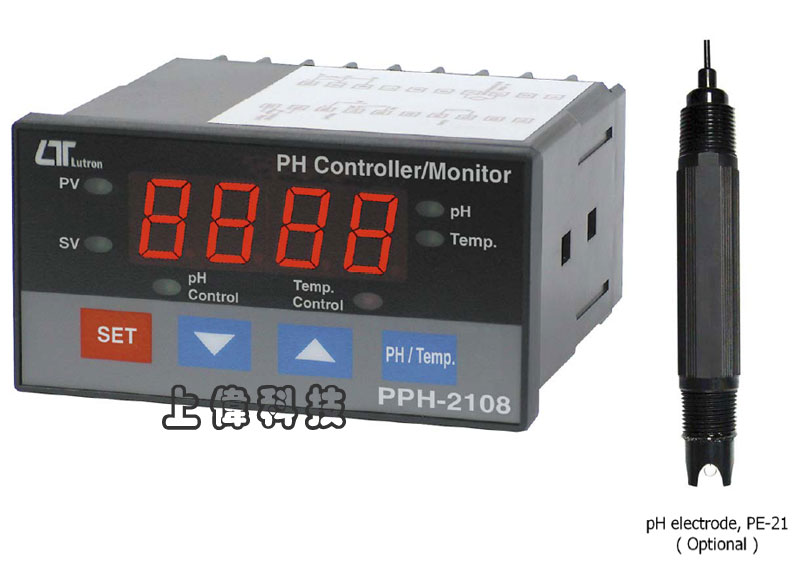

- * Industrial in line pH electrode, PE-21
- * General purpose PH electrode, PE-03 PH buffer solution :
- * pH 7 buffer solution, PH-07, PH-07A.
- * pH 4 buffer solution, PH-04, PH-04A.
- * Temp. probe ( ATC probe ), TP-07A
- Data Acquisition software, SW-U801-WIN.
- RS232 cable, UPCB-02.
- USB cable, USB-01.
- GSM controller, GSM-889.
- Interface cable ( cable between meter to GSM-889 )
電器規格 (23±5 ℃)
pH ( meter only )
| Range |
Resolution |
Accuracy |
| 0 to 14 PH |
0.01 PH |
± (0.02 PH + 2 d) |
Temperature ( used optional Temp. probe, TP-07 A)
| Measurement |
Range |
Resolution |
Accuracy |
| ℃ |
0 ℃ to 65 ℃ |
0 ℃ to 65 ℃ |
0.8 ℃. |
| ℉ |
32℉ to 149 ℉ |
32℉ to 149 ℉ |
1.5 ℉. |
|
