PWA-6065

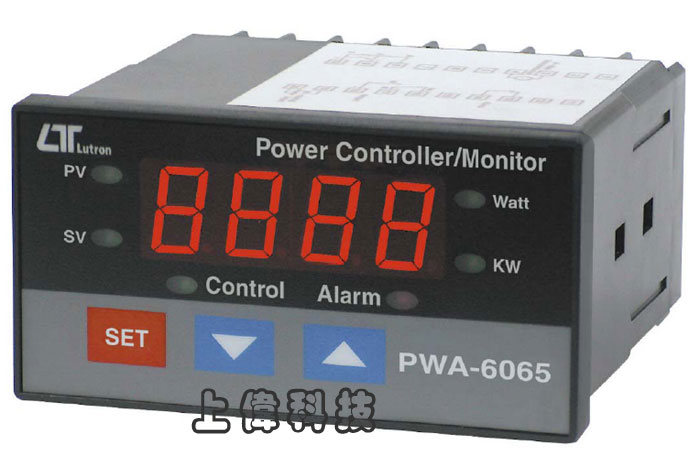

功率控制顯示錶



PWA-6065 功率控制顯示錶-測量範圍(不外接 CT/PT 時):瓦特 : 0 ~ 6000瓦 (WATT) (真均方根植測量),交流電壓 : 0 to 600.0 ACV, 40 to 400 Hz, 交流電流 : -0 to 10.00 A, 40 to 400 Hz'電流輸入可外接 CT . CT100A/5A 或 CT1000A/5A'電壓輸入可外接PT測量使用'上限或下限範圍設定及警報設定功能'上限或下限設定及警報設定繼電器輸出'工作電源:AC90 ~ 264V (50/60HZ)'RS-232 / USB 連接介面,由上偉科技專業銷售'工程安裝'維修服務,洽詢電話02-22267567(代表號)由專人服務

簡介
測量範圍(不外接 CT/PT 時):
瓦特 : 0 ~ 6000瓦 (WATT) (真均方根植測量)
交流電壓 : 0 to 600.0 ACV, 40 to 400 Hz.
交流電流 : -0 to 10.00 A, 40 to 400 Hz.
電流輸入可外接 CT . CT100A/5A 或 CT1000A/5A
電壓輸入可外接PT測量使用
上限或下限範圍設定及警報設定功能
上限或下限設定及警報設定繼電器輸出
工作電源:AC90 ~ 264V (50/60HZ)
RS-232 / USB 連接介面(軟體選購)
Size: 96x48x107mm
FEATURES
Professional WATT meter with standard DIN case ( 96 x 48 mm ) and Control/Alarm function.
Microprocessor circuit ensures high accuracy and provide special functions and features.
Large red LED display, high brightness and easy to read
Measurement range ( no cooperate the external CT and the PT ) : Watt : 0 to 6,000 Watt.
Input signal ( without PT, CT ) : ACV : 0 to 600 ACV, 40 to 400 Hz. ; ACA : 0 to 10 A, 40 to 400 Hz.
True rms for WATT measurement.
Current input can cooperate the external CT ( current transformer ) such as CT 1000/5A, CT 100/5A ...to expend the measurement range. The CT range can be adjusted with default.
Voltage input can cooperate the external PT ( voltage transformer ) to expend the measurement range. The PT range can be adjusted with default.
Control setting, Hi/Lo alarm setting.
Control relay output, alarm relay output.
Control Relay will make action when the reading value reach to control value.
Alarm Relay will make action when the reading value reach to high/low alarm value.
Hysteresis value setting for control and alarm function.
Power : 90 ACV to 264 ACV, 50/60 Hz.
RS232/USB computer interface.
Option data acquisition software.
一般規格

顯示 (Display)

4 digits red LED, digit size 14 mm ( 0.55 inch ) digit height .
6 indicators:
PV ( process value ) indicator
SV ( set value ) indicator
Control out indicator
Alarm out indicator
Watt indicator
KW indicator

電路 (Circuit)

Custom chip of microprocessor LSI circuit.

瓦特測量 (Watt measurement )

0 - 6,000 W.
* True power
* w/o PT. CT.

輸入訊號 (Input signal)

ACV : 0 to 600 ACV, 40 to 400 Hz.
ACA : 0 to 10 A, 40 to 400 Hz.
* w/o PT. CT.

取樣時間 (Sampling Time)

Approx. 0.8 second.

繼電器輸出 (Relay Output)

Number : 2 relays
Function :
Relay 1 : control relay.
Relay 2 : High/Low alarm relay.
Max load :
1 ACA/250 ACV
1 DCA/24 DCV
*Do not apply the relay contact load current > 0.5 A, other wise the relay may be damaged permanently without warranty.

資料輸出 (Data Output)

RS232 / USB PC Computer interface.
* Connect the optional RS232 cable , UPCB - 02 will get the RS232 plug.
* Connect the optional USB cable, USB - 01 will get the USB plug.

設定功能 (Setting Function)

1st layer setting procedures

CtLo ( Control low limit )
CtHi ( Control high limit )
ALLo ( Alarm low limit )
ALHi ( Alarm high limit ).

Second layer setting procedures

CtSt ( CT rate setting )
PtSt ( PT rate setting )
CtHy ( Control hysteresis value setting )
ALHy ( Alarm hysteresis value setting )

過載輸入 (Over input)

" - - - - " mark indication.

歸零調整 (Zero Adjustment)

Automatic adjustment.

操作溫度 (Operating Temperature)

0 to 50 ℃.

操作溼度 (Operating Humidity)

Less than 80% R.H.

電源供應 (Power Supply)

90 to 260 ACV, 50/60 Hz.

重量 (Weight)

261 g/ 0.57 LB.

電源損耗 (Power Consumption) * Under no load

Approx. 3.3 VA/AC 110V.
Approx. 4.9 VA/AC 220V.

體積大小 (Dimension)

DIN size : 96 x 48 mm.
Panel cut size : 92 x 46 mm.
Depth : 110 mm.

附件 (Accessories Included)

Instruction manual.....................1 PC
Case holder with screw................ 2 PCs

選購附件 (Optional Accessories)

Data Acquisition software, SW-U801-WIN.
RS232 cable, UPCB-02.
USB cable, USB-01.
Real time SD card datalogger DL-9602SD
GSM controller, GSM-889.I
Interface cable ( cable between meter to GSM-889 ), GMCB-89.

電器規格

沒有PT 及 CT直接輸入 (Without PT and CT ( direct input ))

Range : 0 W to 6,000 W

Resolution : 1 W

Accuracy : ± ( 0.5 % + 5d ) reading

Remark :

* Measuring Signal come from the rear terminals .
* T11, T15 ACV input : 10 ACV to 600 ACV.
* T16, T15 ACA input : 0.05 ACA to 10 ACA.
* Accuracy is test under input signal is sine wave, 50/60 Hz.
* ACV, ACA frequency response is from 40 to 400 Hz
* Watt measurement is True RMS value.
* Accuracy value is specified within 23℃ ± 5℃

含 PT 及 CT ( With PT and CT)

Range : 0 to 999.9 KW

Resolution : 0.1 KW

Accuracy : ± ( 0.5 % + 5d ) reading

Remark :

* Measuring Signal come from the rear terminals .
* T11, T15 ACV input : 10 ACV to 600 ACV. PT ( Potential transformer ) adjust value : x 1 to x 100.
* T16, T15 ACA input : 0.05 ACA to 10 ACA. CT ( current transformer ) adjust value : x 1 to x 200.
* Accuracy is test under input signal is sine wave, 50/60 Hz.
* Accuracy is specified for the meter only, not include the accuracy of CT ( current transformer ) and the PT ( potential transformer ).



控制顯示錶系列



CT-2012 設定顯示錶-sunwe精密儀器 PAA-6069 交流電流控制顯示錶-sunwe精密儀器 PAV-6068 交流電壓控制顯示錶-sunwe精密儀器


CT-2012

設定顯示錶



PAA-6069

交流電流控制顯示錶



PAV-6068

交流電壓控制顯示錶



PDA-6071 直流電流控制顯示錶-上偉科技www.sunwe.com.tw PDO-8220 溶氧控制顯示錶-上偉科技www.sunwe.com.tw PDV-6070 直流電壓控制顯示錶-上偉科技www.sunwe.com.tw


PDA-6071

直流電流控制顯示錶



PDO-8220

溶氧控制顯示錶



PDV-6070

直流電壓控制顯示錶



PDT-2250 轉速設定顯示錶-sunwe精密儀器 PHT-3109 溫濕度設定顯示錶-sunwe精密儀器 PIR-9959A 紅外線溫度控制顯示錶-sunwe精密儀器


PDT-2250

轉速設定顯示錶



PHT-3109

溫濕度設定顯示錶



PIR-9959A

紅外線溫度控制顯示錶



PPF-6066 功率因素控制顯示錶-sunwe精密儀器 PPH-2108 酸鹼度設定顯示錶-sunwe精密儀器 PPS-9312 壓力控制顯示錶-sunwe精密儀器


PPF-6066

功率因素控制顯示錶



PPH-2108

酸鹼度設定顯示錶



PPS-9312

壓力控制顯示錶



PRS-2321 RS-232控制顯示錶-sunwe精密儀器 PTM-9957 溫度控制顯示錶-sunwe精密儀器 PVA-6067 視在功率控制顯示錶-sunwe精密儀器


PRS-2321

RS-232控制顯示錶



PTM-9957

溫度控制顯示錶



PVA-6067

視在功率控制顯示錶



PVB-8219 振動控制顯示錶-上偉科技www.sunwe.com.tw PWA-6065 功率控制顯示錶-sunwe精密儀器


PVB-8219

振動控制顯示錶



PWA-6065

功率控制顯示錶





控制顯示錶系列影片介紹
PWA-6065 功率控制顯示錶原文資料
