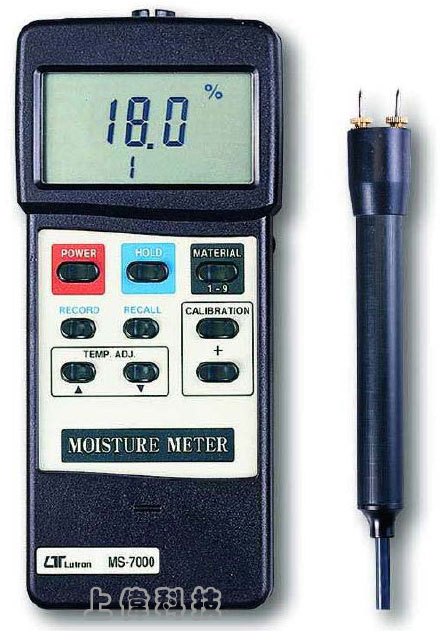

MS-7000
智慧型木材水分計
特色
- 測量範圍 : 9 ~ 30%. ±4%
- 內建9大類,150種木頭材質分析校正
- 具有自我校正功能
- 可記錄最大值,最小值及讀值鎖定
- 手動溫度補償 : 0 ~ 50°C
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 180 x 72 x 32mm.
FEATURES
- Measure moisture content over range 9 % to 30 %.
- 9 material species groups in memory, calibrations for about 150 different species of wood/timber are provided.
- Built-in self-calibration circuit.
- 0 to 50 ℃ manual temp. compensation setting.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
- Super large LCD with dual display.
- Heavy duty & compact housing case, designed for easy carry out & operation.
- Records Maximum & Minimum reading with recall.
- Data hold function to freeze the desired value on display.
- Auto shut off saves battery life.
- RS 232 PC serial interface.
- Built-in low battery indicator.
- Separate pin type moisture probe, easy operation. & remote measurement.
一般規格
應用 (Applications)
- For surveying buildings for dampness and for the rapid determination of the moisture content of wood/timber.
原理 (Principal)
- Used the 2 pins electrode to measure the conductive ability of the species, then converter to the reading of % " Moisture of Content ".
預設記憶 (Default Memory for the species)
- 9 material species groups in memory, calibrations for about 150 different species of wood are provided.
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- 13 mm ( 0.5" ) super large LCD display, dual function meter's display.
測量 (Measurement)
- Measure moisture content over range 9 % to 30 %.
測棒 (Probe)
- Separate 2 pins moisture electrode,
溫度補償 (Temperature Compensation)
- Manual temperature compensation of the meter in the range of 0 to 50 ℃.
校正 (Calibration)
- Built-in self-calibration circuit by push button on front panel.
資料鎖定 (Data hold)
- Freeze the display reading.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp.
)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 006P, MN1604 ( PP3 ) DC 9V battery or equivalent, recommend use the alkaline or heavy duty battery.
電源電流 (Power Current)
- Approx. DC 6.5 mA
重量 (Weight)
- 330 g/0.73 LB
體積 (Dimension)
- Main instrument :
180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch ).
- Moisture Probe :
- Round 23 mm Dia. x 165 mm.
- Round 0.9 inch Dia. x 6.5 inch.
附件 (Standard Accessory)
- Instruction manual........... 1 PC.
- Moisture probe................1 PC.
- Extra contact pins............1 Set.
- Hard Carrying Case........... 1 PC
|
