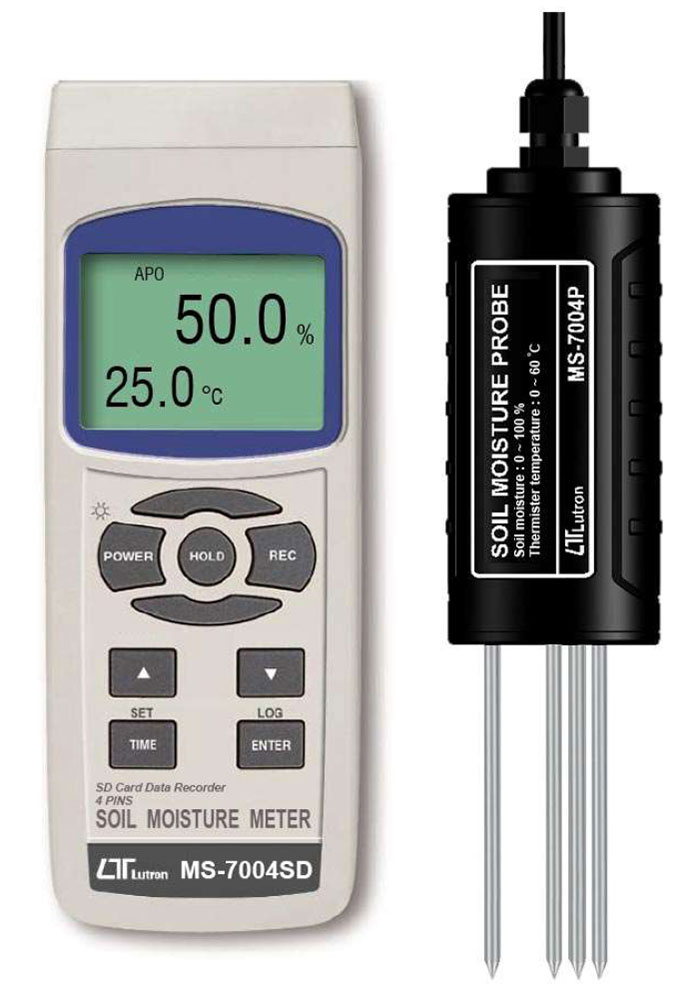

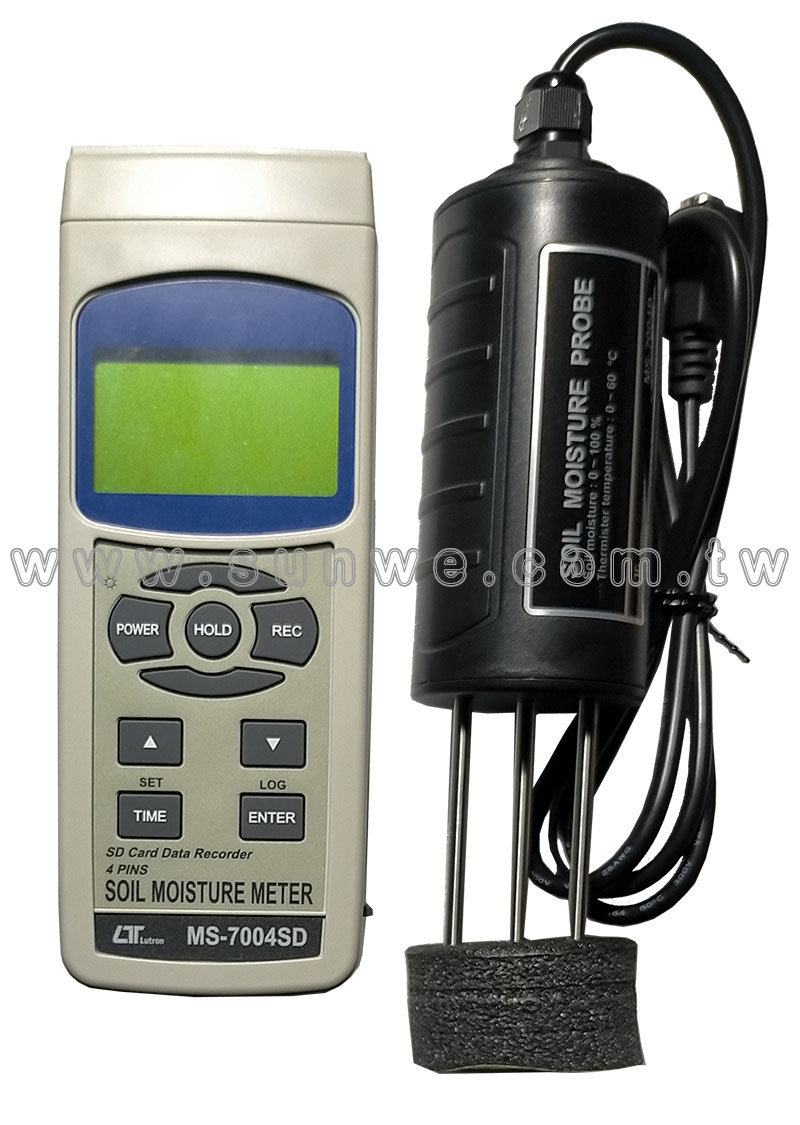

MS-7004SD
記憶式土壤濕度計

- 測量範圍,0 ~ 100 %。0 ~ 60 °C

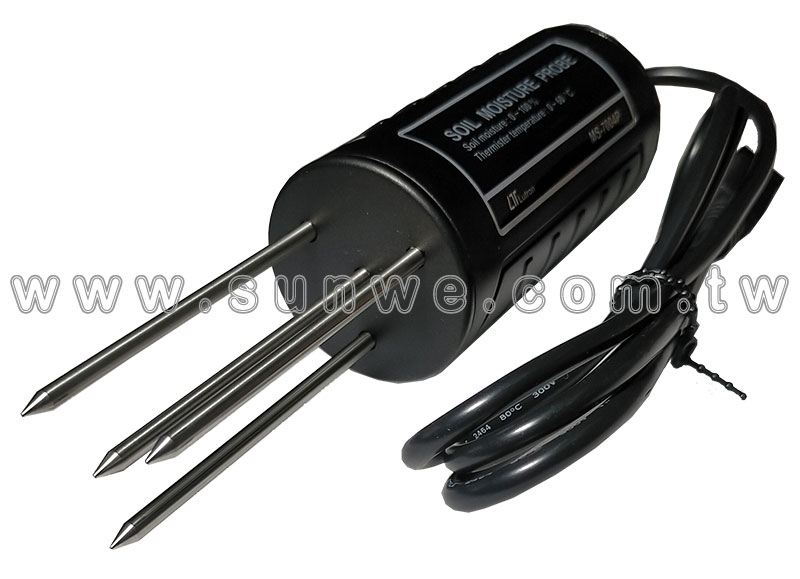

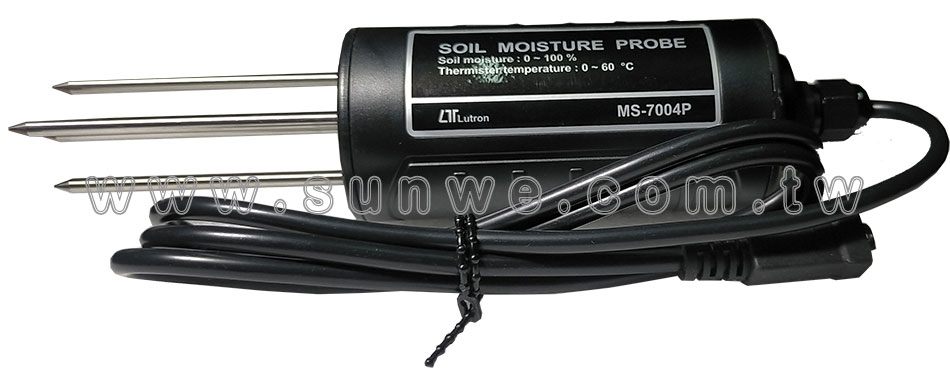

- 四個 PIN 探頭(PIN 長度 78 mm)
- 高穩定性
- 高精度
- 快速回應。
- 易於安裝。
- 獨立探頭,便於不同環境測量的作。
- 熱敏電阻溫度。
- 即時 SD 儲存卡資料記錄器,內置時鐘和日曆,即實數據記錄器,採樣時間設置為 1 秒至 3600 秒。
- 手動資料記錄器可用(將採樣時間設置為 0),在執行手動數據記錄器功能時,它可以設置不同的位置編號。(位置 1 到位置 99)。
- 創新且易於作,計算機無需設置額外的軟體,執行數據記錄器后,只需從儀錶中取出 SD 卡並將 SD 卡插入電腦,即可將所有測量值和時間資訊(年/月/日/小時/分鐘/秒)直接下載到 Excel, 然後使用者可以自己進行進一步的數據或圖形分析。
- SD 卡容量:1 GB 至 16 GB。
- 帶綠燈背光的 LCD,易於閱讀。
- 可以預設自動關機或手動關機。
- 資料鎖定、記錄最大和最小讀數。
- 微電腦電路,精度高。

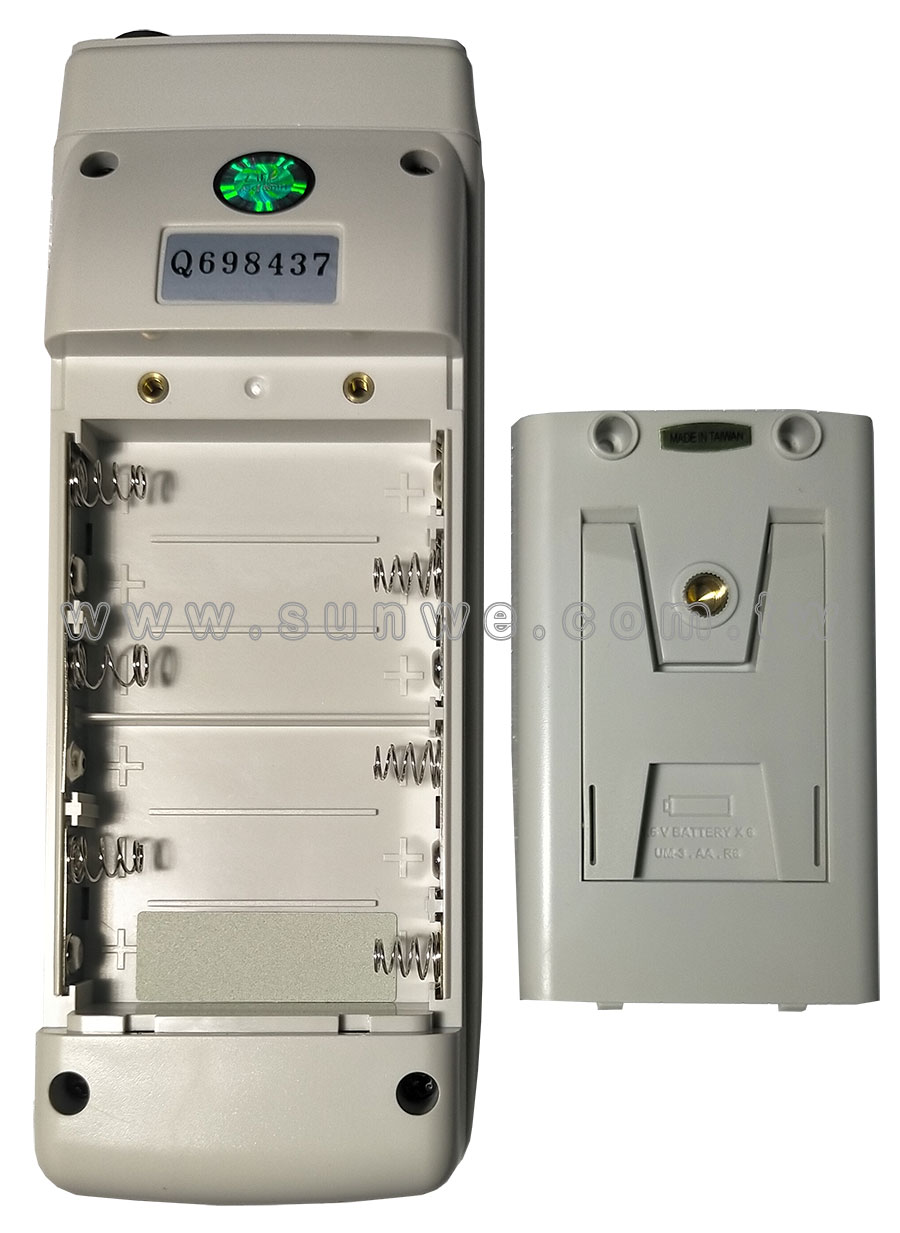

- 由 UM3/AA ( 1.5 V ) x 6 電池或 DC 9V
變壓器供電。
- RS232/USB PC 電腦介面。
特色
- 使用智慧型多功能溶氧計實現精確測量
PDO-520 溶氧計採用筆型設計和獨立探頭,提供準確可靠的測量,使其成為實驗室、水族館等各種應用的必備工具。
- 測量範圍廣:測量 0 至 20.0 mg/L 的溶氧量和 0 至 100% 的空氣氧,為各種測試需求提供全面的範圍。
- 分離極譜探針:配備內建溫度感測器和 4 公尺電纜的極譜型探頭,確保精確的溶解氧和溫度測量,並在 0℃ 至 50℃ 範圍內自動補償。
- 多顯示LCD:在雙功能 LCD 上同時顯示溶解氧和溫度,提高可讀性和可用性。
- 使用者友善設計:包括資料保持、最大/最小讀數呼叫、自動關機以節省電池壽命以及防水外殼(IP-65 級)等功能。
- 耐用且便攜:採用耐用的組件和緊湊的 ABS 塑膠外殼設計,易於攜帶和在各種環境中操作。
FEATURES
-
Measurement ranges, 0 ~ 100 %. 0 ~ 60 ℃
-
Four PIN probe (PIN length 78 mm)
-
High stability
-
High accuracy
-
Fast response.
-
Easy Installation.
-
Separate probe, easy for operation of different environment measurement .
-
Thermister temperature.
-
Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.
-
Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
-
Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
-
SD card capacity : 1 GB to 16 GB.
-
LCD with green light backlight, easy reading.
-
Can default auto power off or manual power off.
-
Data hold, record max. and min. reading.
-
Microcomputer circuit, high accuracy.
-
Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
-
RS232/USB PC COMPUTER interface.
規格
電路
- 客製化單晶片微處理器LSI電路。
顯示
- LCD 尺寸:52 毫米 x 38 毫米
LCD,綠色背光(開/關)。
測量
- 土壤濕度:0∼100%
- 熱敏電阻溫度:0∼60℃。
資料鎖定
- 凍結顯示讀數。
記憶回叫
- 最大值和最小值。
採樣時間
- 大約 1秒。
數據輸出
- RS 232/USB PC 電腦介面。
- * 連接選購的 RS232 電纜
UPCB-02 將獲得 RS232 插頭。
- * 連接選購 USB 連接線
USB-01 將可獲得 USB 插頭。
工作溫度
- 0 至 50 °C。
工作濕度
- 相對濕度低於 85%
電源
- 鹼性或重型 DC 1.5 V 電池(UM3、AA)x 6 節,或同等電池。

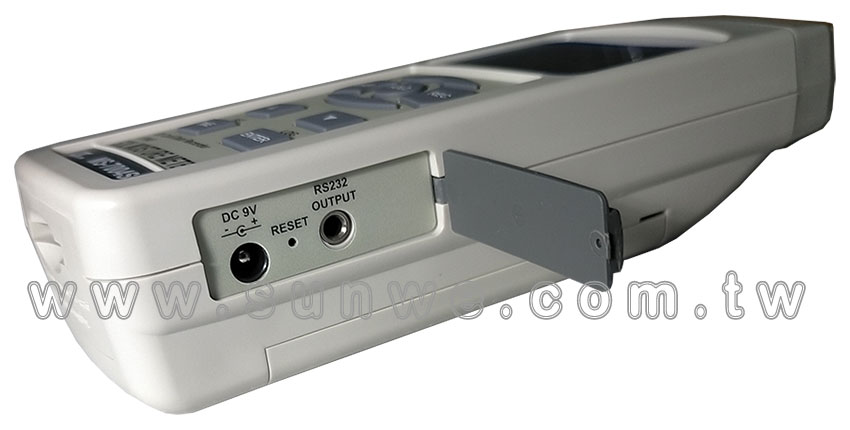

- DC 9V 變壓器輸入。
- (AC/DC 電源供應器可選)。
消耗電流
- 正常操作(無 SD 卡保存資料且 LCD 背光關閉):
約直流46毫安培。
- 當 SD 卡保存資料但蜂鳴器關閉且 LCD 背光關閉時):
約直流65毫安培。
- 如果 LCD 背光打開,功耗將增加約
46毫安。
重量
- 640 克/1.33 磅。
尺寸
- 177 x 68 x 45 毫米(7.0 x 2.7 x 1.9 英吋)
標準配件
- 說明書:1 份

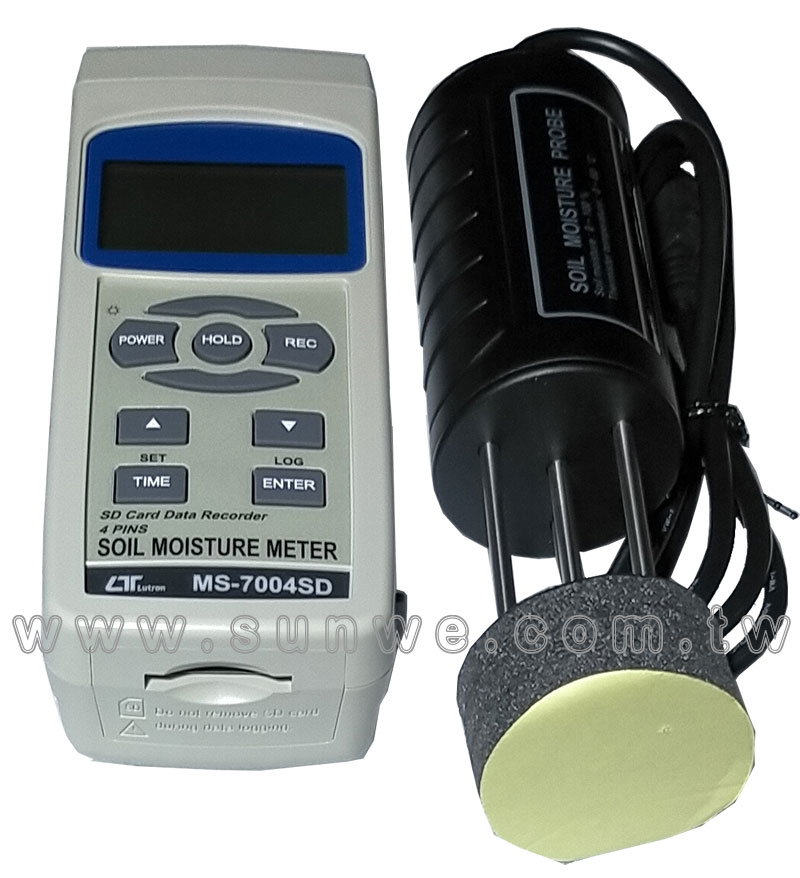

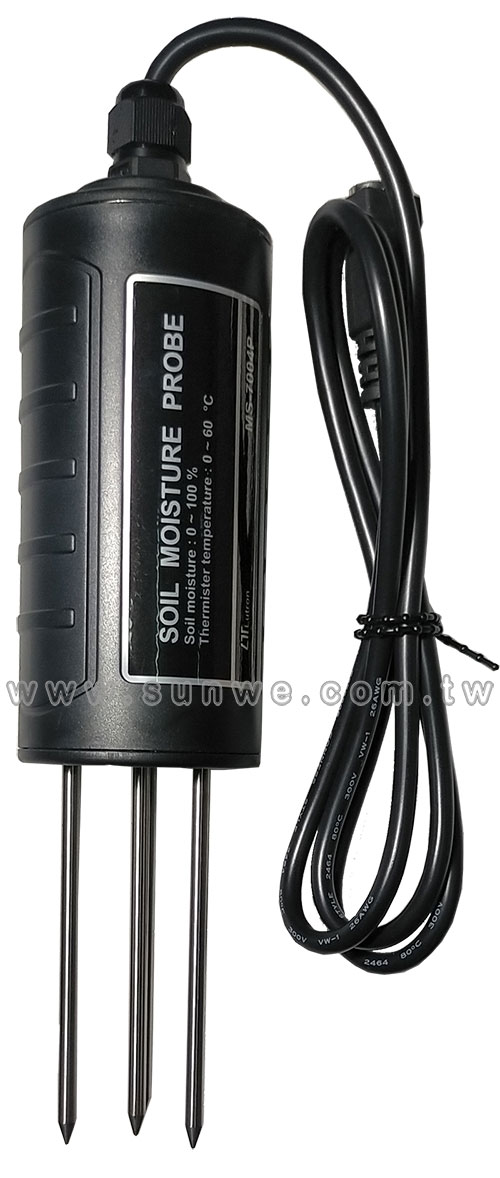

- 壤測試儀感測器(附保護罩):1 份
選購配件
- SD 卡
- AC 至 DC 9V 變壓器。
- USB 電纜,USB-01。
- RS232 電纜,UPCB-02。
- 數據採集軟體,SW-U801-WIN。

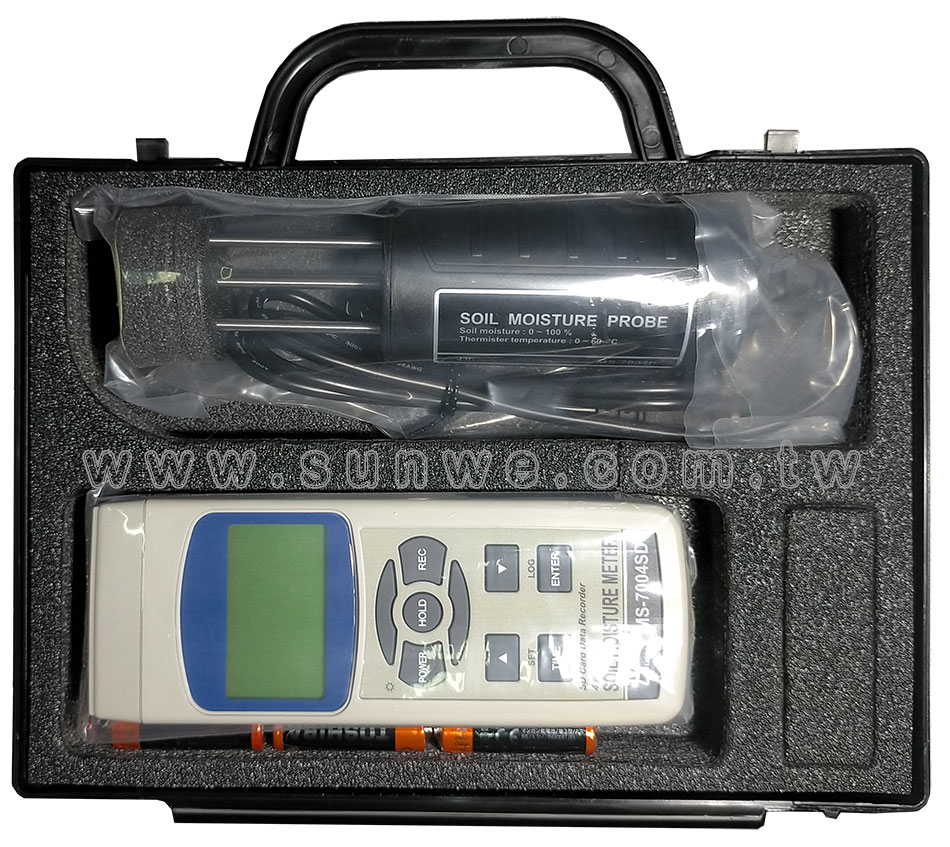

- 硬手提箱,CA-07A。
|
|
