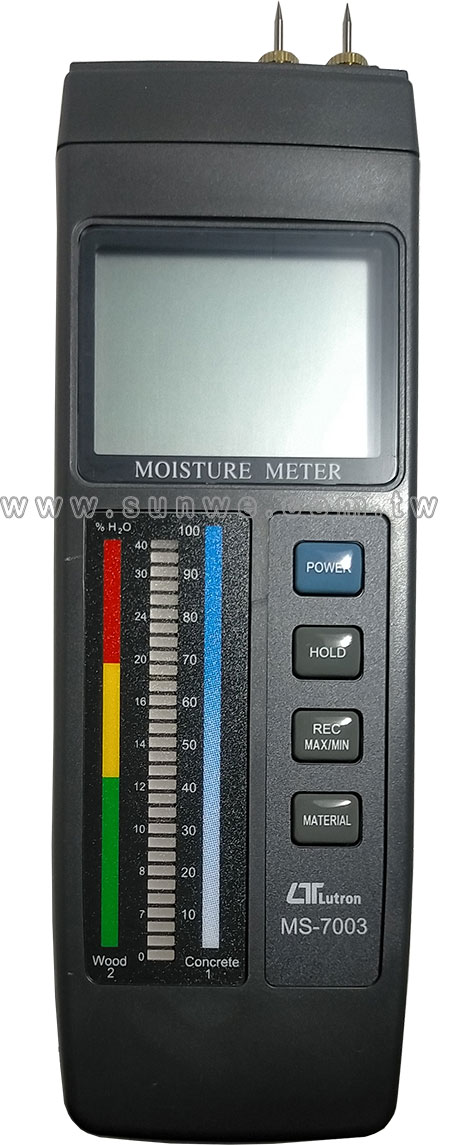

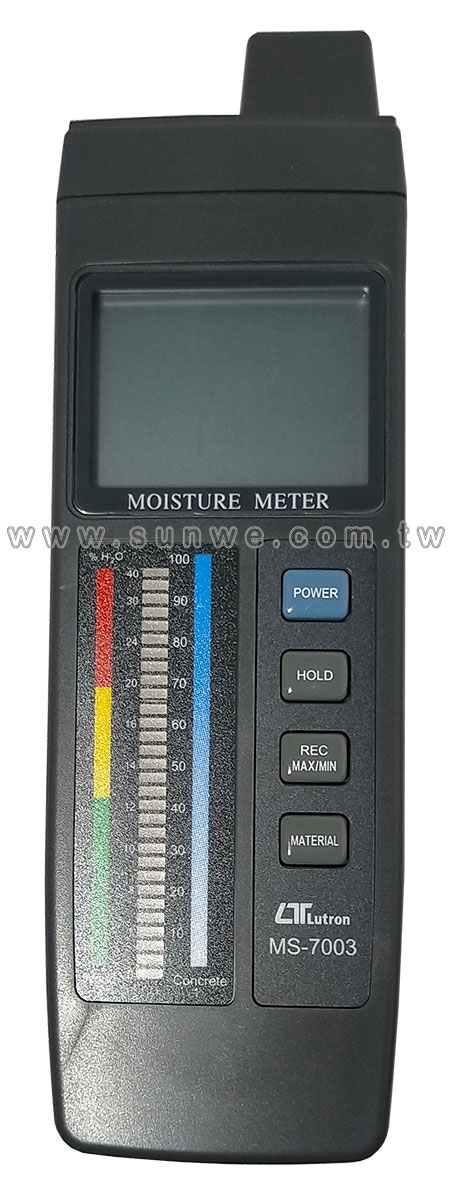

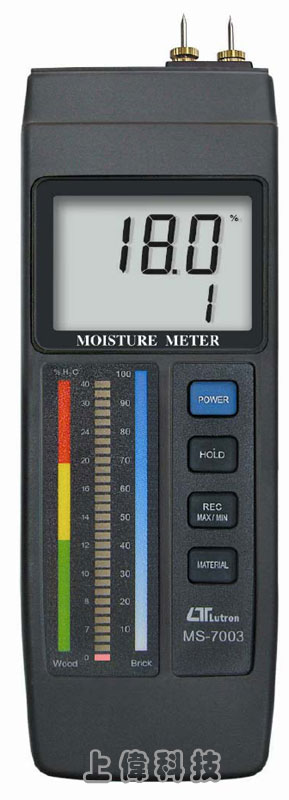

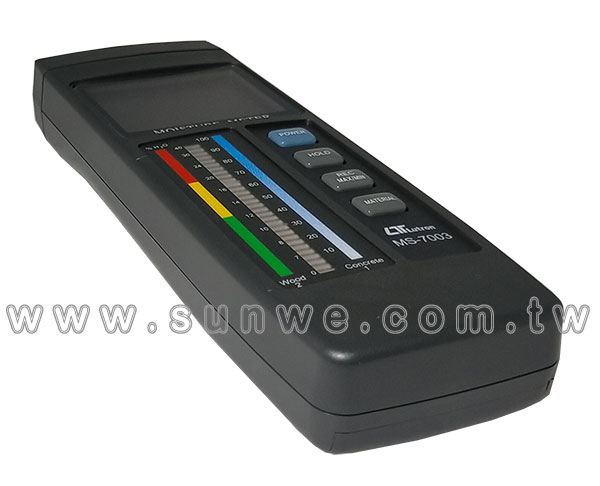

MS-7003
混泥土/木材水分計

特色
- 木材測量範圍 : 0.0 ~ 40%.
- 混泥土測量範圍 : 0.0 ~ 100%.
- 紅色LED 燈條碼及液晶數位雙顯示
- 讀值鎖定及記錄測量中之最大值/最小值
- 可外接延伸測棒,型號 MP-31
- Size : 216 x 68 x 30mm.
FEATURES
- Designed to check the moisture level of wood, concrete, and other non-wood material.
- 6 % to 40 % moisture range on wood.
- 0 to 100% relative moisture value for Concrete and other non-wood material.
- Red LED bar graph indicator and LCD digital display.
- All in one, meter build in the test pins.
- Optional separate probe, available for remote measurement.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
- Records Maximum & Minimum reading with recall.
- Data hold function to freeze the desired value on display.
- Heavy duty & compact housing case, designed for easy carry out & operation.
- Built-in low battery indicator.
- With auto power shut off function to prolong the battery battery life.
一般規格
應用 (Applications)
- Designed to check the moisture level of wood, concrete and other non-wood material.
原理 (Principal)
- Used the 2 pins electrode to measure the conductive ability of the species, then converter to the reading of % " Moisture of Content ".
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 51 mm x 37 mm
- Digit size : 16 mm ( 0.62 " )
材質/範圍 (Material/Range)
- Material 1 : 0 to 100% relative moisture value for Concrete and other non-wood material.
- Material 2 : 6 % to 40 % moisture range on wood.
解析度 (Resolution)
- 0.1 %.
精確度 (Accuracy)
- ± ( 5 % + 5 d ) @ 23 ± 5 ℃
- @ Material 1 : 13 % to 100%
- @ Material 2 : 6 % to 40%
測棒 (Probe)
- 2 pins moisture electrode,
資料鎖定 (Data hold)
- By push button on front panel.
記憶回叫 (Memory Recall)
- Records Maximum & Minimum reading value.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 006P, MN1604 ( PP3 ) DC 9V battery .
電源電流 (Power Current)
- Approx. DC 16 mA
重量 (Weight)
- 251 g/0.55 LB.
體積 (Dimension)
- 216.5 x 68.5 x 29.7 mm ( 8.4 x 2.7 x 1.2 inch ).
附件 (Standard Accessory)
- Instruction manual............... 1 PC.
- Extra contact pins................1 Set.
選購附件 (Optional accessories)
- Separate Probe, MP-31
- Hard Carrying Case, CA-06
- Soft Carrying Case, CA-05A





|
