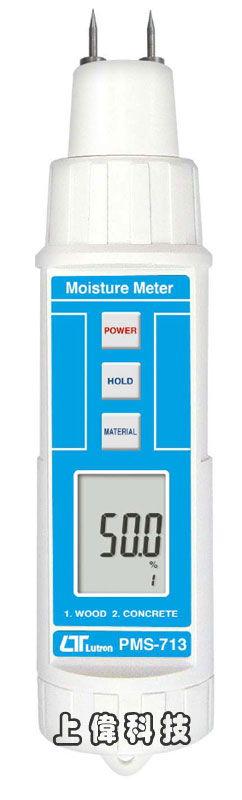

PMS-713

筆型水分計

特色

木材測量範圍 : 6 ~ 40.0%.

混泥土測量範圍 : 0 ~ 100.0%.

精確度：±5%

讀值鎖定功能

Size : 180 x 40 x 40mm.

FEATURES

Designed to check the moisture level of wood, concrete, and other non-wood material.

6 % to 40 % moisture range on wood.

0 to 100% relative moisture value for Concrete and other non-wood material.

All in one, meter build in the test pins.

Data hold function to freeze the desired value on display.

Microprocessor circuit ensures high accuracy and provides special functions and features.

Operates from DC 1.5V ( UM4/AAA ) x 4 PCs batteries.

Built-in low battery indicator.

With the pins' protection cover.

Durable, long-lasting components, enclosed in strong, compact ABS-plastic housing.

一般規格

應用 (Applications)

Designed to check the moisture level of wood, concrete and other non-wood material.

原理 (Principal)

Used the 2 pins electrode to measure the conductive ability of the species, then converter to the reading of % " Moisture of Content ".

顯示 (Display)

LCD size : 28 mm x 19 mm.

材質/範圍 (Material/Range)

Material 1 : 0 to 100% relative moisture value for Concrete and other non-wood material .

Material 2 : 6 % to 40 % moisture range on wood.

解析度 (Resolution)

0.1 %.

精確度 (Accuracy)

± ( 5 % + 5 d ) @ 23 ± 5 ℃

@ Material 1 : 13 % to 100%

@ Material 2 : 6 % to 40%

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

測棒 (Probe)

2 pins moisture electrode,

資料鎖定 (Data hold)

Freeze the display reading.

取樣時間 (Sampling Time)

Approx. 0.8 sec

操作溫度 (Operating Temp. )

0 to 50 ℃.  (32 to 122 ℉ ).

操作溼度 (Operating Humidity)

Less than 80% R.H.

電源供應 (Power Supply)

DC 1.5 V battery ( UM4/AAA ) x 4 PCs,

電源電流 (Power Current)

 Approx. DC 12 mA

重量 (Weight)

180 g/ 0.40 LB. @ Battery is included.

體積 (Dimension)

180 x 40 x 40 mm (7.1" x 1.6" x 1.6")

附件 (Standard Accessory)

Instruction manual............... 1 PC.

Extra test pins...................1 Set.

選購附件 (Optional accessories)

Soft carrying case with sash ( 210 x 80 x 50 mm ), Model : CA-52A

Test pins , MP-02

　
