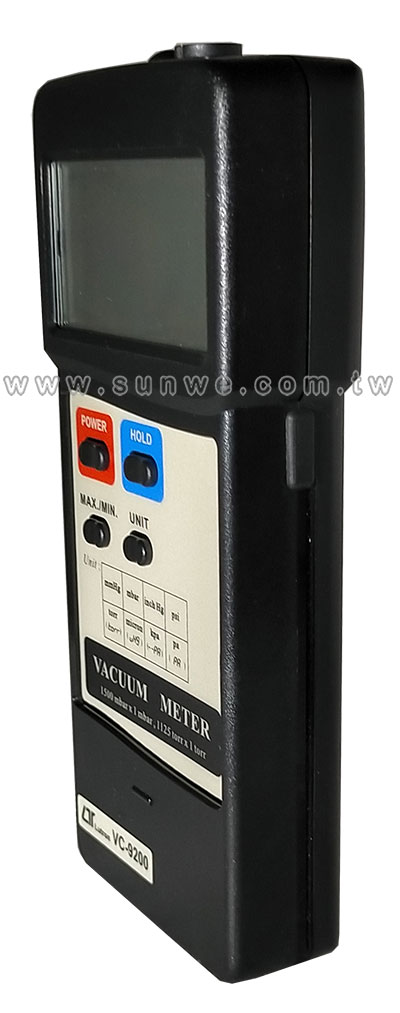

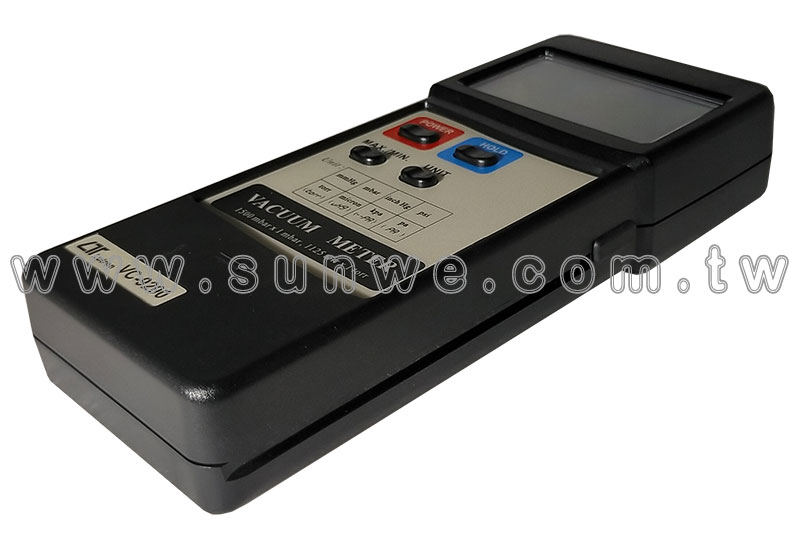

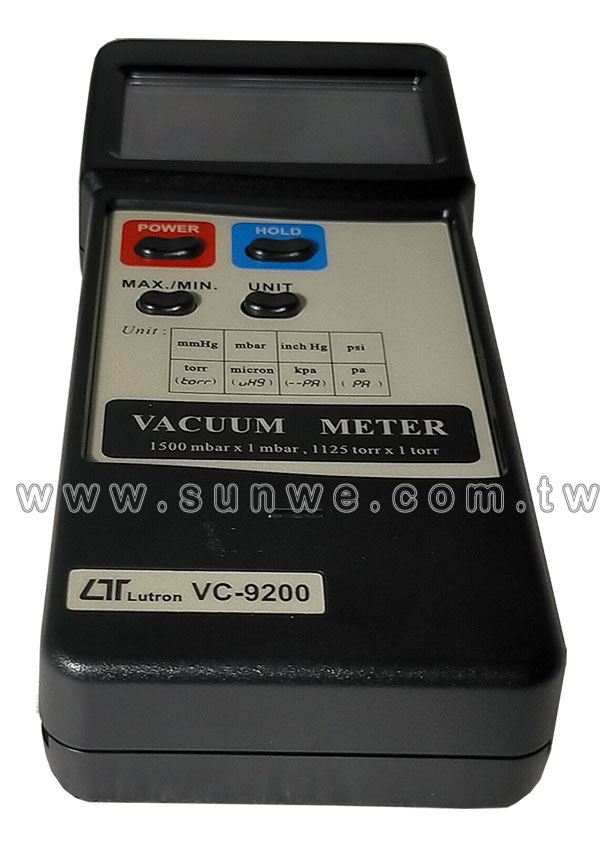

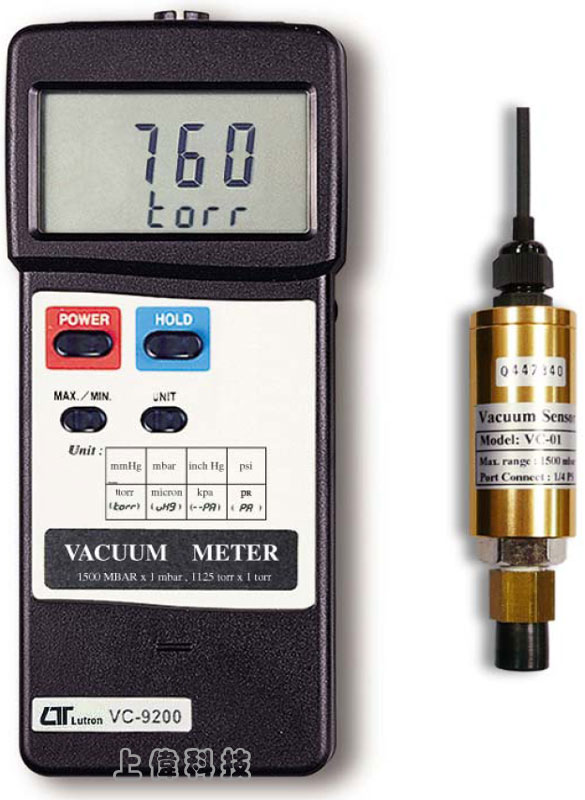

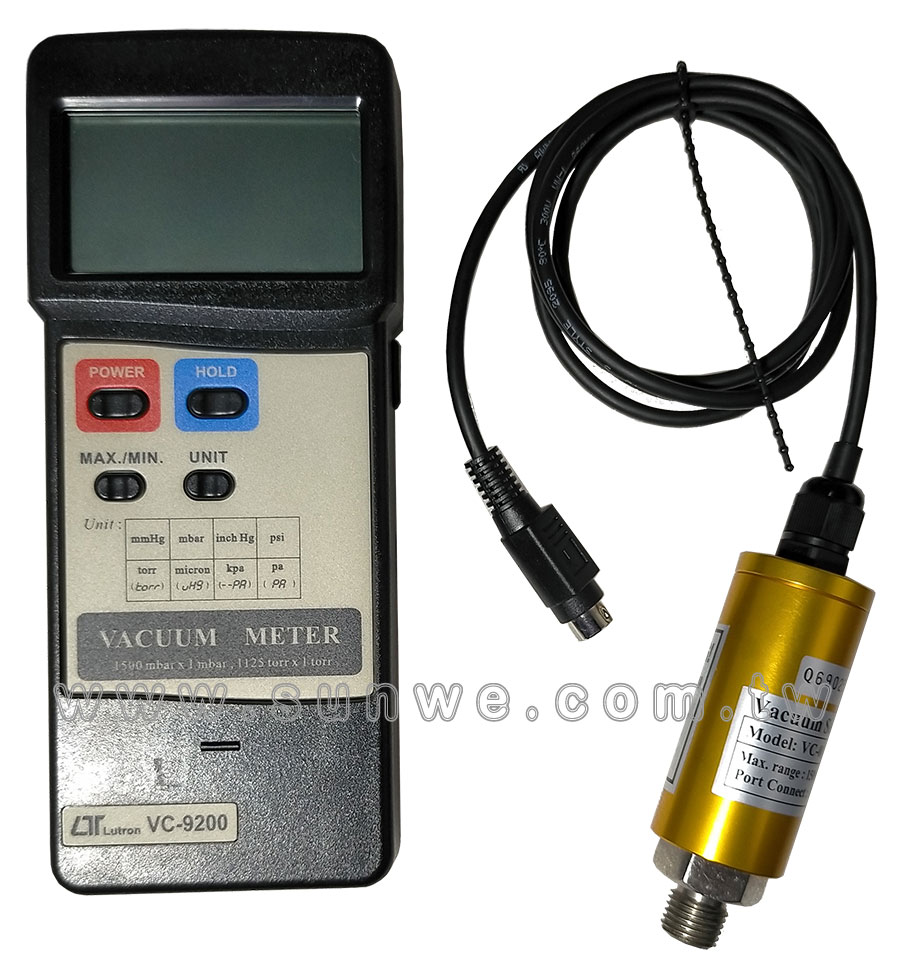

VC-9200
真空壓力計
特色
- 測量範圍 : 0 ~ 1500毫巴(mbar)
- 精確度 : ±1%
- 八種單位選擇切換 : mbar ' Kpa ' pa ' toor ' mm/Hg ' micron ' inch/Hg ' psi
- 讀值鎖定及記錄測量中之最大/最小值
- RS-232/USB 連接介面(軟體選購)
- Size : 180 x 72 x 32mm
FEATURES
- Absolute vacuum & absolute pressure measurement
- Wide measure range from 1 to 1500 mbar.
- Overload protection up to 2000 mbar max.
- Separate probe, easy operation.
- Application : Automobile, Industrial, laboratory,heating, ventilation, medical hospital.....
- Heavy duty sensor used for air, oil gas, liquid.
- 8 kind display units ( torr, mm Hg, micron, mbar, KPa, Pa, inch Hg, psi ) select by push button on the front panel.
- Auto shut off saves battery life.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features,
- Records maximum & minimum readings with recall.
- Data Hold function for stored the desired value on display.
- Built-in low battery indicator.
- RS232 PC serial interface, can match the personal computer used as the Data Logger, Recorder....
規格
顯示 (Display)
- 61 mm x 34 mm supper large LCD display.
- 15 mm ( 0.6" ) digit size.
顯示單位 (Display units)
- P8 kind display units : torr, mm Hg, micron, mbar, KPa, Pa, inch Hg, psi.
電路 (Circuit)
- Microprocessor LSI circuit.
功能 (Function)
- Data hold, memory ( max., min.)

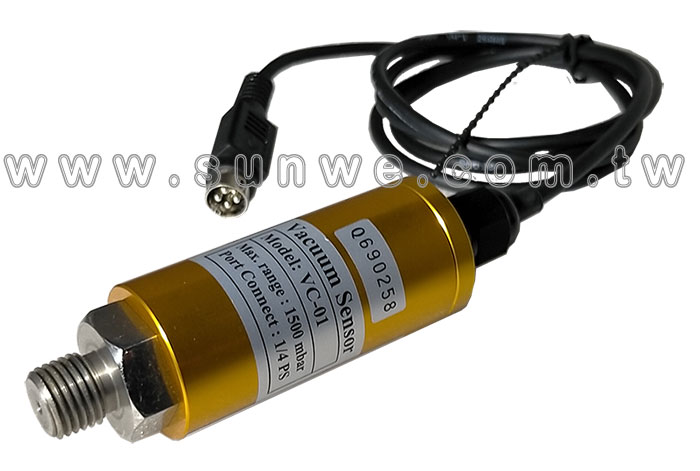

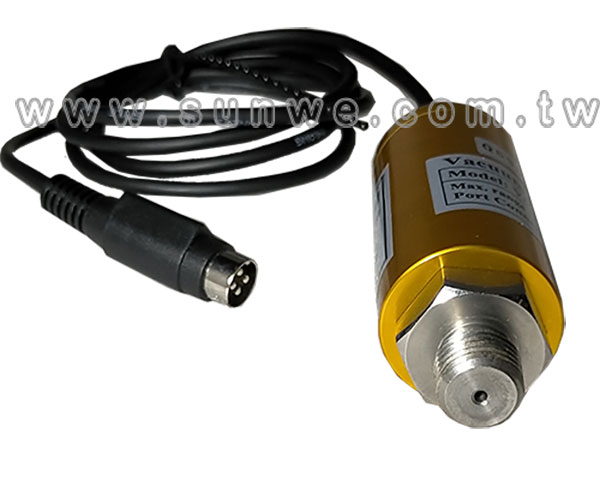

感應器測棒 (Sensor probe)
- * Separate probe, easy operation.
- * Heavy duty sensor uesed for vacuum measurement of air, oil gas liquid.
資料鎖定 (Data hold)
- By push button.
資料記憶 (Data record)
- Record maximum & minimum readings.

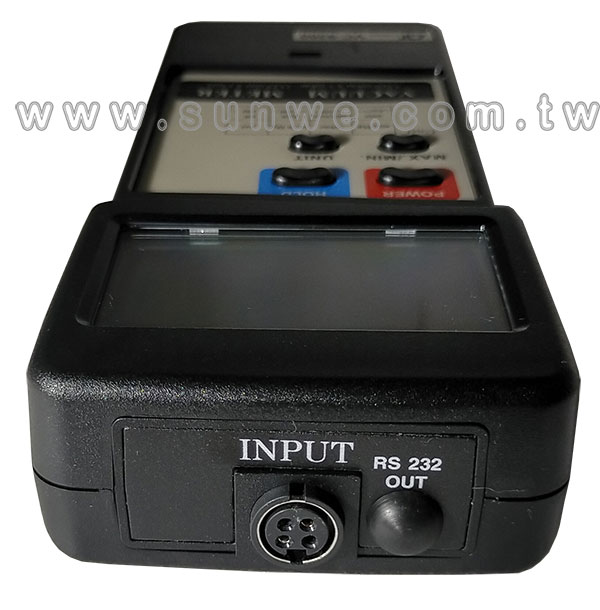

資料輸出 (Data output)
- RS 232 PC serial interface.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
關機 (Power off)
- Auto shut off, saves battery life, or manual off by push button.
操作溫度 (Operating Temp.)
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.

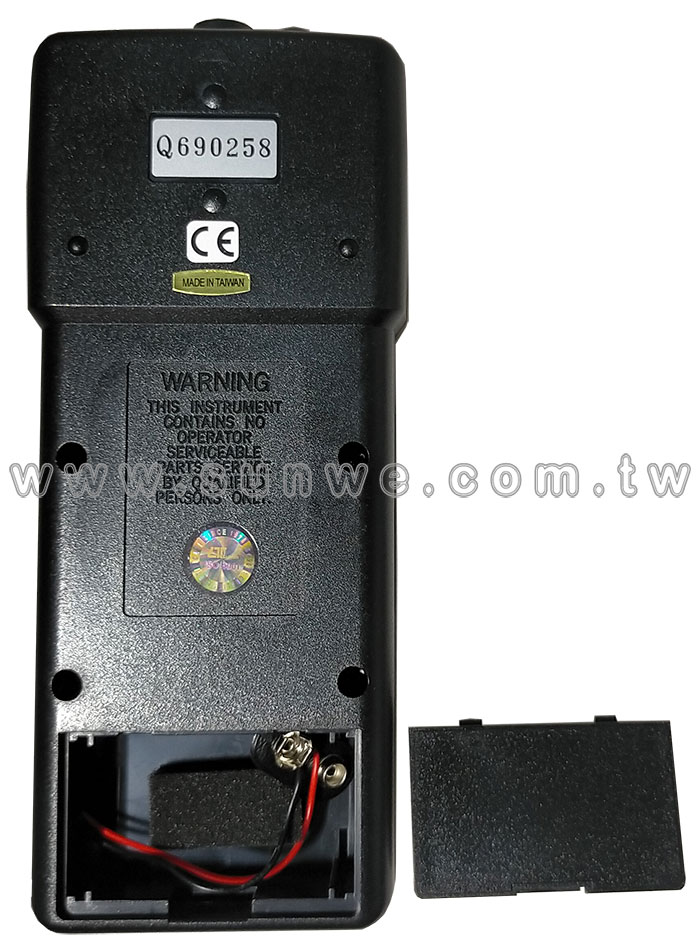

電源供應 (Power Supply)
- 006P DC 9V battery(heavy duty).
電源電流 (Power current)
- Approx. DC 6.0 mA

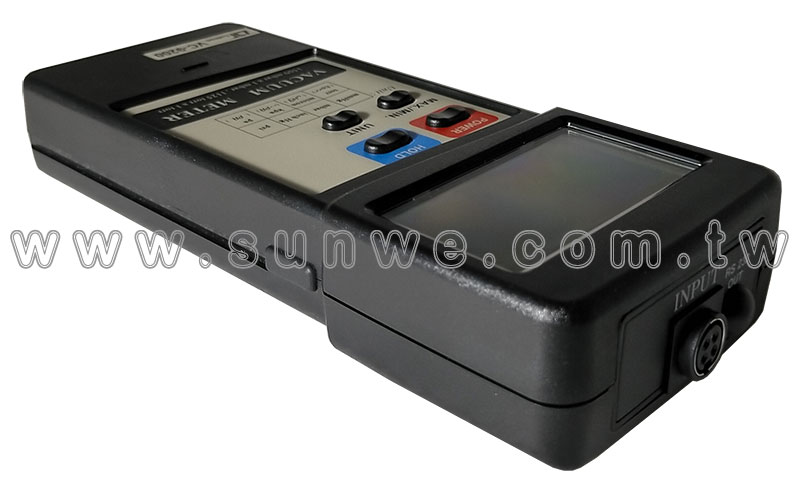

壓力計埠連接器 (Pressure Port Connector)
- 1/4" PS
體積 (Dimension)
- Meter : 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch )
- Sensor probe : 90 mm x 30 mm Dia.
重量 (Weight)
- Instrument : 220 g/0.48 LB.
- Sensor probe : 175 g/0.39 LB.

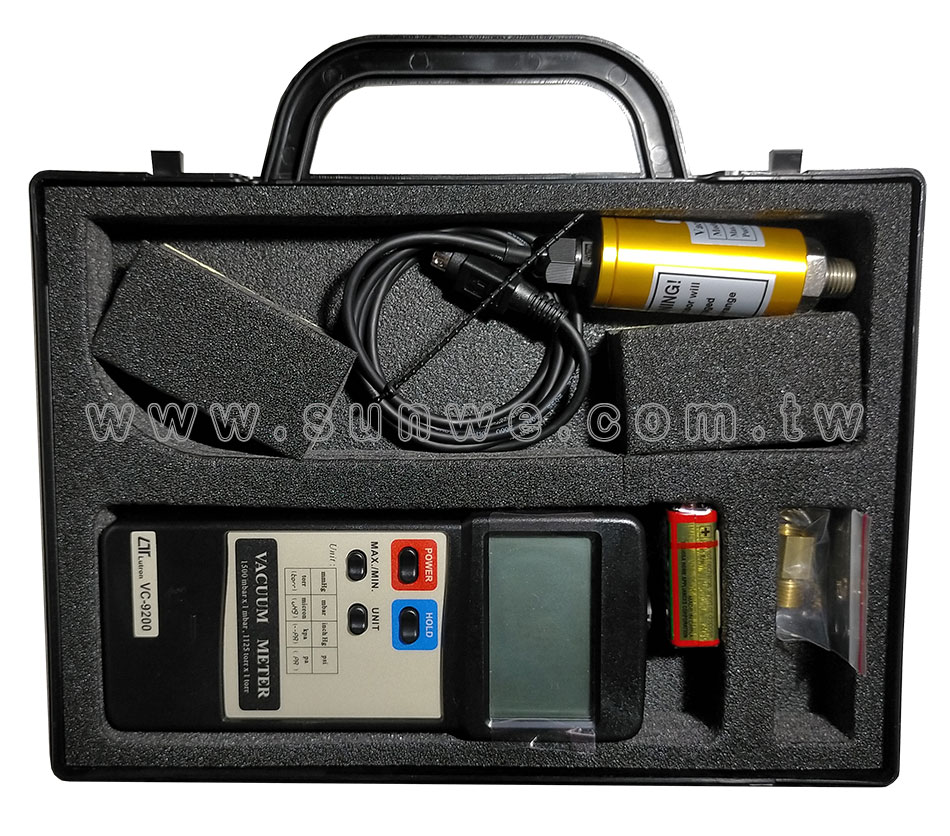

附件 (Standard Accessory)
- * Sensor probe................... 1 PC.
- * Instruction manual............. 1 PC.
- * Hard carrying case............. 1 PC.
選購附件 (Optional Accessories)
- * Software for data logging & data recorder, Model : SW-U801-WIN
- * RS232 cable, UPCB-01
- * USB cable, USB-01
電器規格
ELECTRICAL SPECIFICATIONS (23±5 ℃)
| Unit |
Max. range |
Resolution |
Accuracy |
| mbar |
1500 mbar |
1 mbar |
± 1 % F. S. ( F.S. : full scale ) Note : Included linearity, hysteresis and repeatability |
| KPa |
150.0 KPa |
0.1 KPa |
| Pa |
150,000 Pa |
100 Pa |
| torr |
1125 torr |
1 torr |
| mm Hg |
1125 mm Hg |
1 mm Hg |
| micron |
1125,000 micron |
1000 micron |
| inch Hg |
44.30 inch Hg |
0.02 inch Hg |
| psi |
21.75 psi |
0.01 psi |
|
