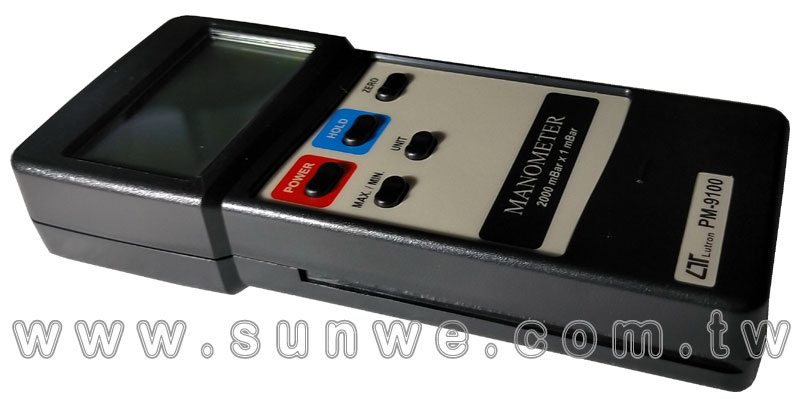

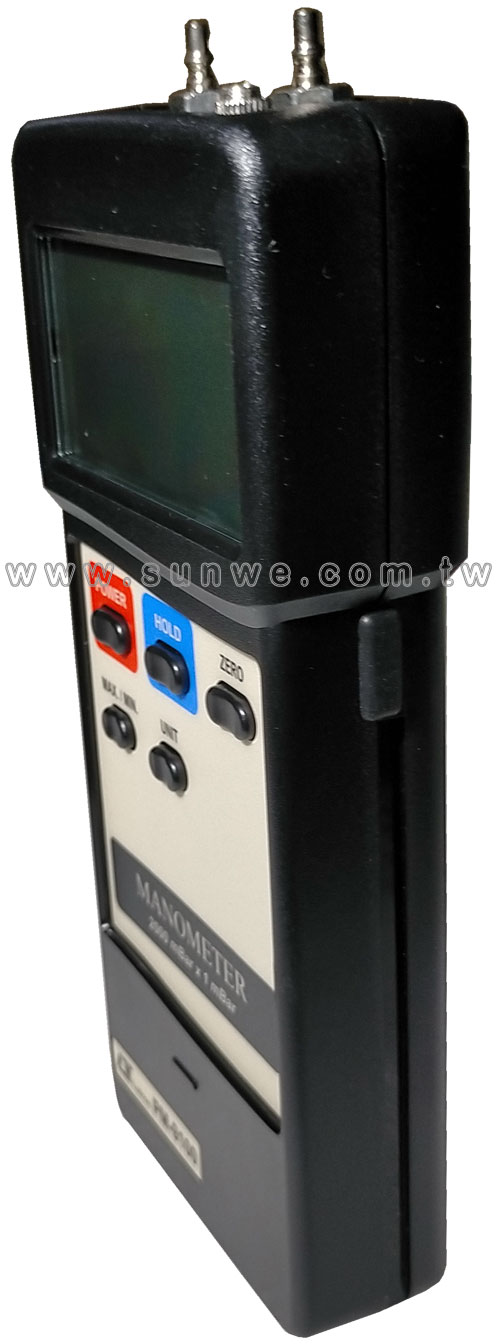

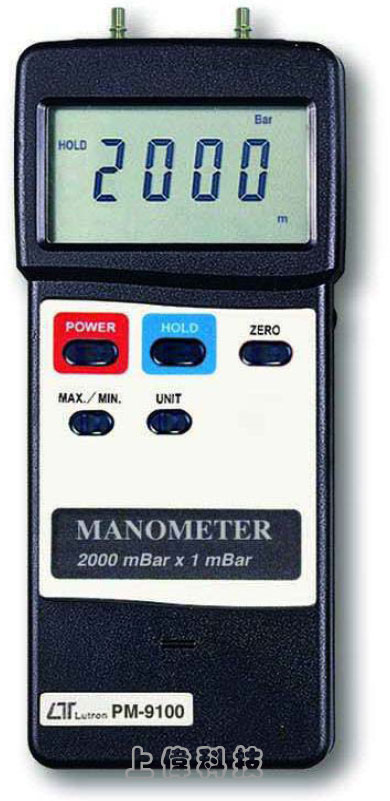

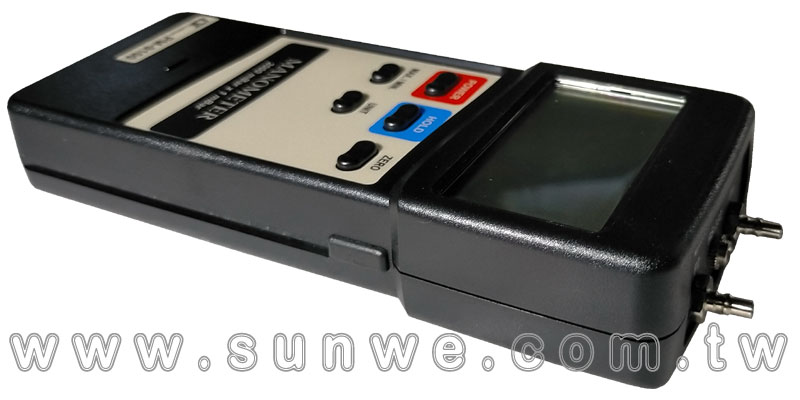

PM-9100
壓力/差壓計
特色
- 測量範圍 : 0 ~ 2000毫巴(mbar)
- 雙壓力感應器,可測量壓力及差壓
- 精確度 : ±2%
- 八種單位選擇切換 : mbar ' psi ' Kg/cm2 ' mm/Hg ' inch/Hg ' meter/H2o ' inch/H2O ' Atmosphere
- 讀值鎖定及記錄測量中之最大/最小值
- RS-232/USB 連接介面(軟體選購)
- Size : 180 x 72 x 32mm
FEATURES

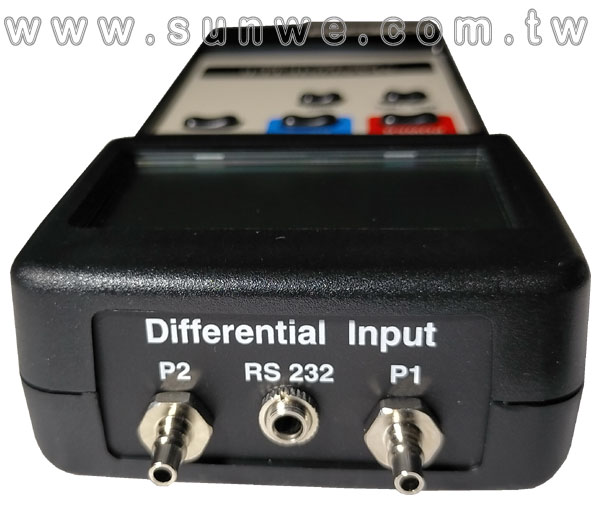

- Dual & differential input, 2000 mbar ( 2 bar ) maximum range.(PM-9100)
- Aplication : Industrial, laboratory, heating, ventilation, medical hospital, used for air or not corrosive and not ionized gas.
- Sensor is built inside the housing.
- Single lugs for pipe connection.
- 8 kind display units ( mbar, psi, Kg/cm^2 mm Hg, inch Hg, meter H20, inch H20, Atmosphere ) select by push button on the front panel.
- Records max. & min. readings.
- Zero button on the front panel, easy to offset the zero value.
- Data Hold.
- RS232 PC serial interface, can match the personal computer used as the Data Logger, Recorder.... and other modern pressure measuring system.
規格
電路 (Circuit)
- Microprocessor LSI circuit.
顯示 (Display)
- 61 mm x 34 mm supper large LCD display.
- 15 mm ( 0.6" ) digit size.
顯示單位 (Display units)
- mbar, psi, Kg/cm^2, mm/Hg, inch/Hg, meter/H2O, inch/H2O, Atmosphere.
功能 (Function)
- Dual & differential input, data hold, zero/relative, memory.
歸零調整 (Zero adjust)
- Push button on the front panel.
差距調整 (Span adjust)
- Push button gain adjustment, usage for calibration precisely if necessary.
感應器 (Sensor)
- * Sensor is built inside the housing.
- * Piezoelectric sensor.
- * Used for dry, non-corrosive and non-ionic air and gas only.
- * Liquid is prohibited.
資料鎖定 (Data hold)
- By push button.
資料記憶 (Data record)
- Record maximum & minimum readings.
資料輸出 (Data output)
- RS 232 PC serial interface.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
關機 (Power off)
- Auto shut off, saves battery life, or manual off by push button.
操作溫度 (Operating Temp.)
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 006P DC 9V battery(heavy duty).
電源電流 (Power current)
- Approx. DC 8.5 mA
體積 (Dimension)
- 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch )
重量 (Weight)
- 345 g/0.76 LB

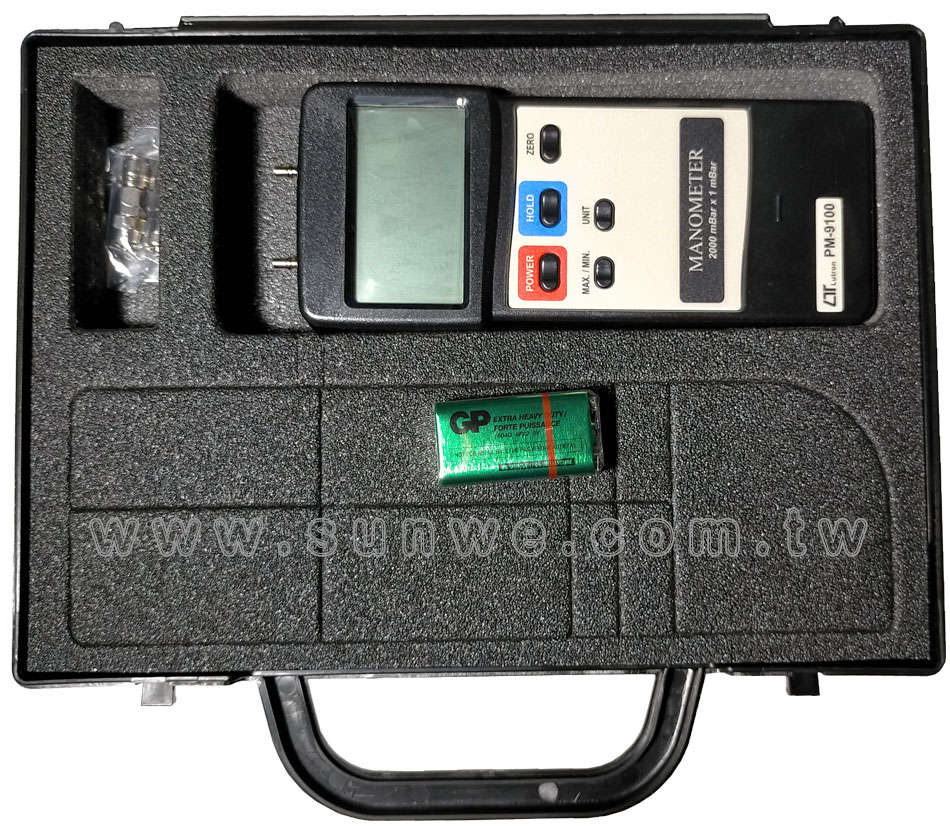

附件 (Standard Accessory)
- * Instruction manual............. 1 PC.
- * Hard carrying case............. 1 PC.
選購附件 (Optional Accessories)
- * Software for data logging & data recorder, Model : SW-U801-WIN
- * RS232 cable, UPCB-01
- * USB cable, USB-01
電器規格
ELECTRICAL SPECIFICATIONS (23±5 ℃)
| Unit |
Max. range |
Resolution |
Accuracy |
| m bar |
2000 m bar |
1 m bar |
± 2 % F. S. ( F.S. : full scale ) Note : Included linearity, hysteresis and repeatability |
| psi |
29 psi |
0.01 psi |
| Kg/cm^2 |
2.040 Kg/cm^2 |
0.001 Kg/cm^2 |
| mm/Hg |
1500 mm/Hg |
1 mm/Hg |
| inch/Hg |
59.05 inch/Hg |
0.02 inch/Hg |
| meter/H2O |
20.40 meter/H2O |
0.01 meter/H2O |
| inch/H2O |
802 inch/H2O |
0.5 inch/H2O |
| Atmosphere |
1.974 Atmosphere |
0.001 Atmosphere |
|
