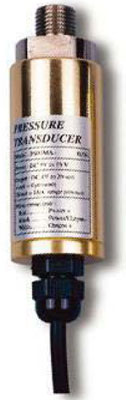

PS-100-XXBAR
壓力感應器
特色
- 適用搭配於 PS-9302 壓力計
- 輸出訊號：直流 (DC) 0~100mV
- 七種型號選擇 :
- PS-100 - 2BAR
- PS-100 - 5BAR
- PS-100 - 10BAR
- PS-100 - 100BAR
- PS-100 - 400BA
- Size : 直徑30mm x 長85mm
規格
最大容量及型號 (Max capacity & model)
| Max capacity |
Model |
| 2 BAR ( 29 PSI ) |
PS100-2BAR |
| 5 BAR ( 72.5 PSI ) |
PS100-5BAR |
| 10 BAR ( 145 PSI ) |
PS100-10BAR |
| 20 BAR ( 290 PSI ) |
PS100-20BAR |
| 50 BAR ( 725 PSI ) |
PS100-50BAR |
| 100 BAR ( 1450 PSI ) |
PS100-100BAR |
| 400 BAR ( 5800 PSI ) |
PS100-400BAR |
應用 (Application)
- Optional pressure transducer for the pressure meter PS-9302, PS-9303SD.
壓力感應器過載保護 (Overload protection for the pressure sensor)
- 150% max. capacity.
供應電壓 (Supply voltage)
- DC 9V.
轉換器埠連接器 (Transducer Port Connector)
- 1/4" NPT or 1/4"
- PS. * Included one adapter connector that convert the 1/4" NPT to 1/4 " PS.
差距 (Span)
- ± 1 % F.S.
- @ Within 10 ℃ to 40 ℃
- @ Linearity + Hysteresis + Repeatability.
歸零 (Zero)
- ± 2 % F.S.
- @ Within 10 ℃ to 40 ℃
操作溫度 (Operating Temp.)
- 0 ℃ to 60 ℃ ( 32 ℉ to 140 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
輸出 (Output)
- Full capacity output = 100 mV DC.
尺寸 (Size)
- 30 mm dia. x 85 mm.
重量 (Weight)
- 160 g.
纜線長度 (Cable length)
- 1 meter.
芯線連接 (Wire Connection)
- 4 pins standard DIN plug to cooperate the PS-9302 ( PS-9303SD ) input socket.
- * 2 pins for 5V DC power supply.
- * 2 pins for 100 mV DC input signal.
|
