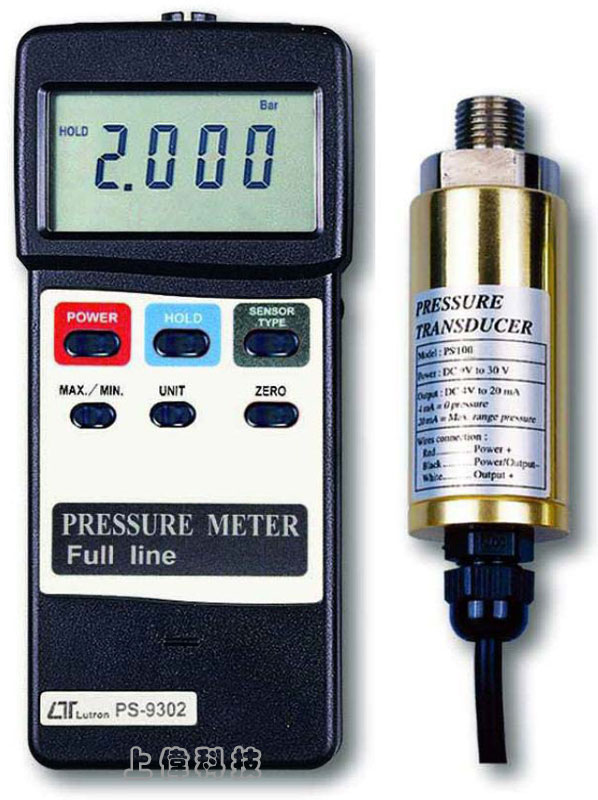

PS-9302
多功能壓力計

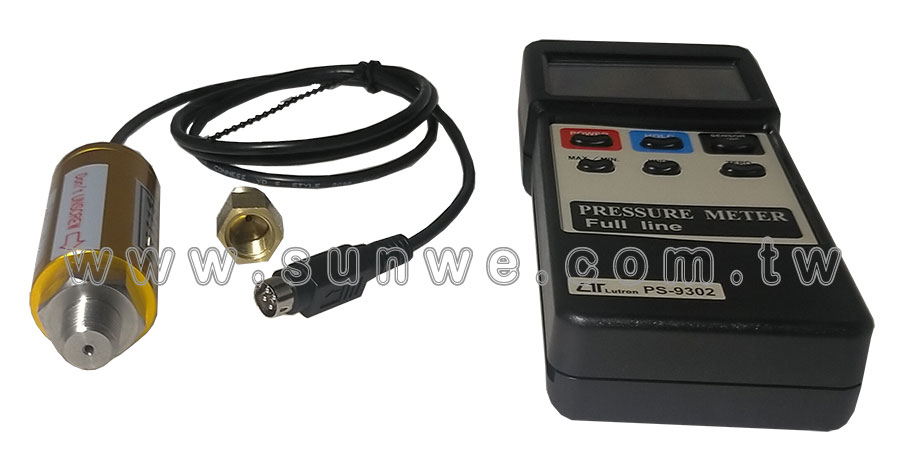

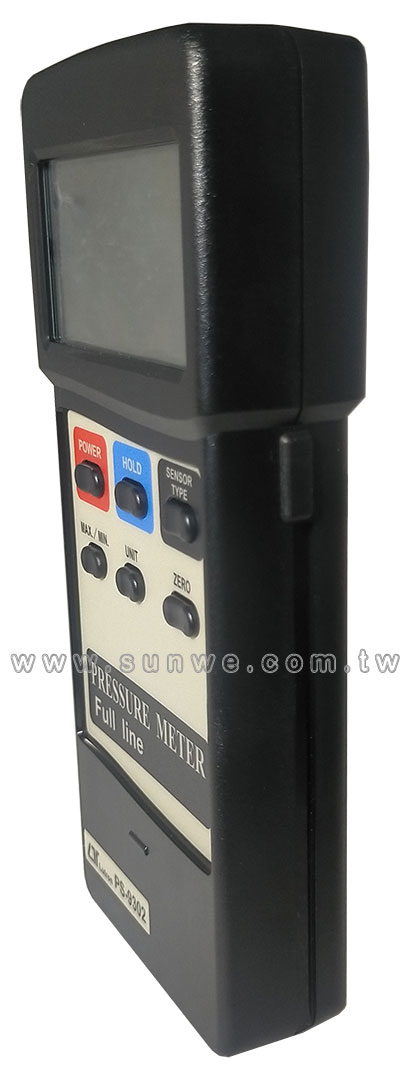

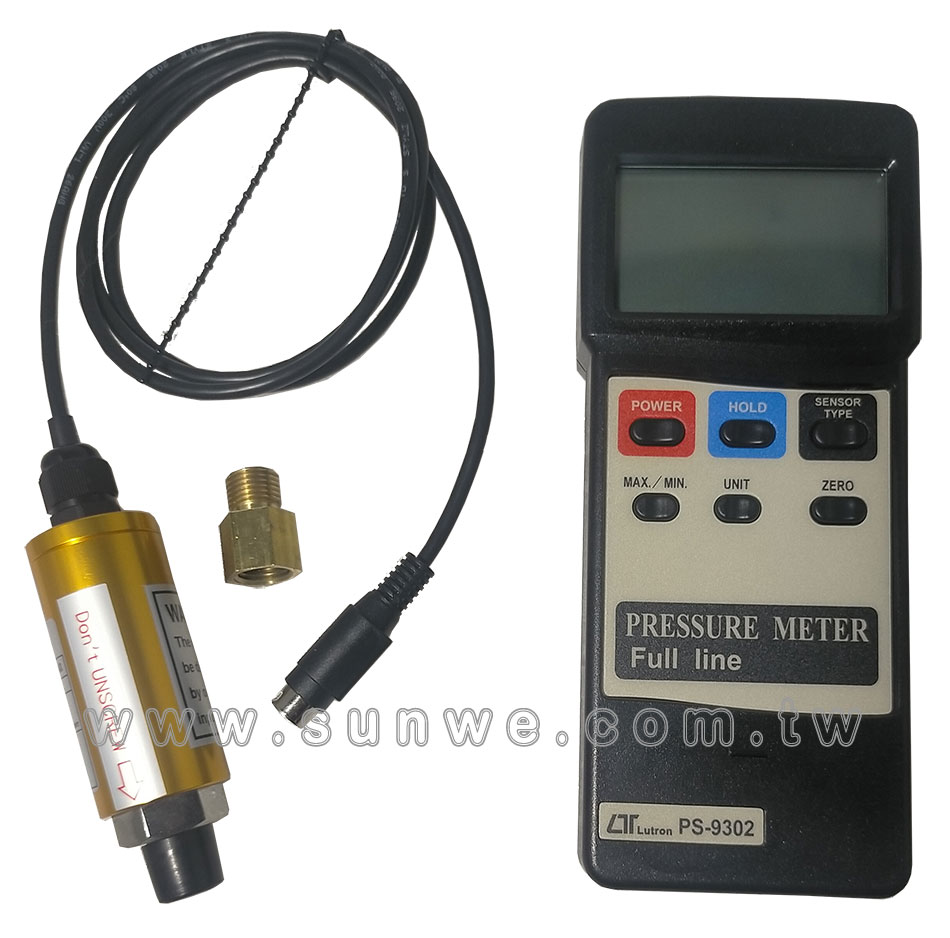

特色
- 主機適用 : 2,5,10,20,50,100,200,400 bAR等壓力感應器,可針對不同壓力測量更換適合之壓力感應器
- (隨機只附1只感應器,其餘為選購品)
- 八種單位選擇切換 :mbar'psi'Kg/cm2'mm/Hg'inch/Hg'meter/H2o'inch/H2O'Atmosphere
- 值鎖定及記錄測量中之最大/最小值
- RS-232/USB 連接介面(軟體選購)
- Size : 180 x 72 x 32mm
FEATURES
- Meter can cooperate with 2, 5, 10, 20, 50, 100, 400 bar sensor, new calibration are not necessary when change the new sensor .
- When change the new pressure sensor, just select pressure type ( 2, 5, 10, 20, 50, 100, 400 bar ) on the front panel button. The sensor type will memorize into the circuit permanently by EEPROM.
- 8 kind pressure units ( bar, psi, Kg/cm2 mm/Hg, inch/Hg, meter/H20, inch/H20, Atmosphere ) select by push button on the front panel
- Optional full line presssure sensor ( 2, 5, 10, 20, 50, 100, 400 bar ) are available.
- Auto shut off saves battery life.

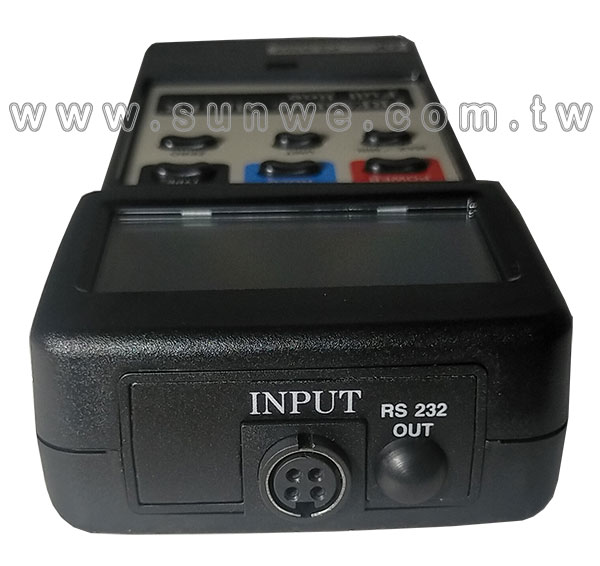

- 4 pin DIN socket, 2 pins to provide DC 5 V exciting voltage ( power supply ) to pressure transducer, another two pins for accept transducer signal of 100mV full scale.
- Zero button on the front panel, easy adjust the zero value of pressure sensor.
- Push button gain adjustment, usage for calibration precisely if necessary.
- Separate pressure sensor, easy operation. & remote measurement.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features,
- Super large LCD display with contrast adjustment for best viewing angle.
- Records maximum & minimum readings with recall.
- Data Hold function for stored the desired value on display.
- Built-in low battery indicator.
- RS232/USB PC serial interface, can match the personal computer used as the Data Logger, Pressure Recorder.... and other mordern pressure measuring system.
規格
電路 (Circuit)
- Microprocessor LSI circuit.
顯示 (Display)
- 61 mm x 34 mm supper large LCD display.
- 15 mm ( 0.6" ) digit size.
顯示單位 (Display units)
- mbar, psi, Kg/cm^2, mm/Hg, inch Hg, meter H20, inch H20, Atmosphere.
精確度 (Accuracy)
- ± ( 0.5% + 1 d )
- * Under the signal from the sensor is at full scale ( 100 mV ).
- * Meter only.
- * Within 23 ℃± 5 ℃

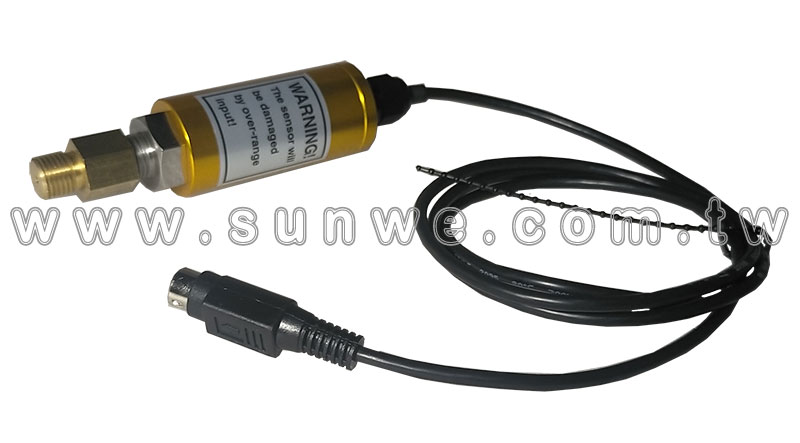

壓力轉換器 (Pressure transducer)
- Optional, exciting voltage DC 5V, Sensor max. range output is DC 100 mV.
歸零調整 (Zero adjust)
- Push button on the front panel.
差距調整 (Span adjust)
- Push button gain adjustment, usage for calibration precisely if necessary.
轉換器 mV 輸入信號 (Transducer mV input signal)
- Approx 100 mV (Full Scale).
輸出電源供應 (Exciting output power supply)
- DC 5 V.
資料鎖定 (Data hold)
- By push button.
資料記憶 (Data record)
- Record maximum & minimum readings.
資料輸出 (Data output)
- RS 232 PC serial interface.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
關機 (Power off)
- Auto shut off, saves battery life, or manual off by push button.
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.

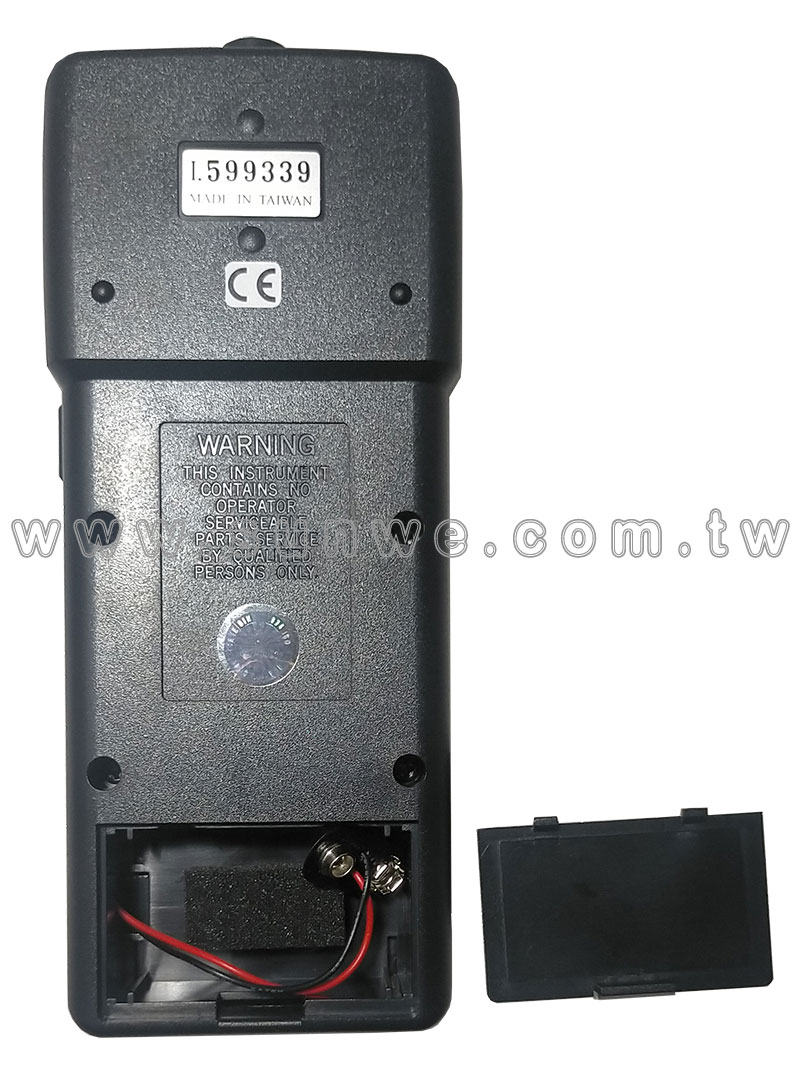

電源供應 (Power Supply)
- 006P DC 9V battery(heavy duty).
電源電流 (Power current)
- Approx. DC 8.5 mA
體積 (Dimension)
- 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch )
重量 (Weight)
- 345 g/0.76 LB

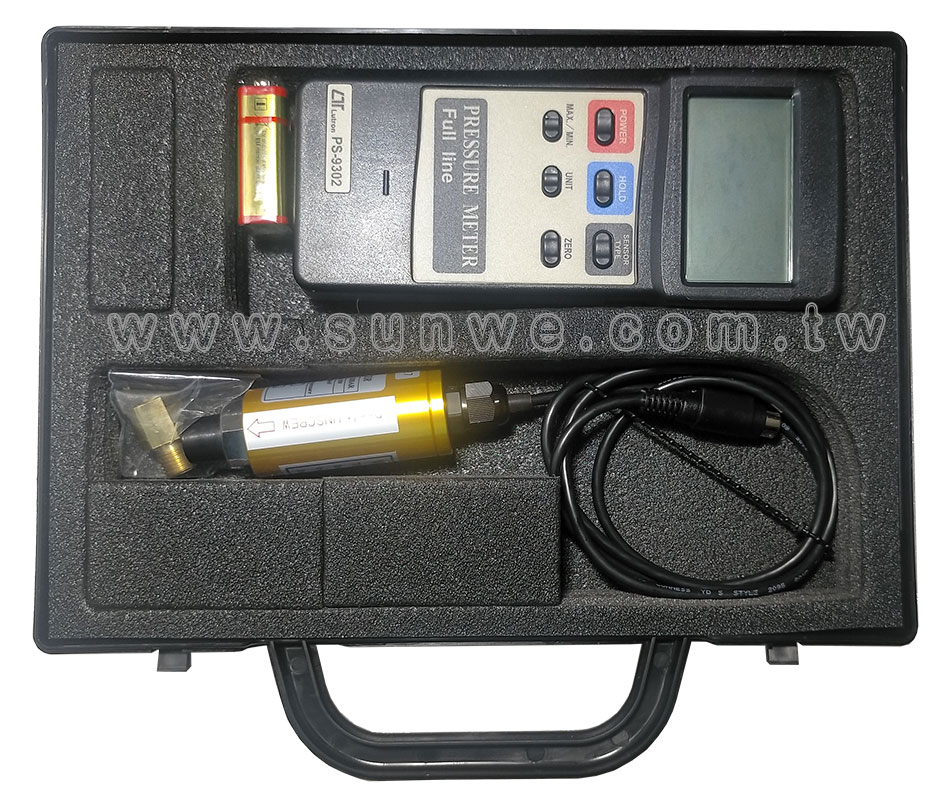

附件 (Standard Accessory)
- * Sensor probe................... 1 PC.
- * Instruction manual............. 1 PC.
- * Hard carrying case............. 1 PC.
選購附件 (Optional Accessories)
- * Pressure sensor, PS100-xxBAR Transducer Approx 100 mV (Full Scale).
- * Hard carrying case ( CA-06 ).
- * Data acquisition software, SW-U801-WIN.
- * RS232 cable, UPCB-01
- * USB cable, USB-01
應用 APPLICATIONS
- * Measure Pneumatic Pressures.
- * Hydraulic Servo controls
- * Refrigeration
- * Measure Automobile Engine Vacuum Pressures.
- * Air conditioning
- * Pressure for Super Heat Measurements
- * Food Processing
電器規格
ELECTRICAL SPECIFICATIONS (23±5 ℃)
| Sensor type |
2 bar |
5 bar |
10 bar |
20 bar |
50 bar |
100 bar |
400 bar |
| |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
| bar |
2 |
0.002 |
5 |
0.005 |
10 |
0.01 |
20 |
0.02 |
50 |
0.05 |
100 |
0.1 |
400 |
0.5 |
| psi |
29 |
0.02 |
72.5 |
0.1 |
145 |
0.2 |
290 |
0.2 |
725 |
1 |
1450 |
2 |
5800 |
5 |
| Kg/cm^2 |
2.040 |
0.002 |
5.095 |
0.005 |
10.19 |
0.01 |
20.40 |
0.02 |
50.95 |
0.05 |
101.9 |
0.1 |
408 |
0.5 |
| mm Hg |
1500 |
2 |
3750 |
5 |
7500 |
10 |
15000 |
20 |
37500 |
50 |
75000 |
100 |
300000 |
500 |
| inch Hg |
59.05 |
0.05 |
147.6 |
0.1 |
295.2 |
0.2 |
590.5 |
0.5 |
1476 |
1 |
2952 |
2 |
11810 |
10 |
| meter H20 |
20.40 |
0.02 |
50.95 |
0.05 |
101.9 |
0.1 |
204.0 |
0.2 |
509.5 |
0.5 |
1019 |
1 |
4075 |
5 |
| inch H20 |
802 |
1 |
2006 |
2 |
4010 |
5 |
8020 |
10 |
20050 |
20 |
40100 |
50 |
160600 |
200 |
| Atmosphere |
1.974 |
0.002 |
4.935 |
0.005 |
9.87 |
0.01 |
19.74 |
0.02 |
49.35 |
0.05 |
98.7 |
0.1 |
394.5 |
0.5 |
|
