(10MHZ~8GHZ)
特色
- 無線場強功率測量：GSM, CDMA,TDMA, WiFi, WiMAX的藍牙, 保全系統, 無線電話, Zigbee....
- 10MHz到8GHz寬的測量的頻率範圍
- 測量單位：uW/m^2, mW/m2, W/m^2,mV/m, V/m, uA/m, mA/m, uW/m^2, mW/m^2, W/m^2, uW/cm^2 mW/cm^2.
- 3軸感測棒
- 背光圖形點陣液晶有4個功能屏幕，數字和條形圖顯示與警示標誌
- 測量數據超過警戒值,蜂鳴器會發出聲音警告
- 可以設定自動關機或手動關機
- 讀值鎖定，紀錄最大值及最小值
- 微電腦電路提供特別功能和高準確度
- 可由 UM3/AA (1.5V) x 6顆電池或 DC 9V 變壓器提供電源
- RS232/USB 電腦介面

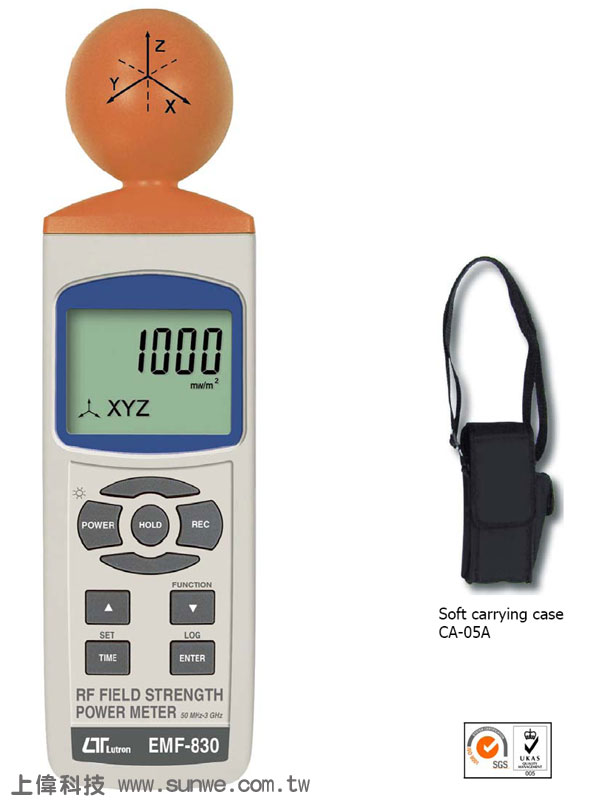

FEATURES
- Radio field strength power measurement : GSM, CDMA, TDMA, WiFi, WiMAX Bluetooth, security system, cordless phones, Zigbee....
- Frequency range : Wide band, 10 MHz to 8 GHz.
- Measuring unit : uW/m^2, mW/m2, W/m^2, mV/m, V/m, uA/m, mA/m, uW/m^2, mW/m^2, W/m^2, uW/cm^2 mW/cm^2.
- 3 axis RF sensor.
- Backlight graphics dot matrix LCD with 4 function screens, digital and bar-graph display with warning symbol.
- Beeper will sound for warning if measuring data are over the alert value.
- Can default auto power off or manual power off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
- RS232/USB PC COMPUTER interface.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 58 mm x 34 mm. LCD with backlight ( on/off ).
測量單位 (Measurement Unit)
- uW/m^2, mW/m2, W/m^2,mV/m, V/m, uA/m, mA/m, uW/m^2, mW/m^2, W/m^2, uW/cm^2 mW/cm^2.
頻率範圍 (Frequency Range)
- 10 MHz to 8 GHz.
感測棒結構 (Probe structure)
3 axis RF sensor.
單位/範圍 (Unit/Range)
| Unit |
Range |
| mV/m, V/m |
20 mV/m to 108.0 V/m |
| uA/m, mA/m |
53u A/m to 286.4 mA/m |
| uW/m^2, mW/m^2, w/m^2 |
1 uW/m^2 to 30.93 W/m^2 |
| uW/cm^2, mw/cm^2 |
0 uW/cm^2 to 3.093 mW/cm^2 |
單位/解析度 (Unit/Resolution)
| Unit |
Resolution |
| mV/m, V/m |
0.1 mV/m to 0.1 V/m |
| u A/m, mA/m |
0.1 uA/m to 0.1 mA/m |
| uW/m^2, mW/m^2, W/m^2 |
0.1 uW/m^2 to 0.01 W/m^2 |
| uW/cm^2, mW/cm^2 |
0.001 uW/cm^2 to 0.001 W/cm^2 |
卓越設定 (Advanced setting)
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Warning value setting.
- * Set Cal.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of Display)
- Approx. 1 second.
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temperature)
-
0 to 50 ℃.
操作溼度 (Operating Humidity)
-
Less than 85 %RH.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3,AA ) x 6 PCs, or equivalent.
- DC 9V adapter input. ( AC/DC power adapter is optional ).
電源電流 (Power Current)
- Normal operation ( and LCD Backlight is OFF) : Approx. DC 3.5 mA.
- * AIf LCD backlight on, the power consumption will increase approx. 12 mA.
重量 (Weight)
-
265 g/ 0.58 LB.
體積 (Dimension)
- 230 x 70 x 45 mm (9.1 x 2.8 x 1.8. inch)
附件 (Accessories Included)
- Instruction manual.............. 1 PC
選購附件 (Optional Accessories)
- AC to DC 9V adapter.
- USB power to DC 9V converter, USBP-59
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data acquisition software, SW-U801-WIN.
- Excel data acquisition software, SW-E802.
- Soft carrying case, CA-05A.
|
