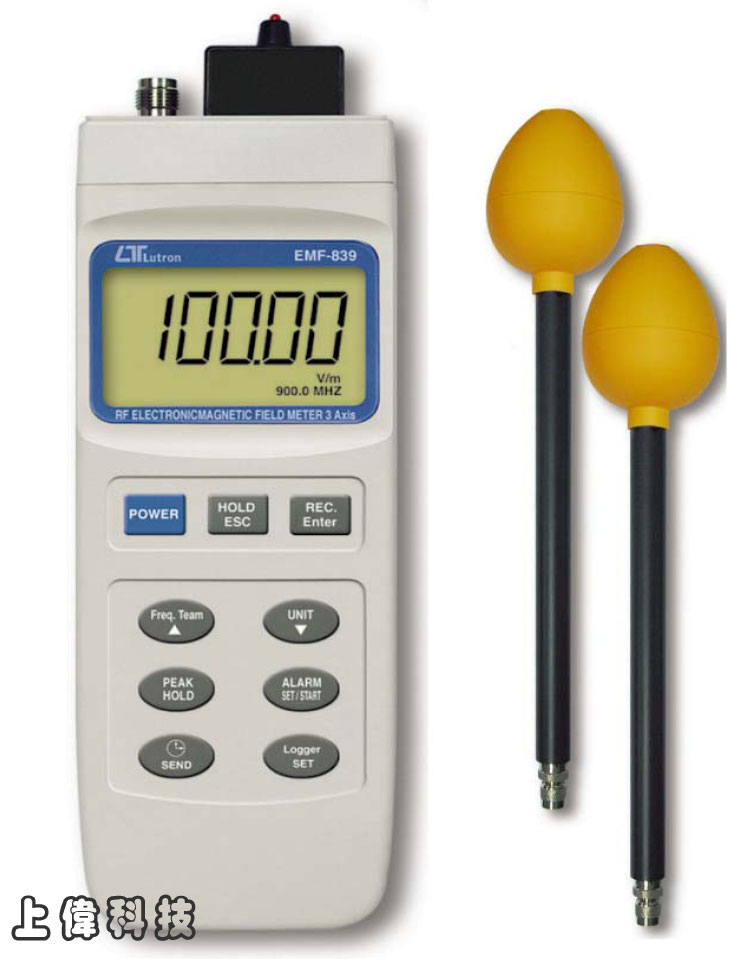

EMF-839
高頻電場分析儀
(100KHZ~3GHZ)
簡介
- 測量範圍: 0 ~ 199.99 V/m
-
0 ~ 99.999
W/m²
-
0 ~ 9.9999 mW/cm²
- 測量頻寬:100KMHz ~ 3GHz
- 採用三軸天線感應器 (附雙天線)
-
單一頻率點檢測:100KHz/200KHz/500KHz/1MHz/10MHz/13.56MHz/100MHz/900MHz/1GHz/1.8GHz/2.4GHz/2.45GHz/3GHz
- 具有警報設定功能
- 可記錄最大值、最小值及讀值鎖定
- 瞬間最大值鎖定功能
- RS-232 / USB 連接介面 (軟體選購)
- Size:200 X 76.2 X 36.8 mm
說明
-
基地台/手機/無線電台/微波爐/超因波熔接機/醫療設備/雷達站/實驗室/工廠...等各類發射電池波/電場強度測量
-
警報設定,峰值鎖定,16000筆資料記錄,RS-232電腦介面,頻率群組選擇
-
*在電子科技化的週遭環境中本來就存在著小電磁波及無線電波,建議在 1V/m 的環境下不必在意。
-
*請選擇真正符合國際規範的專利儀器,避免造成不必要的困擾。
-
台灣唯一榮獲工研院工研院技術合作 符合ICNIPR 國際規範
-
專利號碼:M311889 號 仿冒必究
特色
- 3軸感測棒。
- 射頻電磁場檢測器。
- 100KHz to 3GHz.寬的測量的頻率範圍。
- EMF-839用於監控寬頻設備的射頻電磁場值。
- 精確測量儀表包含兩種 EP-04L 低頻感測棒 (100KHz to 100MHz ) ; EP-03H 高頻感測棒 (100MHz到3GHz)。
- 單位︰ V/m, W/m^2, mW/cm^2.
- 如果測量天線接近很強輻射源,可設定警報功能蜂鳴器警告提醒用戶。
- 峰值鎖定功能
- 讀值鎖定功能
- RS-232電腦介面
- 即時資料紀錄含年'月'日'時'分'秒時間
- 自動或手動 16000 筆資料記錄功能
- 從1秒 ~ 8小時59分59秒取樣時間調整
- 附硬殼外箱
- 大型LCD與對比調整,便於查看
- 微電腦電路提供特別功能和高準確度。
- 可由 006 P DC 9V電池或 DC 9V 變壓器提供電源。
FEATURES
- 3 Axis probe.
- Wide measuring frequency ranges, 100 KHz to 3 GHz.
- Radio frequency electromagnetic field tester.
- EMF-839 is used for broadband devices of monitoring the wide range radio frequency electromagnetic field value.
- For precision measurement consideration, the meter are included two probes :EP-04L ( Low frequency Probe, 100 KHz to 100 MHz ) ; EP-03H ( High frequency Probe, 100 MHz to 3 GHz )
- Unit : V/m, W/m^2, mW/cm^2.
- Alarm setting function can warn the user if the measuring antenna is too near the strong radiation sources, the buzzer will sound to remind the user.
- Peak hold function to latch peak value.
- Data hold function to lock the current reading.
- RS232 computer interface.
- Real time data logger, build in clock ( hour-MIN-sec.,year-month-date ).
- Auto or manual data record, 16,000 Data logger no.
- Wide sampling time adjustment range from one second to 8 hours 59 minutes 59 seconds.
- Compact metallic carry case.
- Large size LCD with contrast adjustment, which can fit best viewing angle.
- Microcomputer circuit provides special function & offers high accuracy.
- Powered by 006P DC 9V battery or DC 9V adapter.
一般規格
電路 (Circuit)
-
Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
-
LCD size : 58 mm x 34 mm.
測量單位 (Measurement Unit)
-
V/m, mW/cm^2, W/m^2.
精確度 (Accuracy)
-
< 2 dB.
感測棒結構 (Probe structure)
-
3 Axis.
感測棒輸入阻抗 (Probe Input Impedance)
-
50 OHM
感測棒型態選擇
-
EP-03H : 100 MHz to 3 GHz. ; EP-04L : 100 kHz to 100 MHz.
感應器結構 (Sensor Structure)
-
Semiconductor
頻率選擇點 (Frequency Selection Points)
-
EP-03H: 900 MHz, 1 GHz, 1.8 GHz, 2.4 GHz, 2.45 GHz, 3 GHz. ; EP-04L: 100kHz, 200kHz, 500kHz, 1MHz, 10MHz, 13.56MHz, 100MHz.
資料記錄器取樣時間 (Sampling Time of Data Logger)
-
Manual :
Press the data logger button once will save data one time. * Set the sampling time to 0 second
-
Auto : 1 sec to 8 hour 59 min. 59 sec.
資料保留 (Data Hold)
-
Freeze the display reading.
記錄功能 (REC Function)
-
Record Maximum & Minimum value.
電源關閉 (Power off)
-
Auto shut off saves battery life or manual off by push button.
-
* Can default auto power off or manual power off.
-
* When default auto power off , power will off automatically after 10 min. if no button be pressed.
峰值保留 (Peak Hold)
-
To latch the peak measurement value.
警報設定 (Alarm Setting)
-
Buzzer will sound when display over the setting value.
取樣時間 (Sampling Time)
-
Approx. 1 second.
低電位指示 (Low Battery Indicator)
-
When display show Low battery Indicator, it should change the batteries.
資料輸出 (Data Output)
-
RS 232 PC serial interface.
操作溫度 (Operating Temperature)
-
0 to 50 ℃.
操作溼度 (Operating Humidity)
-
Less than 80 %RH.
電源供應 (Power Supply)
-
DC 9 V battery ( 006P )* Heavy duty or Alkaline type. ; DC 9V adapter input.
電源電流 (Power Current)
-
Approx. DC 5.95 mA
重量 (Weight)
-
523 g/ 1.16 LB.
體積 (Dimension)
-
Main instrument : 200.0 x 76.2 x 36.8 mm
-
Probe : 70 mm ( diameter) x 290 mm ( length)
附件 (Accessories Included)
- Instruction manual..................1 PC
- EP-03H Probe....................... 1 PC
- EP-04L Probe....................... 1 PC
- Memory card for EP-03H............. 1 PC
- Memory card for EP-04L............. 1 PC
- Metal carrying case.................1 P
選購附件 (Optional Accessories)
RS232 cable, UPCB-02. USB cable, USB-01.Data Acquisition software,SW-U801-WIN.Data Logger software, SW-DL2005.
電器規格 ( 23 ± 5 ℃ )
Strength Range |
Resolution |
Effective Value |
0 to 200.00 V/m |
0.01 V/m |
> 1 V/m |
0 to 99.999 W/m^2 |
0.001 W/m^2 |
> 0.03 W/m^2 |
0 to 9.9999 mW/cm^2 |
0.0001 mW/cm^2 |
> 0.0003 mW/cm^2 |
Frequency range |
Accuracy |
Cal. level |
Probe no. |
*100 KHz to 100 MHz |
< 2 dB |
30 V/m |
EP-04L |
*50 MHz to 3 GHz |
< 2 dB |
60 V/m |
EP-03H |
備註 (Remark)
* EP-04L probe's accuracy is specified within 400 KHz to 100 MHz only. If measurement frequency range is < 400 KHz, the reading value just for reference only.
* EP-03H probe's accuracy is specified within 100 MHz to 2.5 GHz only. If measurement frequency range is < 100 MHz or > 2.5 GHz , the reading value just for reference only.
* For precision measurement consideration, it should select the " Frequency Team point " near the frequency value of measuring object.
|
