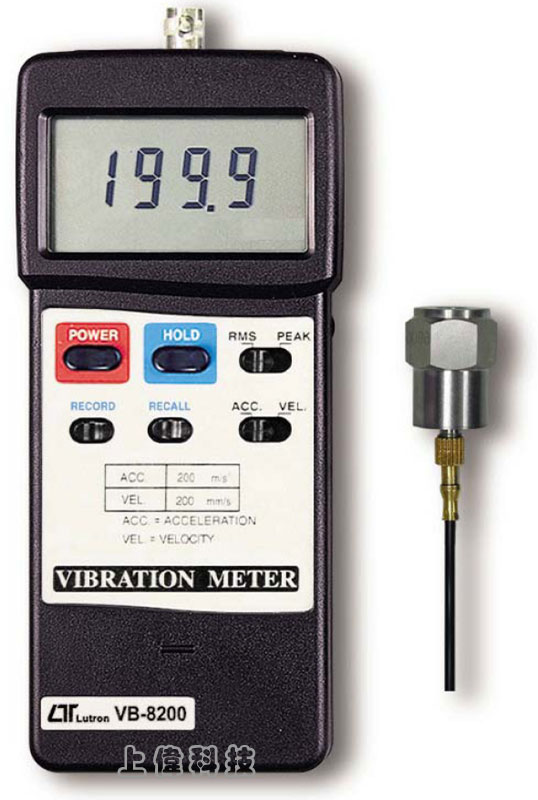

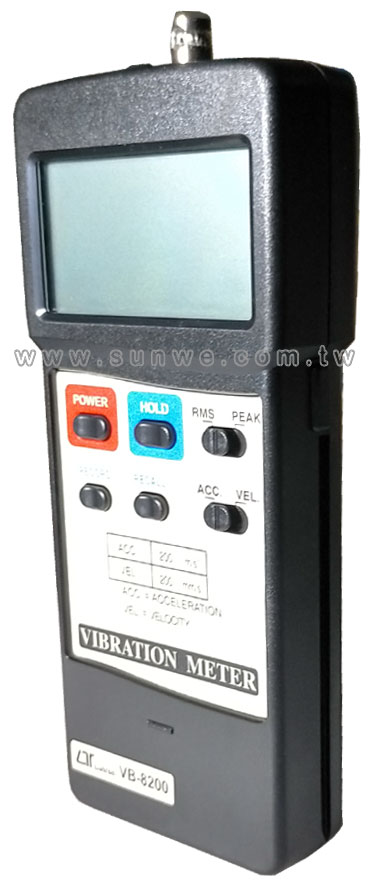

VB-8200
振動計
特色
- 測量範圍 :
- 速度(VEL) 0.5 ~ 199.9 mm/s
- 加速度(ACC) 0.5 ~ 199.9 m/s²
- 頻率範圍 : 10~1 KHz
- 精確度 : ±5%
- 讀值鎖定及記錄測量中之最大/最小值
- RS-232/USB 輸出介面 (軟體選購)
- Size : 180 x 72 x 32 mm
FEATURES
- Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment and looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed.
- Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954.
- Professional vibration meter Supply with vibration sensor & magnetic base, full set.
- Velocity range : 200 mm/s.
- Acceleration range :
200 m/s^2
- RMS & Peak measurement.
- Data hold, Memory ( Max. & Min.).
- Memory function to record maximum and minimumreading with recall.
- Separate vibration probe.
- RS 232 computer interface.
- Optional data acquisition software for data record & datalogger.
- Super large LCD display.
- Microcomputer circuit , high performance.
- Auto shut off saves battery life.
- Built-in low battery indicator.
- Heavy duty & compact housing case.
- Complete set with the hard carrying case.
一般規格
顯示 (Display)
- 61 mm x 34 mm supper large LCD display.
- 15 mm ( 0.6" ) digit size.
測量 (Measurement)
- Velocity, Acceleration, RMS value, Peak value, Data hold, Max. & Min. value.
範圍 (Range)
- Velocity : 200 mm/s : 0.5 to 199,9 mm/s.
- Acceleration :
200 m/S^2 : 0.5 to 199.9 m/s^2.
頻率範圍 (Frequency range)
- 10 Hz to 1 KHz.
- * Sensitivity relativive during the the frequency range meet ISO 2954.
精確度 (Accuracy)
- ± ( 5 % + 2 d ) reading
- @ 160 Hz, 80 Hz. @ 23 ± 5 ℃
校正點 (Calibration point)
- Velocity : 50 mm/s ( 160 Hz )
- Acceleration : 50 m/s^2( 160 Hz )
電路 (Circuit)
- Exclusive microcomputer circuit.
資料鎖定 (Data hold)
- Freeze the desired reading.
峰值鎖定 (Peak hold)
- To measure the peak value.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
關機 (Power off)
- Auto shut off saves battery life or manual off by push button.
取樣時間 (Sampling Time)
- Approx. 1 sec
資料輸出 (Data Output)

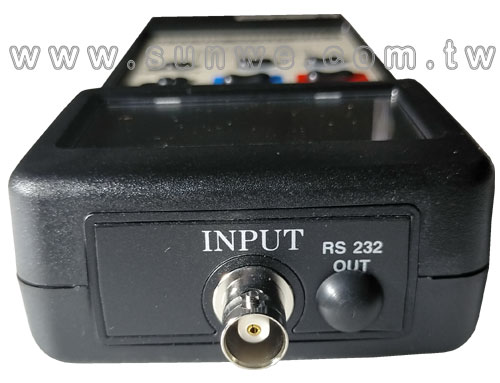

- RS 232 PC serial interface.
操作溫度 (Operating Temp.)
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 6 mA.
重量 (Weight)
- Meter : 230 g/0.50 LB
- Probe : 38 g/0.09 LB
尺寸 (Size)

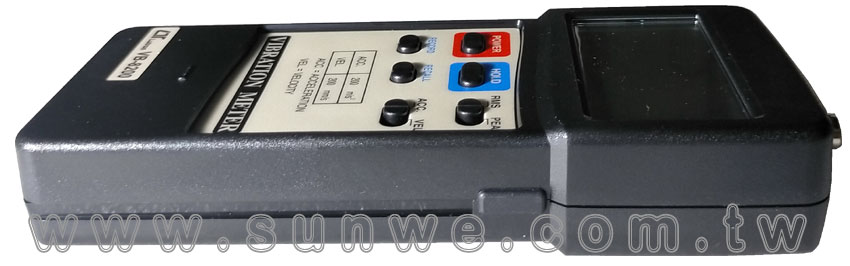

- Meter : 180 x 72 x 32 mm ( 7.1 x 2.8 x1.3 inch ).

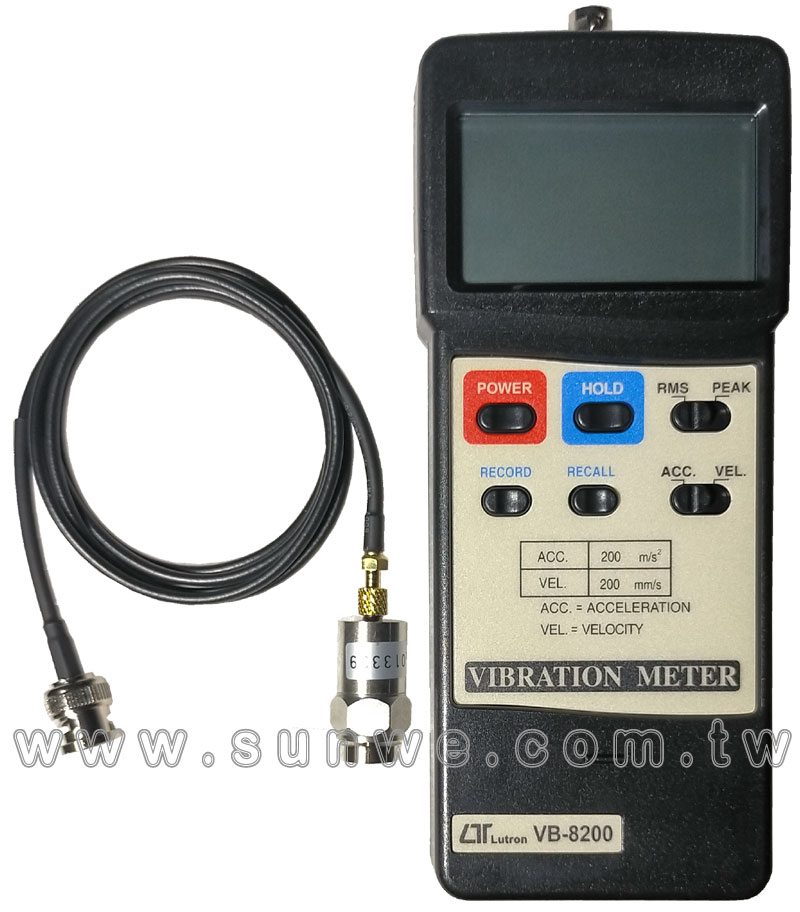

- Vibration sensor probe : Round 19 mm Dia. x 21 mm.

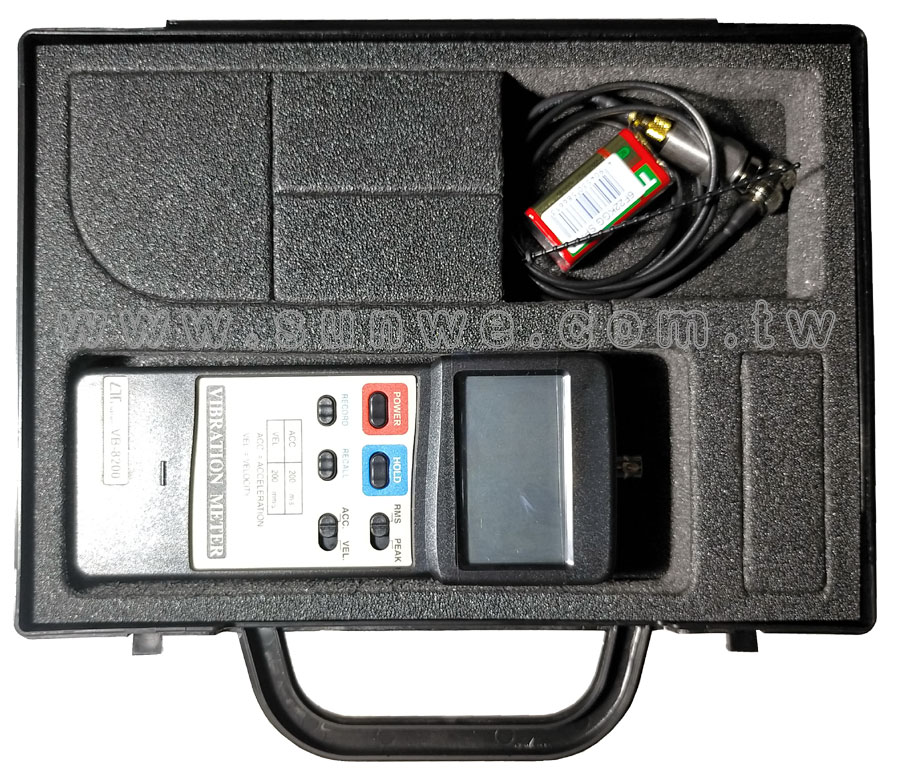

附件 (Standard Accessory)
- Instruction manual............. 1 PC
- Vibration sensor................1 PC
- Magnetic base...................1 PC
- Carrying Case.................. 1 PC
選購附件 (Optional & accessories Temp. Probe)
- Software ( Windows version, data record & data acquisition ).SW-U801-WIN
- RS232 cable, UPCB-01
- USB cable, USB-01
|
