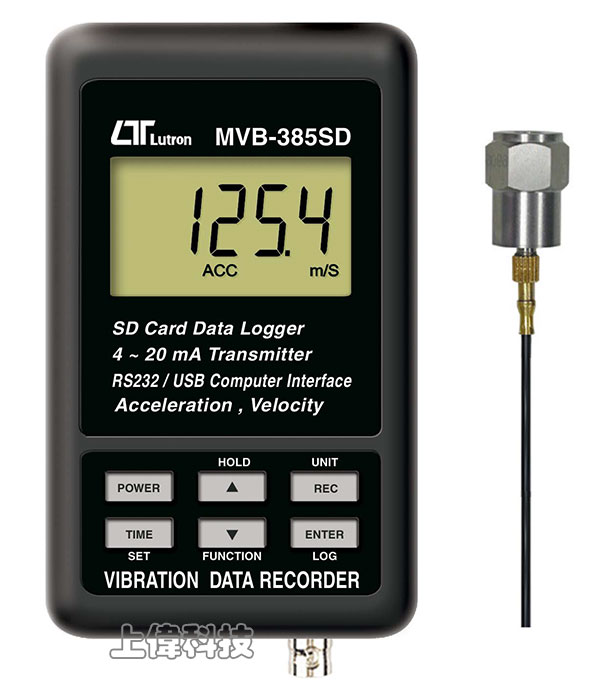

MVB-385SD
記憶式振動計
特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 測量範圍 :
- 速度(VEL)： 0.5 ~ 199.9 mm/s
- 加速度(ACC)：0.5 ~ 199.9 m/s²
- 頻率範圍 : 10 ~ 1 KHz
- 精確度 : ±5%
- DC 4~20mA 訊號輸出
- 讀值鎖定及記錄測量中之最大/最小值
- RS-232/USB 輸出介面 (軟體選購)
- Size : 132 x 80 x 32 mm
FEATURES
- Applications
for industrial vibration monitoring : All industrial machinery
vibrates. The level of vibration is a useful guide to machine
condition. Poor balance, misalignment & looseness of the
structure will cause the vibration level increase, it is a sure
sign that the maintenance is needed.
- Frequency
range 10 Hz – 1kHz, sensitivity relative meet IOS 2954.
- Profressional vibration
meter supply with vibration sensor & magnetic base, full set.
- Metric &
Imperial display unit.
- Acceleration, Velocity
measurement.
- RMS, Max hold , Peak value
measurement.
- Max. Hold reset button,
Zero button.
- Wide frequency range.
- Data hold button to freeze
the desired reading.
- Memory function to record
maximum and minimum reading with recall.
- Separate vibration probe
with magnetic base, easy operation.
- Real time SD memory card
Datalogger, it Built-in Clock And Calenda, real time data recorder, sampling
time set From 5 second to 3600 seconds.
- Innovation and easy
operation, computer is not need to setup extra software, after execute
datalogger, just take away the SD card from the meter and plug in the SD
card into the computer, it can down load the all the measured value with the
time information(year/month/date/hour/minute/second) to the Excel directly,
then user can make the further data or graphic analysis by themselves.
- SD card capacity : 1 GB to
16 GB.
- LCD with green light
backlight, easy reading.
- Can default auto power off
or manual power off.
- Data hold, record max. and
min. reading.
- Microcomputer circuit,
high accuracy.
- Power by UM4/AAA( 1.5V ) x
6 batteries or DC 9V adapter.
- RS232/USB PC COMPUTER
interface.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 60 mm x
50 mm
測量 (Measurement)
- Velocity, Acceleration, Displacement
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
資料集錄器取樣時間 (Datalogger Sampling Time
)
-
5/10/30/60/120/300/600/1800/3600 seconds.
資料錯誤數 (Data error no.)
- ≦ 0.1 % no. of total saved data
typically.
顯示更新時間 (Update Time of Display)
- Approx. 1 second if measuring data is
changed.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
* Set Auto power OFF management
* Set beep Sound ON/OFF
*
Set SD card Decimal character
* SD memory card Format
- *
Set UNIT
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
* Meter & probe
-
DC 9V adapter input. ( AC/DC power adapter is
included ).
電源供應 (Power Supply)
* Clock backup probattery
-
Alkaline or heavy duty DC 1.5 V
battery ( UM4, AAA ) x 6 PCs, or equivalent.
重量 (Weight)
- 199 g/0.44 LB.
體積 (Dimension)
- 132 x 80 x 32 mm (
5.2 x 3.1 x 1.3 inch )
附件 (Standard Accessory)
- * Instruction manual.......................1 PC
- * Vibration
Sensor(VB-81A)................ 1 PC.
* Magnetic base for VB
sensor..............1 PC.
*
Plug for the 4-20 mA output, SKT-AS385......1 PC.
* AC-AP9VA (AC to DC 9V
adapter)............... 1 PC.
選購附件 (Optional accessories)
- SD Card ( 4 G ).
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data Acquisition software,SW-U801-WIN.
- Excel Data Acquisition software, SW-E802.
電器規格
ELECTRICAL SPECIFICATIONS (23±5 ℃)
|
Function |
Unit |
Range and Resolution |
Accuracy |
|
Acceleration |
m/s^2 |
0.5 to 199.9 m/s^2 |
± ( 5%rdg + 2 d ) @ 80
and 160Hz |
| g |
0.05 to 20.39 G |
| ft/s2 |
2 to 656 ft/s2 |
| Calibration Point: 50
m/S^2 ( 160 Hz ) |
|
Velocity |
mm/s |
0.5 to 199.9 mm/s |
± ( 5%rdg + 2 d ) @ 80
and 160Hz |
| cm/s |
0.05 to 19.99 cm/s |
| inch/s |
0.02 to 7.87 inch/s |
| Calibration Point: 50
mm/s ( 160 Hz ) |
|
|
