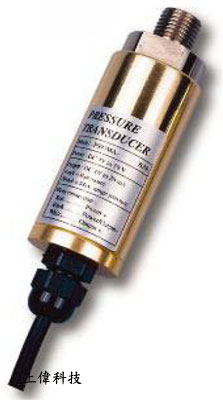

PS-93DV-XXBAR
壓力傳送器
特色
- 五種型號選擇 :
- PS93DV-2BAR ( 0~2BAR/29PSI )
- PS93DV-5BAR ( 0~5BAR/72.5PSI )
- PS93DV-10BAR ( 0~10BAR/145PSI )
- PS93DV-20BAR ( 0~20BAR/290PSI )
- PS93DV-50BAR (0~50BAR/725PSI )
- 輸出訊號：直流 (DC) 0~100mV
- 工作電壓 : 直流 (DC) 9~30V
- 精確度 : ±1%
- Size : 直徑30mm x 長85mm
規格
最大容量及型號 (Max capacity & model)
| Range, full scale |
Model |
| 2 BAR ( 29 PSI ) |
PS93DV-2BAR |
| 5 BAR ( 72.5 PSI ) |
PS93DV-5BAR |
| 10 BAR ( 145 PSI ) |
PS93DV-10BAR |
| 20 BAR ( 290 PSI ) |
PS93DV-20BAR |
| 50 BAR ( 725 PSI ) |
PS93DV-50BAR |
供應電壓 (Supply voltage)
- DC 9V to 30 V
轉換器埠連接器 (Transducer Port Connector)
- 1/4" NPT or 1/4" PS.
- * Included one adapter connector that convert the 1/4" NPT to 1/4 " PS.
差距 (Span)
- ± 1 % F.S.
- @ Within 10 ℃ to 40 ℃ .
- @ Linearity + Hysteresis + Repeatability.
歸零 (Zero)
- ± 2 % F.S.
- @ Within 10 ℃ to 40 ℃
輸出阻抗 (Output Impedance)
- 100 k ohm.
操作溫度 (Operating Temp.)
- 0 ℃ to 60 ℃ ( 32 ℉ to 140 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
輸出 (Output)
- Output : DC 0V to 100 mV
- 0 DCV = 0 pressure
- 100 DC mV = Max. range pressure
尺寸 (Size)
- 30 mm dia. x 85 mm.
重量 (Weight)
- 160 g.
纜線長度 (Cable length)
- 1 meter.
芯線連接 (Wire Connection)
- Red..................................... Power +
- Connection Black........................ Power -
- White................................... Signal +
- Green .................................. Signal -
|
