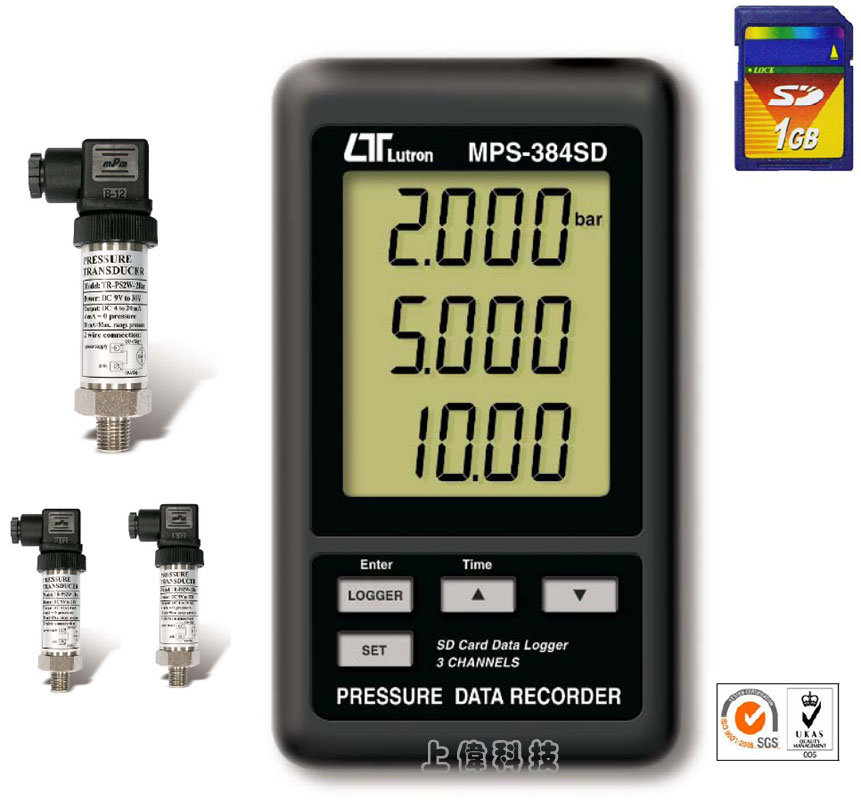

MPS-384SD
記憶式壓力計
特色
- 即時將儀表輸出數據紀錄儲存於SD記憶卡,資料可下載到Excel,座圖表分析 (記憶卡選購)
- 需選購 TR-PS2W-**BAR 兩線式壓力傳送器
- 可同時使用三組壓力傳送器,同時顯示記錄
- 輸入訊號 : 直流 4~20mA
- 電源 : 直流 9伏特
- 八種單位選擇切換 : mbar'psi'Kg/cm2'mm/Hg'inch/Hg'meter/H2o'inch/H2O'Atmosphere
- RS-232/USB 連接介面(軟體選購)
- Size : 132 x 80 x 32mm
FEATURES
- Monitor with real time data logger, save the measuring data along the time information ( year, month, date, hour, minute, second ) into the SD memory card and can be down load to the Excel, extra software is no need. user can make the further data or graphic analysis by themselves.
- Show 3 channels ( CH 1, CH 2, CH 3 ) pressure value in the same LCD.
- Cooperate withthe optional 2 wires pressure transmitter.
- SD card capacity : 1 GB to 16 GB.
- Sampling adjustment : 5/10/30/60/120/300/600 seconds and auto function.
- Large LCD display, easy readout.
- Microcomputer circuit, high accuracy.
- Low power consumption and long battery life when use battery power.
- DC 1.5V ( UM-4, AAA ) battery x 6 PCs or DC 9V adapter in.
- RS232/USB computer interface.
- Full range, optional 2 wires pressure transmitter.
- Patented
規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 60 mm x 50 mm
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
CH1 , CH2 , CH3 輸入訊號 (Input Signal CH1, CH2, CH3)
- Linear, 4 to 20 mA
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- 5/10/30/60/120/300/600 seconds Sampling Time or Auto.
- * Default sampling time is 60 seconds.
- * The " Auto " sampling . means when the measuring value is changed ( > ± 10 digits ) will save the data one time only.
資料誤差數 (Data error no.)
- 0.1% of total saved data typically.
優越的設定 (Advanced setting)
- * SD memory card Format
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
- * Set beeper sound ON/OFF
- * Set SD card Decimal character
- * Set CH1 sensor type
- * Set CH2 sensor type
- * Set CH3 sensor type
- * Set pressure unit
- * Set RS232 data output ON/OFF
顯示器更新時間 (Update Time of Display)
- Approx. 1 second if measuring data is changed.
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp.)
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply) * Meter & probe
- *DC 9V adapter input. ( AC/DC power adapter is included ).
電源供應 (Power Supply) * Clock backup battery
- *DC 9V adapter input. ( AC/DC power adapter is included ).
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 14 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 37 mA.
- * If LCD backlight on, the power consumption will increase approx. 12 mA.
重量 (Weight)
- 199 g/0.44 LB.
體積 (Dimension)
- 132 x 80 x 32 mm ( 5.2 x 3.1 x 1.3 inch )
附件 (Standard Accessory)
- Instruction manual........................... 1 PC
- AC to DC 9V adapter.......................... 1 PC
- Hanging unit ( with sticker ).................1 PC
選購附件 (Optional Accessories)
- * SD Card ( 2 GB )
- * 2 wires pressure transmitter, TR-PS2W
- * AC to DC 9V adapter.
- * USB cable, USB-01.
- * RS232 cable, UPCB-02.
- * Data Acquisition software, SW-U801-WIN.
- * Excel Data Acquisition software, SW-E802.
電器規格
ELECTRICAL SPECIFICATIONS (23±5 ℃)
| Sensor type |
2 bar |
5 bar |
10 bar |
20 bar |
| |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
| bar |
2 |
0.002 |
5 |
0.005 |
10 |
0.01 |
20 |
0.02 |
| psi |
29 |
0.02 |
72.5 |
0.1 |
145 |
0.2 |
290 |
0.2 |
| Kg/cm^2 |
2.040 |
0.002 |
5.095 |
0.005 |
10.19 |
0.01 |
20.40 |
0.02 |
| mm Hg |
1500 |
2 |
3750 |
5 |
7500 |
10 |
15000 |
20 |
| inch Hg |
59.05 |
0.05 |
147.6 |
0.1 |
295.2 |
0.2 |
590.5 |
0.5 |
| meter H20 |
20.40 |
0.02 |
50.95 |
0.05 |
101.9 |
0.1 |
204.0 |
0.2 |
| inch H20 |
802 |
1 |
2006 |
2 |
4010 |
5 |
8020 |
10 |
| Atmosphere |
1.974 |
0.002 |
4.935 |
0.002 |
9.87 |
0.01 |
19.74 |
0.02 |
| kPa |
200.0 |
0.2 |
0.5 |
0.2 |
1000 |
1 |
2000 |
2 |
| Sensor type |
50 bar |
100 bar |
200 bar |
400 bar |
| |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
Max. range |
Resolution |
| bar |
50 |
0.05 |
100 |
0.1 |
200 |
0.2 |
400 |
0.5 |
| psi |
725 |
1 |
1450 |
2 |
290 |
2 |
5800 |
5 |
| Kg/cm^2 |
50.95 |
0.05 |
101.9 |
0.1 |
204.0 |
0.2 |
408 |
0.5 |
| mm Hg |
37500 |
50 |
75000 |
100 |
15000 |
200 |
300000 |
500 |
| inch Hg |
1476 |
1 |
2952 |
2 |
5905 |
5 |
11810 |
10 |
| meter H20 |
509.5 |
0.5 |
1019 |
1 |
2040 |
2 |
4075 |
5 |
| inch H20 |
20050 |
20 |
40100 |
50 |
8020 |
100 |
160600 |
200 |
| Atmosphere |
49.35 |
0.05 |
98.7 |
0.1 |
197.4 |
0.2 |
394.5 |
0.5 |
| kPa |
5000 |
5 |
10000 |
10 |
20000 |
20 |
40000 |
50 |
|
