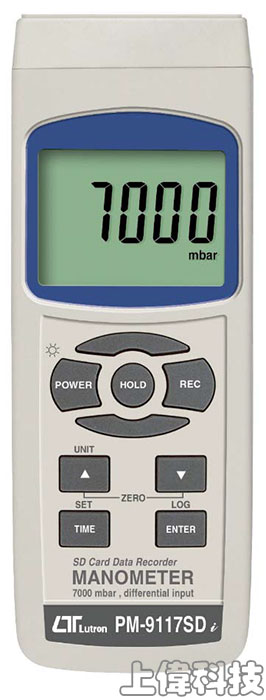

PM-9117SD
記憶式壓力/差壓計
特色
- 即時將儀表輸出數據紀錄儲存於SD記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 測量範圍 : 0 ~ 7000毫巴(mbar)
- 雙壓力感應器,可測量壓力及差壓
- 精確度 : ±2% (滿刻度)
- 八種單位選擇切換 : mbar, psi, Kg/cm^2 , mm Hg, inch Hg, meter H2O, inch H2O, Atmosphere, hpa , kpa
- 讀值鎖定及記錄測量中之最大/最小值
- RS-232/USB 連接介面(軟體選購)
- Size : 190 x
68 x 45mm
FEATURES
- Dual & differential input, 200
mbar max. range.
- Application : Industrial,
laboratory, heating, ventilation, medical hospital, used for air
or not corrosive and not ionized gas & liquid.
- Sensor is built inside the
housing.
- Single lugs for pipe
connection.
- 10 kind display units (
mbar, psi, Kg/cm^2 , mm Hg, inch Hg, meter H2O, inch
H2O, Atmosphere, hpa , kpa ) select by push button on
the front panel
- Auto shut off saves
battery life.
- Zero button on the front
panel, easy to offset the zero value.
- Microprocessor circuit
assures maximum possible accuracy, provides special
functions and features,
- Super large LCD display
with contrast adjustment for best viewing angle.
- setup extra software,
after execute datalogger, just take away the SD card
from the meter and plug in the SD card into the
computer, it can down load the all the measured value
with the time information (
year/month/date/hour/minute/second ) to the Excel
directly, thenuser can make the further data or graphic
analysis by themselves.
- SD card capacity : 1 GB to
16 GB.
- LCD with green light
backlight, easy reading.
- It can default auto power
off or manual power off.
- Data hold, record max. and
min. reading.
- Microcomputer circuit,
high accuracy.
- Power by UM3/AA ( 1.5 V )
x 6 batteries or DC 9V adapter.
- RS232/USB PC COMPUTER
interface.
規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 51 mm x 37 mm.
- LCD with green backlight ( ON/OFF ).
顯示單位 (Display units)
- psi , inch Hg , inch H2O , hPA , KPA, mbar,
Kg/cm^2 , mm Hg , meter H2O , Atmosphere.
測量功能 (Measurement Function)
- Dual & differential input, data hold, zero/relative, memory.
感應器 (Sensor)
- * Sensor is built inside the
housing.
- * Piezoelectric sensor.
- * Used for dry, non-corrosive and
non-ionic air and gas only Liquid is prohibited
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 sec to 8 hour 59 min. 59 sec @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second.
- @ Manual mode, can also select the 1 to 99 position (
Location ) no.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * SD memory card Format
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Decimal point of SD card setting
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
取樣時間 (Sampling Time)
- Approx. 1 sec
操作溫度 (Operating Temp.)
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD
Backlight is OFF) : Approx. DC 7 mA
- When SD card save the data but and LCD Backlight
is OFF) : Approx. DC 25 mA.
- * If LCD backlight on, the power consumption will increase approx. 10 mA.
重量 (Weight)
- 265 g/0.59 LB.
體積 (Dimension)
- 190 x 68 x 45 mm (7.5 x 2.7x 1.8 inch)
附件 (Standard Accessory)
- Instruction manual....................... 1 PC
- PLug for quick coupler................... 2 PCs.
- Hard carrying case, CA-06................ 1 PC
選購附件 (Optional Accessories)
- SD memory card ( 4 GB )
- AC to DC 9V adapter.
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data Acquisition software, SW-U801-WIN.
電器規格
ELECTRICAL SPECIFICATIONS (23±5 ℃)
| Unit |
Max. range |
Resolution |
Accuracy |
| m bar |
±7000 m bar |
5 m bar |
± 2 % F. S. ( F.S. : full scale ) Note : Included linearity, hysteresis and repeatability |
| psi |
±101.5 psi |
0.05/0.1 psi |
| Kg/cm^2 |
±7.135 Kg/cm^2 |
0.005 Kg/cm^2 |
| mm/Hg |
±5250 mm/Hg |
5 mm/Hg |
| inch/Hg |
±206.7 inch/Hg |
0.1 inch/Hg |
| h PA |
±7000 h PA |
5 h PA |
| K PA |
±700 K PA |
0.5 K PA |
| meter/H2O |
±71.35 meter/H2O |
0.05 meter/H2O |
| inch/H2O |
±2180 inch/H2O |
2 inch/H2O |
| Atmosphere |
±6.905 Atmosphere |
0.005 Atmosphere |
|
