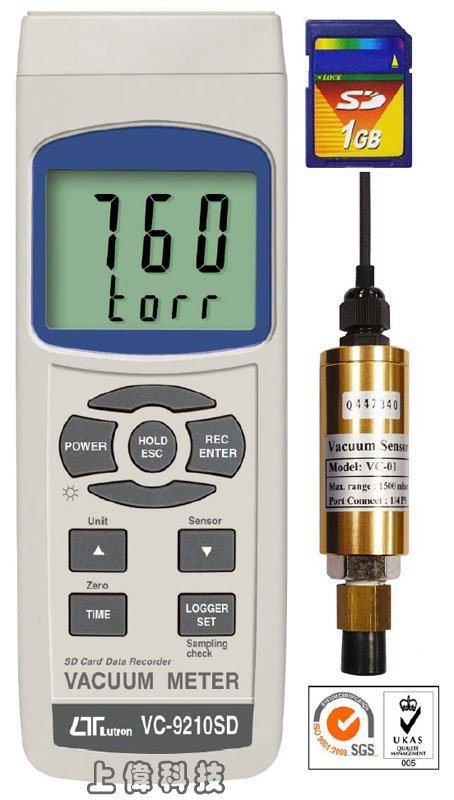

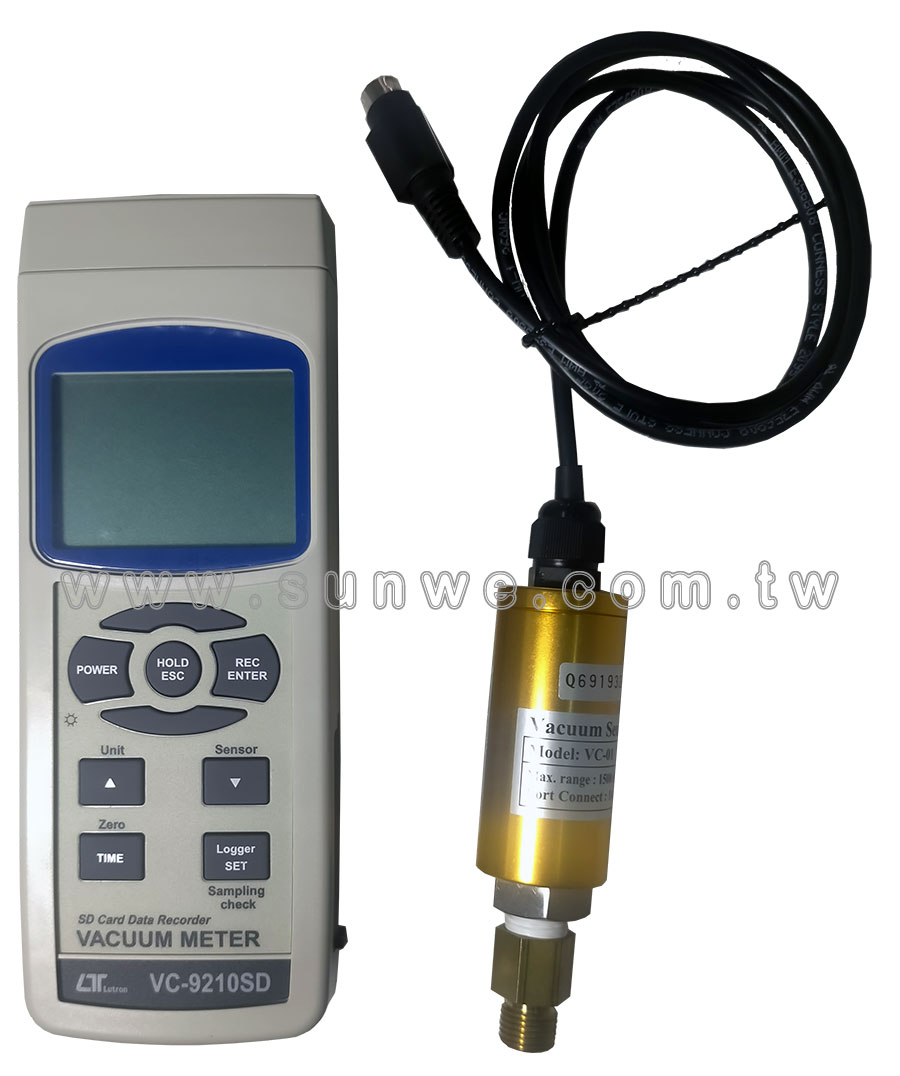

VC-9210SD
記憶式真空壓力計
特色
- 即時將儀表輸出數據紀錄儲存於SD記憶卡 , 資料可下載到Excel,座圖表分析 (記憶卡選購)
- 測量範圍 : 0 ~ 1500毫巴(mbar)
- 精確度 : ±1%
- 八種單位選擇切換 : mbar'Kpa'pa'toor'mm/Hg'micron'inch/Hg'psi
- 讀值鎖定及記錄測量中之最大/最小值
- RS-232/USB 連接介面(軟體選購)
- Size : 177 x 68 x 45mm
FEATURES
- Absolute vacuum & absolute pressure measurement.
- Wide measure range from 1 to 1500 mbar.
- Overload protection up to 2000 mbar max.

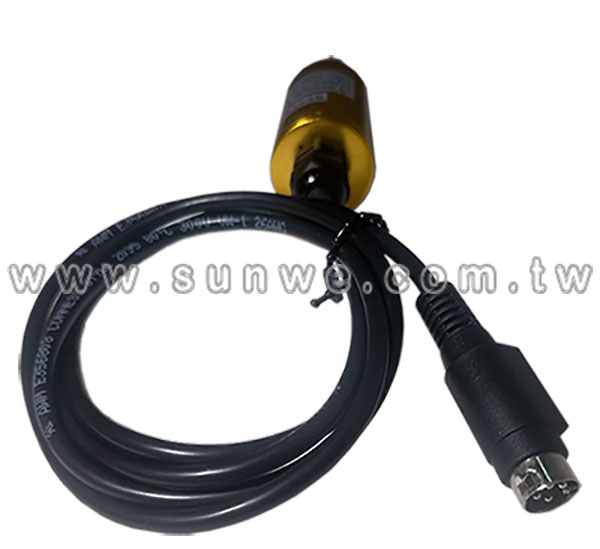

- Separate probe, easy operation.
- Application : Automobile, Industrial, laboratory, heating, ventilation, medical
hospital.....

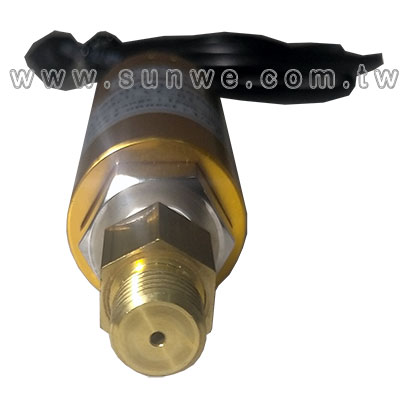

- Heavy duty sensor used for air, oil gas, liquid.
- 7 kind display units ( torr, mm Hg, mbar, KPa, hPa, inch Hg, psi ) select by push button on the front panel.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features,
- Real time SD memory card Datalogger, built-in Clock and Calendar, sampling time can set from 1 sec to 8 hour 59 min. 59 sec.
- Manual datalogger is available, during execute the manual datalogger function, it can set the different location no. ( position 1 to position 99 ).
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, the user can make the further data or graphic analysis by themselves.
- SD card capacity : 1 GB to 16 GB.
- LCD with green light backlight, easy reading.
- It can default auto power off or manual power off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.

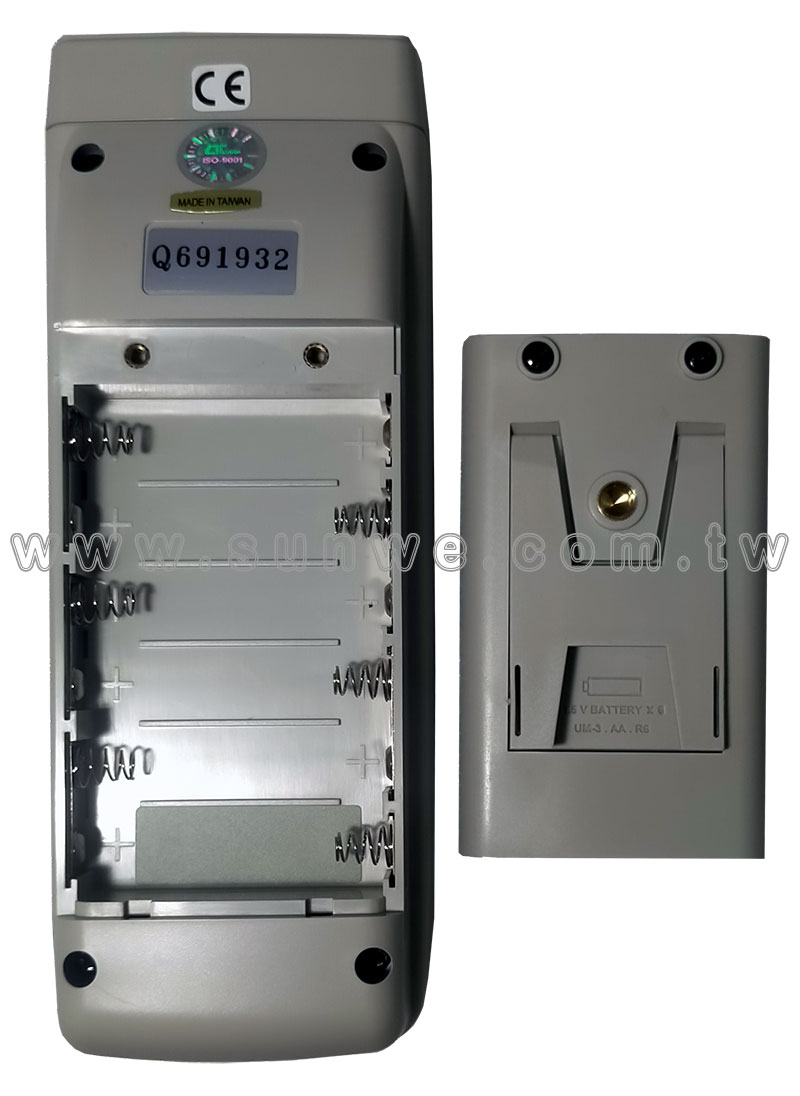

- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
- RS232/USB PC computer interface.
規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- LCD with green backlight ( ON/OFF ).
顯示單位 (Display units)
- 7 kind display units : torr, mm Hg, mbar, KPa, hPa, inch Hg, psi.
感應器型式 (Sensor type)
- Can cooperate with optional 2, 5, 10, 20, 50, 100, 200, 400 bar sensor, new calibration are not necessary when change the new sensor .
歸零調整 (Zero adjust)
- Push button on the front panel.
差距調整 (Span adjust)
- Push button gain adjustment, usage for calibration precisely if necessary.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 sec to 8 hour 59 min. 59 sec
- @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second.
- @ Manual mode, can also select the 1 to 99 position ( Location ) no.
資料誤差數 (Data error no.)
- 0.1% of total saved data max.

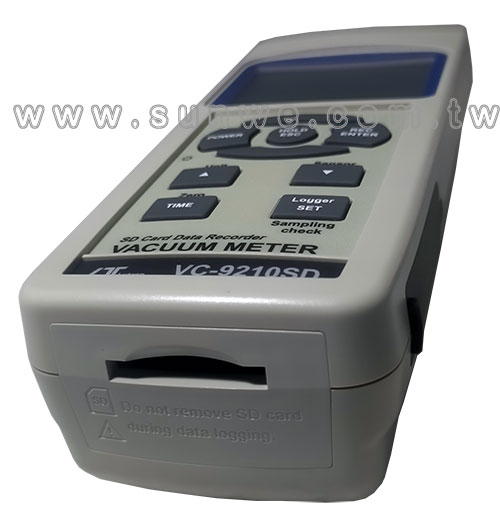

記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
優越的設定 (Advanced setting)
- * SD memory card Format
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Decimal point of SD card setting
取樣時間 (Sampling Time)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp.)
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 5 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 25 mA.
- * If LCD backlight on, the power consumption will increase approx. 12 mA.
重量 (Weight)
- 489 g/1.08 LB.
體積 (Dimension)
- 177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)
附件 (Standard Accessory)
- * Instruction manual............. 1 PC.
選購附件 (Optional Accessories)
- Pressure sensor, PS100-xxBAR

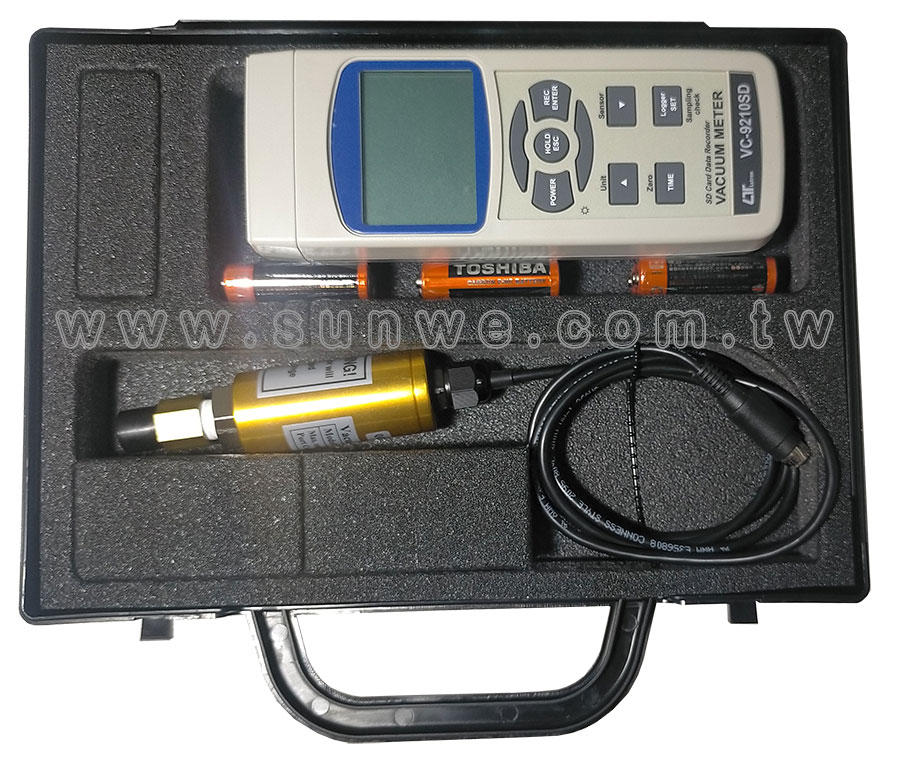

- Hard carrying case, CA-06.
- Soft carrying case, CA-05A.
- SD memory card ( 1 GB )
- SD memory card ( 2 GB )
- AC to DC 9V adapter.
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data Acquisition software,SW-U801-WIN.
電器規格
ELECTRICAL SPECIFICATIONS (23±5 ℃)
| Unit |
Max. range |
Resolution |
Accuracy |
| mbar |
1500 mbar |
1 mbar |
± 1 % F. S. ( F.S. : full scale ) Note : Included linearity, hysteresis and repeatability |
| KPa |
150.0 KPa |
0.1 KPa |
| hPa |
1500 hPa |
1 hPa |
| torr |
1125 torr |
1 torr |
| mm Hg |
1125 mm Hg |
1 mm Hg |
| inch Hg |
44.30 inch Hg |
0.02 inch Hg |
| psi |
21.75 psi |
0.01 psi |
|
