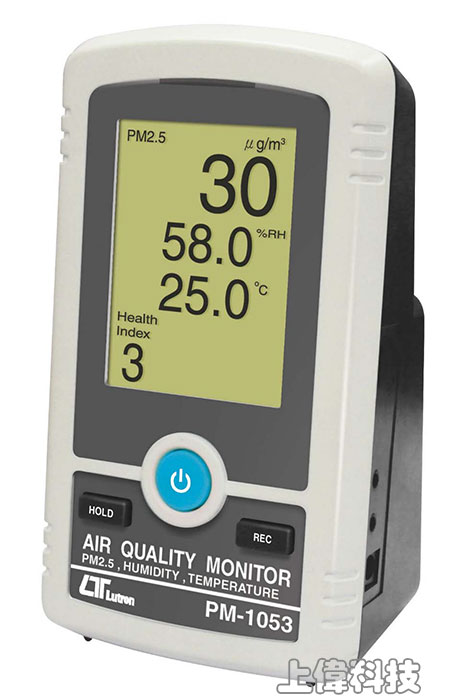

PM-1053

PM2.5 空氣品質測量儀

簡介

從粉塵監測空氣汙染物來源，石油化工,煉鋼廠,

餐廳油煙,室內裝潢,汽車排氣...等

PM2.5 範圍：0 ~ 250ug/m³ ±10% (細懸浮微粒)

溫度範圍: 0 ~ 50℃ ±0.8℃

溼度範圍: 5%~95%(RH) ±3%

健康指數標示 0 ~ 9 級，監測及警報指示

採可更換式空氣濾網

可記錄最大值、最小值及讀值鎖定

Size : 164 x 93 x 72mm

FEATURES

Monitoring air pollutant source from dust, petrochemical industry, steel-making plant,thermal power plant, restaurant, smoke, burning plants, driving automobiles.

The meter is a real-time air quality monitor instrument used to monitor the concentration of PM2.5, humidity and temperature in the indoor environment.

PM2.5 : 0 to 250 μ g/m^3, Humidity : 5 to 95 %RH, Temperature : 0 to 50 ℃,℃/℉.

Data hold, Record(Max,Min) * Dot matrix LCD display.

Power by UM3/AA(1.5V) X 6 batteries or DC 9V adapter

Replacement air filter.

RS232/USB PC computer interface

一般規格

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

顯示 (Display)

LCD Size: 2.18 X 2.87" (55.4 X 72.9 mm).

Dot matrix backlit LCD (128 X 240 pixels).

測量 (Measurement)

PM2.5(Particulate matter).

Humidity.

Temperature.

資料鎖定 (Data hold)

Freeze the display reading.

記憶回叫 (Memory Recall)

Maximum & Minimum value.

取樣時間 (Sampling Time)

Approx. 1 sec

資料輸出 (Data Output)

RS 232/USB PC computer interface.

* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.

* Connect the optional USB cable USB-01 will get the USB plug

操作溫度 (Operating Temp. )

0 to 50 ℃.

操作溼度 (Operating Humidity)

Less than 85% R.H.

電源供應 (Power Supply)

Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent

AC to DC 9V power adapter.

電源 消耗 (Power consumption)

DC 122 mA approximately.

Backlight ON approximately DC 142 mA.

重量 (Weight)

362 g/0.8 LB.

體積 (Dimension)

164 x 93 x 72 mm ( 6.5 x 3.7 x 2.8 inch ).

附件 (Standard Accessory)

Instruction manual...................... 1 PC

AC to DC 9V power adapter............... 1 PC

選購附件 (Optional & accessories Temp. Probe)

USB cable, USB-01.

RS232 cable, UPCB-02.

Data Acquisition software, SW-U801-WIN, SW-E802.

RS232 to WiFi CONVERTER, RSW-923, IOW-924.

Replacment air filter, AF-01.

電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)

PM2.5 (Particulate matter)

Range：0 to 250 μ g/m^3

Resolution：1 μ g/m^3

Accuracy：± ( 10 % reading ± 20μ g/m^3 )

Humidity

Range：5 % to 95 %RH

Resolution：0.1 %RH

Accuracy：< 70 %RH: ± 3 %RH

Temperature

Range：0.0 ℃ to 50.0 ℃，32.0 ℉ to 122.0 ℉

Resolution：0.1 ℃，0.1 ℉

Accuracy：± 0.8 ℃，± 1.5 ℉

　
