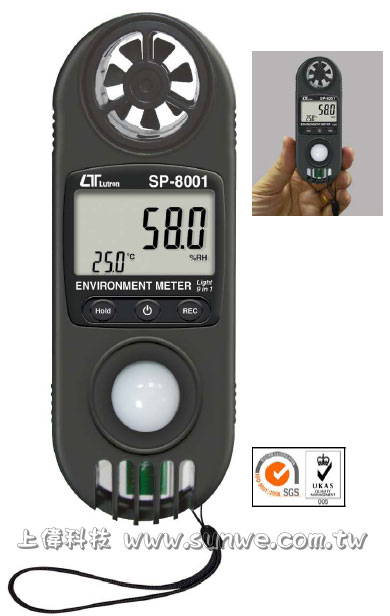

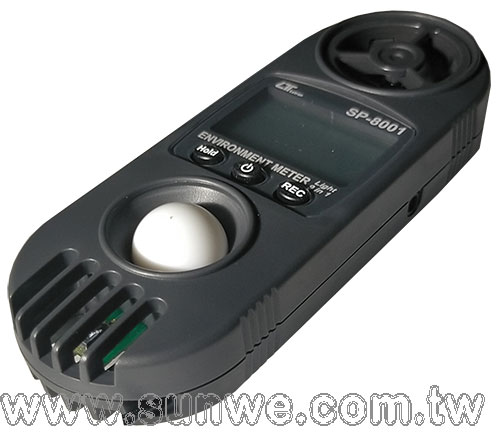

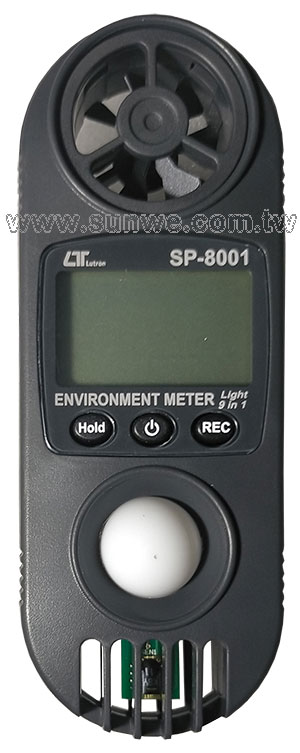

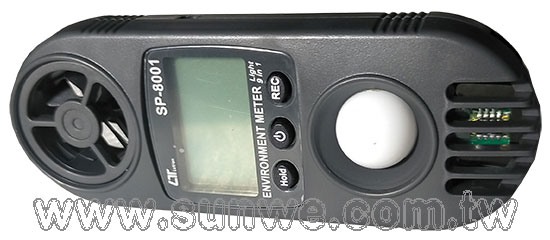

SP-8001
九合一記憶溫溼度測量儀
(風速/風量/溫濕度/照度/溫度/露點/溼球溫度/風寒指數/熱指數)
簡介
- 風速: 0.4~20.0米/秒.±3%
- 風量:CMM: 0.024~36000m3/min
- 溫溼度: 0~50.0℃ / 10.0~95.0%.±4%
- 照度: 0~20000LUX.±5%
- 溫度: (PT-1000)-10.0℃~70.0℃
- 露點: -25.3℃~49.0℃
- 溼球溫度: -5.4℃~49.0℃
- 風寒指數: -9.4℃~44.2℃
- 熱指數: 0℃~100.0℃
- 讀值鎖定及記錄測量中之最大/最小值
- Size:120*45*20mm.
FEATURES
- 9 in 1 professional environment instruments:
- 1. Air velocty/Temp.
- 2. Humidity/Temp.
- 3. Light
- 4. CFM, CMM,
- 5. Dew point
- 7. Wind chill
- 8. Heat index
- 9. Pt 1000 ohm Temp. ( optional )
- Tiny bone shape with lightweight and small size case design are suitable for handling with one hand.
- Wristlet design provides extra protection to the instrument especially for user one hand operation.
- Low-friction ball bearing mounted wheel design provides high accuracy at high and low air velocity.
- Exclusive photo diode and color correction filter light sensor, spectrum meets C.I.E. photopic.
- High precision humidity sensor with fast response time.
- Optional Pt 1000 ohm Temp. probe for the prcision Temp. measurement.
- Built- in microprocessor circuit assures excellent performance and accuracy.
- Concise and compact buttons arrangement, easy operation.
- Memorize the maximum and minimum value with recall.
- ℃/℉ detection by pressing button on the front panel.
- Hold function to freeze the current reading value.
一般規格
顯示 (Display)
- 8 mm LCD display
測量 (Measurement)
- 1. Air velocty/Temp.
- 2. Humidity/Temp.
- 3. Light
- 4. CFM, CMM,
- 5. Dew point
- 7. Wind chill
- 8. Heat index
- 9. Pt 1000 ohm Temp. ( optional )
操作溼度 (Operating Humidity)
- Max. 80% RH.
操作溫度 (Operating Temp.)
- 0 to 50° C (32 to 122° F)
電源消耗 (Power Consumption)
- Approx. DC 5 mA
重量 (Weight)
- 160g (battery included)
附件 (Standard Accessory)
- Instruction Manual
選購附件 (Optional accessories)
- Pt 1000 ohm Temp. probe, TP-1000
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
風速 (Air velocity)
|
Unit |
Range |
Resolution |
Accuracy |
| ft/min |
80 to 3937 ft/min |
1 ft/min |
± 3% F.S.
@ F.S. : full scale |
|
m/s |
0.4 to 20.0 m/s |
0.1 m/s |
| km/h |
1.4 to 72.0 km/h |
0.1 km/h |
| MPH |
0.9 to 44.7 mile/h |
0.1 MPH |
| knots |
0.8 to 38.8 knots |
0.1 knots |
| Temp. |
0 to 50 ℃ |
0.1 ℃ |
| 32 to 122 ℉ |
0.1 ℉ |
Remark :
- ft/min : feet per minute
- m/s : meters per second
- km/h : kilometers per hour
- MPH : miles per hour
- knots : nautical miles per hour
風量 (Air flow)
|
Unit |
Range |
Resolution |
| CMM |
0.024 to 36000 |
0.001/0.01/0.1/1 |
| CFM |
0.847 to 1271300 |
0.001/0.01/0.1/1/10 (x10)/100 (x100) |
溫溼度 (Humidity/Temp.)
|
Unit |
Range |
Resolution |
Accuracy |
| % RH |
10 to 95 %RH |
0.1 %RH |
< 70% RH : ± 4 %RH |
| ≧70% RH : ± ( 4 %rdg +1.2 %RH) |
| Temp. |
0 to 50 ℃ |
0.1 ℃ |
± 1.2 ℃ |
| 32 to 122 ℉ |
0.1 ℉ |
± 2.5 ℉ |
照度 (Light) * auto range
|
Unit |
Range |
Resolution |
Accuracy |
| Lux |
0 to 2,200 Lux |
1 Lux |
± 5% rdg ± 8 dgt |
| 1,800 to 20,000 Lux |
10 Lux |
| Ft-cd |
0 to 204.0 Fc |
0.1 Ft-cd |
| 170 to 1,860 Fc |
1 Ft-cd |
Remark :
- Ft-cd : feet candle
露點 (Dew point Temp.)
|
Unit |
Range |
Resolution |
| ℃ |
-25.3 to 49.0 ℃ |
0.1 ℃ |
| ℉ |
-13.5 to 120.0 ℉ |
0.1 ℉ |
Remark：
- * Calculate from the humidity/Temp. value
溼球溫度 (Wet bulb Temp.)
|
Unit |
Range |
Resolution |
| ℃ |
-5.4 to 49.0 ℃ |
0.1 ℃ |
| ℉ |
22.2 to 120 ℉ |
0.1 ℉ |
Remark：
* Calculate from the humidity/Temp. value
風寒指數 (Wind chill)
|
Unit |
Range |
Resolution |
Accuracy |
| ℃ |
-9.4 to 44.2 ℃ |
0.1 ℃ |
± 2.0 ℃ |
| ℉ |
15.0 to 112.0 ℉ |
0.1 ℉ |
± 3.6 ℉ |
- * Wind chill value is effect only when the Temp. value < 15 ℃ and Air velocity value > 1.4 m/s.
熱指數 (Heat index)
|
Unit |
Range |
Resolution |
Accuracy |
| ℃ |
0 to 100.0 ℃ |
0.1 ℃ |
± 2.0 ℃ |
| ℉ |
32 to 212 ℉ |
0.1 ℉ |
± 3.6 ℉ |
酷熱指數的影響 Effects of the heat index (shade values)
|
Celsius |
Fahrenheit |
Notes |
| 27– 32 ℃ |
80– 90 ℉ |
Caution : Fatigue is possible with prolonged exposure and activity.Continuing activity could result in heat cramps |
| 32– 41 ℃ |
90– 105 ℉ |
Extreme caution : Heat cramps, and heat exhaustion are possible. Continuing activity could result in heat stroke |
| 41– 54 ℃ |
105– 130 ℉ |
Danger : Heat cramps, and heat exhaustion are likely ; heat stroke is probable with continued activity |
| over 54 ℃ |
over 130 ℉ |
Extreme danger : Heat stroke is imminent |
Note :
- Exposure to full sunshine can increase heat index values by up to 8 ℃ ( 14℉
Pt 1000 ohm 熱電偶 Pt 1000 ohm Thermometer ( optional probe )
|
Unit |
Range |
Resolution |
Accuracy |
| ℃ |
-10.0 to 70.0 ℃ |
0.1 ℃ |
± 1.2 ℃ |
| ℉ |
14.0 to 158.0 ℉ |
0.1 ℉ |
± 2.5 ℉ |
|
