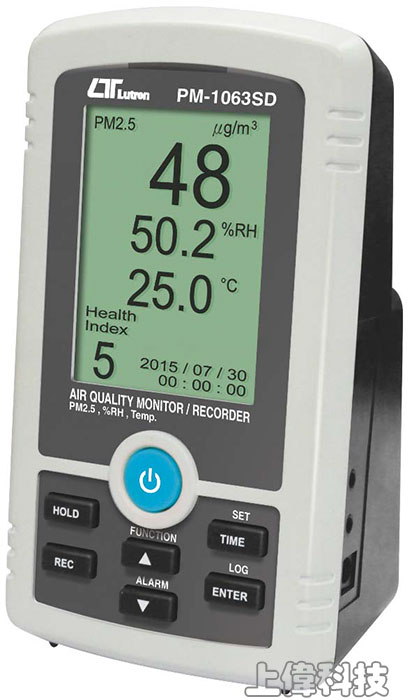

PM-1063
記憶式
PM2.5 空氣品質測量儀
簡介
- 即時測量數據可記錄儲存於SD記憶卡，資料可下載到Excel做圖表分析，SD記憶卡可支援1GB~16GB記憶卡容量.(記憶卡選購)
從粉塵監測空氣汙染物來源，石油化工,煉鋼廠,餐廳油煙,
室內裝潢,汽車排氣...等
- PM2.5 範圍：0 ~ 250ug/m³ ±10% (細懸浮微粒)
- 溫度範圍: 0 ~ 50℃ ±0.8℃
- 溼度範圍: 5%~95%(RH) ±3%
- 健康指數標示 0 ~ 9 級，監測及警報指示
- 採可更換式空氣濾網
- 可記錄最大值、最小值及讀值鎖定
- RS-232 / USB 輸出介面 (軟體選購)
Size : 164 x 93 x 72mm
FEATURES
- Monitoring air pollutant source from dust, petrochemical industry, steel-making plant,thermal power plant, restaurant, smoke, burning plants, driving automobiles.
- The meter is a real-time air quality monitor instrument used to monitor the concentration of PM2.5, humidity and temperature in the indoor environment.
- PM2.5 : 0 to 250 μ g/m^3, Humidity : 5 to 95 %RH, Temperature : 0 to 50 ℃,℃/℉.
- Data hold, Record(Max,Min)
* Dot matrix LCD display.
- Alarm setting with the beeper
sound output.
- Health index ( 0-9 ) detection and
alarm.
- Built-in clock and Calendar, real
time data record with SD memory card, sampling time can be set
from 1 second to 3600 seconds. Just slot the SD card into the
computer, all the measured values with the time information (
year, month, data, hour, minute, second ) can be downloaded to
the Excel directly, then user can make the further data analysis
by themselves.
- Manual data record is available,
can set the different position(location) No.( 1 to 99 ).
- SD card capacity : 1GB to 32GB.
- Dot matrix LCD display.
- Power by UM3/AA(1.5V) X 6 batteries or DC 9V adapter
- RS232/USB PC computer interface
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD Size: 2.18 X 2.87" (55.4 X 72.9 mm).
- Dot matrix backlit LCD (128 X 240 pixels).
測量 (Measurement)
- PM2.5(Particulate matter).
- Humidity.
- Temperature.
過載 (Measurement)
- LCD display show " OL ".
- The data save into the Micro SD card will show "
999 " (overleap the decimal point).
- Temperature.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
資料記錄 (Data Recording)
- SD memory card. 1 GB to 16 GB.
取樣時間 (Sampling Time)
- Approx. 1 sec
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Real time data logger, saved the data into Micro SD memory card and down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) down load to the Excel.
- Sampling time for data logger : Auto: 2 seconds to 3600 seconds.
- Manual: Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second.
- @ Manual mode, can also select the 1 to 99 position.
- When the system detects micro SD format does not match with the Machine that will be mandatory for reformatting to ensure that data records can be normal.
- Data error no. : ≦ 0.1% no. of total saved data typically.
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get
the USB plug
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent
- AC to DC 9V power adapter.
電源
消耗 (Power consumption)
- DC 122 mA approximately.
- Backlight ON approximately DC 142 mA.
重量 (Weight)
- 362 g/0.8 LB.
體積 (Dimension)
- 164 x 93 x 72 mm ( 6.5 x 3.7 x 2.8 inch ).
附件 (Standard Accessory)
- Instruction manual...................... 1 PC
- AC to DC 9V power adapter............... 1 PC
選購附件 (Optional & accessories Temp. Probe)
- SD memory card ( 4 GB ).
- USB cable, USB-01
- RS232 cable, UPCB-02.
- Data Acquisition software, SW-U801-WIN, SW-E802.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
PM2.5 (Particulate
matter)
- Range：0 to 250 μ g/m^3
- Resolution：1 μ g/m^3
- Accuracy：± ( 10 % reading ±
20μ g/m^3 )
Humidity
- Range：5 % to 95 %RH
- Resolution：0.1 %RH
- Accuracy：< 70 %RH: ± 3 %RH
Temperature
- Range：0.0 ℃ to 50.0 ℃，32.0
℉ to 122.0 ℉
- Resolution：0.1 ℃，0.1 ℉
- Accuracy：± 0.8 ℃，± 1.5 ℉
|
