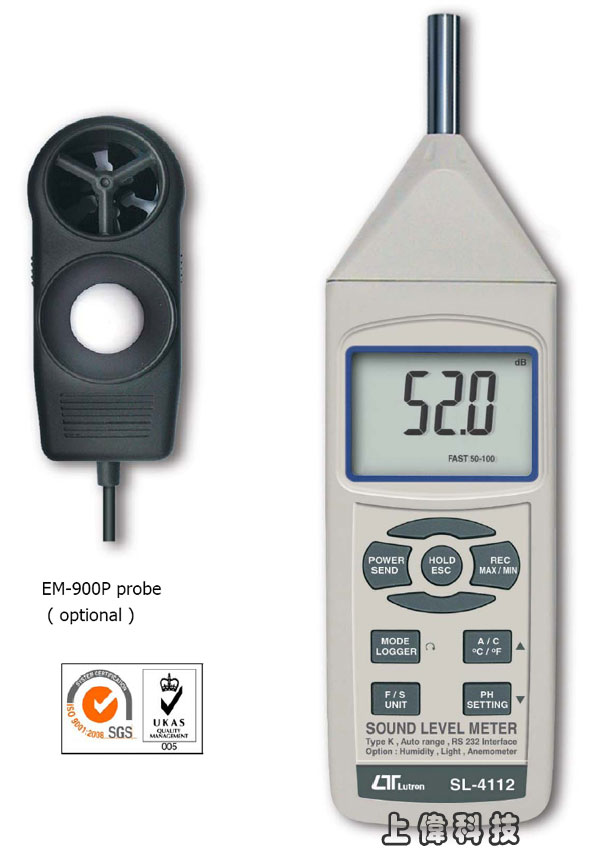

SL-4112
多功能噪音計

特色
- 噪音測量範圍:30dB ~ 130dB(分貝) . ±1.5db
- 測量頻率範圍:31.5 ~ 8000HZ
- 符合國際規範IEC61672 Class2
- A&C頻率加權及時間加權選擇
- 溫度範圍 :
- Type K:-100°C ~ 1300.0°C
- Type J:-100°C ~ 1200.0°C
- 選購EM-900P可測照度:0 ~ 20000LUX
- 溫溼度:0 ~ 95.0% / 0 ~ 50.0°C
- 風速:0.4 ~ 25.0 米/秒
- 可記錄1600筆資料
- 可記錄測量中之最大/最小值及讀值鎖定
- RS-232 / USB 連接介面 (軟體選購)
- Size : 245 x 68 x 41mm.
FEATURES
- Large LCD display, easy to read.
- Frequency and Time weighting meet IEC 61672 class 2.
- A, C frequency weighting networks is selected.
- Time weighting (Fast & Slow) dynamic characteristic modes.
- 0.5" standard microphone head.
- AC output for system expansion.
- RS232/USB computer interface.
- Auto range & Manual range selection.
- Available for external calibration adjustment.
- Condenser microphone for high accuracy & long-term stability.
- Memory function to store the Max. & Min. value.
- Hold and Peak Hold functions.
- Build in type K and type J thermometer.
- Optional probe ( EM-900P ) for Humidity/Temp., Light and Anemometer measurement.
- Data logger with 1,600 no. memory, sampling time can select to 1, 2, 5, 10, 30, 60, 600, 1800 or 3600 seconds.
- DC 1.5 V battery ( UM-4, AAA ) X 6 or DC 9V adapter in.
- Operation key used push button.
- LCD display for low power consumption & clear read-out even in bright ambient light condition.
- Using the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.
- Small and light weight design allow one hand operation.
- Patent.
一般規格
顯示 (Display)
- 51 mm x 37 mm LCD (Liquid crystal display), 5 digits with annunciator.
資料集錄器 (Data Logger)
- Data logger with 1,600 no. memory, sampling time can select to 1, 2, 5, 10, 30, 60, 600, 1800 or 3600 seconds.
操作溫度 (Operating Temp. )
- 0 to 50 ℃. ( 32℉ to 122℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- DC 1.5 V battery ( UM4, AAA ) x 6 PCs, or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 19 mA.
重量 (Weight)
- 358 g/0.79 LB (including battery).
尺寸 (Size)
- 245 x 68 x 41 mm ( 9.6 x 2.7 x 1.6 inch).
附件 (Standard Accessory)
- Instruction manual ................................... 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- 94 dB Sound Calibrator : Model : SC-941. SC-942.
- Sound wind shield ball Model : SB-01
- USB cable Model : USB-01
- RS232 cable ( isolated RS232 cable ) : Model : UPCB-02.
- * Data Acquisition software Model : SW-U801-WIN.
- * Data logger transfer software Model : SW-DL2005.
-
Type K Temperature probe : Model : TP-01 TP-02A, TP-03. TP-04
-
Humidity, Light, Temp., Anemometer probe Model : EM-900P
- Hard carrying case : Model : CA-06
噪音計電器規格 Electrical specification for Sound level meter
功能 (Function)
- dB ( A & C frequency weighting )
- Time weighting ( Fast, Slow)
- Hold, Memory ( Max. & Min. )
- Peak hold
- AC output
- RS232 output
預設功能 (Meter default Function)
- Range set to auto range.
- Frequency weighting set to A weighting.
- Time weighting set to fast.
測量範圍 (Measurement Range)
- 30 - 130 dB.
解析度 (Resolution)
- 0.1 dB.
範圍選擇 (Range selector)
- Auto range : 30 to 130 dB.
- Manual range : 3 range
- 30 to 80 dB
- 50 to 100 dB
- 80 to 130 dB
- 50 dB on each step, with over & under range indicating
測量頻率 (Measurement Frequency)
- 31.5 Hz to 8,000 Hz.
麥克風 (Microphone type)
- Electric condenser microphone.
麥克風尺寸 (Size of microphone)
- Out size, 12.7 mm DIA. ( 0.5 inch).
頻率加權網路 (Frequency Weighting Network)
- Characteristics of A & C.
- A weighting - The characteristic is simulated as "Human Ear Listing" response. Typical, if making the environmental sound level measurement, always select to A weighting.
- C weighting - The characteristic is near the "FLAT" response. Typical, it is suitable for checking the noise of machinery (Q.C. check) & knowing the sound pressure level of the tested equipment.
快慢時間加權 Time weighting (Fast, Slow)
- Fast - t= 200 ms
- Slow - t = 500 ms
- * "Fast" range is simulated the human ear response time.
- * "Slow" range is easy to get the avg. values of vibration sound level.
- * The "Fast" & "Slow" response range are designed to meet IEC 61672 class 2 requirement.
校正器 (Calibrator)
- B & K (Bruel & kjaer), multi-fuction acoustic calibrator, model : 4226.
輸出訊號 (Output Signal)
- * AC output - AC 0.5 Vrms corresponding to each range step.
- Output impedance - 600 ohm.
- * RS232 output.
輸出端子 (Output terminal)
- Terminal 1 : RS232 computer interface terminal.
- Terminal 2 : AC output terminal.
- * Terminal socket size : 3.5 mm dia. phone socket.
校正 VR (Calibration VR)
- * Build in external calibration VR, easy to calibrate by external screw driver.
K/J型溫度計電器規格 Electrical specification for Type K/J thermometer
Sensor type |
Resolution |
Range |
Accuracy |
Type K |
0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.4 % + 0.8 ℃ ) |
-50.1 to -199.9 ℃ |
± ( 0.4 % + 1 ℃ ) |
0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.4 % + 1.5 ℉ ) |
-58.1 to -327.8 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
Type J |
0.1 ℃ |
-50.0 to 1100.0 ℃ |
± ( 0.4 % + 0.8 ℃ ) |
-50.1 to -199.9 ℃ |
± ( 0.4 % + 1 ℃ ) |
0.1 ℉ |
-58.0 to 2012.0 ℉ |
± ( 0.4 % + 1.5 ℉ ) |
-58.1 to -327.8 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
- * Accuracy value is specified for the meter only.
- * Temp. probe ( Type K, TP-01 TP-02A, TP-03. TP-04 ) is the optional accessories.
選購 EM-900P 測棒電器規格 ELECTRICAL SPECIFICATIONS FOR OPTIONAL PROBE EM-900P
風速計 Anemometer
風速 (Air velocity)
Measurement |
Range |
Resolution |
Accuracy |
m/S |
0.4 - 25.0 m/s |
0.1 m/s |
± (2% + 0.2 m/sec) |
Km/h |
1.4 - 90.0 km/h |
0.1 km/h |
± (2% + 0.8 km/h) |
Knot |
0.8 - 48.6 knots |
0.1 knots |
± (2% + 0.4 knots) |
Ft/min |
80 - 4930 ft/min |
1 ft/min |
± (2% + 40 ft/min) |
Mile/h |
0.9 - 55.9 mile/h |
0.1 mile/h |
± (2% + 0.4 mile/h) |
Remark :
- ft/min : feet per minute
- MPH : miles per hour
- m/s : meters per second
- knots : nautical miles per hour
- km/h : kilometers per hour
- Ft-cd : feet candle
溫度 (Temperature)
Measurement |
Range |
Resolution |
Accureacy |
Temperature |
0 ℃ to 50 ℃ |
0.01 ℃ |
± 0.8 ℃. |
32 ℉ to 122 ℉. |
0.01 ℉ |
± 1.5 ℉. |
溼度/溫度計 ( Humidity/Temp. meter )
Measurement |
Range |
Resolution |
Accureacy |
Humidity |
0 % to 95 % R.H. |
0.1 %RH |
< 70% RH : ± 3 %RH
≧70% RH : ± ( 3%rdg + 1 %RH ) |
Temperature |
0 ℃ to 50 ℃ |
0.1 ℃ |
± 0.8 ℃. |
32 ℉ to 122 ℉. |
0.1 ℉ |
± 1.5 ℉. |
照度計 (Light meter)
Measurement |
Range |
Resolution |
Accuracy |
Lux |
0 to 20,000 Lux |
1 Lux |
± 5% rdg ± 8 dgt |
Foot-candle |
0 to 1,860 Fc |
0.1 Ft-cd |
- Note: Ft-cd : Feet candle
|
